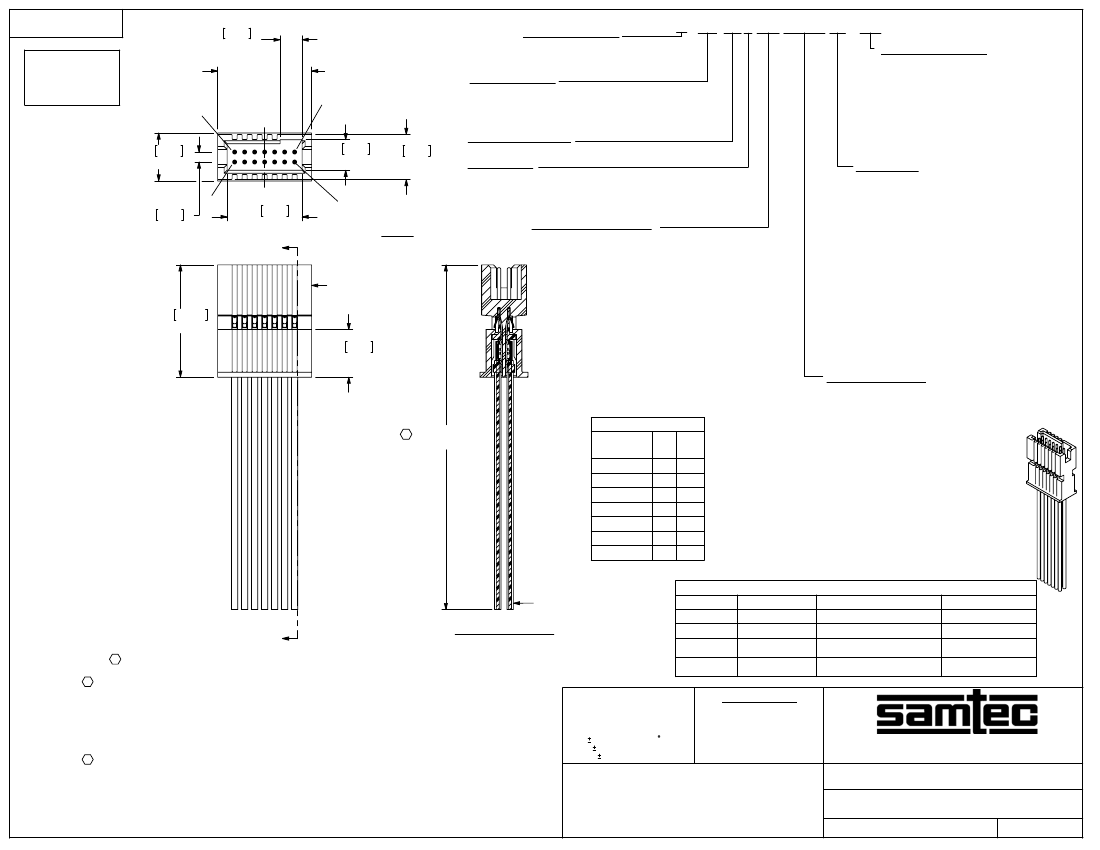

REVISION S
DO NOT
SCALE FROM
THIS PRINT
.110 2.79
REF
02
C
L
.240 6.10
REF
01
FEP CABLE OPTION
-T: FEP
(LEAVE BLANK FOR STANDARD
PVC INSULATION)
(No OF POS x .050[1.27])
No OF POSITIONS
+ .120[2.54] REF
-02 THRU -50 (PER ROW)
-02, -04, -05, -07, -10, -15, -20, -25, -30, -35,
N (SEE TABLE 2)
-40, -45 & -50 AVAILABLE AS STANDARD
(ALL OTHER SIZES AVAILABLE AS ASO)
WIRE GAUGE (AWG)
-28, -30
.153 3.89 .225 5.72
REF
COLOR CODE
REF
N-1 (SEE TABLE 2)
TFSDX-XX-XXX-XX-XX.XX-XX-XXX
-NXX OPTION (END 2)
(ONLY AVAILABLE WITH -D,-DL,-T,-TF,TR)
-NUS: NOTCH UP, STRAIGHT
(PIN 1 TO PIN 2)
-NDS: NOTCH DOWN, STRAIGHT
(PIN 1 TO PIN N-1)
-NUX: NOTCH UP, CROSSED
(PIN 1 TO PIN 1)
-NDX: NOTCH DOWN, CROSSED
(PIN 1 TO PIN N)
END OPTION
-S: SINGLE END (USE DWLX-09-XX-S-XX.XX-XX)
*** -SL: SINGLE END WITH FRICTION LOCK
(USE DWLX-09-XX-S-XX.XX-XX)(SEE SHEET 2, FIG 4)
** -D: DOUBLE END (USE DWLX-09-XX-D-XX.XX-XX)
(SEE SHEET 2, FIG 2)
** -T: TRANSFER END (USE DWLX-09-XX-T-XX.XX-XX)
(SEE SHEET 2, FIG 3 AND SHEET 4)
** -DL: DOUBLE END WITH FRICTION LOCK
***
(USE DWLX-09-XX-D-XX.XX-XX)
(SEE SHEET 2, FIG 5)
**
*** -TF: TRANSFER END WITH FRICTION LOCK
(USE DWLX-09-XX-T-XX.XX-XX)
(SEE SHEET 2, FIG 6)
** -TR: TRANSFER END W/RETENTION LATCH(SEE
SHEET 5)(USE DWLX-09-XX-T-XX.XX-XX)(MUST
CHOOSE FROM -NXX OPTIONS)(ONLY
AVAILABLE IN -05 THRU -50 POS)
ASSEMBLED LENGTH
SPECIFY IN INCHES [USE DWLX-09-XX-X-XX.XX-XX]
(SINGLE END: 03.00 INCH [76.2mm] MINIMUM,
DOUBLE END: 03.25 INCH [82.6mm] MINIMUM)
.050 1.27
REF
.375 9.53
REF
LEAVE BLANK FOR ALL BLACK WIRE,
C: COLOR CODED WIRE, SEE COLOR
SEQUENCE TABLE, SHEET 2
(NOT AVAILABLE WITH FEP OPTION)
"A"
-S: SINGLE END
(TFSDX-07-28-XX-XX.XX-S SHOWN)
TFSD-XX-D-S
FIG 1
.562 14.26
REF
.238 6.05
REF
PLATING SPECIFICATION
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
(USE DWLX-09-XX-X-XX.XX-H)
-G: 10µ" LIGHT GOLD IN CONTACT AREA,
10µ" GOLD ON TAIL ON TAIL
(USE DWLX-09-XX-X-XX.XX-G)
-F: 3µ" FLASH GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
(USE DWLX-09-XX-X-XX.XX-GF)
-GF: 3µ" FLASH GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
(USE DWLX-09-XX-X-XX.XX-GF)
(-GF ONLY AVAILABLE TO EXISTING CUSTOMERS,
SEE –F PLATING)
C
XX.XX
(SEE NOTE 12)
TABLE 2
No OF
POSITIONS N
-05
10
-07
14
-10
20
-15
30
-20
40
-25
50
-30
60
N-1
09
13
19
29
39
49
59
**
***
MUST CHOOSE FROM -NXX OPTIONS
ONLY AVAILABLE ON POS 5, 7, & 10 - 50
DWLX-09-XX-XX-S-XX.XX-XX
NOTES:
"A"
SECTION "A"-"A"
SERIES
TFSD
TFSD
TFSDT
TFSDT
WIRE GAUGE
28 AWG
30 AWG
28 AWG
30 AWG
PROPRIETARY NOTE
TABLE 1
WIRE
DWL-09-28-XX-XX.XX-X
DWL-09-30-XX-XX.XX-X
DWLT-09-28-XX-XX.XX-X
DWLT-09-30-XX-XX.XX-X
PIN
T-1M44-2830-XX
T-1M44-2830-XX
T-1M44-2830-XX
T-1M44-2830-XX
C
C
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PULLOUT FORCE: 3 LBS [13.3 N].
3. CONTACT MUST BE INSERTED UNTIL
RETENTION FEATURE LOCKS INTO PLACE.
4. ALL FINISHED GOODS ARE TO BE ELECTRICAL TESTED INCLUDING HI-POT TEST AT 300 V.
AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH 1 LABEL-ET.
5. TINNED COPPER WIRE IS RoHS COMPLIANT.
6. PARTS TO BE LAYER PACKAGED.
7. END OF DISCRETE WIRE MUST BE IN THE RANGE AFTER CRIMP.
8. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, AND TOOLING.
9. NOTE DELETED.
10. NOTE DELETED.
11. NOTE DELETED.
12. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL
BE ±.125[3.18]. FOR OTHER LENGTHS, TOLERANCES SHALL BE ±2%.
F:\DWG\MISC\MKTG\TFSDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: BeCu
CABLE INSULATION: SEE CALLOUT
WIRE: 28 OR 30 AWG, TINNED OR SILVER
PLATED COPPER
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
TFSDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
LENNY K
7/18/06
SHEET
1
OF
5

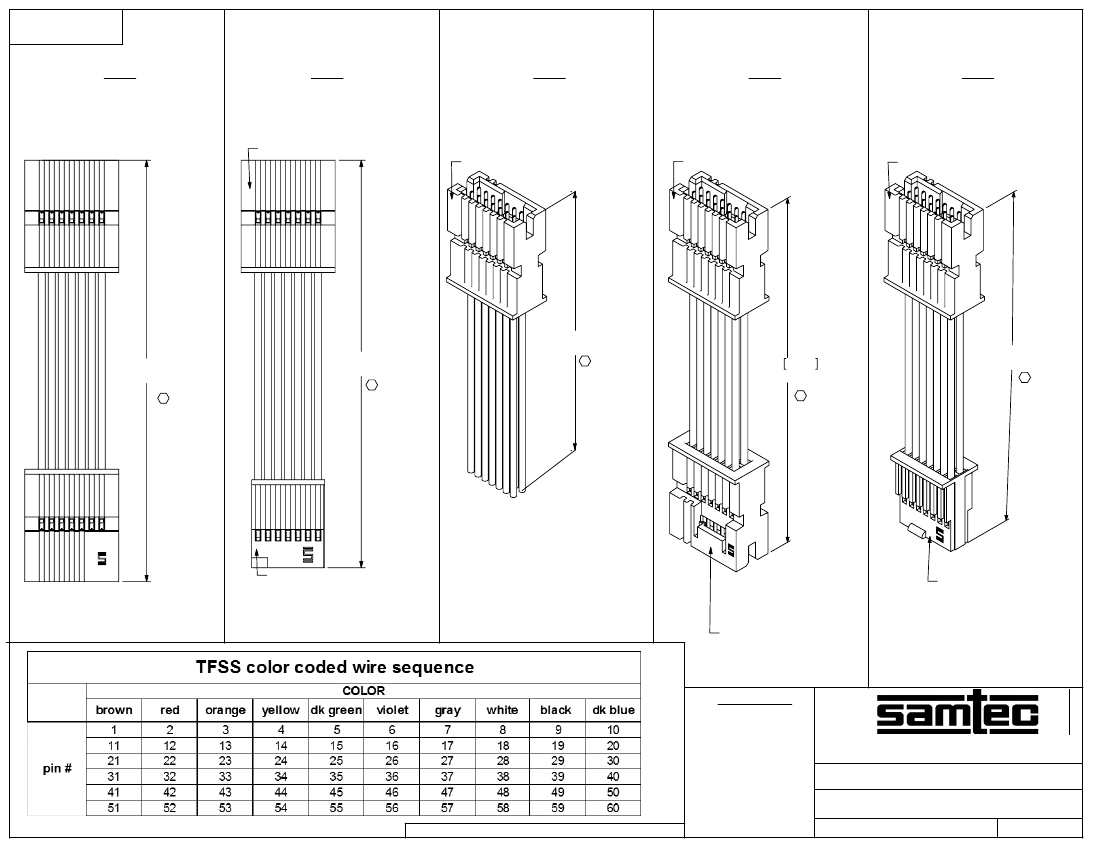

REVISION S

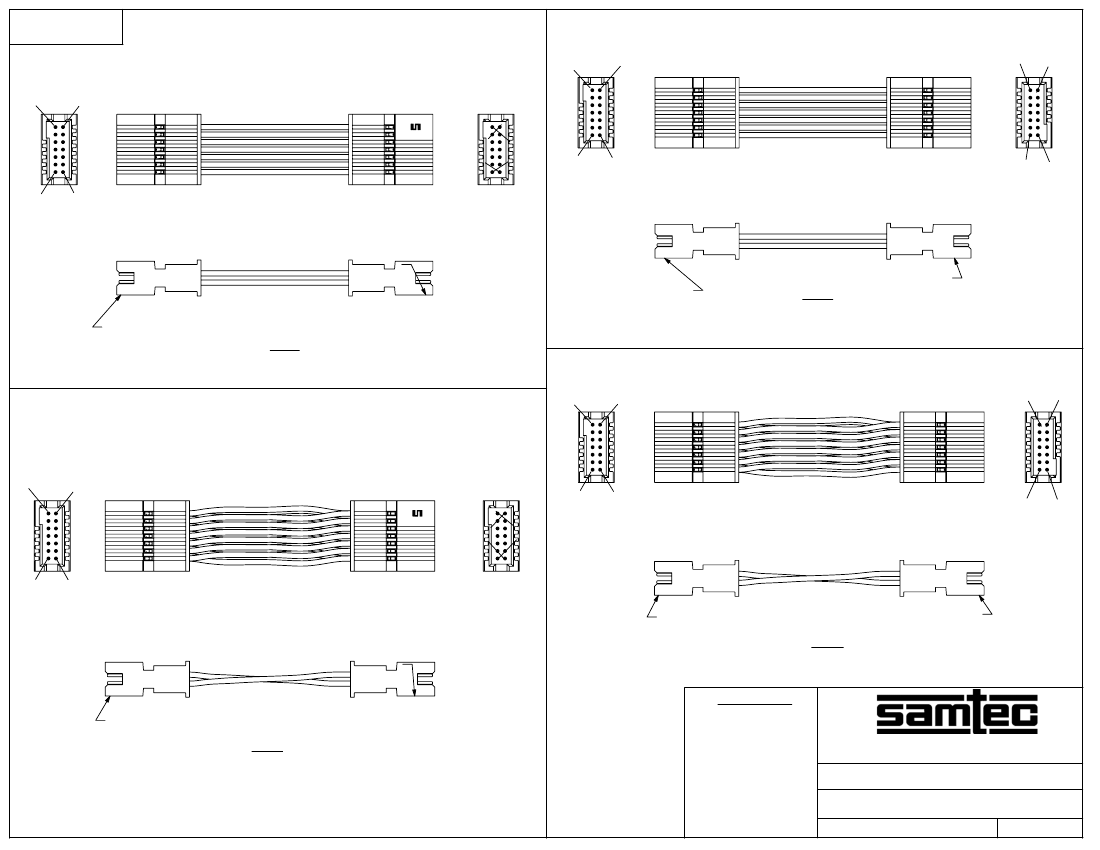

-D: DOUBLE END
(TFSDX-07-28-XX-XX.XX-D-NUS SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 2

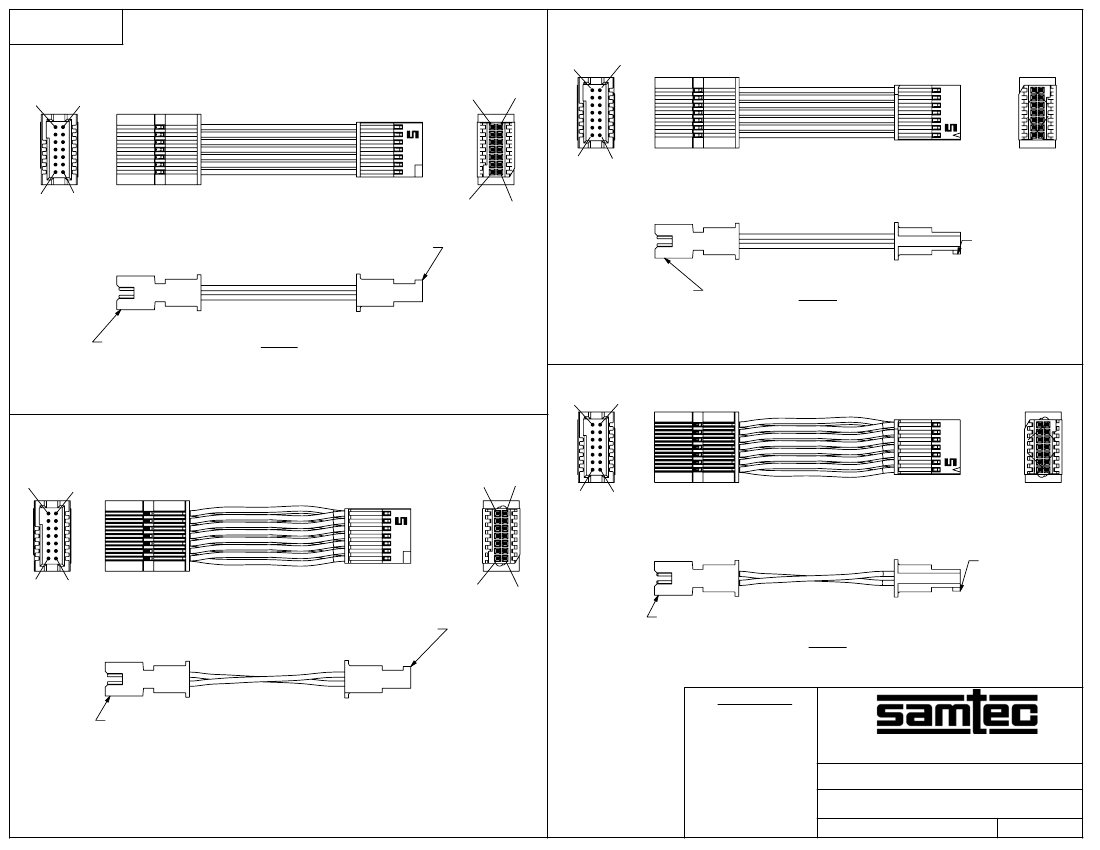

-T:TRANSFER END
(TFSDX-07-28-XX-XX.XX-T-NUS SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 3
-SL: SINGLE END WITH FRICTION LOCK
(TFSDX-07-28-XX-XX.XX-SL SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 4
-DL: DOUBLE END WITH FRICTION LOCK
(TFSDX-07-28-XX-XX.XX-DL-NUS SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 5
-TF: TRANSFER END WITH FRICTION LOCK
(TFSDX-07-28-XX-XX.XX-TF-NUS SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 6
TFSD-XX-D-S
TFSD-XX-D-S-L
TFSD-XX-D-S-L
TFSD-XX-D-S-L
XX.XX
(SEE NOTE 12)
C
XX.XX
(SEE NOTE 12)
C
XX.XX
(SEE NOTE 12)
C
2.107 53.52
(SEE NOTE 12)
C
XX.XX
(SEE NOTE 12)
C
ISDF-XX-D
ISDF-XX-D-L
TFSD-XX-D-S-L
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
DESCRIPTION:
DWG. NO.
TFSDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
LENNY K
F:\DWG\MISC\MKTG\TFSDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
7/18/06
SHEET
2
OF
5
REVISION S
(SEE TABLE 2)
N
(SEE TABLE 2)
N
N-1
N-1
(SEE TABLE 2)
01
02
N-1
01
02
01
N
02
02
01
N-1
N
(SEE TABLE 2)
NOTCH END 2
NOTCH END 1
NOTCH END 1
(END 2 NOTCH DOWN, CABLE STRAIGHT)
(PIN 1 TO PIN N-1)
-NDS
NOTCH END 2
(END 2 NOTCH UP, CABLE STRAIGHT)
(PIN 1 TO PIN 2)
(SEE TABLE 2)
N
N-1
(SEE TABLE 2)
01
02
-NUS
(SEE TABLE 2)
N
N-1
02
01
N-1
N
N-1
01
N
02
02
01
(SEE TABLE 2)
NOTCH END 1
NOTCH END 2
NOTCH END 2
(END 2 NOTCH DOWN, CABLE CROSSED)
(PIN 1 TO PIN N)
PROPRIETARY NOTE
-NDX
NOTCH END 1
(END 2 NOTCH UP, CABLE CROSSED)
(PIN 1 TO PIN 1)
-NUX
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 1.75:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
DESCRIPTION:
DWG. NO.
TFSDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
LENNY K
F:\DWG\MISC\MKTG\TFSDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
7/18/06
SHEET
3
OF
5
REVISION S
(SEE TABLE 2)
N
(SEE TABLE 2)
N
N-1
02
01
N
02
N-1
01
N-1
(SEE TABLE 2)
02
01
02
01
N
N-1
(SEE TABLE 2)
NOTCH END 2
NOTCH END 2
NOTCH END 1
(END 2 NOTCH DOWN, CABLE STRAIGHT)
(PIN 1 TO PIN 1)
NOTCH END 1
(END 2 NOTCH UP, CABLE STRAIGHT)
(PIN 1 TO PIN N)
(SEE TABLE 2)
N
N-1
(SEE TABLE 2)
T-NDS
T-NUS
N
02
(SEE TABLE 2)
N
N-1
02
01
02
01
N-1
01
NOTCH END 2
02
01
N
N-1
(SEE TABLE 2)
NOTCH END 2
NOTCH END 1
(END 2 NOTCH DOWN, CABLE CROSSED)
(PIN 1 TO PIN 2)
PROPRIETARY NOTE
T-NDX
NOTCH END 1
T-NUX
(END 2 NOTCH UP, CABLE CROSSED)
(PIN 1 TO PIN N-1)
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
DESCRIPTION:
TFSDX-XX-XXX-XX-XX.XX-XX-XXX
7/18/06
SHEET
4
OF
5
F:\DWG\MISC\MKTG\TFSDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
BY:
LENNY K
REVISION S

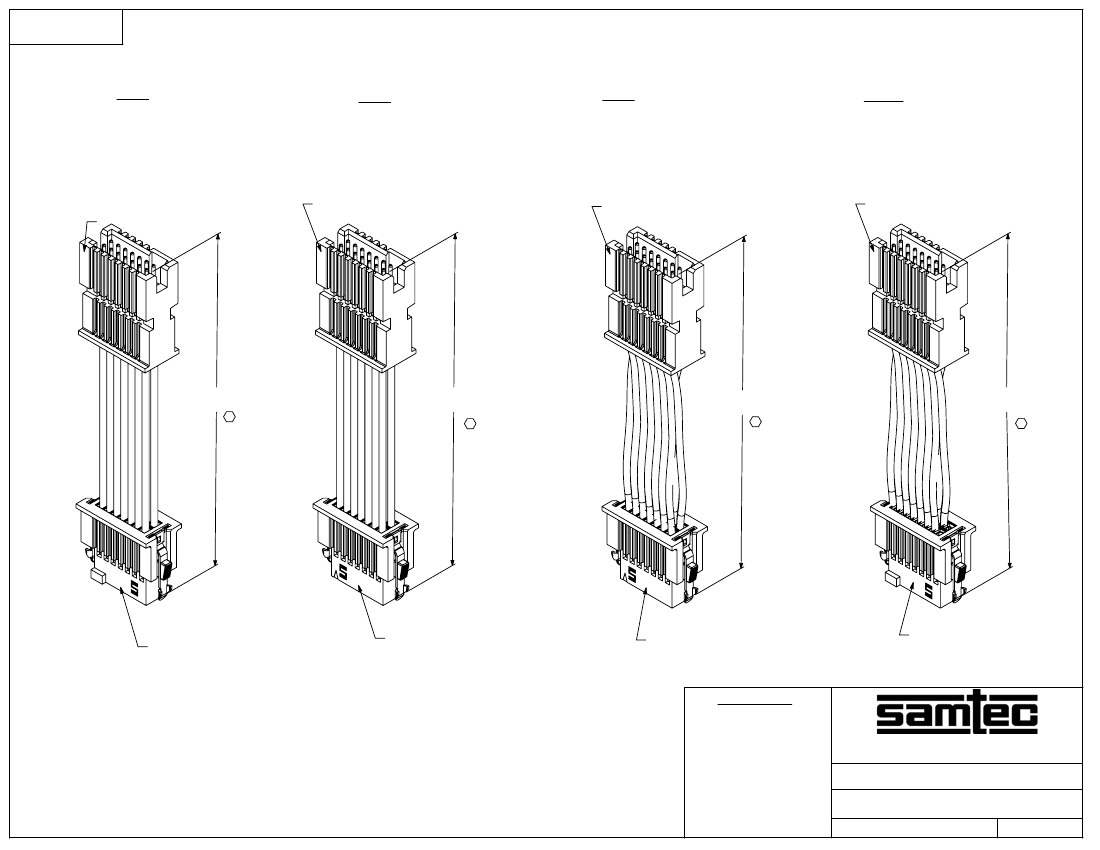

-TR: TRANSFER END WITH RETENTION LATCH
(TFSDX-07-28-XX-XX.XX-TR-NUS SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 7
-TR: TRANSFER END WITH RETENTION LATCH
(TFSDX-07-28-XX-XX.XX-TR-NDS SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 8
-TR: TRANSFER END WITH RETENTION LATCH
(TFSDX-07-28-XX-XX.XX-TR-NDX SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 9
-TR: TRANSFER END WITH RETENTION LATCH
(TFSSX-07-28-XX-XX.XX-TR-NUX SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 10
TFSD-XX-D-S
TFSD-XX-D-S
TFSD-XX-D-S
TFSD-XX-D-S
XX.XX
(SEE NOTE 12)
C
XX.XX
(SEE NOTE 12)
C
XX.XX
(SEE NOTE 12)
C
XX.XX
(SEE NOTE 12)
C
ISDF-XX-D-R
ISDF-XX-D-R
ISDF-XX-D-R
ISDF-XX-D-R
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
TFSDX-XX-XXX-XX-XX.XX-XX-XXX
7/18/06
SHEET
5
OF
5
F:\DWG\MISC\MKTG\TFSDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
BY:
LENNY K
