ATS-55350K-C1-R0: Descriptionheat sink 35mm X 35mm X 14.5mm; CategoryThermal management products; File Size267KB，1 Pages; ManufacturerSeek Thermal; Websitehttps://www.thermal.com/; Environmental Compliance

Download Datasheet Parametric View All

ATS-55350K-C1-R0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATS-55350K-C1-R0	-	-	View	Buy Now

ATS-55350K-C1-R0 Overview

heat sink 35mm X 35mm X 14.5mm

ATS-55350K-C1-R0 Parametric

Parameter Name	Attribute value
Datasheets
ATS-55350K-C2-R0
Product Photos
ATS-55350K-C2-R0
Catalog Drawings
ATS-55350K-C2-R0
Standard Package	100
Category	Fans, Thermal Manageme
Family	Thermal - Heat Sinks
Type	Top Mou
Package Cooled	BGA
Attachment Method	Thermal Tape, Adhesive (Included)
Shape	Square, Pin Fins
Length	1.378" (35.00mm)
Width	1.378" (35.00mm)
Diamete	-
Height Off Base (Height of Fin)	0.571" (14.50mm)
Power Dissipation @ Temperature Rise	-
Thermal Resistance @ Forced Air Flow	5.9°C/W @ 200 LFM
Thermal Resistance @ Natural	-
Material	Aluminum
Material Finish	Black Anodized
Dynamic Catalog	Heat Sinks
Other Names	ATS-55350K-C1-ROATS-55350K-C1-RO-NDATS-55350K-C2-R0ATS1292ATS55350KC1R0Q4940736

Preview

Download Datasheet

View All

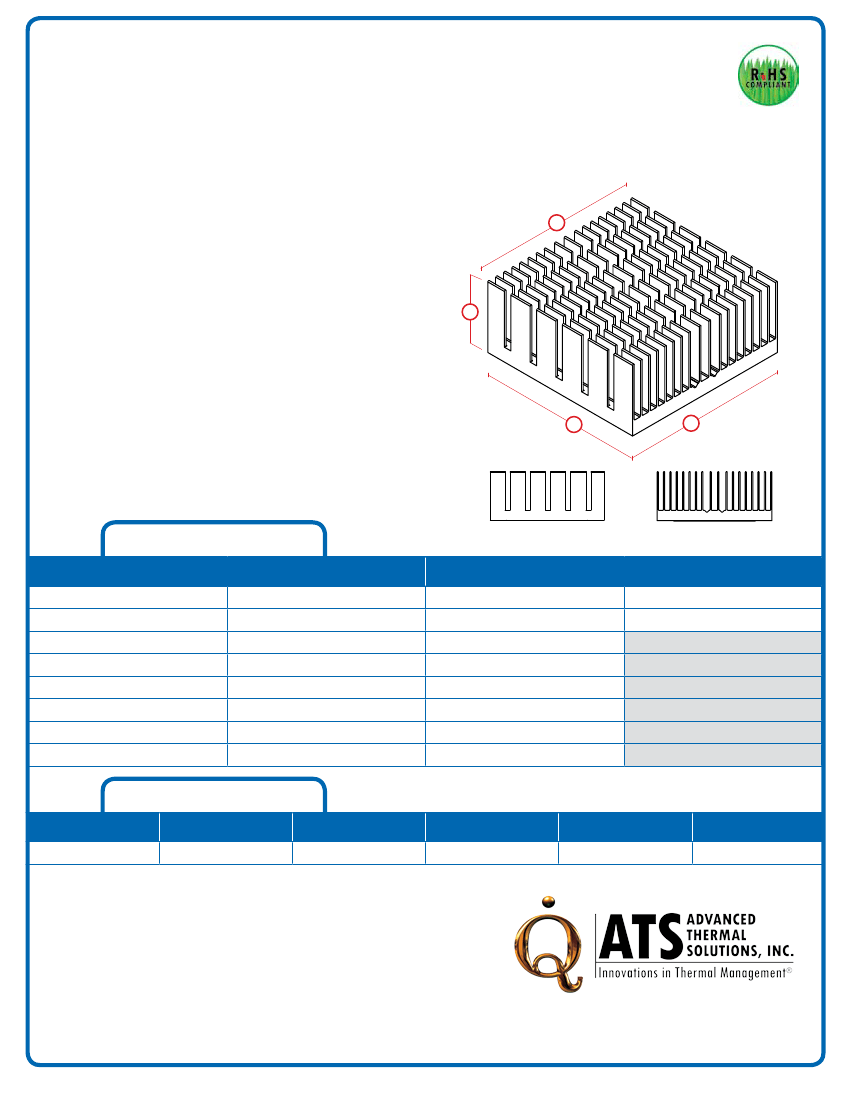

High Performance BGA Cooling

Solutions w/ Thermal Tape Attachment

ATS PART # ATS-55350K-C2-R0

Features & Benefits

»

High efficiency cross-cut fin design provides low pressure

drop characteristics

Large surface area increases heat sink performance

Designed for BgAs and surface mount packages

Comes preassembled with high performance thermal

interface material

A

B

C

D

thermal Performance

AIR VELOCITy

*Image above is for illustration purposes only.

THERMAL RESISTANCE

FT/MIN

200

300

400

500

600

700

800

M/S

1.0

1.5

2.0

2.5

3.0

3.5

4.0

°C/W (UNDUCTED FLOW)

5.9

NA

°C/W (DUCTED FLOW)

NA

Product Details

DIMENSION A

35 mm

Notes:

1)

2)

3)

4)

DIMENSION B

35 mm

DIMENSION C

14.5 mm

DIMENSION D

35 mm

INTERFACE MATERIAL

SAINT-gOBAIN C675

FINISH

BLACK-ANODIZED

Dimension

C = heat sink height from bottom of the base to the top of the fin field.

Thermal performance data are provided for reference only. Actual performance may vary

by application.

ATS reserves the right to update or change its products without notice to improve the

design or performance.

Contact ATS to learn about custom options available.

For more information, to find a distributor or to place an order, visit www.qats.com or

call: 781.769.2800 (North America); +31 (0) 3569 84715 (Europe).

REV1_0908
