MSP2B21000FS14E3 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> MSP2B21000FS14E3

MSP2B21000FS14E3: DescriptionRESISTOR, WIRE WOUND, 2 W, 1 %, 25 ppm, 2100 ohm, SURFACE MOUNT, 4528, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size97KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

MSP2B21000FS14E3 Overview

RESISTOR, WIRE WOUND, 2 W, 1 %, 25 ppm, 2100 ohm, SURFACE MOUNT, 4528, CHIP, ROHS COMPLIANT

MSP2B21000FS14E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1895152039
package instruction	SMT, 4528
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.7
Other features	PRECISION
structure	Chip
JESD-609 code	e3
Manufacturer's serial number	MSP
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-55 °C
Package height	5 mm
Package length	11.4 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	7 mm
method of packing	BULK
Rated power dissipation(P)	2 W
Rated temperature	25 °C
resistance	2100 Ω
Resistor type	FIXED RESISTOR
series	MSP
size code	4528
surface mount	YES
technology	WIRE WOUND
Temperature Coefficient	25 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	120 V

Preview

Download Datasheet

View All

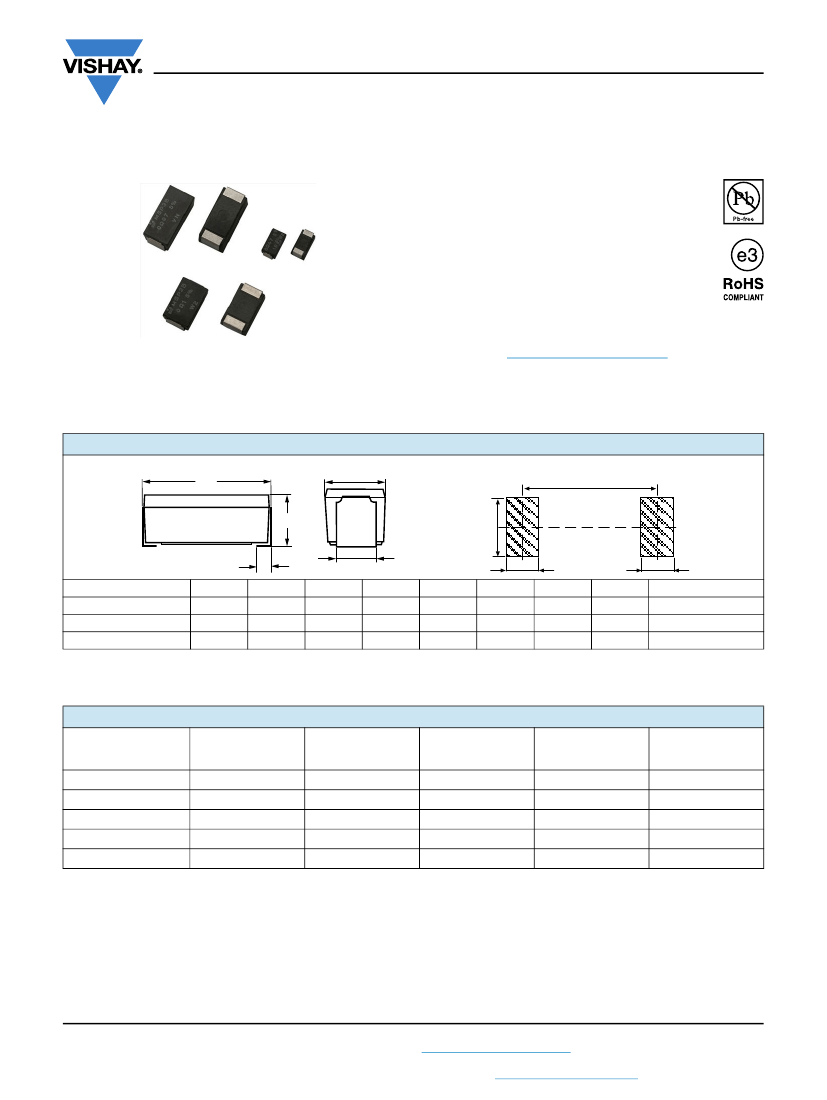

MSP

www.vishay.com

Vishay Sfernice

Precision Surface Mount Resistors

Wirewound or Metal Film Technologies

FEATURES

• According to EN 140402-801 (wirewound)

• Wide range of ohmic values (0.04



to 1 M)

Available

• Low temperature coefficient



(± 25 ppm/°C available)

• Good electrical insulation

• All welded construction and molded encapsulant

• High power ratings (up to 2.5 W)

• Stability class 0.5

• Pure matte tin termination

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Specially designed for surface mounting, the MSP series uses either wirewound or metal film technology. The molded package

ensures mechanical and climatic protection as well as high dielectric insulation. The MSP design is compatible with surface

mounting equipment and can withstand wave and reflow soldering techniques.

DIMENSIONS

in millimeters

Recommended Soldering Areas

SERIES

MSP 1

MSP 2

MSP 3

6.8

11.4

14.6

3.9

6.6

3.8

2.5

1.4

2.2

2.3

2.7

5.2

2.9

4.1

9.4

12.7

WEIGHT in g

0.2

0.8

1.5

Note

• General tolerance: ± 0.2 mm

STANDARD ELECTRICAL SPECIFICATIONS

MODEL

MSP 1 B

MSP 2 B

MSP 3 B

MSP 1 C

MSP 2 C

RESISTANCE

RANGE



0.04 to 2.2K

0.04 to 4.7K

0.04 to 13K

10 to 332K

10 to 1M

RATED POWER

25 °C

2.5

0.5

LIMITING ELEMENT

VOLTAGE

120

200

300

350

TOLERANCE

±%

0.5, 1, 2, 5

0.5, 1

TEMPERATURE

COEFFICIENT

± ppm/°C

25, 50, 100

25, 50



Revision: 16-Jun-2020

Document Number: 50003

For technical questions, contact:

sferfixedresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 01-Jan-2019

Document Number: 91000
