Z-300TJ: Descriptionfilter dsl dual-jack white; CategoryPassive components; File Size278KB，2 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com; Environmental Compliance

Download Datasheet Parametric Compare View All

Z-300TJ Overview

filter dsl dual-jack white

Z-300TJ Parametric

Parameter Name	Attribute value
Datasheets
Z-300TJ
Product Photos
Z-300TJ
Featured Produc
Z-BLOCKER® DSL(HPN) Filters
Standard Package	500
Category	Filters
Family	DSL Filters
Input Type	Single-Line
Output Type	1 Jack, Filtered/1 Jack, Unfiltered
Mounting Type	In Line
Dynamic Catalog	Z-BLOCKER®
Other Names	553-1426Z300TJ

Preview

Download Datasheet

View All

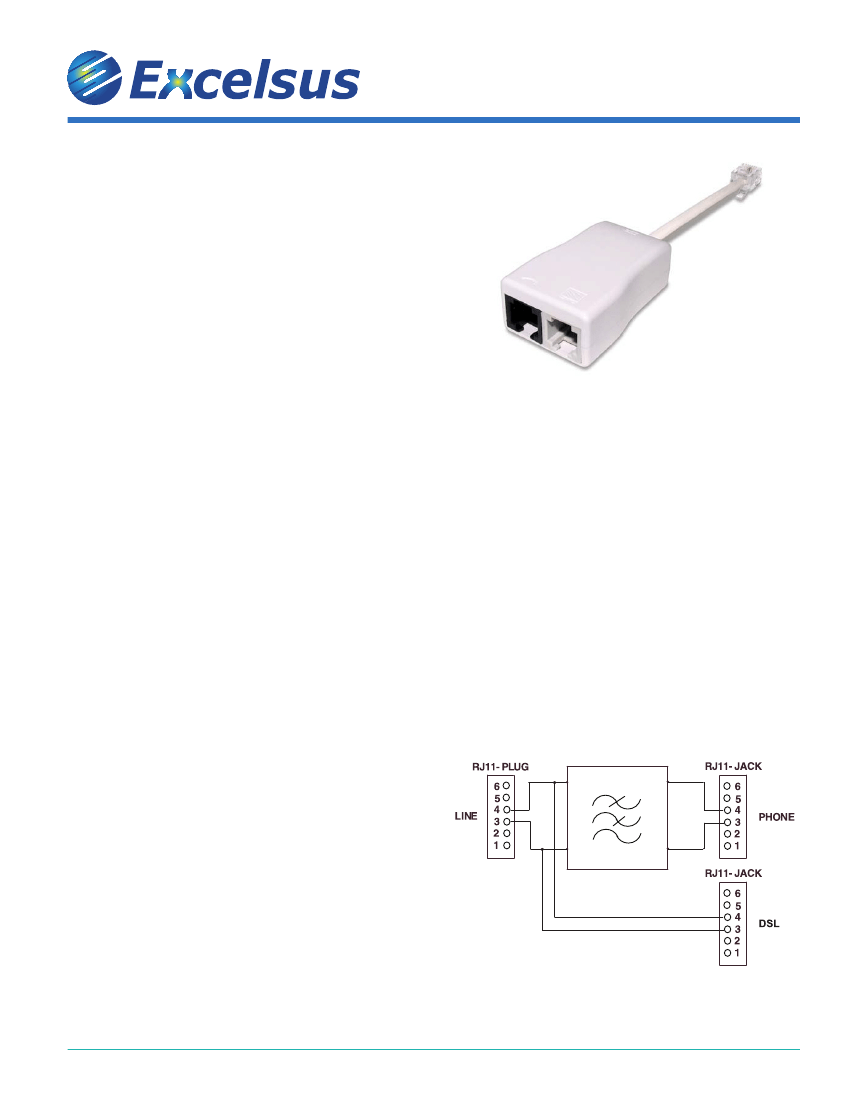

Z-BLOCKER® Z-300TJ

xDSL over POTS In-Line Filter

Description

The Z-300TJ is a small in-line filter designed to

expedite the service delivery and improve the

performance of digital subscriber line (DSL).

This model fits all telephone sets, facsimile ma-

chines, answering machines, etc. individually or in

groups. It also provides a second convenience jack

that is unfiltered for connecting DSL. This in-line

DSL filter design electronically isolates the high-

speed DSL data streams from the voice band plain

old telephone services (POTS) equipment. This

design effectively blocks the DSL, and other radio

frequencies from 25 kilohertz to 30 Megahertz.

The Z-300TJ provides a DSL convenience jack

for connecting a DSL modem

Applications

The Z-300TJ filters are used with other

Z-BLOCKER® filters distributed throughout the

subscribers' premises to isolate all voice band

equipment devices such as cordless telephones,

answering machines, fax machines, dial-up mo-

dems, and television set-top boxes.

The Z-300TJ in-line DSL filter is one of many

filters manufactured by Excelsus for subscriber in-

stalled digital services within homes, offices, and

hotels. Excelsus is the number one selling brand of

DSL filters worldwide.

Features

●

Data Protection

- Isolates telephone equipment

impedances from DSL equipment

● Excellent DSL band attenuation that protects

voice band equipment and prevents

intermodulation distortion from degrading data

rates

● Compaible with all major DSL standards

including ADSL, ADSL+2, VDSL, and VDSL2

●

Voice Protection

- Isolates DSL band

frequencies from voice band equipment

● Excellent longitudinal balance

● Compatible with Caller ID, facsimile and

metallic loop testing

● RoHS compliant

● Compliant and listed with UL 60950, FCC Part

● CE certified

Z-300TJ Block Schematic

www.PulseElectronics.com

EX109.A (02/12)

Z-300TJ Related Products

	Z-300TJ
Description	filter dsl dual-jack white
Standard Package	500
Category	Filters
Family	DSL Filters
Input Type	Single-Line
Output Type	1 Jack, Filtered/1 Jack, Unfiltered
Mounting Type	In Line
Dynamic Catalog	Z-BLOCKER®
Other Names	553-1426Z300TJ
