VJ....W1BC Basic Commodity Series
www.vishay.com
Vishay

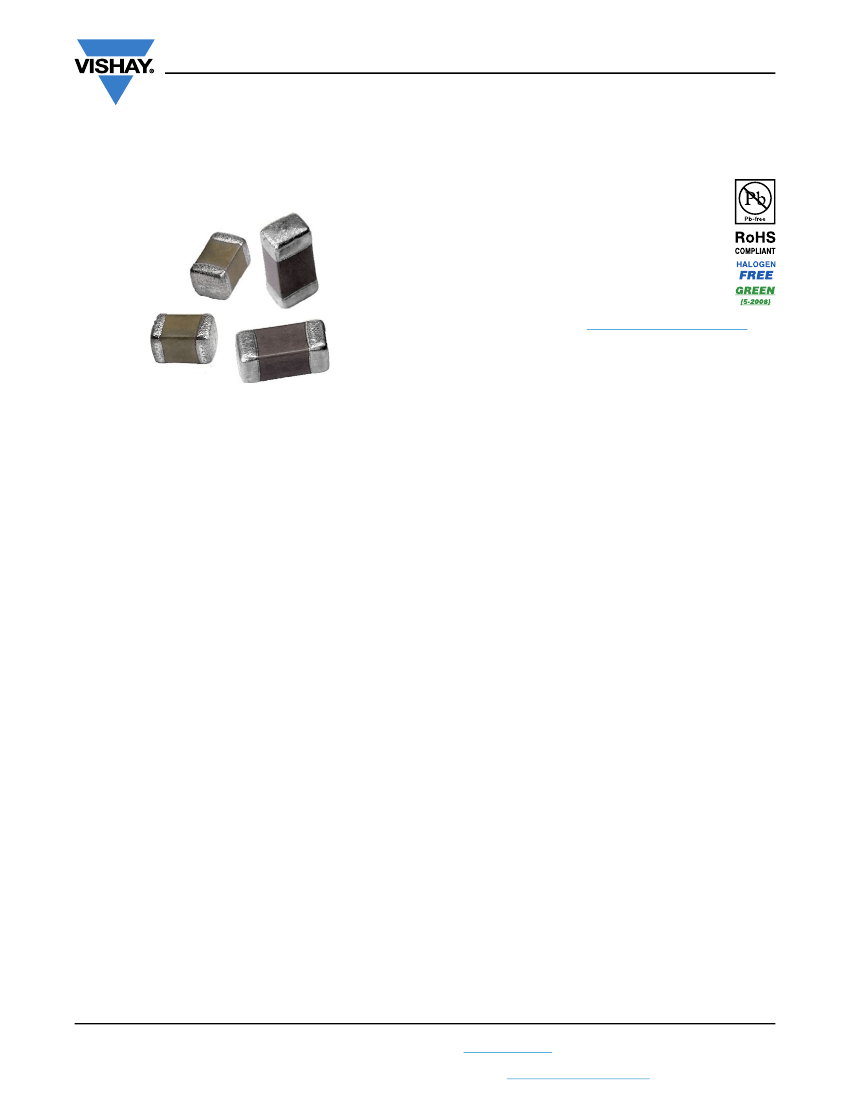

Surface Mount Multilayer Ceramic Chip Capacitors
for Commodity Applications
FEATURES
•
•
•
•
•
•
•
•
Available from 0402 to 1210 body sizes
Ultra stable C0G (NP0) dielectric
High capacitance in X5R, X7R, Y5V
For high frequency applications
Ni-barrier with 100 % tin terminations
Dry sheet technology process
Base Metal Electrode system (BME)
Material categorization: for definitions of
compliance please see
www.vishay.com/doc?99912
APPLICATIONS
•
•
•
•
Consumer electronics
Telecommunications
Data processing
Mobile applications
ELECTRICAL SPECIFICATIONS
Operating Temperature:
C0G (NP0): -55 °C to +125 °C
X5R: -55 °C to +85 °C
X7R: -55 °C to +125 °C
Y5V: -25 °C to +85 °C
Capacitance Range:
C0G (NP0): 0.5 pF to 39 nF
X5R: 47 nF to 220 μF
X7R: 100 pF to 47 μF
Y5V: 10 nF to 100 μF
Voltage Range:
C0G (NP0): 10 V
DC
to 100 V
DC
X5R: 6.3 V
DC
to 50 V
DC
X7R: 10 V
DC
to 100 V
DC
Y5V: 6.3 V
DC
to 100 V
DC
Temperature Coefficient of Capacitance (TCC):
C0G (NP0): 0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C
X5R: ± 15 % from -55 °C to +85 °C without voltage applied
X7R: ± 15 % from -55 °C to +125 °C without voltage applied
Y5V: + 30 % / - 80 % from -25 °C to +85 °C without voltage
applied
Insulation Resistance (IR) at U
R
:
≥
10 GΩ or R x C
≥
500
Ω
x F whichever is less
Test Conditions for Capacitance Tolerance:
preconditioning for X5R, X7R, Y5V MLCC: perform a heat
treatment at +150 °C ± 10 °C for 1 h, then leave in ambient
condition for 24 h ± 2 h before measurement
Test Conditions for Capacitance and DF Measurement:
measured at conditions of 30 % to 70 % related humidity.
C0G (NP0): Apply 1.0 V
RMS
± 0.2 V
RMS
, 1.0 MHz ± 10 % for
caps
≤
1000 pF, at +25 °C ambient temperature
Apply 1.0 V
RMS
± 0.2 V
RMS
, 1.0 kHz ± 10 % for
caps > 1000 pF, at +25 °C ambient temperature
X5R / X7R: Caps
≤
10 μF apply 1.0 V
RMS
± 0.2 V
RMS
,
1.0 kHz ± 10 %, at +25 °C ambient temperature
(1)
Caps > 10 μF apply 0.5 V
RMS
± 0.2 V
RMS
,
120 Hz ± 20 %, at +25 °C ambient temperature
Y5V:
Caps
≤
10 μF apply 1.0 V
RMS
± 0.2 V
RMS
,
1.0 kHz ± 10 %, at +20 °C ambient temperature
Caps > 10 μF apply 0.5 V
RMS
± 0.2 V
RMS
,
120 Hz ± 20 %, at +20 °C ambient temperature
Note
(1)
Test conditions: 0.5 V
RMS
± 0.2 V
RMS
, 1 kHz ± 10 %
X7R: 0603:
≥
2.2 μF / 10 V
0805: 10 μF (6.3 V and 10 V)
X5R: 0402:
≥
4.7 μF / 6.3 V and
≥
2.2 μF / 10 V
0603: 10 μF (6.3 V and 10 V)
Aging Rate:
C0G (NP0): 0 % per decade
X5R: 6.3 V
DC
/ 10 V
DC
: 3 % maximum per decade
16 V
DC
/ 25 V
DC
: 2 % maximum per decade
X7R:
≤
10 V
DC
: 1.5 % maximum per decade
≥
16 V
DC
: 1 % maximum per decade
Y5V: 6.3 V
DC
: 12.5 % maximum per decade
10 V
DC
/ 16 V
DC
: 9 % maximum per decade
≥
25 V
DC
: 7 % maximum per decade
Dielectric Strength Test:
this is the maximum voltage the capacitors are tested 1 s to
5 s period and the charge / discharge current does not
exceed 50 mA.
≤
100 V
DC
: 250 % of rated voltage
Revision: 11-Aug-2020
Document Number: 28548
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ....W1BC Basic Commodity Series
www.vishay.com
ORDERING INFORMATION
VJ0402
SIZE
CODE
0402
0603
0805
1206
1210
Y
DIELECTRIC
101
CAPACITANCE
J
TOLERANCE
X
TERMINATION
Q
VOLTAGE
(1)
Vishay
C
PACKAGING
W1BC
PROCESS CODE
FOR BASIC
COMMODITY
A = C0G
(NP0)
G = X5R
Y = X7R
V = Y5V
Two significant
digits followed
by the number
of zeros:
1R0 = 1.0 pF
101 = 100 pF
102 = 1000 pF
152 = 1500 pF
103 = 10 000 pF
104 = 100 000 pF
C0G (NP0)
(2)
Cap. < 10 pF:
B = ± 0.10 pF
C = ± 0.25 pF
D = ± 0.50 pF
Cap.
≥
10 pF:
F=±1%
G=±2%
J=±5%
K = ± 10 %
X5R / X7R
(2)(3)
J=±5%
K = ± 10 %
M = ± 20 %
Y5V
M = ± 20 %
Z = - 20 % /
+ 80 %
X = Ni barrier
100 % matte tin
S=4V
Y = 6.3 V
Q = 10 V
J = 16 V
X = 25 V
Z = 35 V
A = 50 V
B = 100 V
C = 7" reel /
paper tape
P = 13" reel /
paper tape
T = 7" reel /
plastic tape
R = 13" reel /
plastic tape
Notes
• Detail rating see “Selection Chart”
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questions:
mlcc@vishay.com
Not all values, see “Selection Chart”
No 5 % tolerance for X5R
(2)
(3)
Revision: 11-Aug-2020
Document Number: 28548
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
