MTNSP-M3-10-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> MTNSP-M3-10-3

MTNSP-M3-10-3: Descriptionhex standoff M3 nylon 10mm; Categoryaccessories; File Size15KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric View All

MTNSP-M3-10-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MTNSP-M3-10-3	-	-	View	Buy Now

MTNSP-M3-10-3 Overview

hex standoff M3 nylon 10mm

MTNSP-M3-10-3 Parametric

Parameter Name	Attribute value
Datasheets
MTNSP Series
HSM, MTNSP, CER,
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Board Spacers, Standoffs
Type	Hex Standoff
Threaded/Unthreaded	Threaded
Gende	Male, Male
Diameter - Outside	0.276" (7.01mm) Hex
Thread/Screw/Hole Size	M3 Thread
Between Board Heigh	0.394" (10.00mm)
Length - Overall	0.866" (22.00mm)
Features	-
Material	Nylon, Brass Inse
Plating	Nickel
Col	White
Weigh	-

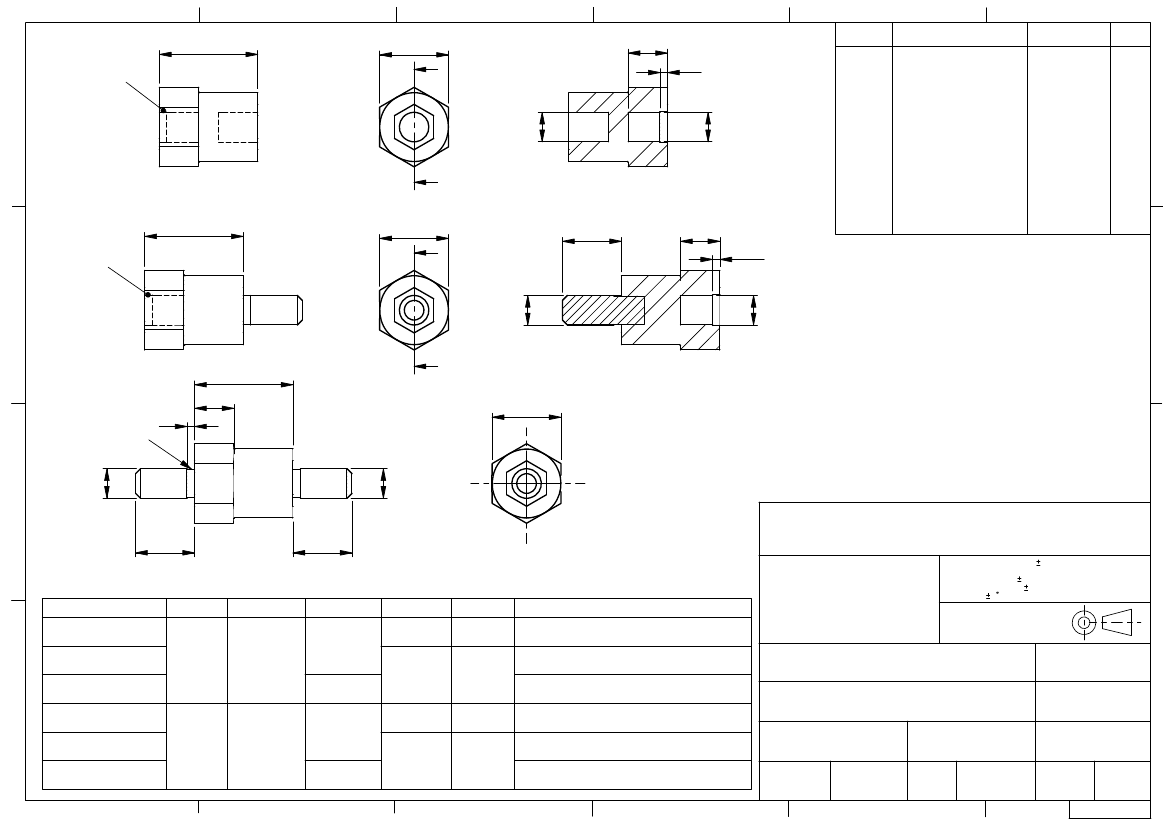

Preview

Download Datasheet

View All

SEE NOTE 3

REV.

MODIFICATION.

NEW DRAWING

SCN2001-124

SCN2002-015

ECN2005-076

ECN2005-092

ECN2006-027

ECN2007-031

ECN2007-040

ECN2007-046

ECN2007-197

CO2011253

DATE

28/06/01

05/12/01

08/02/02

28/06/05

30/08/05

17/03/06

08/02/07

14/02/07

15/02/07

14/11/07

12/04/12

DRN

SEE NOTE 3

SECTION A-A

SCALE 2.5 : 1

TYPE1

TYPE 2

SEE NOTE 3

SECTION B-B

SCALE 2.5 : 1

NOTES

TYPE 3

1) METRIC PRIMARY UNITS: mm

IMPERIAL SECONDARY UNITS: [inches]

2) INSERT & STUD MATERIAL = BRASS(RMS-231) - NICKEL PLATING (RMS-229)

BODY MATERIAL = NYLON 6 - WHITE (RMS-133)

(Parts available in UL94-V0 material by special order)

3) UNTHREADED LENGTH = 1.5 PITCH MAX

4) ALL MATERIALS TO COMPLY TO RESTRICTION of HAZARDOUS

SUBSTANCES (RoHS) EUROPEAN UNION DIRECTIVE

INFORMATION CONTAINED IN THIS DOCUMENT IS CONFIDENTIAL TO

RICHCO INTERNATIONAL Co. Ltd. AND MAY NOT BE DISCLOSED OR

REPRODUCED IN WHOLE OR PART WITHOUT THEIR WRITTEN CONSENT.

GENERAL TOLERANCES 0.25 [0.010]

UNLESS OTHERWISE STATED

1 DECIMAL PLACE

2 DECIMAL PLACES

ANGULAR 1

PART NUMBER

MTNSP-M2.5-L-3

MTNSP-M2.5-L-2

6[.236]

6[.236

4[.158]

.68[.027]

.75[.030]

LENGTH(L)

4-12[.158-.472] (1mm INCREMENTS)

7-12[.276-.472] (1mm INCREMENTS)

9-12[.354-.472] (1mm INCREMENTS)

4-12[.158-.472] (1mm INCREMENTS)

7-12[.276-.472] (1mm INCREMENTS)

9-12[.354-.472] (1mm INCREMENTS)

RICHCO, INC.

MATERIAL:

WWW.RICHCO-INC.COM

THIRD

ANGLE

COLOUR:

M2.5

6[.236]

SEE NOTE 2

MTNSP-MX-H-L-TYPE

NPR No:

SEE NOTE 2

SEE TABLE

MTNSP-M2.5-L-1

MTNSP-M3-L-3

MTNSP-M3-L-2

MTNSP-M3-L-1

DESCRIPTION:

PART No:

DRG No:

DRN

7[.276]

3060070

DATE

N/A

DATE

SHEET SIZE

SCALE

SHEET No.

CHKD

28/06/05

NBr

28/06/05

NTS

1 OF 1

FORM No. 0145/03
