CNX83A.W

Description
6-pin phototransistor optocouplers
CategoryLED optoelectronic/LED    photoelectric
File Size39KB,4 Pages
ManufacturerQT Optoelectronics
Download Datasheet Parametric Compare View All

CNX83A.W Overview

6-pin phototransistor optocouplers

CNX83A.W Parametric

Parameter NameAttribute value
package instructionDIP-6
Reach Compliance Codeunknown
Other featuresUL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min50 V
ConfigurationSINGLE
Nominal current transfer ratio10%
Maximum dark power10000 nA
Maximum forward current0.1 A
Maximum insulation voltage5300 V
Number of components1
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Optoelectronic device typesTRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches1

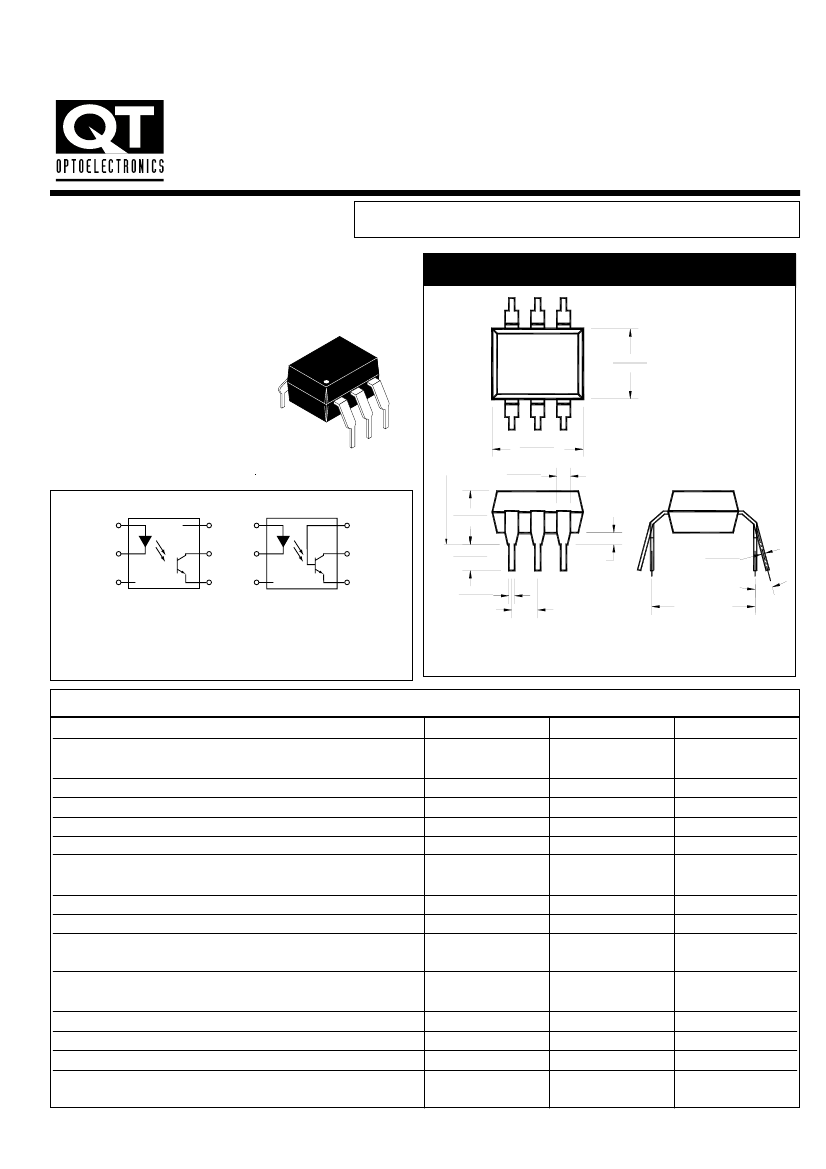

6-PIN PHOTOTRANSISTOR
OPTOCOUPLERS
CNX82A.W, CNX83A.W, SL5582.W & SL5583.W
DESCRIPTION
The CNX82A.W, CNX83A.W, SL5582.W AND SL5583.W,
consist of a gallium arsenide infrared emitting diode driving a
silicon phototransistor in a 6-pin dual in-line package.
PACKAGE DIMENSIONS
FEATURES
• Input/Output pin distance 10.16 mm
• UL recognized (File # E90700)
0.270 (6.86)
0.240 (6.10)
APPLICATIONS
• Power supply regulators
• Digital logic inputs
• Microprocessor inputs
SCHEMATIC
1
NC
6
1
6
1
SEATING PLANE
0.350 (8.89)
0.330 (8.38)
0.070 (1.78)
0.045 (1.14)
6
0.200 (5.08)
0.115 (2.92)
2
5
2
5
0.154 (3.90)
0.100 (2.54)
0.004 (0.10)
MIN
0.016 (0.40)
0.008 (0.20)
3
NC
CNX82A.W
SL5582.W
4
3
NC
CNX83A.W
SL5583.W
4
0.022 (0.56)
0.016 (0.41)
0.100 (2.54) TYP
0° to 15°
0.400 (10.16)
TYP
PIN 1. ANODE
2. CATHODE
3. NO CONNECTION
4. EMITTER
5. COLLECTOR
6. NO CONNECTION
PIN 1. ANODE
2. CATHODE
3. NO CONNECTION
4. EMITTER
5. COLLECTOR
6. BASE
NOTE
All dimensions are in inches (millimeters)
ABSOLUTE MAXIMUM RATINGS
Parameter
TOTAL DEVICE
Storage Temperature
Operating Temperature
Lead Solder Temperature
Junction Temperature
Total Device Power Dissipation @ T
A
= 25°C
EMITTER
DC/Average Forward Input Current
Reverse Input Voltage
Forward Current - Peak (1µs pulse, 300pps)
LED Power Dissipation @ T
A
= 25°C
Derate above 25°C
DETECTOR
Collector-Emitter Voltage
Collector-Base Voltage (CNX83A)
Emitter-Collector Voltage
Continuous Collector Current
Detector Power Dissipation @ T
A
= 25°C
Derate above 25°C
Symbol
T
STG
T
OPR
T
SOL
T
J
P
D
I
F
V
R
I
F
(pk)
P
D
V
CEO
V
CBO
V
ECO
I
C
P
D
Value
-55 to +150
-55 to +100
260 for 10 sec
125
250
100
5.0
3.0
140
1.33
50
70
7
100
150
2.0
Units
°C
°C
°C
°C
mW
mA
V
A
mW
mW/°C
V
V
V
mA
mW
mW/°C
4/13/00
200024D

CNX83A.W Related Products

CNX83A.W CNX82AW CNX83A
Description 6-pin phototransistor optocouplers 6-pin phototransistor optocouplers 6-pin phototransistor optocouplers
Reach Compliance Code unknown - unknown
Coll-Emtr Bkdn Voltage-Min 50 V - 50 V
Configuration SINGLE - SINGLE
Nominal current transfer ratio 10% - 40%
Maximum insulation voltage 5300 V - 5300 V
Number of components 1 - 1
Optoelectronic device types TRANSISTOR OUTPUT OPTOCOUPLER - TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches 1 - 1
