BRS-02-LP-10-GD-SM: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BRS-02-LP-10-GD-SM Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

BRS-02-LP-10-GD-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1308218679
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	8.4
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.169 inch
body length	0.394 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold Flash (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	10

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temperature:

A

1 amp

Phosphor bronze

Gold or tin

20 milliohms max.

Polyester, UL94V-0

5,000 megohms min.

500VAC for 1 min.

-40°C to +105°C

B

C

Profile

(see table)

D

Profile

(see table)

D

E

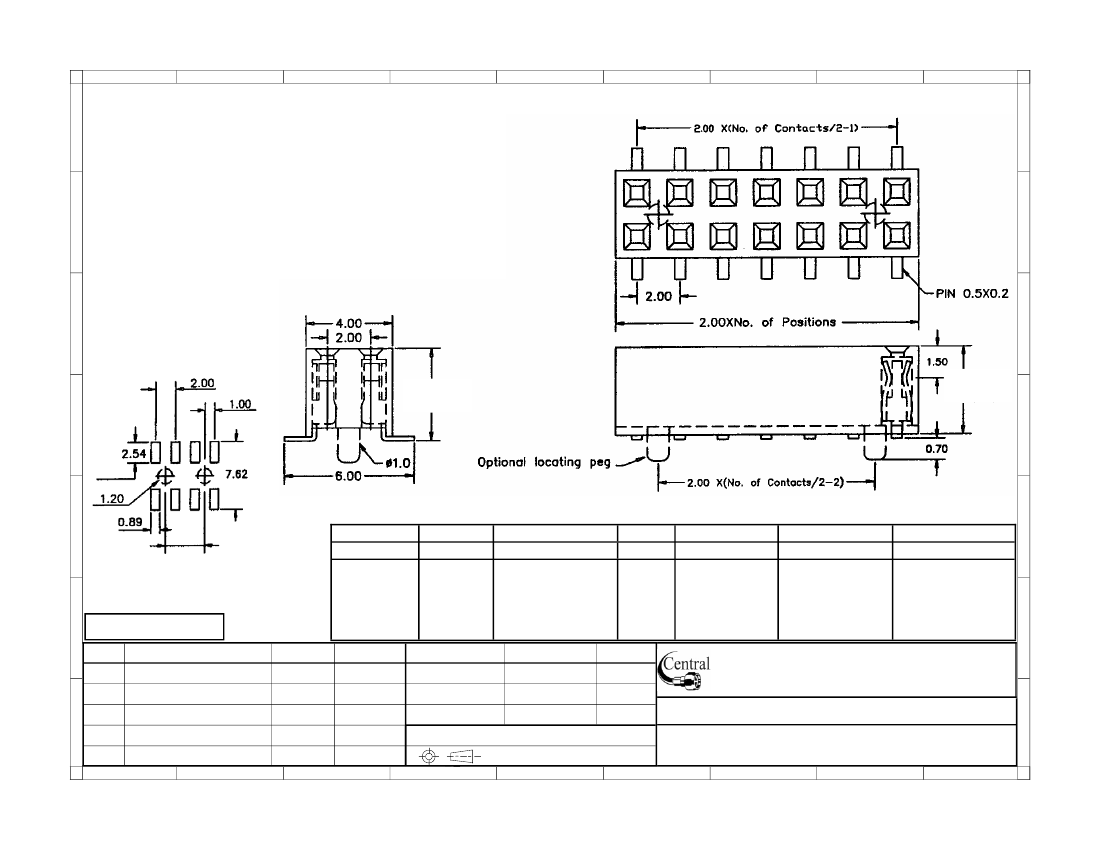

Recommended PC Board

SMT Layout

F

RoHS compliant

Rev.

Description

Date

Series

Rows

Profile

Positions

Plating

Surface mount

Options

BRS

02

LPX

xx

SM

XX

2mm connector 02=Dual row LP[blank]=4.3mm (std) 6-60

TN=Tin

SM=surface mount [blank]=None

LPA=2.2mm

GD=Gold flash

SMP=surface mount PPL=Pick & place pad

LPB=4.5mm

GD10=10µ” gold with locating peg

TR=Tape & reel

LPC=4.0mm

GD15=150µ” gold

TB=Tube

LPG=2.8mm

GD30=30µ” gold

FLM=Film

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

E

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

BRS-02-LPX-XX-XX-SM

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Female header, 2mm pitch, low profile

G

1

2

3

4
