S2010CA2100DKB: DescriptionFixed Resistor, Thin Film, 0.8W, 210ohm, 150V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP; CategoryPassive components The resistor; File Size95KB，1 Pages; ManufacturerState of the Art Inc.

Download Datasheet Parametric View All

S2010CA2100DKB Overview

Fixed Resistor, Thin Film, 0.8W, 210ohm, 150V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP

S2010CA2100DKB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1893466010
package instruction	CHIP
Reach Compliance Code	not_compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	6.82
Other features	PRECISION, REFERENCE STANDARD: MIL-PRF-55342
JESD-609 code	e0
Manufacturer's serial number	2010
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	0.8 W
Rated temperature	70 °C
resistance	210 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	THIN FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	150 V

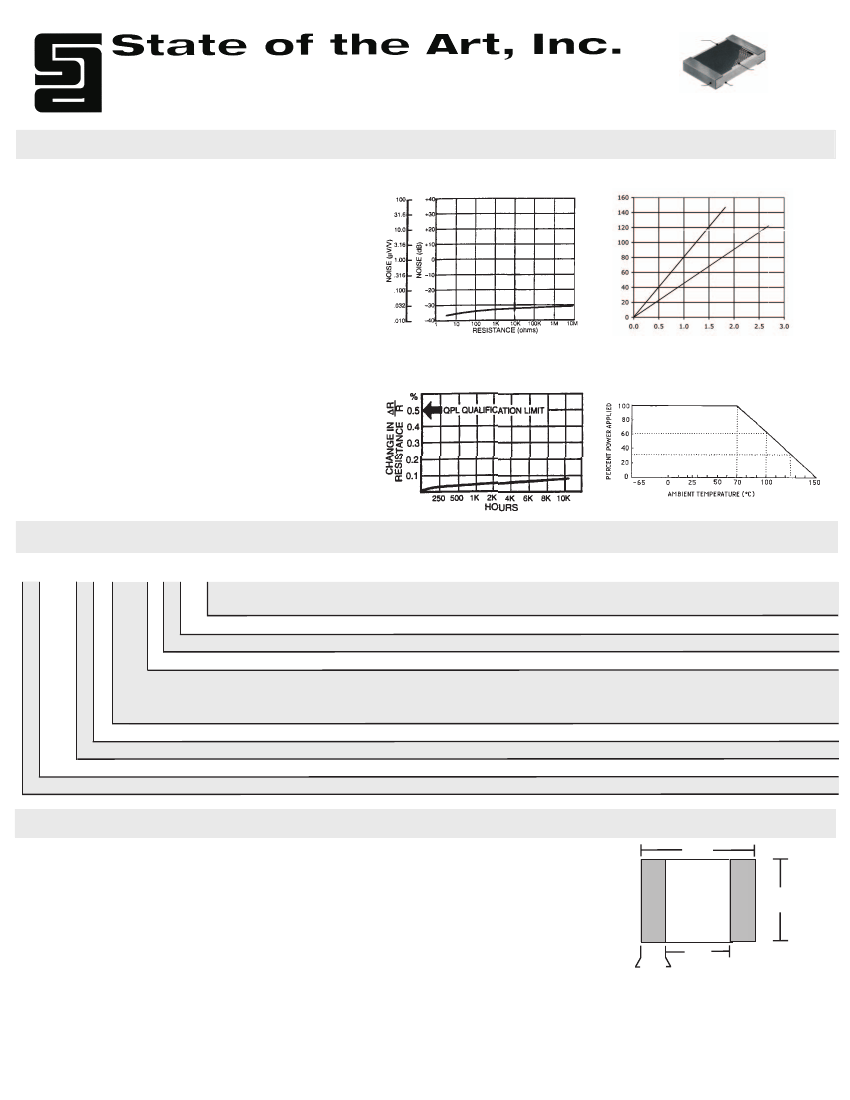

Preview

Download Datasheet

View All

PROTECTIVE

ENCAPSULANT

2010 Thin Film Chip Resistor

Standard Grade, Wraparound

PERFORMANCE CHARACTERISTICS

Resistance Range(1)

Tolerances (2)

TCR

Thermal Resistance

Maximum Power

Maximum Voltage

5.6

W- 2.2MW

0.1%, 0.25%, 0.5%,1%, 2%, 5%

±25, ±50, ±100 ppm

60.6°C/W

800 mW

150 Volts

WRAPAROUND

TERMINATIONS

PRECISION

THIN FILM

99.6% ALUMINA

CURRENT NOISE

TEMPERATURE RISE (°C)

POWER DISSIPATION

fiber epoxy board

(1) Minimum resistance range at 0.1% tolerance is 100ohms.

(2) +/- 0.05% limited availability - consult factory

ceramic board

ENVIRONMENTAL PERFORMANCE (3)

Thermal Shock

Low Temperature Operation

Short-time Overload

Resistance to Bonding Exposure

Moisture Resistance

High Temperature Exposure

Life Test

±0.02%

±0.03%

See Chart

POWER DISSIPATION (WATTS)

TYPICAL LIFE TEST PERFORMANCE

POWER DERATING

(3)Typical resistance change, test methods and criteria

per MIL-PRF-55342.

PART NUMBERING

S 2010 C A 1001 F H B - TR

PACKAGING CODE: - TR = Tape/Reel - W = Waffle Carrier (Default packaging is Bulk)

TERMINATION FINISH: B: Sn60 over nickel barrier W: Gold

TEMPERATURE CHARACTERISTIC TCR: E: ±25 ppm H: ±50 ppm K: ±100 ppm

TOLERANCE: B: 01% C: 0.25% D: 0.5% F: 1% G: 2% J: 5%

RESISTANCE VALUE:

Three or Four digits are used, with all leading digits significant. Four digits are used for 1% tolerance or lower; otherwise, three digits are

used. The last digit specifies the number of zeros to add. The letter "R" is used to represent the decimal for fractional ohmic values.

Example: 5R6 is 5.6 ohms.

PRODUCT DESIGNATION: A: Thin film on alumina

TERMINATION TYPE: C: Wraparound termination

SIZE CODE

GRADE: S: Standard Production H: High Reliability (For Screening options, contact the factory)

MECHANICAL

INCHES

MILLIMETERS

.255

MINIMUM

RECOMMENDED

MOUNTING

PADS

(INCHES)

Length

Width

Thickness

Top Term

Bottom Term

Gap

Approx. Weight

.205 (.203 - .211)

.096 (.094 - .102)

.027 (.023 - .033)

.019 (.015 - .025)

.021 (.015 - .025)

.163 (.159 - .167)

0.0335 grams

5.20

2.45

0.64

0.48

0.53

4.15

(5.15 - 5.35)

(2.40 - 2.60)

(0.58 - 0.84)

(0.38 - 0.64)

(4.05 - 4.25)

.153

.102

.051

“Specifications subject to change without notice.”

STATE OF THE ART, INC.

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004

www.resistor.com

Fax (814) 355-2714

Toll Free 1-800-458-3401

02/15/08
