Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011

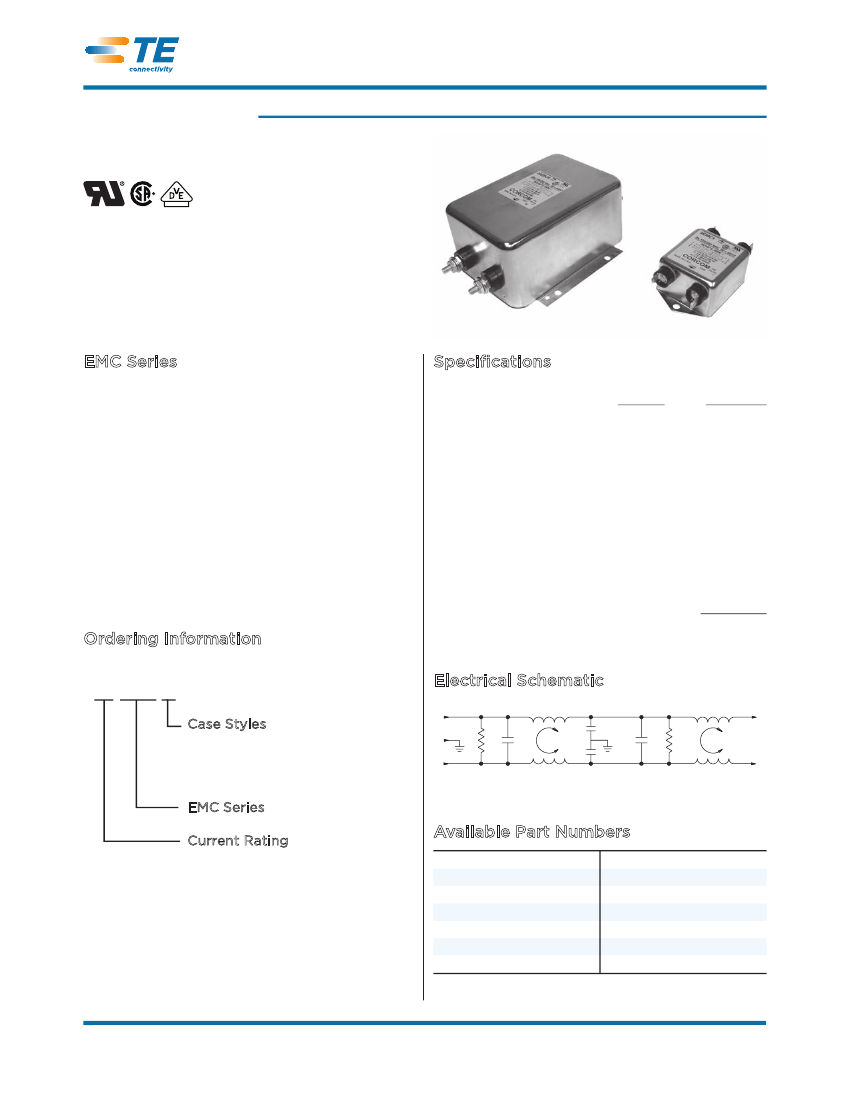

Compact and Cost-effective Dual Stage RFI Power Line Filters
EMC Series
UL Recognized
CSA Certified
VDE Approved
EMC6
EMC1
EMC Series
• Compact dual stage filter series
• Cost-effective design
• Current rating up to 30A
• High differential mode attenuation in the
lower frequency range
• High common mode performance
• Suitable for switching mode power supplies
Specifications
Maximum leakage current each Line to Ground:
3, 6, 10A
15, 20, 30A
@ 120 VAC 60 Hz:
@250 VAC 50 Hz:
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Operating Frequency:
Rated Current:
.21 mA
.43 mA
.73 mA
1.52 mA
2250 VDC
1450 VDC
250 VAC
50/60 Hz
3 to 30A
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/45
Ordering Information
10 EMC 1
Case Styles
1 – .250 [6.3] spade terminals
3 – Wire leads
6 – Threaded bolt
EMC Series
Current Rating
3, 6, 10, 15, 20 or 30A
Electrical Schematic
LINE
LOAD
Available Part Numbers
3EMC1
6EMC1
10EMC1
15EMC1
20EMC1
3EMC3
6EMC3
10EMC3
15EMC3
10EMC6
15EMC6
20EMC6
30EMC6
24
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
(continued)
Compact and Cost-effective Dual Stage RFI Power Line Filters
EMC Series

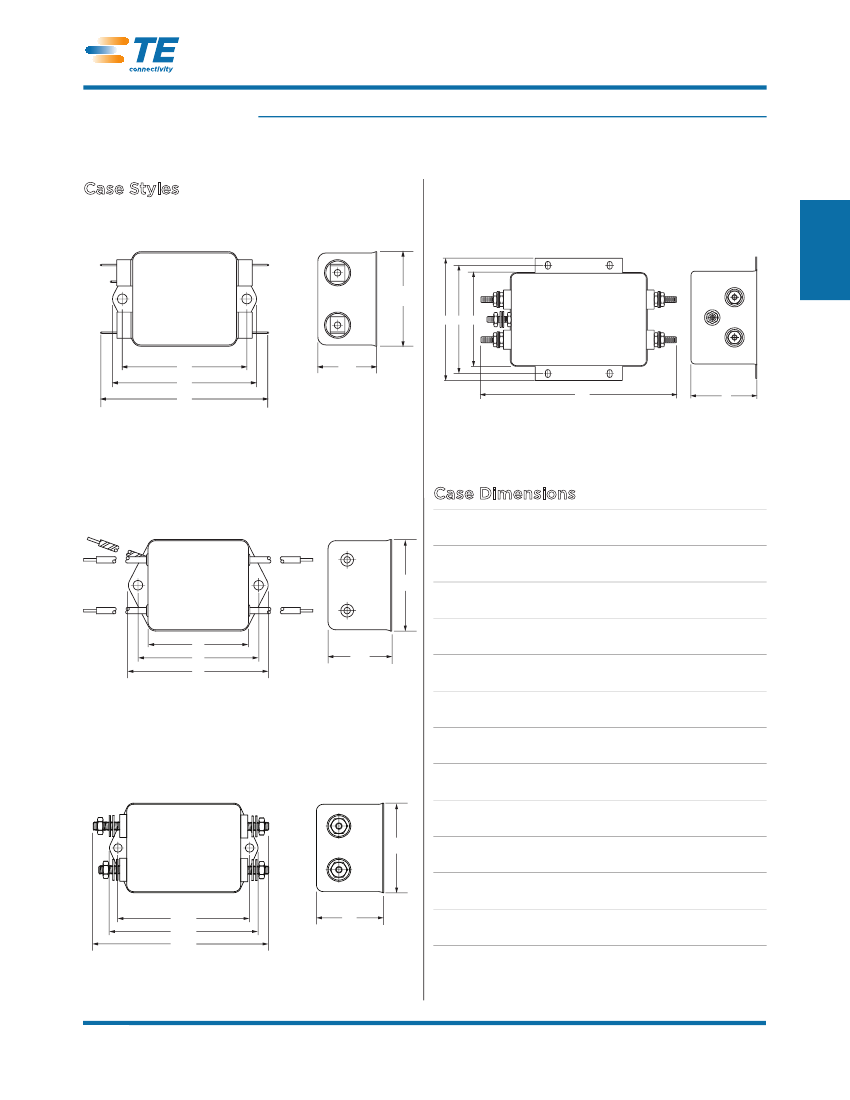

Case Styles
EMC1
30EMC6
1
B
RFI Power Line Filters
E
D
B
D
E
A
½
½½
C
A
C
½
½
EMC3
Green/
Yellow
Case Dimensions
Part No.
Brown
A
B
C
D
E
Brown
3EMC1
B
6EMC1
Blue
Blue
A
D
E
10EMC1
C
½
15EMC1
20EMC1
3EMC3
6EMC3
½
EMC6
10EMC3
15EMC3
B
10EMC6
15EMC6
20EMC6
D
E
A
C
30EMC6
½
½
25
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
(continued)
Compact and Cost-effective Dual Stage RFI Power Line Filters
EMC Series

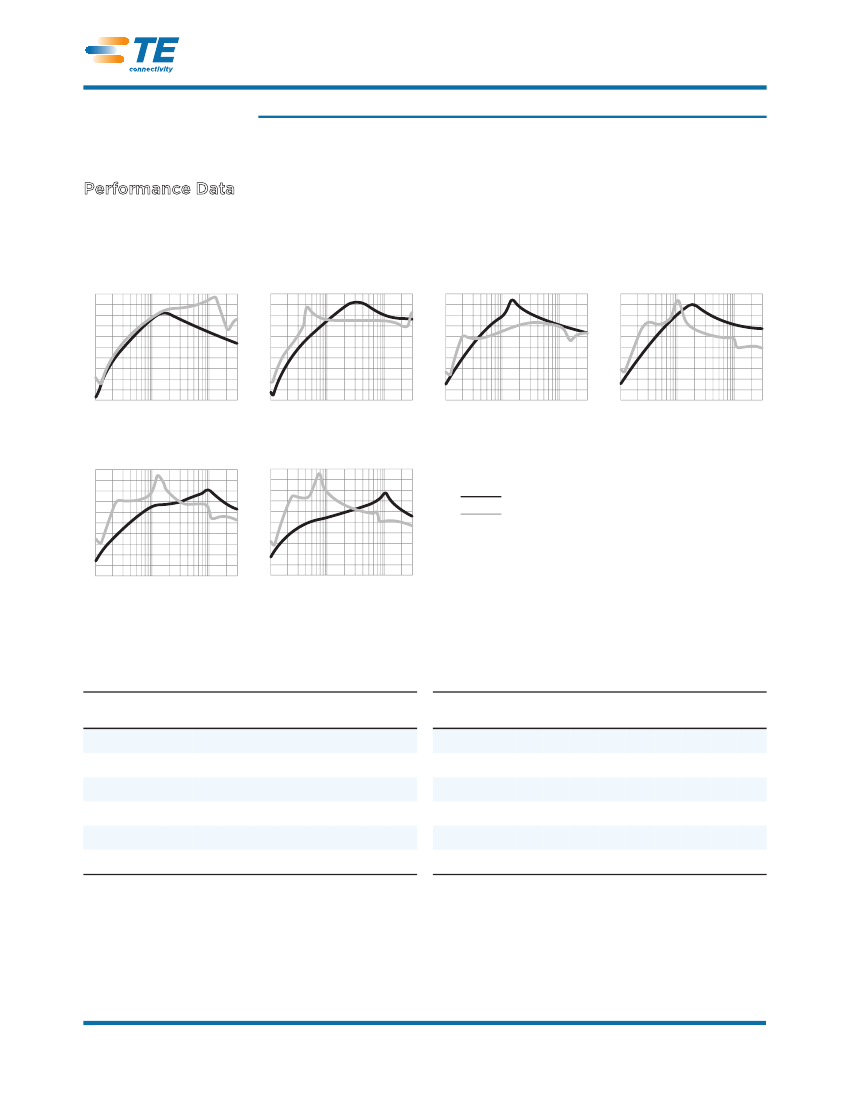

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
3EMC
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6EMC
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10EMC
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
15EMC
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
20EMC
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
30EMC
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
Minimum Insertion Loss
Common Mode / Asymmetrical (Line to Ground)
Differential Mode / Symmetrical (Line to Line)
26
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
