Corcom Product Guide
Compact Low Current 3-phase WYE RFI Filters
Catalog: 1654001
Issue Date: 06.2011
AYO Series
UL Recognized
CSA Certified
VDE Approved

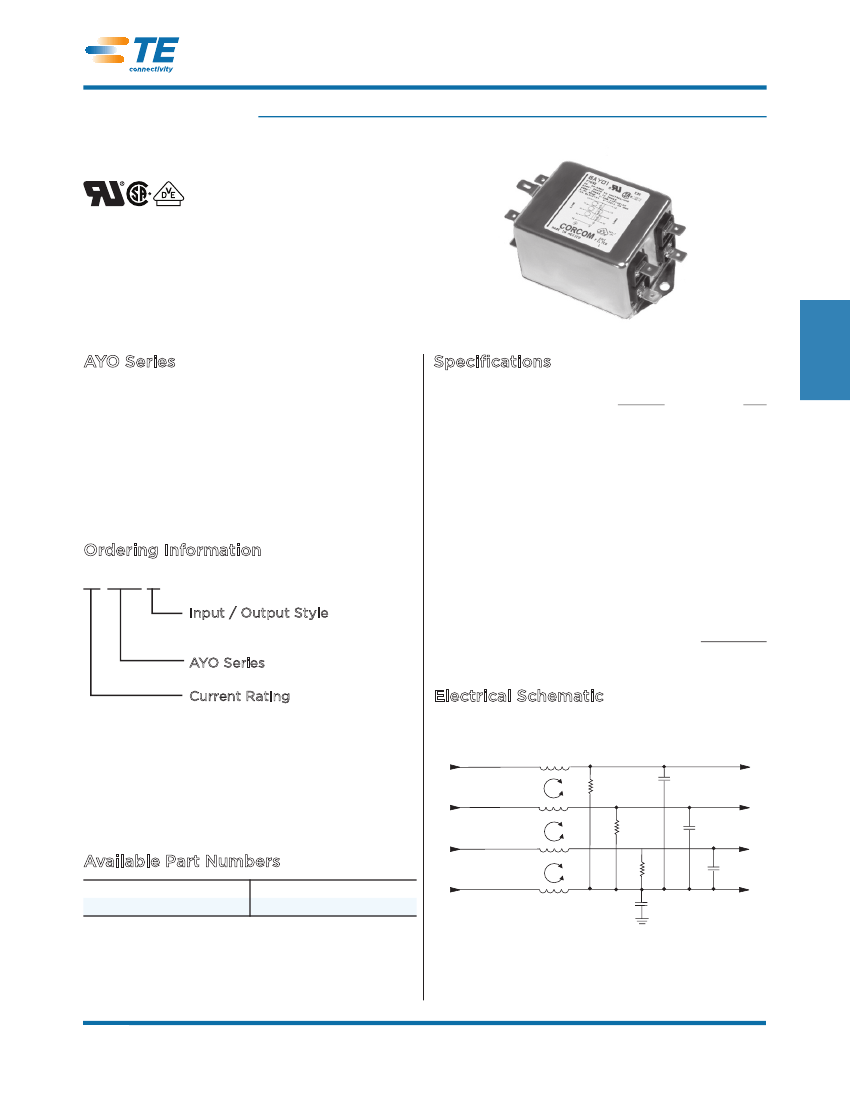

AYO Series
• For 3-phase, four wire, WYE applications
• Filters each of the three lines plus neutral
• Good for attenuation beginning at 100kHz
• Space saving design
• Low leakage current
• Easy to connect terminals
Specifications
Maximum leakage current each Line to Ground:
3, 6, 10A
20A
2
2.0 mA
3.0 mA
3.5 mA
5.5 mA
1500 VAC
1450 VDC
440 VAC
250 VAC
50/60 Hz
3 to 20A
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Phase to Phase:
Phase to Neutral / Ground:
Three Phase Filters
Ordering Information
10 AYO 1
Input / Output Style
1 – 0.25 [6.3] spade terminals
AYO Series
Current Rating
3, 6, 10 or 20A
Operating Frequency:
Rated Current:
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/45
Electrical Schematic
LINE
LOAD
Available Part Numbers
3AYO1
10AYO1
6AYO1
20AYO1
N
N
111
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
Compact Low Current 3-phase WYE RFI Filters
(continued)
AYO Series

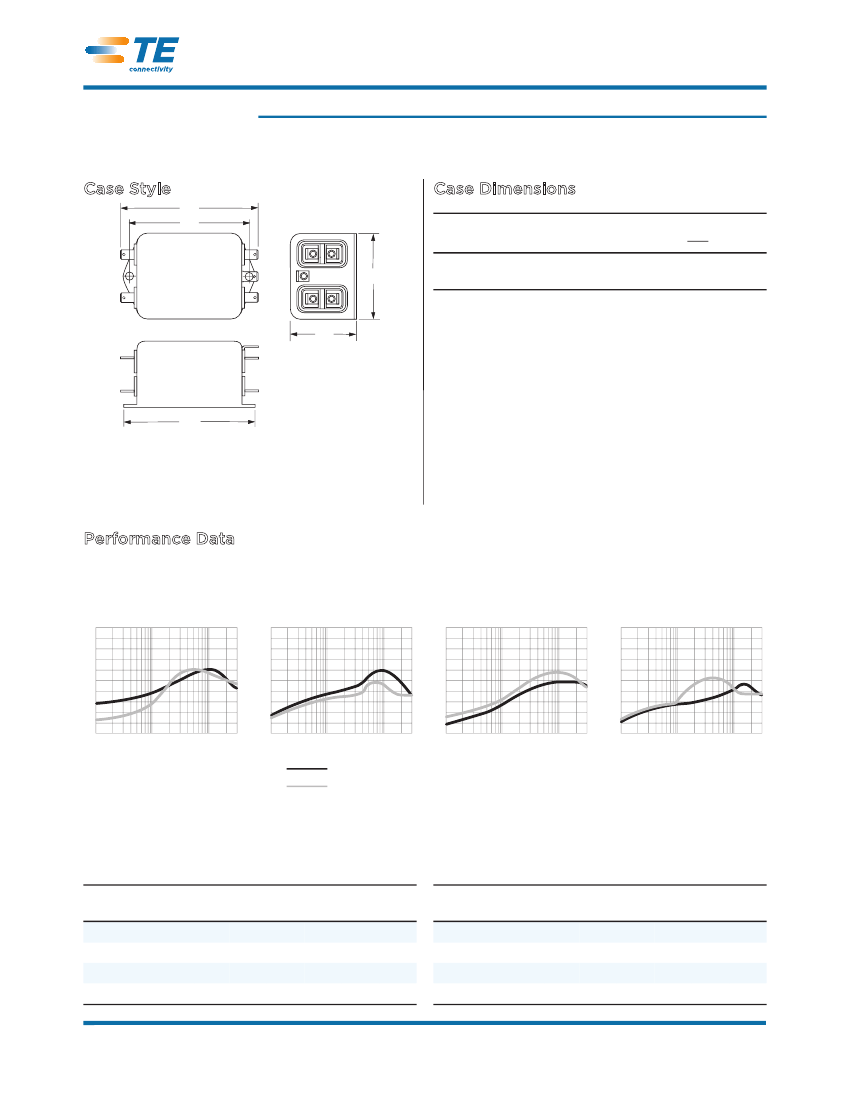

Case Style
A
D
Case Dimensions
Part No.
B
A
B
C
AYO Series
D
E
C
E
Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
3AYO1
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6AYO1
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10AY01
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
20AYO1
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
112
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Differential Mode / Symmetrical (Line to Line)
