5962-8971501XC: DescriptionVideo Imager, 12-Bit, CMOS, CPGA68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size750KB，20 Pages; ManufacturerTRW Inc

Download Datasheet Parametric Compare View All

5962-8971501XC Overview

Video Imager, 12-Bit, CMOS, CPGA68

5962-8971501XC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Other features	12 BIT SOURCE ADDRESS; OPTEMP SPECIFIED AS TC
boundary scan	NO
maximum clock frequency	15.15 MHz
External data bus width	12
JESD-30 code	S-CPGA-P68
JESD-609 code	e4
low power mode	NO
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	12
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum slew rate	75 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, VIDEO IMAGING
Base Number Matches	1

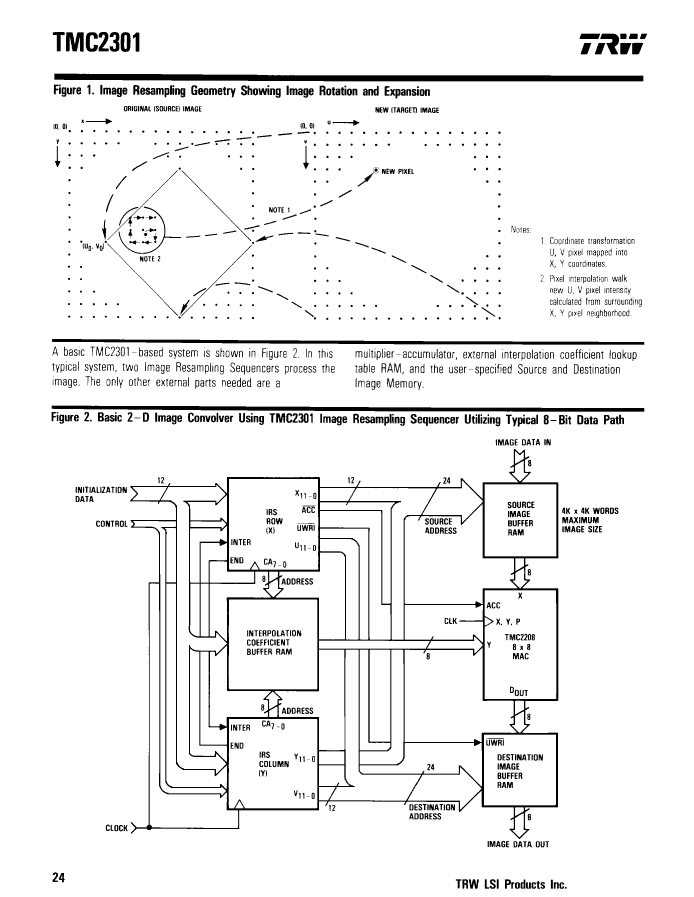

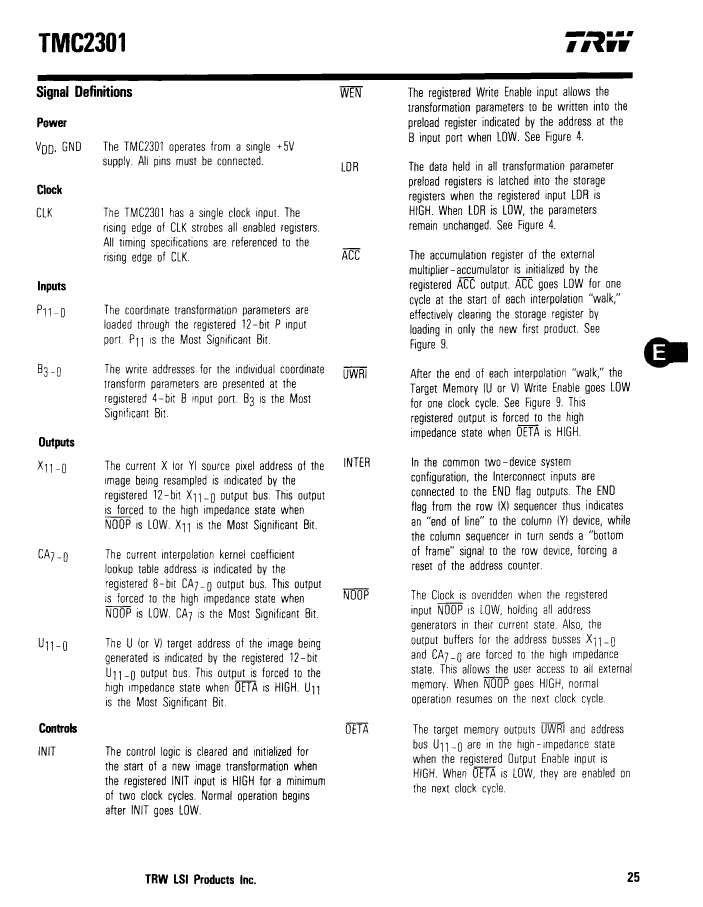

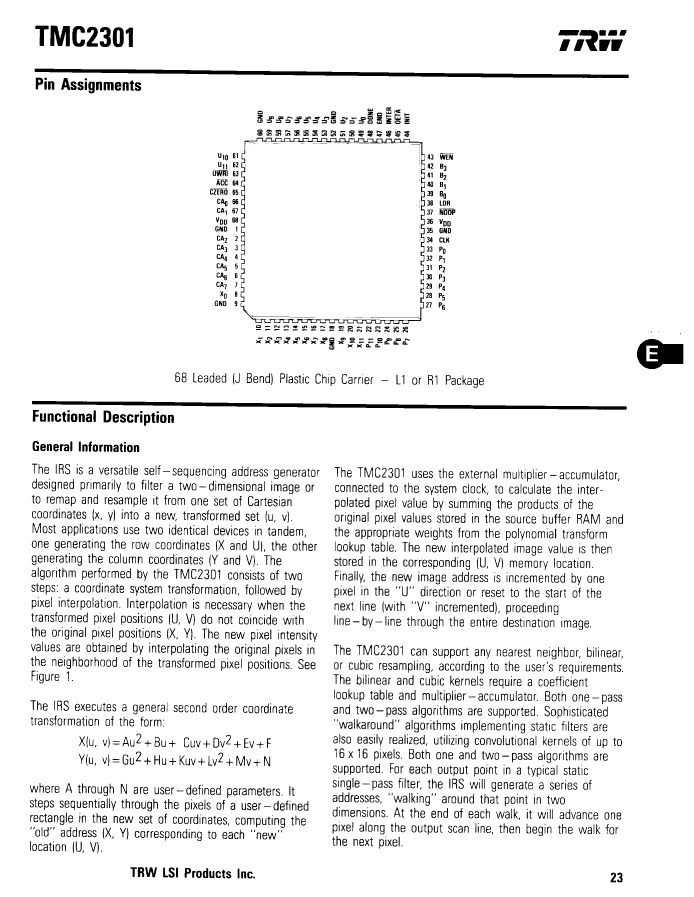

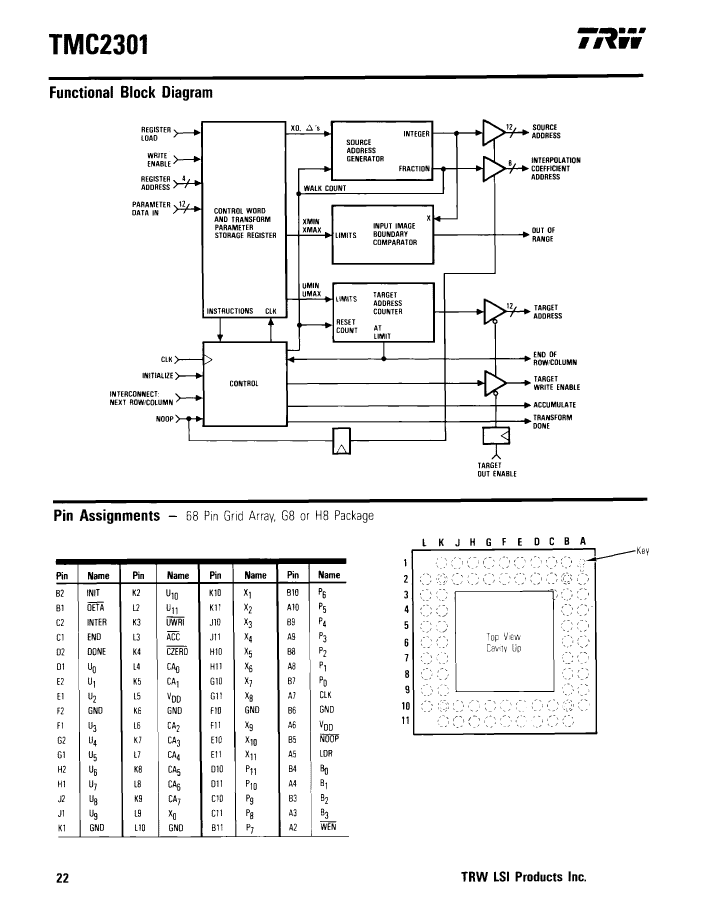

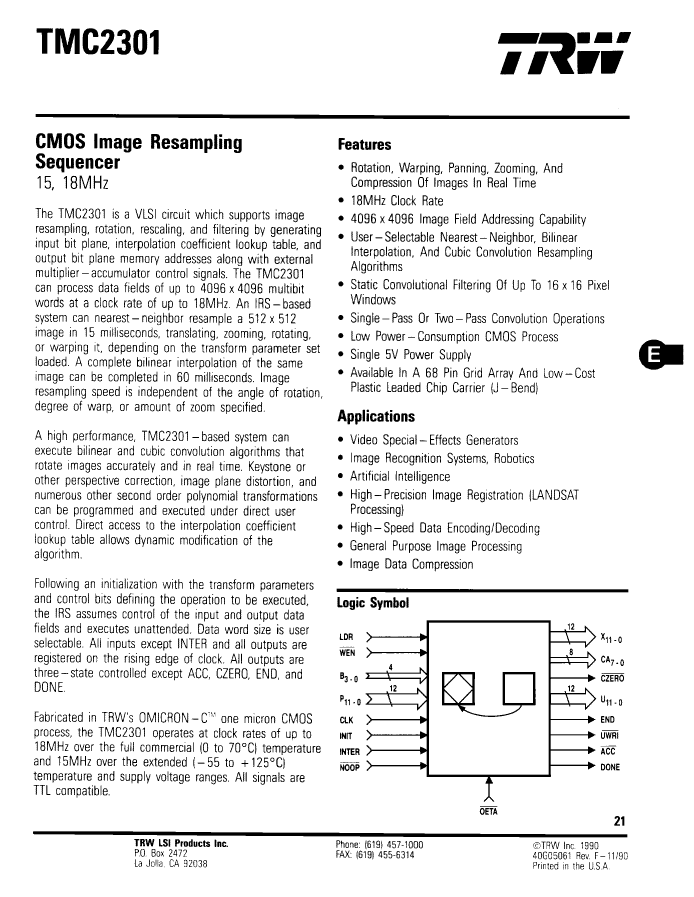

Preview

Download Datasheet

View All

5962-8971501XC Related Products

	5962-8971501XC	5962-8971501YA	5962-8971502YA	5962-8971502XC
Description	Video Imager, 12-Bit, CMOS, CPGA68	Video Imager, 12-Bit, CMOS, CQFP68, HERMETIC SEALED, CERAMIC, CC-68	Video Imager, 12-Bit, CMOS, CQFP68, HERMETIC SEALED, CERAMIC, CC-68	Video Imager, 12-Bit, CMOS, CPGA68
Reach Compliance Code	unknow	unknow	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	12 BIT SOURCE ADDRESS; OPTEMP SPECIFIED AS TC	12 BIT SOURCE ADDRESS; OPTEMP SPECIFIED AS TC	12 BIT SOURCE ADDRESS; OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 15MHZ	12 BIT SOURCE ADDRESS; OPTEMP SPECIFIED AS TC; ICC SPECIFIED @ 15MHZ
boundary scan	NO	NO	NO	NO
External data bus width	12	12	12	12
JESD-30 code	S-CPGA-P68	S-CQFP-F68	S-CQFP-F68	S-CPGA-P68
JESD-609 code	e4	e0	e0	e4
low power mode	NO	NO	NO	NO
Number of terminals	68	68	68	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	12	12	12	12
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	FLATPACK	FLATPACK	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	75 mA	75 mA	75 mA	75 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	TIN LEAD	TIN LEAD	GOLD
Terminal form	PIN/PEG	FLAT	FLAT	PIN/PEG
Terminal location	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, VIDEO IMAGING	DSP PERIPHERAL, VIDEO IMAGING	DSP PERIPHERAL, VIDEO IMAGING	DSP PERIPHERAL, VIDEO IMAGING
Base Number Matches	1	1	1	1
