825502B02853

Description
heatsink stamp 25.4x12.7x30mm
CategoryThermal management products
File Size364KB,1 Pages
ManufacturerComair Rotron
Environmental Compliance
Download Datasheet Parametric View All

825502B02853 Overview

heatsink stamp 25.4x12.7x30mm

825502B02853 Parametric

Parameter NameAttribute value
Datasheets
825502B02853
Fans, Blowers, Impellers Catalog
Catalog Drawings
825502B0xx53
Standard Package50
CategoryFans, Thermal Manageme
FamilyThermal - Heat Sinks
TypeBoard Level, Vertical
Package CooledTO-220
Attachment MethodClip and PC Pi
ShapeRectangular, Fins
Length1.180" (29.97mm)
Width0.997" (25.33mm)
Diamete-
Height Off Base (Height of Fin)0.500" (12.70mm)
Power Dissipation @ Temperature Rise1W @ 20°C
Thermal Resistance @ Forced Air Flow5°C/W @ 400 LFM
Thermal Resistance @ Natural-
MaterialAluminum
Material FinishBlack Anodized
Other Names825502B02853-NDCR480
Board Level
Heat Sinks
P/N: 825502B02853
TO-220

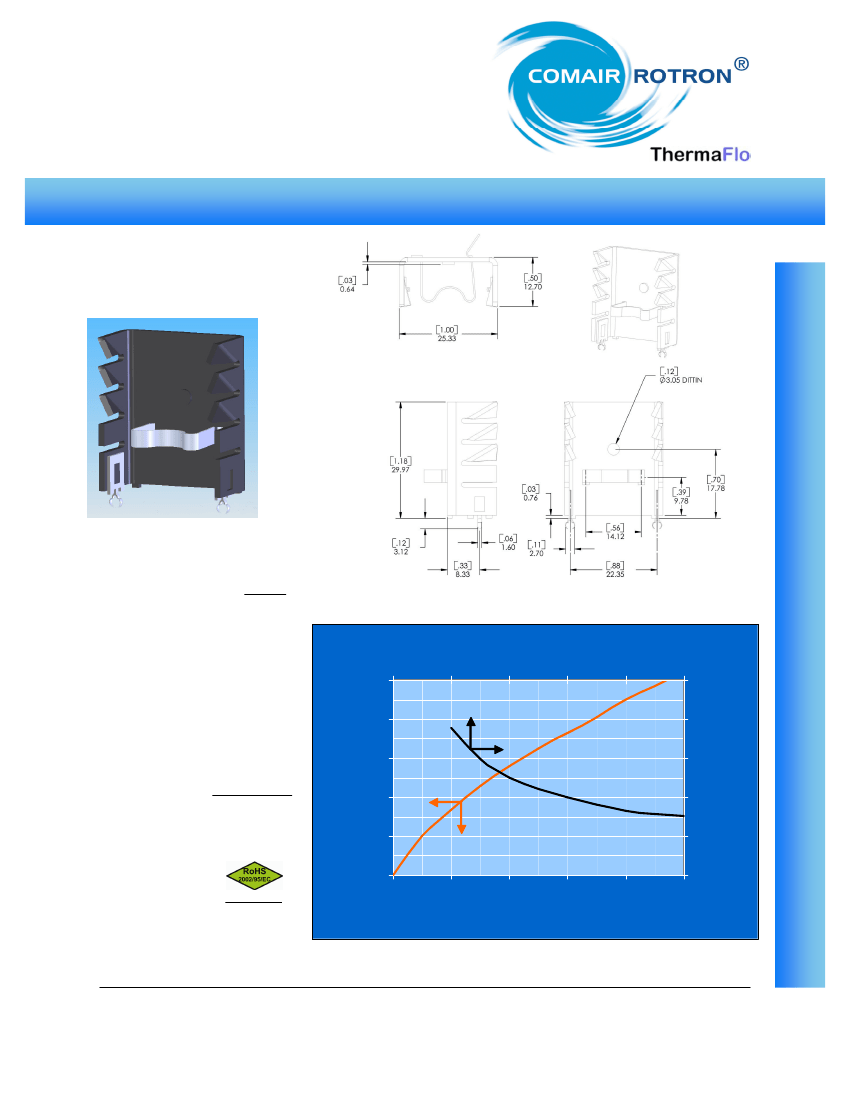

PRODUCT SPECIFICATIONS
Devices: TO-220
Size: 25.4 x 12.7 x 30.0 mm
Material: Aluminum, 1.2 mm Thick
Type: Stamped
IC Mounting: Integrated Spring
PCB Mounting: Solderable Tabs
Finish: Black Anodized
Package: Bulk
Optional Hardware: Thermal Interface
Material
Air Velocity - LFM
0
100
C
Temp Rise Above Ambient -
(Mounting Surface)
o
200
400
600
800
1000
10
8
6
4
2
0
Thermal Resistance -
o
C / Watt
(Mounting Surface to Ambient)
80
60
40
20
0
0
2
4
6
8
10
Heat Dissipated - Watts
FEATURES & BENEFITS
• Spring Clip for Quick Device Attachment
• Curled Flow Fins
• Vertical Mounting via Solderable Tabs
• RoHS Compliant
CUSTOMIZED HEATSINKS
• Specialized Tabs, Plating
• Specialized Body Configurations
• Contact Applications Engineering
COMAIR ROTRON, INC
8929 Terman Court, San Diego, CA 92121
Ph (858) 348-6200 Fax (858) 566-4577
E-mail: sales@comairrotron.com,
Web: www.comairrotron.com
