833302B02800

Description
heatsink stamp 19x12.7x12.7mm
CategoryThermal management products
File Size351KB，1 Pages
ManufacturerComair Rotron
Environmental Compliance
Download Datasheet Parametric View All

833302B02800 Overview

heatsink stamp 19x12.7x12.7mm

833302B02800 Parametric

Parameter NameAttribute value
Datasheets
833302B02800
Fans, Blowers, Impellers Catalog
Product Photos
833302b02800
Catalog Drawings
83(1,3)(5,3)02B0 Series
Standard Package50
CategoryFans, Thermal Manageme
FamilyThermal - Heat Sinks
TypeBoard Level, Vertical
Package CooledTO-220, TO-262
Attachment MethodClip and PC Pi
ShapeRectangular, Fins
Length0.750" (19.05mm)
Width0.500" (12.70mm)
Diamete-
Height Off Base (Height of Fin)0.500" (12.70mm)
Power Dissipation @ Temperature Rise1W @ 40°C
Thermal Resistance @ Forced Air Flow16.0°C/W @ 200 LFM
Thermal Resistance @ Natural-
MaterialAluminum
Material FinishBlack Anodized
Other Names833302B02800-NDCR501

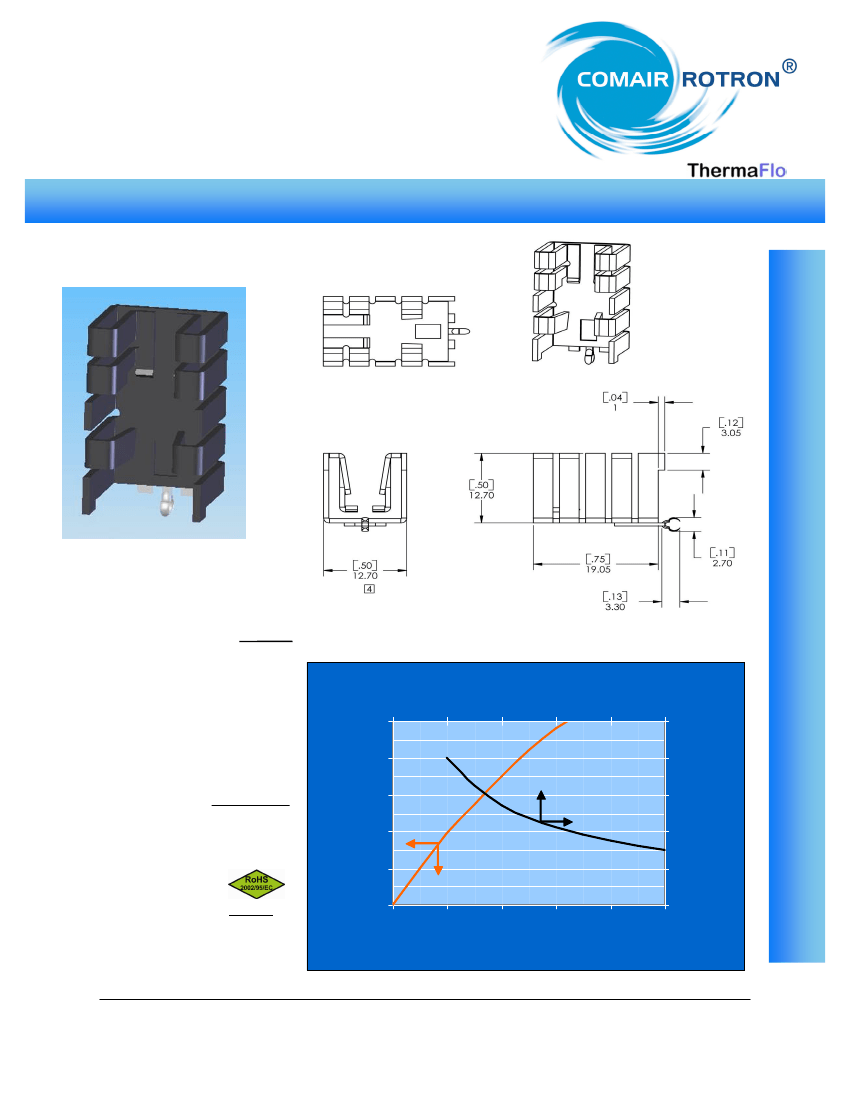

Preview

Download Datasheet
Board Level
Heat Sinks
P/N: 833302B02800
TO-220,
TO-262
PRODUCT SPECIFICATIONS
• Devices: TO-220 & TO-262
• Size: 19.0 x 12.7 x 12.7 mm
• Material: Aluminum, 0.8 mm thick
• Type: Stamped
• Finish: Black Anodized
• PCB Mounting: Solderable Spring Tab
• IC Mounting: Integrated Spring
•
Package: Bulk
Air Velocity - LFM
0
Temp Rise Above Ambient -
o
C
(Mounting Surface)
100
80
60
40
20
0
0
1
2
3
4
5
Heat Dissipated - Watts
200
400
600
800
1000
Thermal Resistance -
o
C / Watt
(Mounting Surface to Ambient)
20
16
12
8
4
0
FEATURES & BENEFITS
• No Hardware Device Attachment
• Constant Spring Force Tension
• Vertical Mounting via Solderable Tab
• RoHS Compliant
CUSTOMIZED HEATSINKS
•
Specialized Tabs, Plating
•
Specialized Body Configurations
• Contact Applications Engineering
COMAIR ROTRON, INC
8929 Terman Court, San Diego, CA 92121
Ph (858) 348-6200 Fax (858) 566-4577
E-mail: sales@comairrotron.com,
Web: www.comairrotron.com
