TP01-M: Descriptionthermal pad single phase; CategoryThermal management products; File Size481KB，3 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric View All

TP01-M Overview

thermal pad single phase

TP01-M Parametric

Parameter Name	Attribute value
Datasheets
Heat Transfer Pads
Product Photos
TP01-M
Other Related Documents
Declaration of Conformity
Standard Package	25
Category	Fans, Thermal Manageme
Family	Thermal - Pads, Sheets
Usage	Single Phase SSRs, M50 Power Modules
Shape	Rectangle
Outline	55.12mm x 42.42mm
Thickness	0.0050" (0.127mm)
Material	-
Adhesive	Adhesive - One Side
Backing, Carrie	-
Col	Pink
Thermal Resistivity	-
Thermal Conductivity	0.7 W/m-K

Preview

Download Datasheet

View All

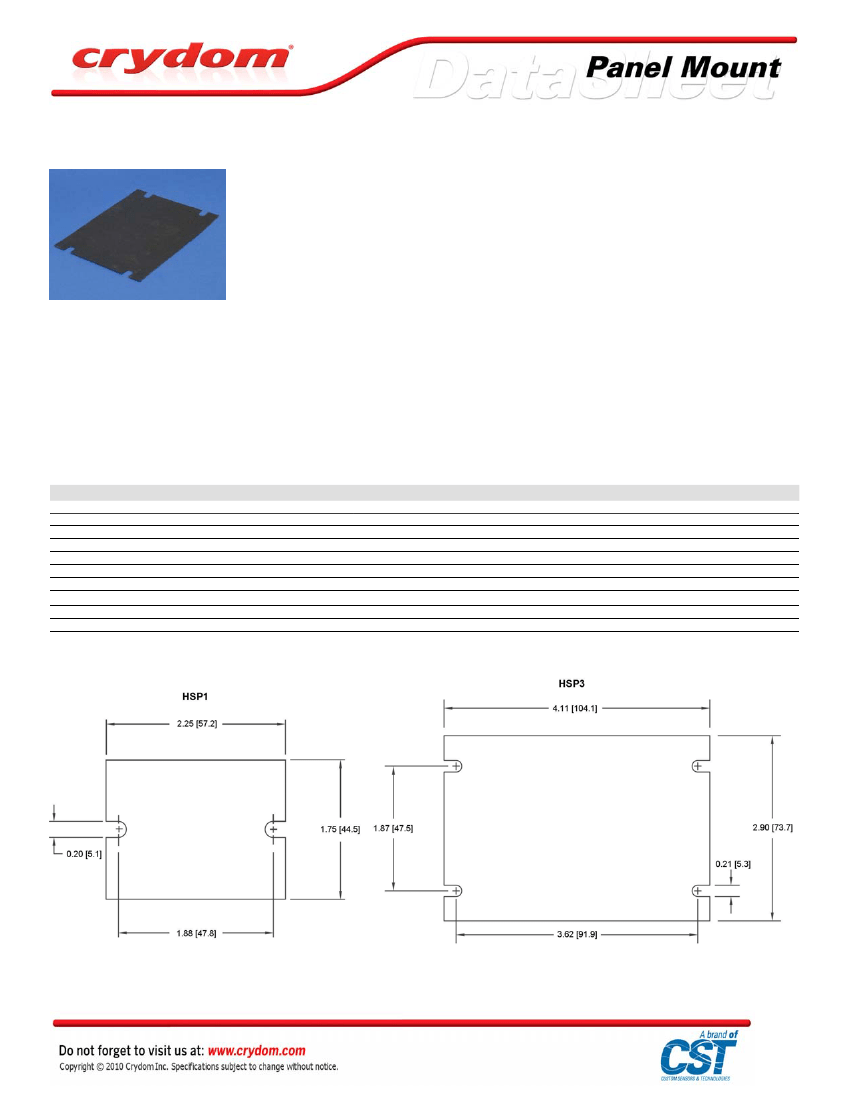

Heat Transfer Pad

• Easy-to-use thermal interface Material designed for use with

Standard Crydom single-phase and three-phase

solid-state relays.

• Excellent alternative to thermal grease

• Adhesive on one side, removable protective film

on reverse side (1)

TP01

For use with all single phase Panel mount SSR’s, Control modules and M50 power modules.

TP03

All Three phase (53TP) SSR’s.

TYPICAL PROPERTIES

Description

Color

Thickness, inch (mm)

Adhesive One Side

Thermal Impeadance [°C-in²/W]

Apparent Thermal Conductivity [W/m-K]

Phase-Change Temperature [°C]

Operating Temperature Range [°C]

Volume Resistivity [ohm-cm]

Specific Gravity

Suggested Heatsink Clamping Pressure, psi (MPa)

TP01/TP03

Pink

0.005 (0.13)

Yes

0.03 @50 psi

0.7

58

-60 to 125

10

15

Ohm

1.11

5 to 100 (0.035 to 0.690)

MECHANICAL SPECIFICATIONS

(1)

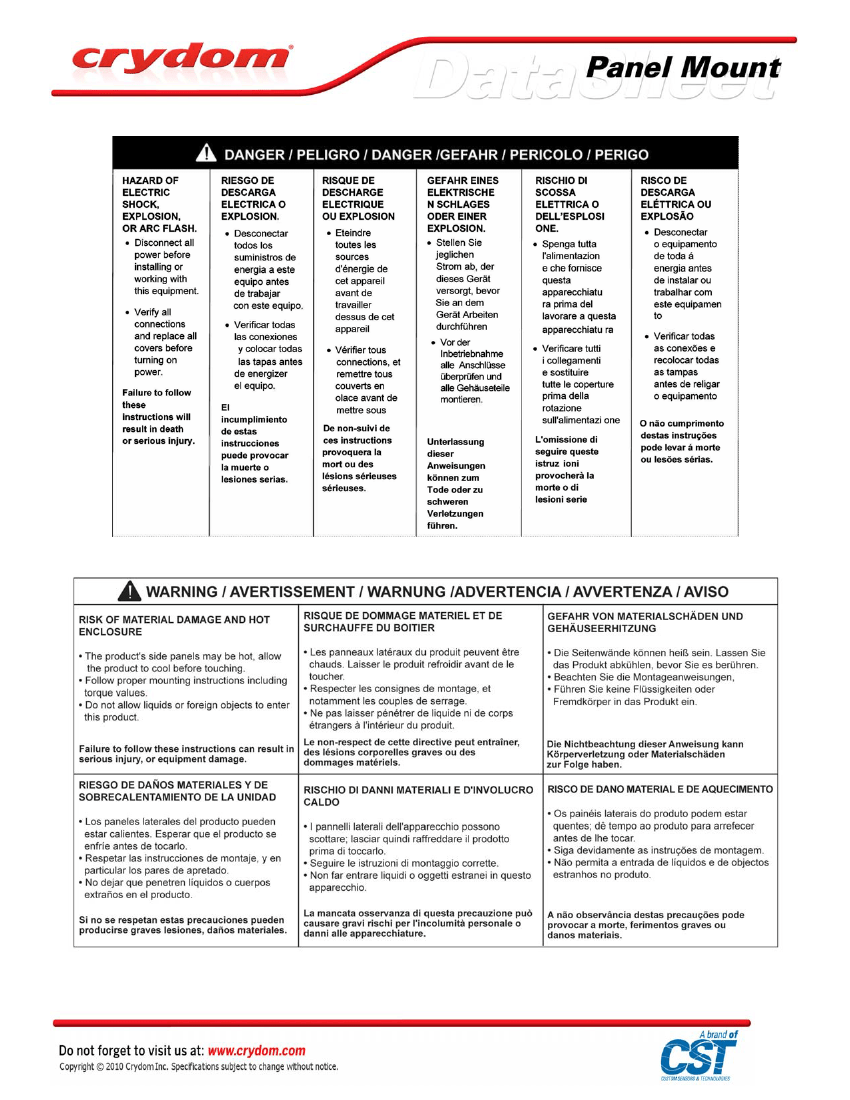

Protective film must be removed from the pad prior to installation of SSR onto heatsink.

Failure to remove film may result in relay failure.

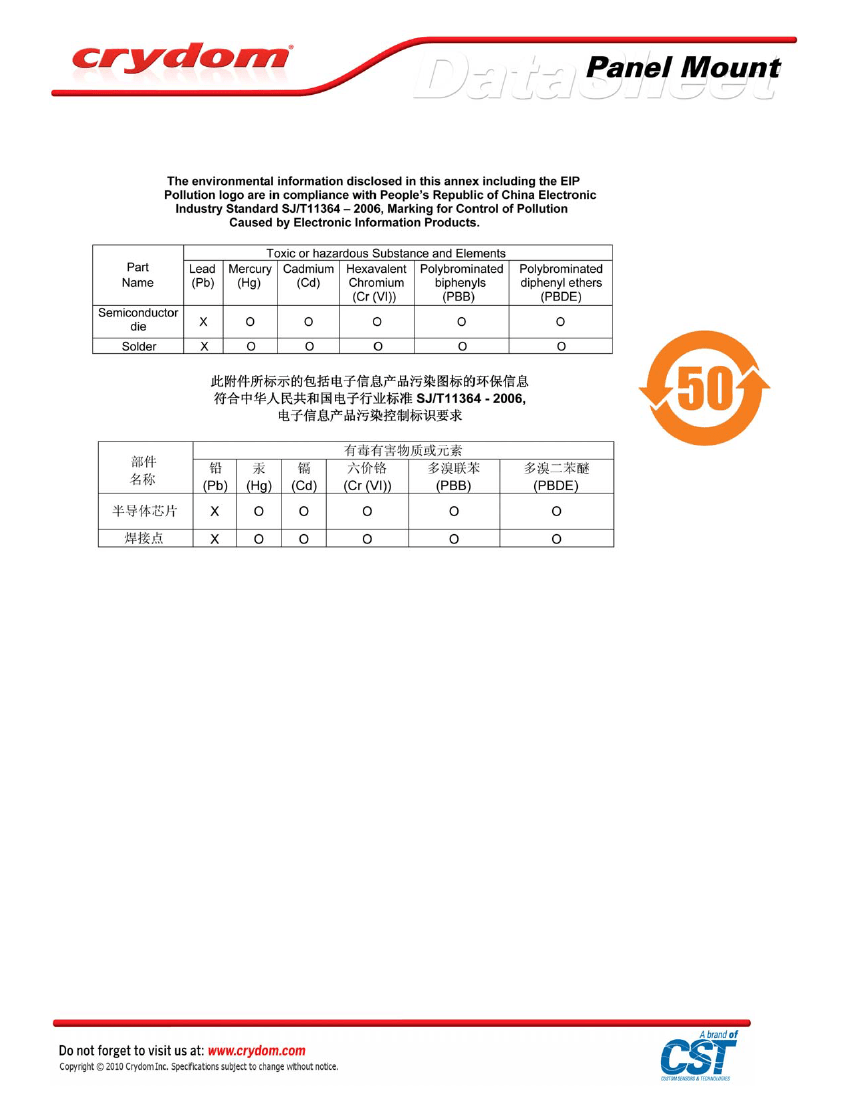

Rev. 112310
