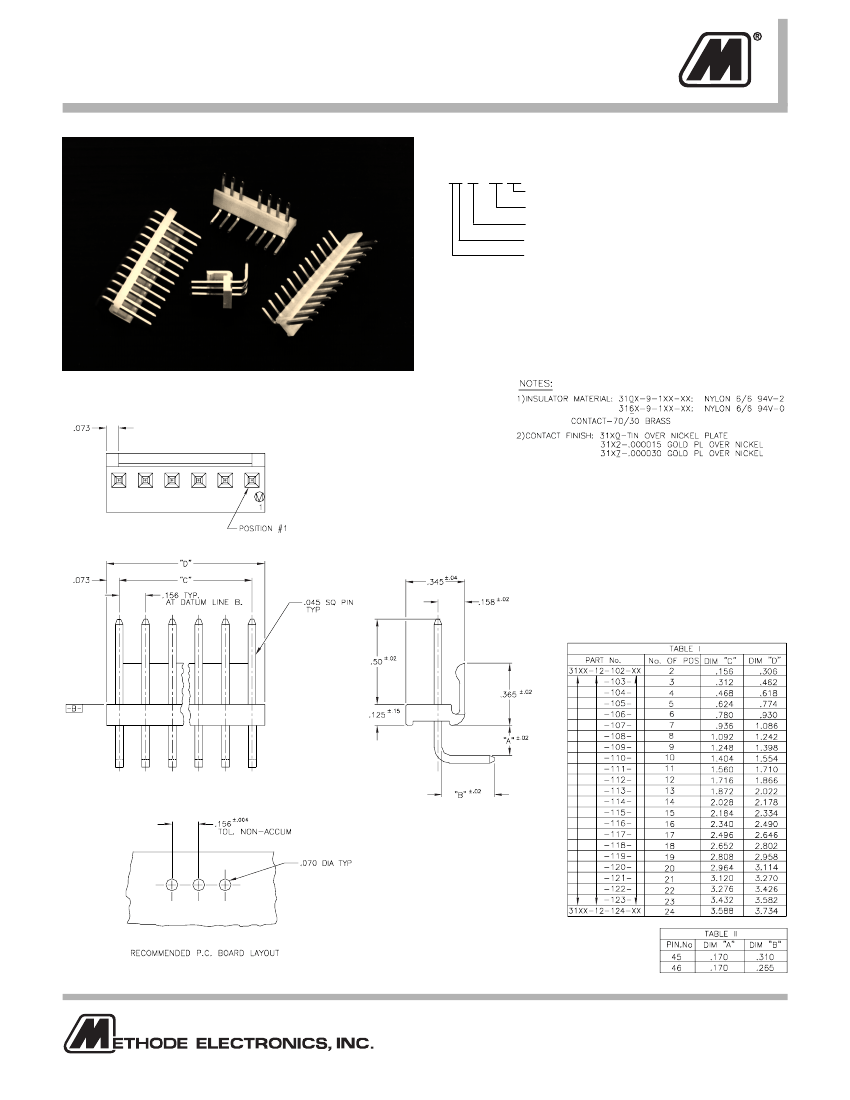

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| Other features | UL 94V-2 HOUSING |
| body width | 0.345 inch |
| subject depth | 0.535 inch |
| body length | 2.022 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 5 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1500VAC V |
| maximum insertion force | 8.896 N |
| Insulation resistance | 500000000000 Ω |
| insulator material | NYLON |
| Manufacturer's serial number | 3100 |
| Plug contact pitch | 0.156 inch |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| PCB contact pattern | RECTANGULAR |
| polarization key | HOUSING SIDE |
| Rated current (signal) | 7 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.129 inch |
| Terminal pitch | 3.9624 mm |
| Termination type | SOLDER |
| Total number of contacts | 13 |
| Evacuation force-minimum value | .556 N |
| Base Number Matches | 1 |
