A
B
C
D
E
F
'T'
SEE NOTES
1
'L'
+0.8 [.03]
'H' -0.3 [.01]
REV.
MODIFICATION.
DATE
DRN
01
02
03
04
ECN07-190
CO2010396
CO2010452
CO2011253
09/11/07
25/09/08
23/10/08
12/04/12
NJB
SF
TC
SF
1
'M'
'M'
STYLE 3
'B'
'L'
SEE NOTES
'B'
+0.8 [.03]
'H' -0.3 [.01]
2
'M'
'M'
2
'T'
'D'
'L'
SEE NOTES
'B'
+0.8 [.03]
'H' -0.3 [.01]
STYLE 2
NOTE:
UNTHREADED LENGTH = 1.5 [.059] PITCH MAX.
3
'M'
'M'
INFORMATION CONTAINED IN THIS DOCUMENT IS CONFIDENTIAL TO
RICHCO INTERNATIONAL Co. Ltd. AND MAY NOT BE DISCLOSED OR
REPRODUCED IN WHOLE OR PART WITHOUT THEIR WRITTEN CONSENT.
METRIC PRIMARY UNITS:mm
IMPERIAL SECONDARY UNITS:[inches]
GENERAL TOLERANCES 0.25 [0.010]
UNLESS OTHERWISE STATED
1 DECIMAL PLACE
SHEET SIZE
2 DECIMAL PLACES
A4
ANGULAR 1
3
'T'
'D'

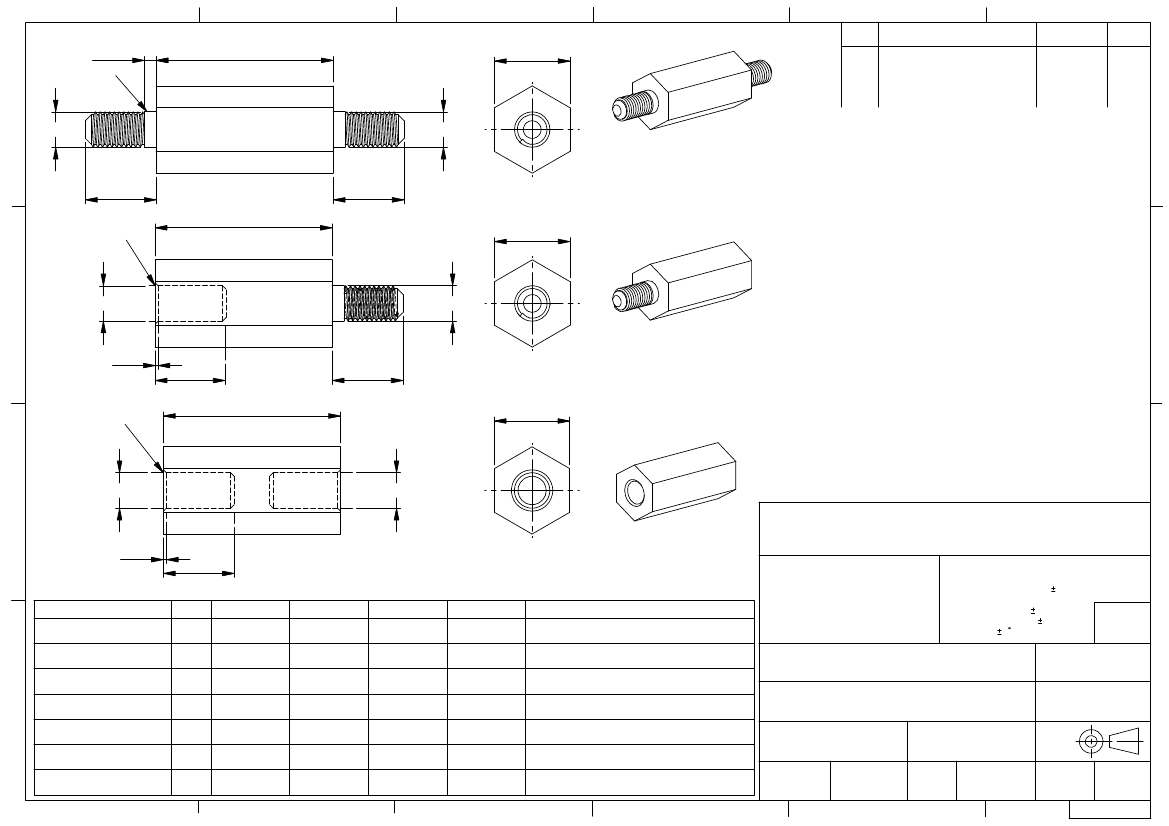

STYLE 1
RICHCO, INC.
PART No.
HSM-M2-6.4-L-STYLE
HSM-M2.5-6.4-L-STYLE
HSM-M3-6.4-L-STYLE
4
'M'
M2
M2.5
M3
M4
M5
M5
M6
'H'
6.4 [.251]
6.4 [.251]
6.4 [.251]
8.0 [.314]
9.5 [.374]
12.7 [.500]
12.7 [.500]
'B'
6.0 [.236]
6.0 [.236]
6.0 [.236]
6.0 [.236]
10.0 [.393]
12.7 [.500]
12.7 [.500]
B
'D'
6.0 [.236]
6.0 [.236]
6.0 [.236]
6.0 [.236]
10.0 [.393]
12.7 [.500]
12.7 [.500]
'T'
0.6 [.023]
0.68 [.026]
0.75 [.029]
1.05 [.041]
1.2 [.047]
1.5 [.059]
1.5 [.059]
C
'L'
15.0-50.0 [.590-1.968] (1mm INCREMENTS)
15.0-50.0 [.590-1.968] (1mm INCREMENTS)
15.0-50.0 [.590-1.968] (1mm INCREMENTS)
15.0-50.0 [.590-1.968] (1mm INCREMENTS)
20.0-75.0 [.787-2.952] (1mm INCREMENTS)
20.0-75.0 [.787-2.952] (1mm INCREMENTS)
25.0-75.0 [.984-2.952] (1mm INCREMENTS)
D
WWW.RICHCO-INC.COM
MATERIAL:
BODY: NYLON 6 (RMS-133).
INSERT: BRASS (RMS-231).
COLOUR:
NATURAL
PART No:
4
DESCRIPTION:
HSM-M4-8-L-STYLE
HSM-M5-9.5-L-STYLE
HSM-M5-12.7-L-STYLE
HSM-M6-12.7-L-STYLE
A
METRIC HEX LOW VOLTAGE INSULATORS
DRG No:
NPR No:
SEE TABLE
THIRD
ANGLE
07-125
DRN
DATE
N/A
CHKD
DATE
SCALE
SHEET No.
NJB
09/11/07
E
TC
23/10/08
NTS
1 OF 1
FORM No. 0145/04
