GMDE3100P-CMI4J5-18X datasheet, PDF

Datasheet> All Categories > The connector> The connector> GMDE3100P-CMI4J5-18X

GMDE3100P-CMI4J5-18X: DescriptionD Type Connector,; CategoryThe connector The connector; File Size339KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

GMDE3100P-CMI4J5-18X Overview

D Type Connector,

GMDE3100P-CMI4J5-18X Parametric

Parameter Name	Attribute value
Objectid	145000909216
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8.75
Other features	STANDARD: MIL-DTL-83513
Connector type	D MICROMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	H
Total number of contacts	100

Preview

Download Datasheet

View All

Micro-D Metal Shell

GMDE Environmentally Sealed

Rear Panel Mount With O-Ring

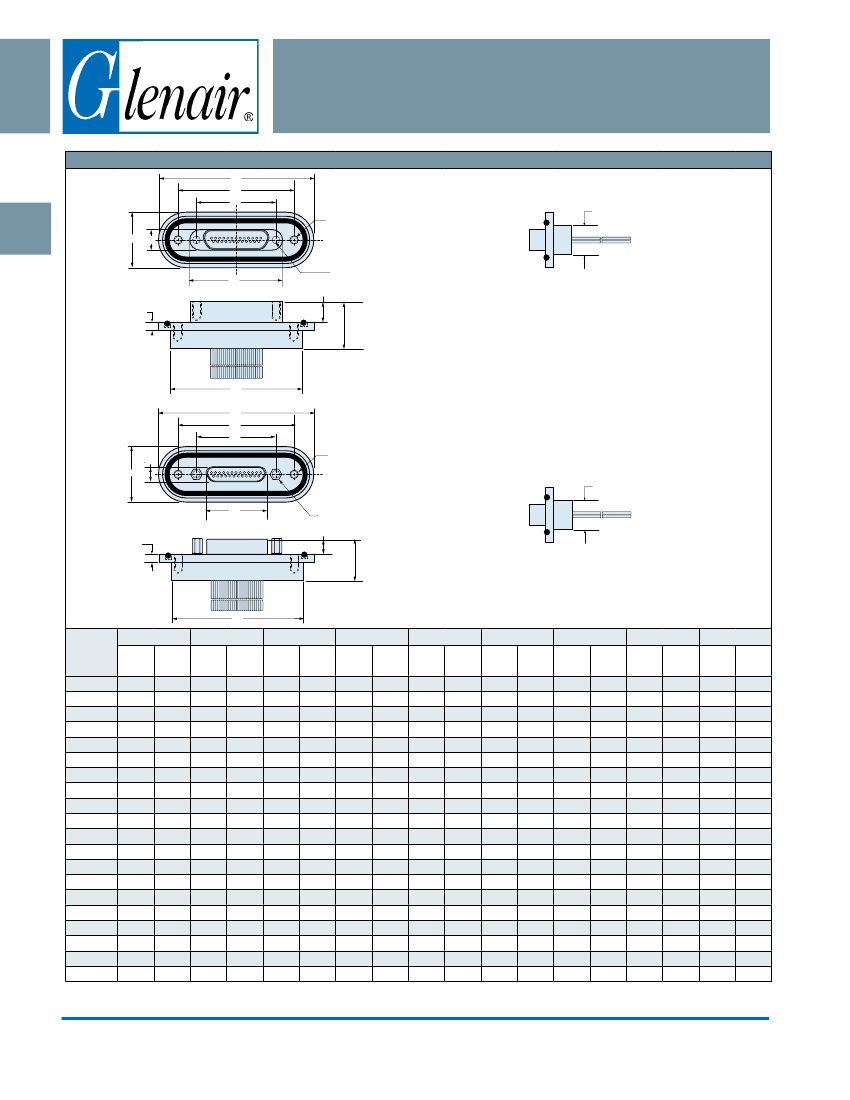

RMI Style

Blind tapped mounting holes

with stainless steel inserts

accomodate either #4-40 or M3

mounting screws. Connectors

are supplied with jackposts

installed. Socket connectors

feature integral jackposts.

CMI Style

Space-saving design uses

rear panel mount jackposts to

attach connectors to the panel.

Choose the Style That Meets Your Needs–

RMI

version

features blind tapped mounting holes, allowing secure

installation on panels.

CMI

version saves space by using rear

panel jackposts to attach the connector.

Mates to Standard M83513 Connectors–

GMDE connectors

meet the requirements of MIL-DTL-83513 and feature TwistPin

contacts for best performance.

Meets MIL-STD-810 Immersion–

The nitrile O-ring and a

special epoxy wire sealing process allow GMDE connectors to

meet immersion requirements.

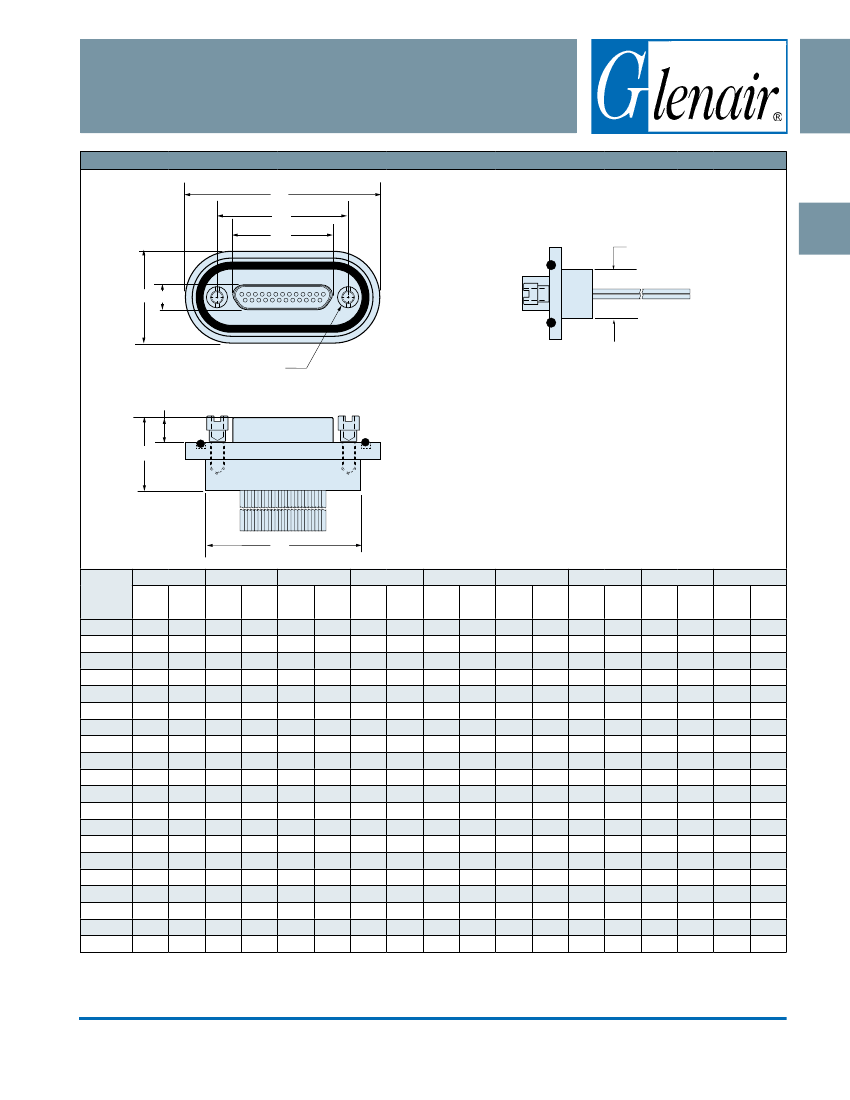

RMI

CMI

Protect Your Equipment

with Ruggedized Micro-D Connectors

Tactical communications boxes must be sealed to prevent water ingress. Standard M83513 type Micro connectors can

be difficult to seal to a bulkhead. The flange is too narrow for a gasket, and sealing with RTV can be time-consuming and

messy. The Glenair GMDE connector with O-rings provide a better way to seal the connector.

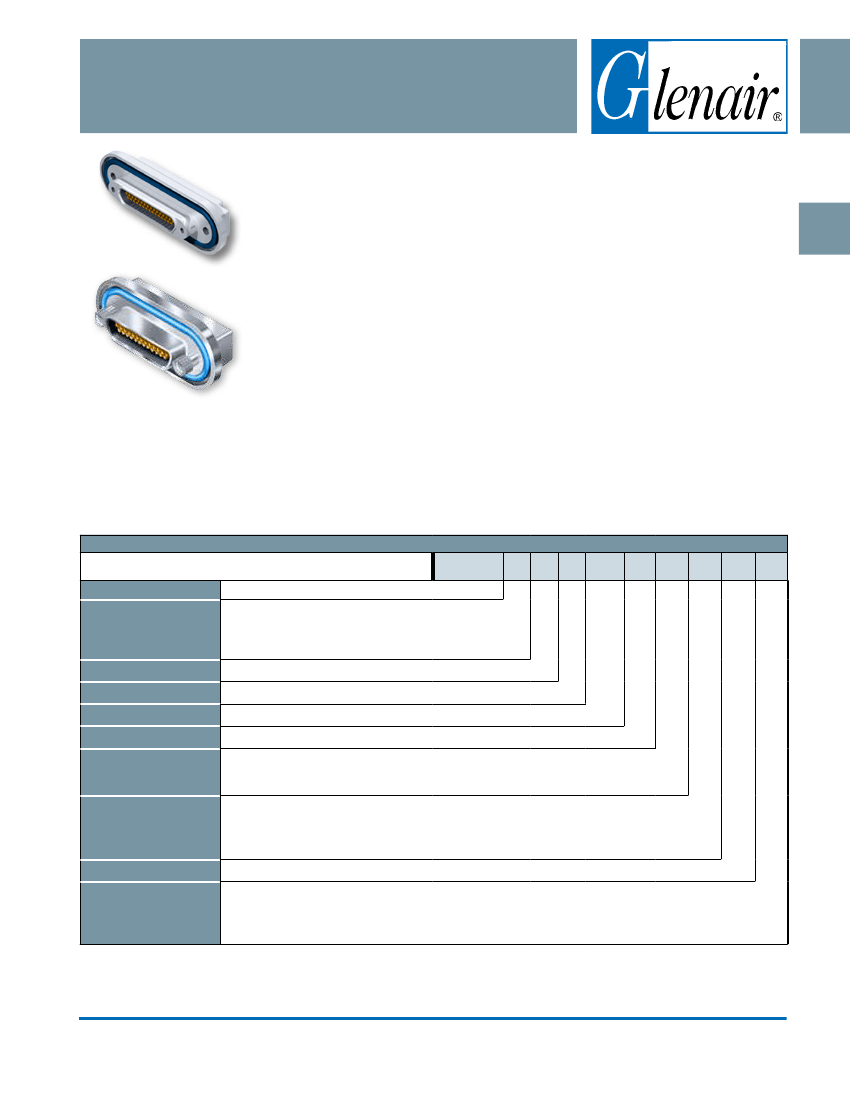

How To Order GMDE Connectors

Sample Part Number

Series

Shell Material

and Finish

Contact Layout

Contact Type

Flange Style

Wire Gage (AWG)

Wire Type

GMDE

Glenair Micro-D Environmental

Aluminum Shell

- Cadmium 2 - Nickel

- Black Anodize

- Gold

- Chem Film

Stainless Steel Shell

- Passivated

GMDE

S-

RMI

9, 15, 21, 25, 31, 37, 51, 51-2, 67, 100

(See Table I)

- Pin

- Socket

CMI

- Space Saving Rear Panel Mount with Jackposts

RMI

- Blind Tapped Mounting

- #24

- #26

- #28

– #30 (J type only)

– M22759/33

600 VRMS Modified Cross-

Linked Tefzel® (ETFE)

– NEMA HP3-EB

600 VRMS Type E M16878/4

(TFE)

– M22759/11

600 VRMS fluoropolymer (TFE)

Wire Color

- White

- Yellow

- Color Coded, Stripes Per MIL-STD-681

(Up to 51 colors)

– Ten Color Repeating

- Wire Length In Inches. “18” Specifies 18 Inches.

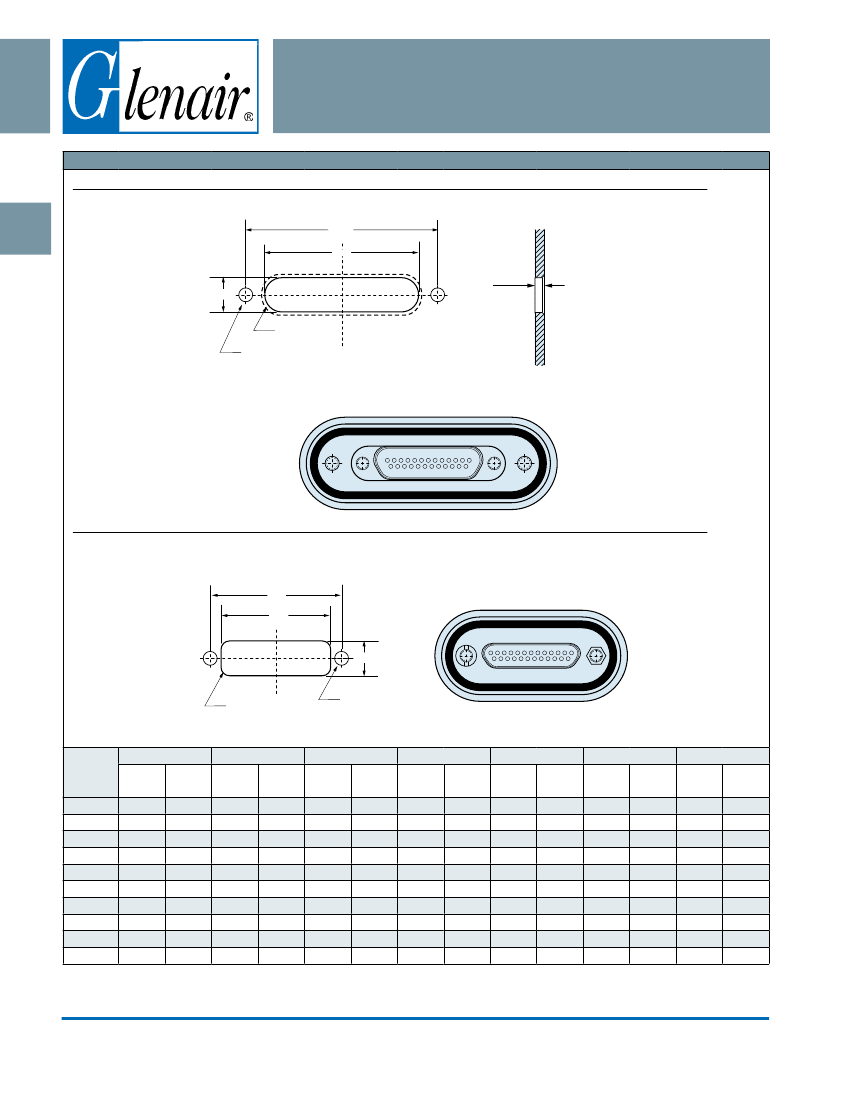

RMI Style Only

- Furnished with Jackposts and M3 Mounting Holes

- Furnished with Jackposts and #4-40 Mounting Holes

CMI Style Only

Jackposts for Rear Panel Mount

- .094 (2.4)

- .062 (1.6)

- .047 (1.2)

- .031 (0.8)

Wire Length Inches

Hardware

- .023 (0.65)

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-23

E-Mail: sales@glenair.com

Micro-D Harness
