RSEN-2020L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> RSEN-2020L

Preview

RSEN-2020L: Descriptionemi filter 250vac 20a screw term; CategoryAnalog mixed-signal IC filter; File Size172KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RSEN-2020L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RSEN-2020L	-	-	View	Buy Now

RSEN-2020L Overview

emi filter 250vac 20a screw term

RSEN-2020L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Certification	UL; CSA; EN
filter type	SINGLE PHASE EMI FILTER
high	35 mm
high potential	2500 V
Minimum insulation resistance	100 MΩ
Maximum leakage current	0.01 mA
length	87 mm
Installation type	PANEL MOUNT
working frequency	60Hz Hz
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
physical size	L87.0XB52.0XH35.0 (mm)/L3.425XB2.047XH1.378 (inch)
Rated current	20 A
Rated voltage	250 V
width	52 mm
Base Number Matches	1

Preview

Download Datasheet

View All

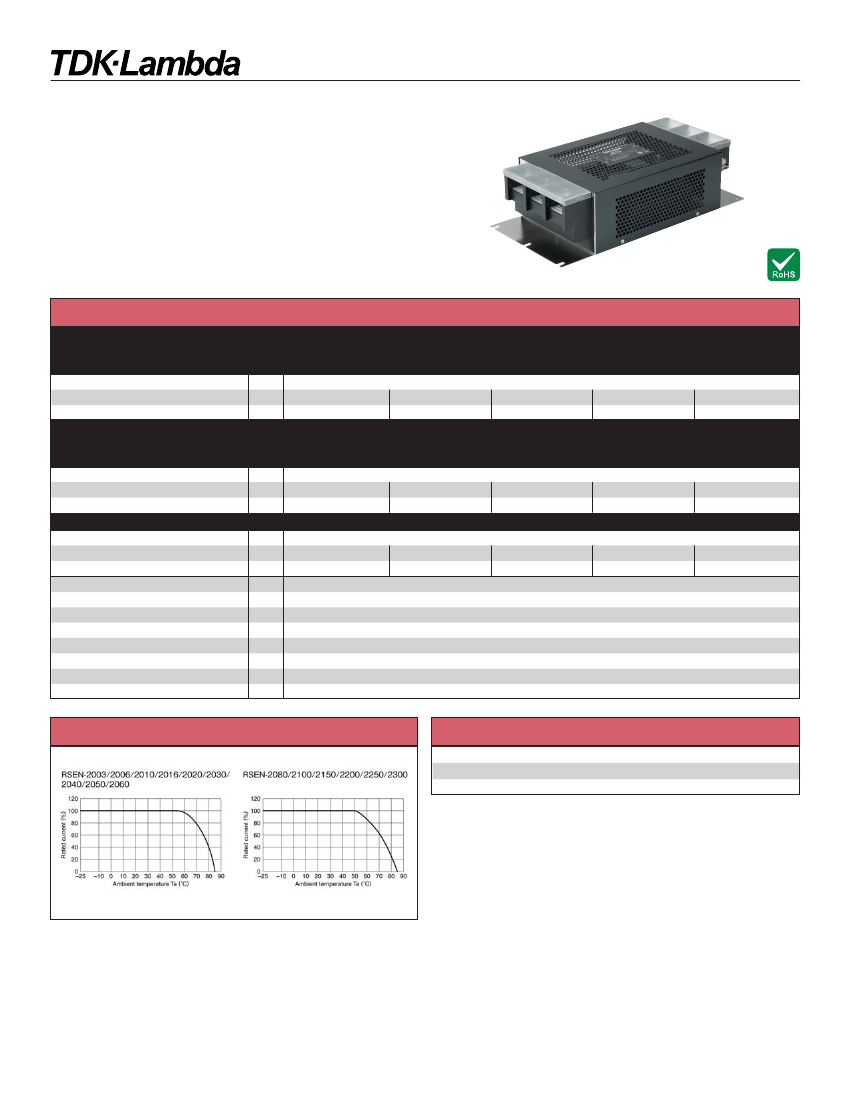

RSEN Series

3A to 300A, 250VAC EMI Filters

Features



Lower Cost (Than RSHN Series)



DIN Rail Mount Option (Up 30A)



Low Earth Leakage Current Option (Up to 30A)



Conforms to UL, CSA and EN Safety Agency Certiﬁcations

Speciﬁcations

Model

Rated Voltage (AC, DC)

Rated Current

DC Resistance (total)

RSEN-2003

RSEN-2003D

RSEN-2003L

V

A

mΩ

3A

250

RSEN-2030

RSEN-2030D

RSEN-2030L

RSEN-2006

RSEN-2006D

RSEN-2006L

6A

110

RSEN-2040

RSEN-2010

RSEN-2010D

RSEN-2010L

250V

10A

40

RSEN-2050

RSEN-2016

RSEN-2016D

RSEN-2016L

16A

20

RSEN-2060

RSEN-2020

RSEN-2020D

RSEN-2020L

20A

10

RSEN-2080

Model

Rated Voltage (AC, DC)

Rated Current

DC Resistance (total)

Model

Rated Voltage (AC, DC)

Rated Current

DC Resistance (total)

Withstand Voltage

Isolation Resistance

Leakage Current (max)

Operating Temperature

Storage Temperature

Safety Agency Certiﬁcations

Weight

Warranty

V

A

mΩ

V

A

mΩ

V

MΩ

A

°C

-

g

yr

250V

30A

40A

50A

60A

80A

6

4

3

3.4

RSEN-2100

RSEN-2150

RSEN-2200

RSEN-2250

RSEN-2300

250V

100A

150A

200A

250A

300A

2.7

2

1.4

1

0.7

Terminals to Case: 2500VAC (1 Minute)

100MΩ minimum (500VDC, 1 Minute)

RSEN-20xx 1mA; RSEN20xxL 10uA (250VAC, 60Hz)

-25 to +85°C (Derate above 50 / 55°C, see derating curve)

-25 to +85°C

UL1283, CSA C22.2 No.8, EN60939

170g to 8400g model dependant (See weights chart on website)

1 Year

Derating

Options

Chassis Mount & Standard Leakage Current

DIN Rail Mount & Standard Leakage Current

Chassis Mount & Low Leakage Current

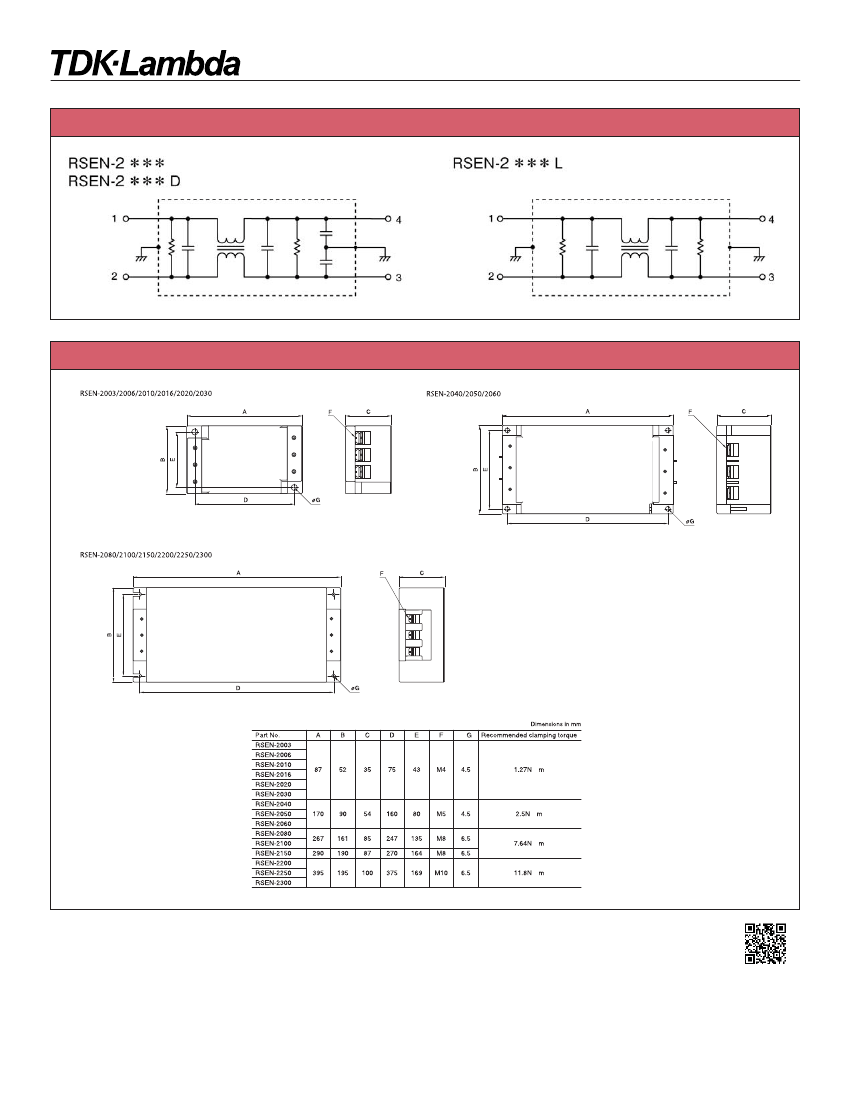

RSEN-20xx

RSEN-20xxD

RSEN-20xxL

1-800-526-2324 • www.us.tdk-lambda.com/lp/

280

Disclaimer: us.tdk-lambda.com/lp/legal.htm

RSEN-2020L Related Products

	RSEN-2020L	RSEN-2003	RSEN-2020	RSEN-2010LD	RSEN-2010L	RSEN-2030LD	RSEN-2250	RSEN-2006D
Description	emi filter 250vac 20a screw term	emi filter 250vac 3A screw term	emi filter 250vac 20a screw term	emi filter 250vac 10a din rail	emi filter 250vac 10a screw term	emi filter 250vac 30a din rail	emi FILter 250vac 250a screw ter	emi filter 250vac 6A din rail
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	-	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	-	unknow	-	unknow	unknown
Certification	UL; CSA; EN	UL; CSA; EN	UL; CSA; EN	-	UL; CSA; EN	-	UL; CSA; EN	UL; CSA; EN
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	-	SINGLE PHASE EMI FILTER	-	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	35 mm	35 mm	35 mm	-	35 mm	-	103 mm	43.5 mm
high potential	2500 V	2500 V	2500 V	-	2500 V	-	2500 V	2500 V
Minimum insulation resistance	100 MΩ	100 MΩ	100 MΩ	-	100 MΩ	-	100 MΩ	100 MΩ
Maximum leakage current	0.01 mA	1 mA	1 mA	-	0.01 mA	-	1 mA	1 mA
length	87 mm	87 mm	87 mm	-	87 mm	-	390 mm	98 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	-	PANEL MOUNT	-	PANEL MOUNT	PANEL MOUNT
working frequency	60Hz Hz	60Hz Hz	60Hz Hz	-	60Hz Hz	-	60Hz Hz	60Hz Hz
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	-	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-	-25 °C	-	-25 °C	-25 °C
physical size	L87.0XB52.0XH35.0 (mm)/L3.425XB2.047XH1.378 (inch)	L87.0XB52.0XH35.0 (mm)/L3.425XB2.047XH1.378 (inch)	L87.0XB52.0XH35.0 (mm)/L3.425XB2.047XH1.378 (inch)	-	L87.0XB52.0XH35.0 (mm)/L3.425XB2.047XH1.378 (inch)	-	L390.0XB195.0XH103.0 (mm)/L15.354XB7.677XH4.055 (inch)	L98.0XB52.0XH43.5 (mm)/L3.858XB2.047XH1.713 (inch)
Rated current	20 A	3 A	20 A	-	10 A	-	250 A	6 A
Rated voltage	250 V	250 V	250 V	-	250 V	-	250 V	250 V
width	52 mm	52 mm	52 mm	-	52 mm	-	195 mm	52 mm
Base Number Matches	1	1	1	-	1	-	1	1
