SLP100-307-01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > accessories> SLP100-307-01

Preview

SLP100-307-01: Descriptionsnap lock pins .307 X .090"; Categoryaccessories; File Size156KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric View All

SLP100-307-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SLP100-307-01	-	-	View	Buy Now

SLP100-307-01 Overview

snap lock pins .307 X .090"

SLP100-307-01 Parametric

Parameter Name	Attribute value
Datasheets
SLP(100,-1,-2) Drawing
CR, SLP, SLPA, HSR
Product Training Modules
Rivets and Hardware
Engineering Technology
Injection Molding and Plastics
Plastic Materials
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Rivets
Type	Snap Lock Pi
Rivet Diamete	0.090" (2.29mm)
Rivet Length	0.387" (9.83mm)
Head Diamete	0.210" (5.33mm)
Head Heigh	0.051" (1.30mm)
Hole Diamete	0.098" (2.49mm)
Grip Range	0.307" (7.80mm)
Features	-
Col	Natural
Material	Nyl
Other Names	61124005SLP10030701

Preview

Download Datasheet

View All

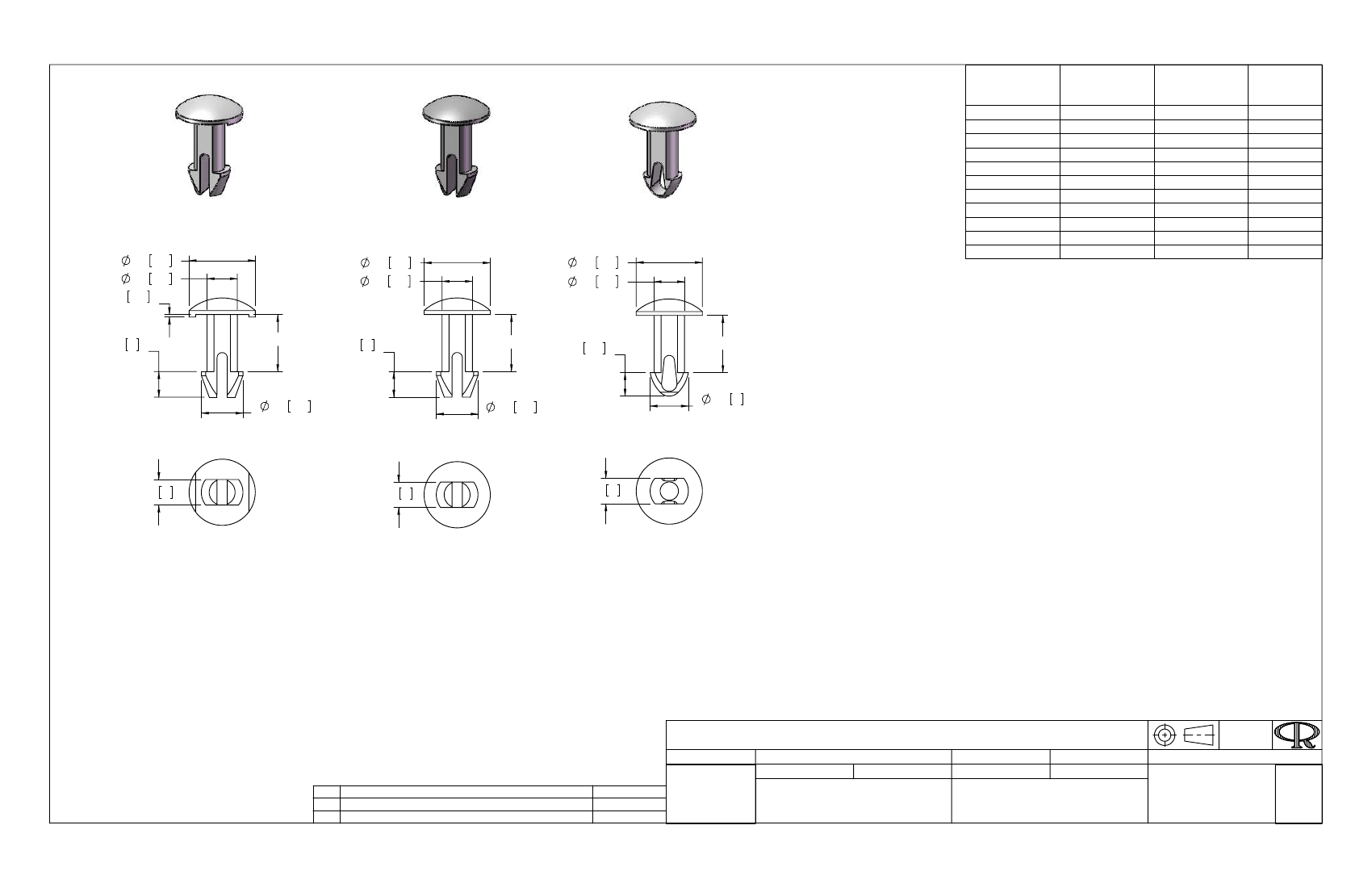

FIG 1

SLP100-177-01

SLP100-221-01

SLP100-236-01

SLP100-245-01

SLP100-307-01

SLP100-316-01

SLP100-330-01

SLP100-413-01

SLP100-638-01

SLP100-660-01

SLP100-701-01

FIG 2

SLP-1-100-177-01

SLP-1-100-221-01

SLP-1-100-236-01

SLP-1-100-245-01

SLP-1-100-307-01

SLP-1-100-316-01

SLP-1-100-330-01

SLP-1-100-413-01

SLP-1-100-638-01

SLP-1-100-660-01

SLP-1-100-701-01

*FIG 3

SLP-2-100-177-01

SLP-2-100-221-01

SLP-2-100-236-01

SLP-2-100-245-01

SLP-2-100-307-01

SLP-2-100-316-01

SLP-2-100-330-01

SLP-2-100-413-01

SLP-2-100-638-01

SLP-2-100-660-01

SLP-2-100-701-01

DIM. "A"±.015

.177 [4.5]

.220 [5.6]

.236 [6]

.245 [6.2]

.307 [7.8]

.316 [8]

.330 [8.4]

.413 [10.5]

.638 [16.2]

.660 [16.8]

.701 [17.8]

FIG 1.

SLP100 SERIES

.21 5.2

.09 2.4

.008 0.2

REF

.08 2

REF

"A"

.08 2

REF

.21 5.2

.09 2.4

FIG 2.

SLP-1-100 SERIES

.21 5.2

.09 2.4

FIG 3.

SLP-2-100 SERIES

*PARTS AVAILABLE BY SPECIAL ORDER ONLY.

"A"

.07 1.9

REF

"A"

.13 3.3

REF

.13 3.3

REF

.12 3

REF

.08 2

NOTES:

1. MATERIAL: NYLON 6/6 UL 94 V-2 (RMS-01).

-NYLON 6/6 UL 94 V-0 (RMS-19) AVAILABLE BY SPECIAL ORDER.

TO ORDER REPLACE "-01" WITH "-19".

2. COLOR: NATURAL.

3. ALL PARTS TO SNAP-LOCK IN A .098±.002 [2.5±0.05] DIA. HOLE.

TITLE:

CREATED USING

SOLIDWORKS

SNAP- LOCK PINS

FILE #: SLPX

SHEET: 1 OF 1

RE:

SHEET SIZE: B

DWN: SK

DT: 11/15/07

B

A

REV.

SEE CO 200083 FOR CHANGES

RELEASED FOR PRODUCTION, CO 200066

DESCRIPTION

SK

12/06/07

SK

11/19/07

ENGR. DATE

TOLERANCES

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

RICHCO, INC.

ENG@RICHCO-INC.COM

APP: R.T.

CHKD: D.Z.

PART #

DWG IN

IN [MM]

FINAL

(773) 539-4060

SEE TABLE

CA

PRINT

TYPE
