OEDA-75-3-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> OEDA-75-3-7

OEDA-75-3-7: Descriptionknob clr/matte .75"dia 6mm shaft; Categoryaccessories; File Size59KB，1 Pages; ManufacturerKILO INTERNATIONAL; Environmental Compliance

Download Datasheet Parametric View All

OEDA-75-3-7 Overview

knob clr/matte .75"dia 6mm shaft

OEDA-75-3-7 Parametric

Parameter Name	Attribute value
Datasheets
OED
Product Photos
OEDA-75
Catalog Drawings
OED Arrow Series
Standard Package	20
Category	Hardware, Fasteners, Accessories
Family	Knobs
Style	Cylindrical
Type	Knurled, Diamond
Shaft Size	0.236" (6.00mm)
Diamete	0.750" (19.05mm)
Heigh	0.625" (15.88mm)
Indic	Arrow on T
Material	Metal
Col	Clear Matte
Features	6-32 Set Screw
Dynamic Catalog	OED Series
For Use With	PTV112-4425A-A203-ND - POT 20K OHM 12MM SQ .05W CARBPTV112-4220A-A1503-ND - POT 50K OHM 12MM SQ .05W CARBPTV112-3412A-B503-ND - POT 50K OHM 12MM SQ .05W CARBPTV112-3412A-A204-ND - POT 200K OHM 12MM SQ .05W CARBPTV112-3412A-A203-ND - POT 20K OHM 12MM SQ .05W CARBPTV112-3212A-B103-ND - POT 10K OHM 12MM SQ .05W CARBPTV112-1420A-B1103-ND - POT 10K OHM 12MM SQ .05W CARBPTV111-4425A-A203-ND - POT 20K OHM 12MM SQ .05W CARBPTV111-3420A-C503-ND - POT 50K OHM 12MM SQ .05W CARBPTV111-3420A-B504-ND - POT 500K OHM 12MM SQ .05W CARBPTV111-3420A-B203-ND - POT 20K OHM 12MM SQ .05W CARBPTV111-3420A-B105-ND - POT 1M OHM 12MM SQ .05W CARBPTV111-3420A-B104-ND - POT 100K OHM 12MM SQ .05W CARBPTV111-3420A-A103-ND - POT 10K OHM 12MM SQ .05W CARBPTV09A-8020F-B203-ND - POT 20K OHM 9MM SQ .05W CARBPTV09A-7020F-B203-ND - POT 20K OHM 9MM SQ .05W CARBPTV09A-5030T-B103-ND - POT 10K OHM 9MM SQ .05W CARBPTV09A-4030F-B502-ND - POT 5K OHM 9MM SQ .05W CARBPTV09A-4030F-A104-ND - POT 100K OHM 9MM SQ .05W CARBPTV09A-4020U-B504-ND - POT 500K OHM 9MM SQ .05W CARBPTV09A-4020U-B203-ND - POT 20K OHM 9MM SQ .05W CARBPTV09A-4020U-B102-ND - POT 1K OHM 9MM SQ .05W CARBPTV09A-4020S-B504-ND - POT 500K OHM 9MM SQ .05W CARBPTV09A-4020S-B503-ND - POT 50K OHM 9MM SQ .05W CARBPTV09A-4020S-B105-ND - POT 1M OHM 9MM SQ .05W CARBPTV09A-4020S-B104-ND - POT 100K OHM 9MM SQ .05W CARBPTV09A-4020S-B103-ND - POT 10K OHM 9MM SQ .05W CARBPTV09A-4020S-A105-ND - POT 1M OHM 9MM SQ .05W CARBPTV09A-4020S-A104-ND - POT 100K OHM 9MM SQ .05W CARBPTV09A-4020F-B105-ND - POT 1M OHM 9MM SQ .05W CARBPTV09A-3020S-B103-ND - POT 10K OHM 9MM SQ .05W

Preview

Download Datasheet

View All

REVISIONS

ZONE

REV

DESCRIPTION

DATE

APPROVED

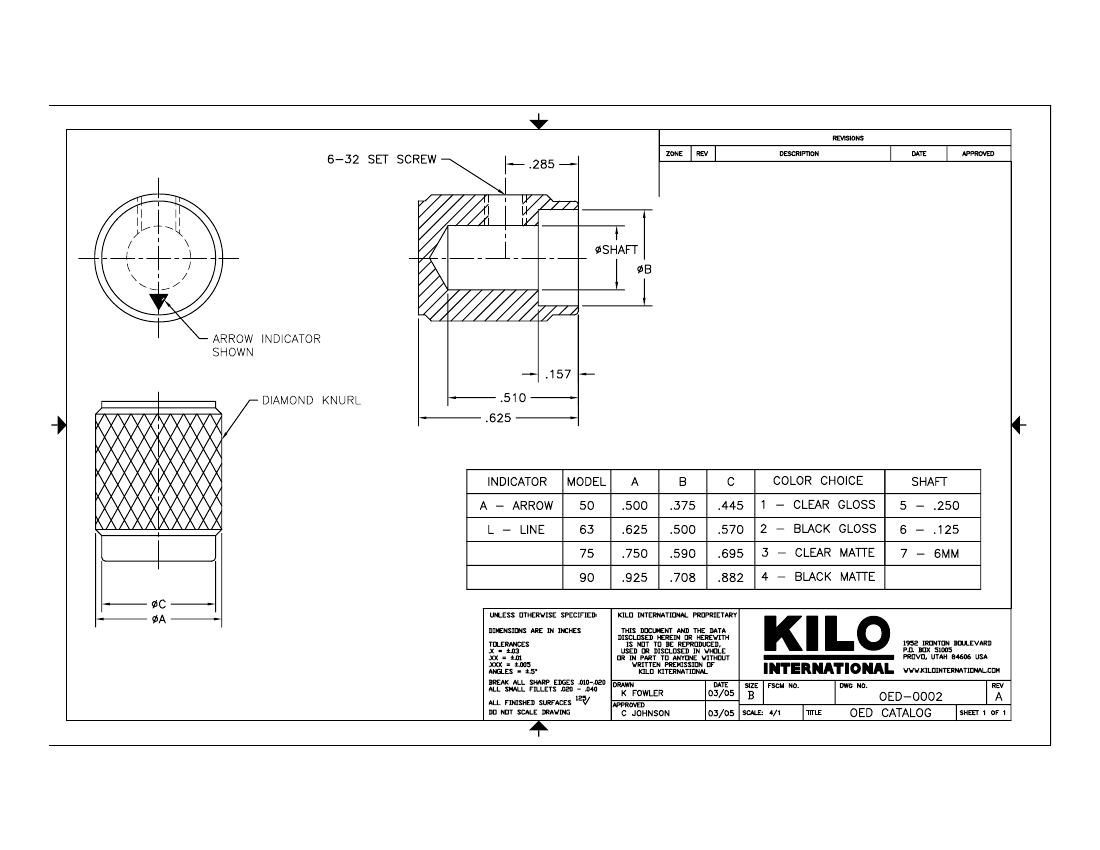

6-32

SET

SCREW

.285

∅SHAFT

∅B

OED-0002

ARROW

SHOWN

INDICATOR

.157

DIAMOND

KNURL

.510

.625

INDICATOR

MODEL

.500

.625

.750

.925

.375

.500

.590

.708

.445

.570

.695

.882

COLOR CHOICE

1 -

CLEAR

GLOSS

SHAFT

.250

.125

6MM

03/05

ARROW

LINE

BLACK GLOSS

CLEAR

BLACK

MATTE

6 -

3 -

4 -

∅C

∅A

UNLESS

OTHERWISE

SPECIFIED:

INCHES

KILO

INTERNATIONAL

PROPRIETARY

DIMENSIONS ARE

TOLERANCES

.XX

.03

.01

.005

THIS DOCUMENT AND THE DATA

DISCLOSED HEREIN OR HEREWITH

IS NOT TO BE REPRODUCED,

USED OR DISCLOSED

WHOLE

WITHOUT

IN PART TO ANYONE

1952

IRONTON BOULEVARD

P.O. BOX 51005

PROVO, UTAH 84606 USA

WWW.KILOINTERNATIONAL.COM

.XXX

WRITTEN PREMISSION

K FOWLER

ANGLES = ±.5

BREAK

ALL

ALL SHARP EDGES

.010-.020

.040

KILO KITERNATIONAL

SMALL FILLETS

.020 -

DRAWN

DATE

SIZE

FSCM NO.

DWG

NO.

REV

FINISHED SURFACES

NOT SCALE DRAWING

125

K FOWLER

APPROVED

03/05

SCALE:

OED-0002

4/1

TITLE

SHEET

C JOHNSON

OED

CATALOG
