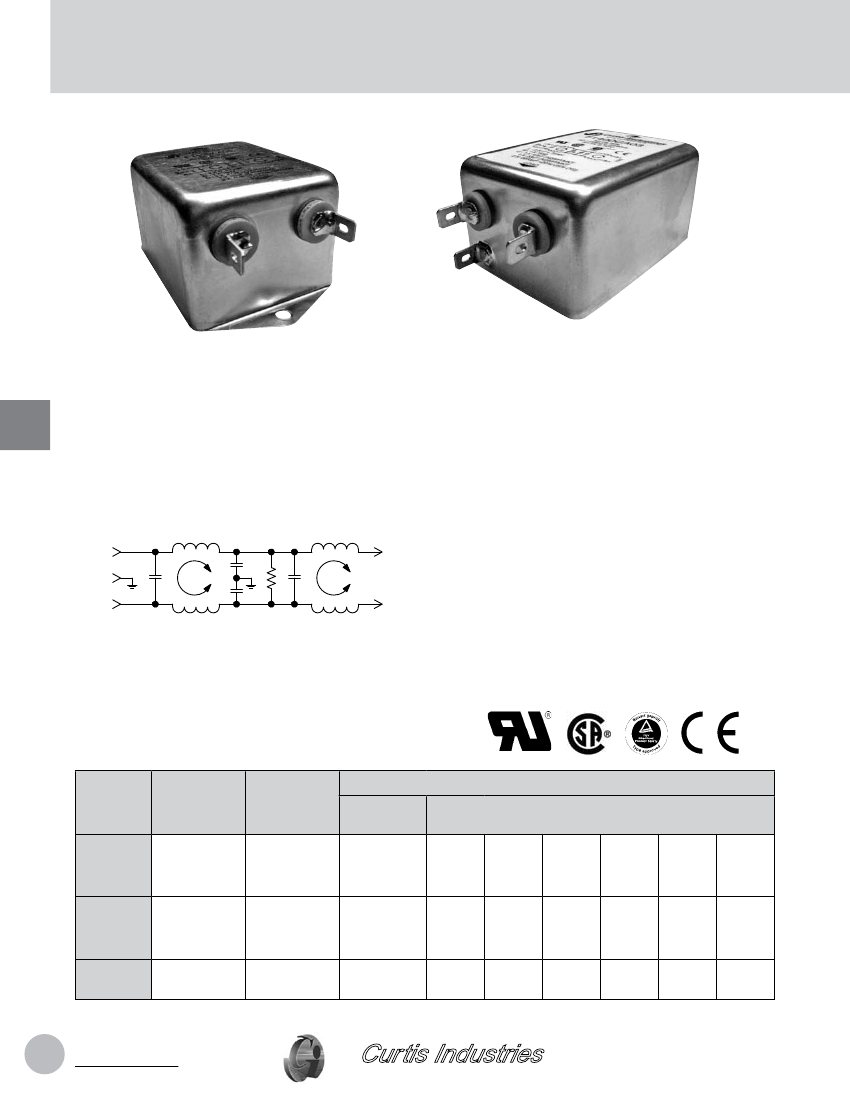

F1400 RFI Filters
High Performance
Specifications
:
Features:
• High Peak Current Design — High Insertion Loss for
Switching Power Supply Emissions
• Low-Leakage Current
• Compact Case Sizes in 6 and 10Amp Models
• Available with Integral IEC Connector in 3 and 6Amp
Models
Rated Voltage:
250VAC Maximum - 50/60 Hz
Rated Current:
115VAC
250VAC
3A
1.5A
6A
4A
10A
6A
Current Overload:
6X for 8 seconds
Hi-Pot Test (1 min):
Line to Ground
1500VAC
Line to Line
1768VDC
Insulation Resistance:
9 x 10
9
Ω
at 100VDC
Ambient Temperature:
40°C Max. at rated current
Humidity Range:
0% to 95% R.H.
Termination:
A: QC – Quick Connect
B: Wire
C: IEC Receptacle
Maximum Leakage Current:
Each Line to Ground
F1400
115VAC, 60Hz:
0.25mA
250VAC, 50Hz:
0.40mA
Agency Approvals:
SINGLE PHASE FILTERS
F1400 Simplified Schematic
L
LINE
G
N
N
L
LO AD
Nominal
Current
Rating
MINIMUM INSERTION LOSS - dB (50 ohm Circuit)
Part
Number
Termination
Line/Load
MODE
Frequency - MHz
1.0
5.0
65
65
65
65
.15
58
40
.50
65
60
10
60
65
30
44
60
3A
6A
10A
16
F1400AA03
F1400BB03
F1400CA03
F1400AA06
F1400BB06
F1400CA06
F1400AA10
F1400BB10
QC/QC
Wire/Wire
IEC/QC
QC/QC
Wire/Wire
IEC/QC
QC/QC
Wire/Wire
Common
Differential
Common
Differential
Common
Differential
58
36
56
40
65
55
65
50
65
60
65
60
65
60
65
65
60
55
60
65
54
50
54
60
NOTE: Other combinations of terminals may be specified on special order.
www.curtisind.com
Curtis Industries
A Division of Powers Holdings, Inc.
Specifications subject to change.
Dimensions are shown for
reference purposes only.

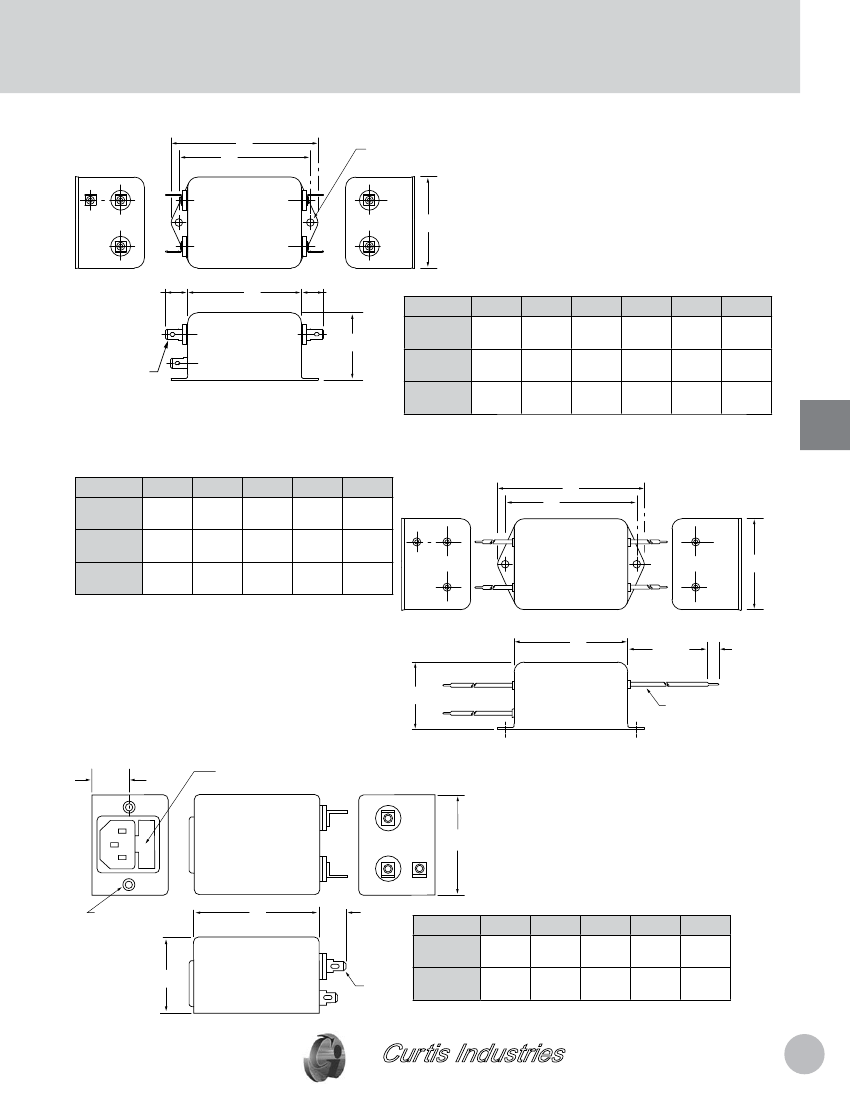

F1400AA
(3, 6 and 10Amp) Dimensions
A
D
.188 Dia.
(4,77)
2 Holes
L
O
A
D
L
I
N
E
B
High Performance
F
E
F
Amps
C
.250 QC
(6,4)
A
3.310
(84,1)
3.310
(84,1)
4.70
(119,4)
B
2.000
(50,8)
2.000
(50,8)
2.250
(57,1)
C
1.500
(38,2)
1.500
(38,2)
1.750
(44,4)
D
2.940
(74,7)
2.940
(74,7)
4.250
(107,9)
E
2.500
(63,5)
2.500
(63,5)
3.750
(95,3)
F
.550
(14,0)
.550
(14,0)
.550
(14,0)
3A
6A
10A
F1400BB
(3, 6 and 10Amp) Dimensions
Amps
A
3.310
(84,1)
3.310
(84,1)
4.70
(119,4)
SINGLE PHASE FILTERS
B
2.000
(50,8)
2.000
(50,8)
2.250
(57,1)
C
1.500
(38,1)
1.500
(38,1)
1.750
(44,4)
D
2.940
(74,7)
2.940
(74,7)
4.250
(107,9)
E
2.500
(63,5)
2.500
(63,5)
3.750
(95,3)
L
I
N
E
D
A
3A
6A
10A
L
O
A
D
B
E
4.00
(101,6)
Min.
.250±.062
(6,35) Typ.
C
F1400CA
(3 and 6Amp) Dimensions
E
(1) 5mm x 20mm Fuse (not included)
No. 18
Gauge Wire
L
I
N
E
L
O
A
D
B
Refer to Page 40
for Standard
Mounting Cutouts
6-32 Tap
2-Places
A
D
Amps
A
2.880
(73,1)
2.880
(73,1)
B
2.120
(53,8)
2.120
(53,8)
C
1.500
(38,1)
1.500
(38,1)
D
.550
(14,0)
.550
(14,0)
E
.565
(14,3)
.565
(14,3)
3A
C
.250 QC
(6,4)
6A
Dimensions are in inches and millimeters
unless otherwise specified.
Values in parentheses are metric equivalents.
Curtis Industries
A Division of Powers Holdings, Inc.
1-800-657-0853
17

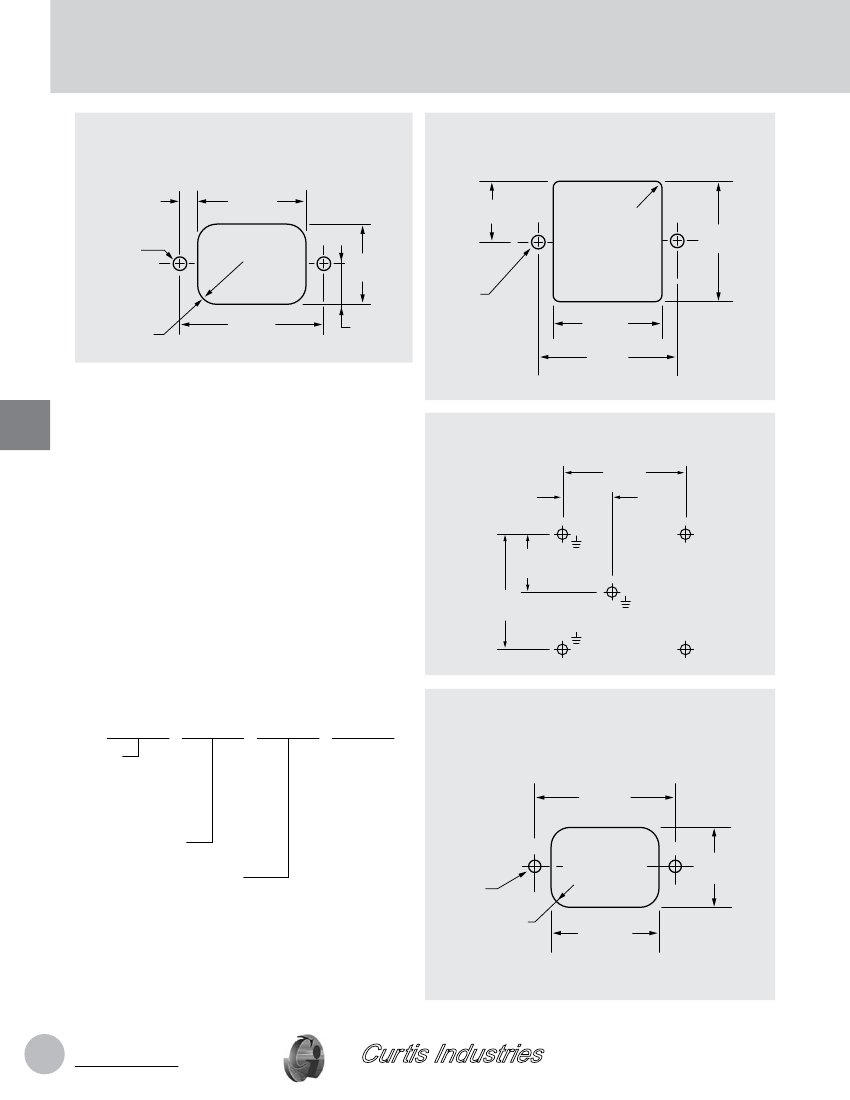

Standard Mounting Cutouts
F1200CA, F1300CA, F1400CA,
F1500CA, F1600CA, F1700CA
.187
(4,75)
.140 Dia.
(3,55)
2 Holes
1.20
(30.5)
F1500FA, F1600FA,
.638
(16,21)
✱.09
R
(2,29)
1.275
(32,39)
.90
(22,9)
.140 Dia.
(3,55)
2 Holes
.450
(11,43)
.234
(5,94)
1.575
(40,0)
1.145
(29,08)
1.417
(36,0)
✱
for mounting
from back side
How to Order
The Curtis part numbering system is made up of four
elements. Each element denotes a specific requirement
(mechanical or electrical) which, when properly
sequenced, fully identifies the required catalog
filter.
As
shown, the
first five
alpha/numeric characters denote
the series type; the sixth character (alpha) denotes the
type of line termination; the seventh character (alpha)
denotes the type of load termination; the last two
characters (numeric) denote the current rating.
Compose your part number as follows: Select the series
required, add two alpha character for the line and load
termination, followed by two numeric characters for
the required current rating. For example, F1100AB06
completely identifies an F1100 series
filter
with quick
connects on line side and wire leads on load side, with
a 6-amp rating.
F1300CP, F1600CP
1.500
(38,1)
.600
(15,2)
SINGLE PHASE FILTERS
N
.700
(17,8)
1.400
(35,6)
.062 Hole Dia.
(1,57)
5 Holes
L
F1100
SERIES
PE = Power Entry
PM = Medical
Power Entry
LINE TERMINATION
A = Quick Connects
B = Wire Leads
C = IEC Connector
D = Screw Terminals
(20 & 30 amp only)
F = Fused IEC
P = Printed Circuit Pins
W= Dual Fused IEC
J = Switched IEC
X
X
X
CURRENT
RATING
01 = 1 Amp
03 = 3 Amps
06 = 6 Amps
10 = 10 Amps
15 = 15 Amps
20 = 20 Amps
30 = 30 Amps
F5500/5600/5700 SERIES
1.575
(40,01)
LOAD
TERMINATION
A = Quick Connects
B = Wire Leads
D = Screw Terminals
(20 & 30 amp only)
P = Printed Circuit Pins
S = Solder Tab
.140 Dia.
(3,55)
2 Holes
.234 R.
(5,94)
(Typ.)
1.20
(30,48)
.90
(22,8)
40
www.curtisind.com
Curtis Industries
A Division of Powers Holdings, Inc.
Specifications subject to change.
Dimensions are shown for
reference purposes only.
