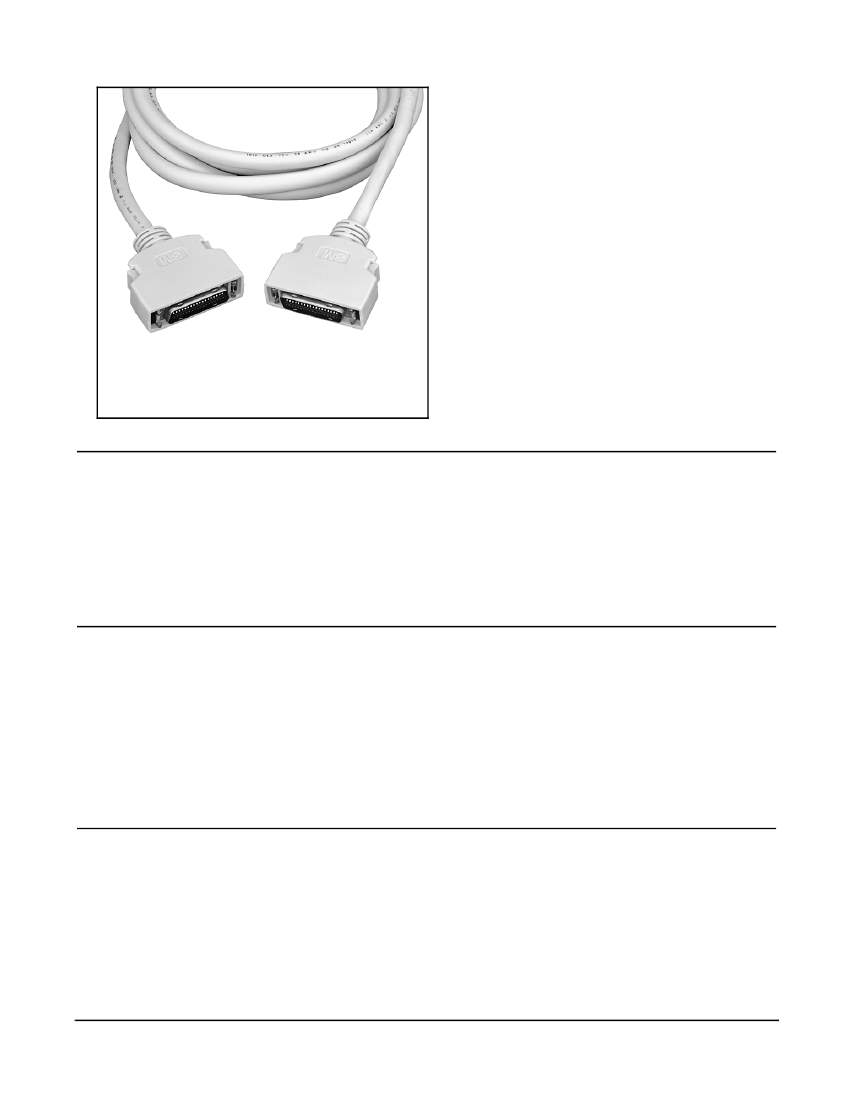

.050" High Speed Digital Data Transmission System - 26 to 26 Pos.
14526-EZ8B-XXX-07C
• Solution for Digital Displays, Datacom and
Telecom applications
• Supports LVDS FPD Link™, FlatLink™,
ChannelLink™, PanelLink™/TMDS™
electrical interfaces
• Each differential twin-ax pair has a foil shield
and drain
• Entire cable bundle is shielded with foil and
braid for additional signal protection
• Rugged MDR ribbon type contact
• Quick release latches
• RoHS* compliant
Date Modified: May 15, 2006
TS-0757-17
Sheet 1 of 4
Physical
Connector Contact Plating
Wiping Area: 30µ" [ 0.76µm ] Min. Gold
Shell Color:
Beige
Shell Material:
Acrylonitrile Butadiene Styrene (ABS)
Cable Color:
Beige
Cable Jacket Material:
Polyvinyl Chloride (PVC)
CableFlammability:
AWM VW-1
Electrical
Voltage Rating:
30 V
Current Rating:
1A
Insulation Resistance:
> 1
×
10
8
Ω
at @100 Vdc
Withstanding Voltage:
350 Vrms for 1 minute
Individually Shielded Twisted Pairs
Characteristic Impedance:
100
±
10
Ω
Conductor Size:
28 AWG Stranded
Propogation Velocity:
1.25 ns/ft [4.1 ns/m ]
Environmental
Temperature Rating:
-20°C to +75°C
*RoHS = Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or prolybromianted diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
FPD Link is a registered trademark of National Semiconductor Inc.
PanelLink and TMDS are trademarks of Silicon Image, Inc.
FlatLink is a trademark of Texas Instruments, Inc.
ChannelLink is a trademark of Computer Network Technology Corp.
UL File No.: E86982
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Cable Assembly
.050" High Speed Digital Data Transmission System - 26 to 26 Pos.
14526-EZ8B-XXX-07C

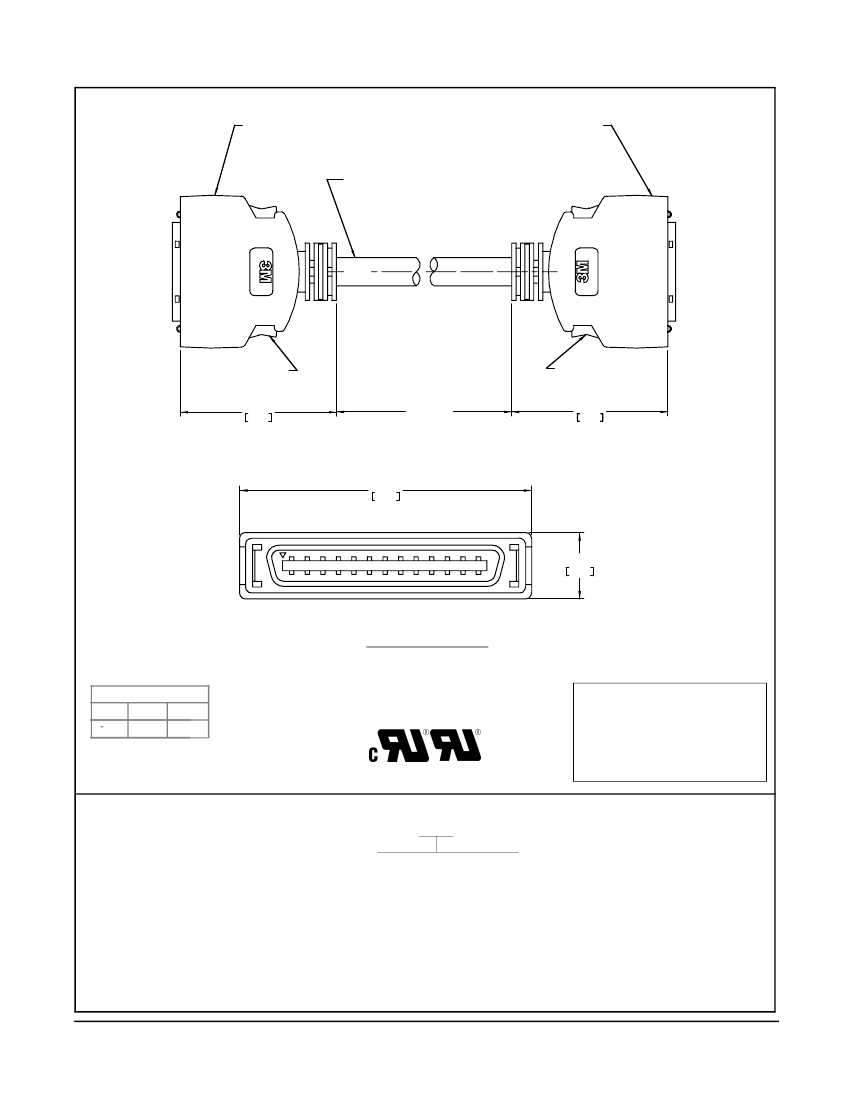

26 Position High Density
Mini D Ribbon (MDR)
Male Plug
26 Position High Density
Mini D Ribbon (MDR)
Male Plug
Cable

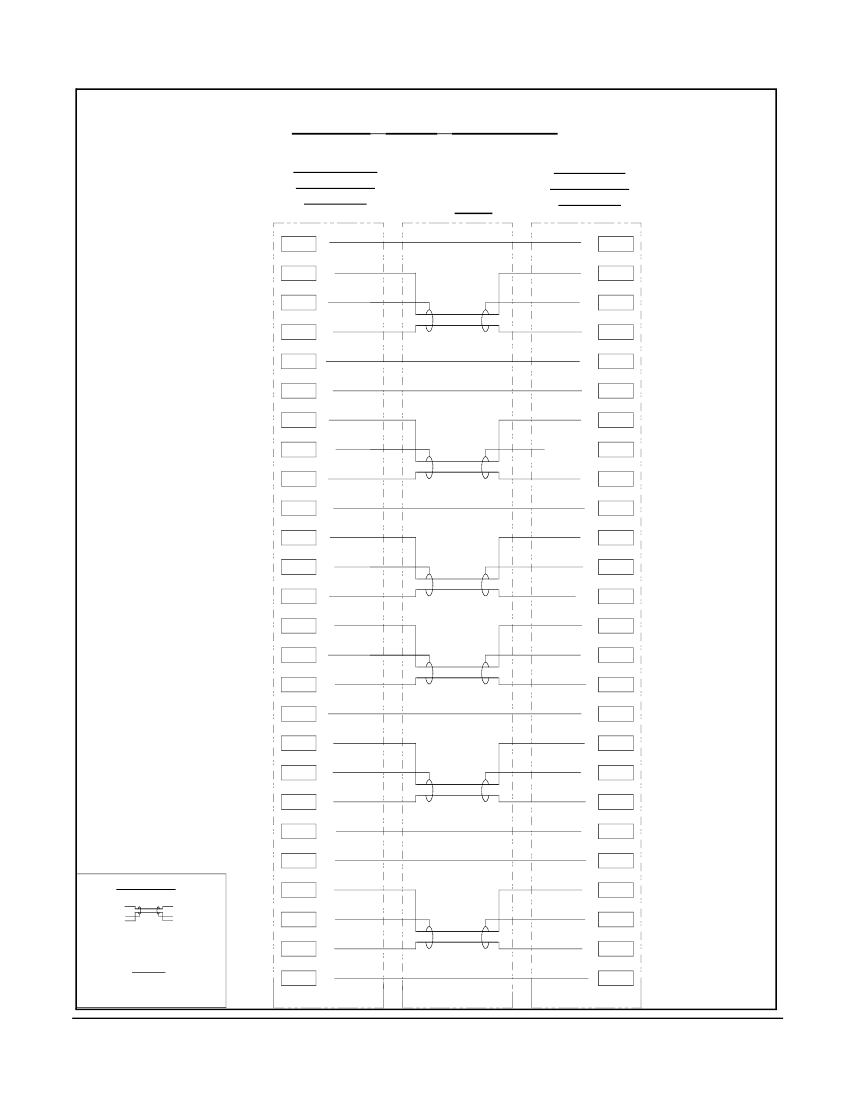

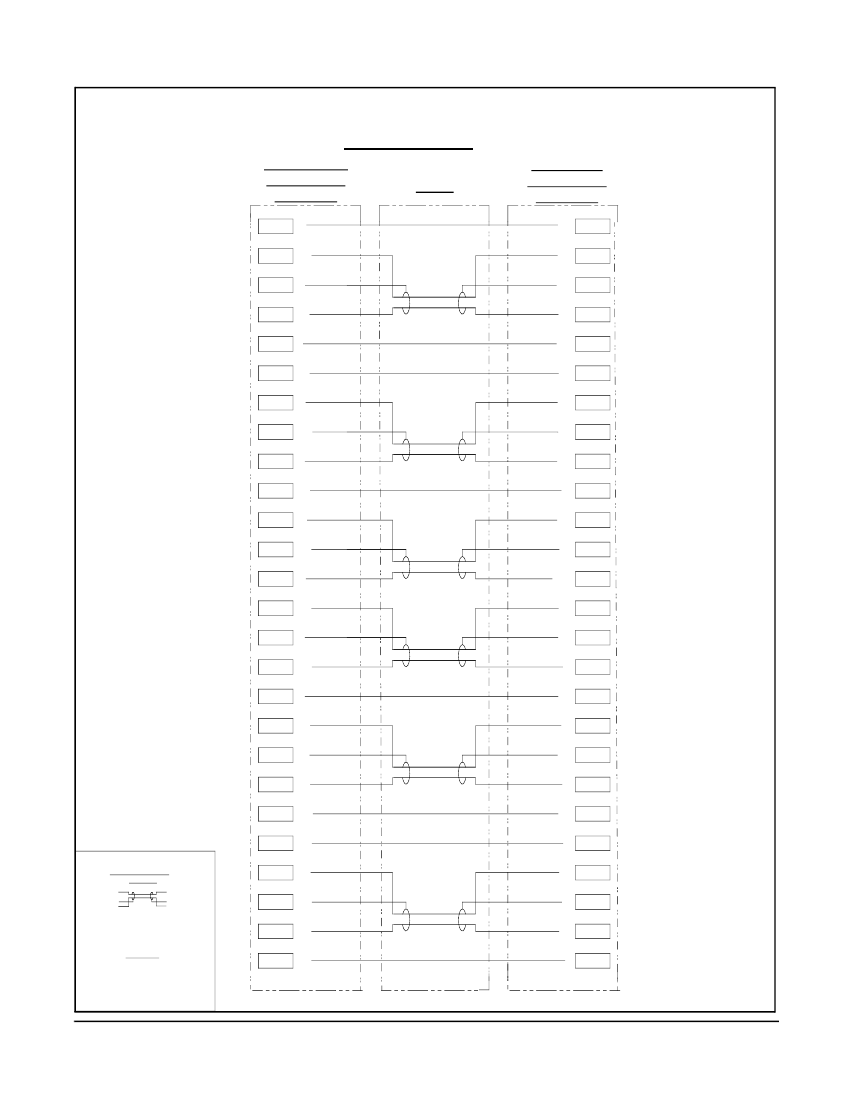

(See wiring diagram for cable construction)
2X Squeeze Release
Latches
41.9
1.7
LENGTH
(See ordering information)
2X Squeeze Release
Latches
41.9
1.7
33.5
1.3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
11.5
0.5
MDR 26 Position Plug
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±
.1
0.00
± .10
( Both Ends )
Assembly Length Tolerance
[ ] Dimensions for
Reference only
Cable Length:
0.5 to 1.5 meters -0 + .05 meters
2 to 10 meters -0 +3% of length
Ordering Information
14526-EZ8B-XXX-07C
Length
060 = 0.61 meter (2 ft.)
100 = 1 meters
200 = 2 meters
300 = 3 meters
500 = 5 meters
A00 = 10 meters
Length
050 = 0.5 meter
150 = 1.5 meters
250 = 2.5 meters
350 = 3.5 meters
400 = 4 meters
450 = 4.5 meters
600 = 6 meters
700 = 7 meters
800 = 8 meters
900 = 9 meters
TS-0757-17
Sheet 2 of 4
Notes:
1. USB/DDC Gnd grounding pins for USB and DDC are not commoned in the cable
assembly. The end user must specify proper grounding at the board level.
2. Contact 3M for polarization key system.
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Cable Assembly
.050" High Speed Digital Data Transmission System - 26 to 26 Pos.
