PSM-4-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> PSM-4-01

PSM-4-01: Descriptionpush spacer mini nat 1/4"; Categoryaccessories; File Size231KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric Compare View All

PSM-4-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSM-4-01	-	-	View	Buy Now

PSM-4-01 Overview

push spacer mini nat 1/4"

PSM-4-01 Parametric

Parameter Name	Attribute value
Datasheets
PSM Series
CBTFS,CBPSW,PSM,PSD,CBPS,PST
Product Training Modules
Engineering Technology
Injection Molding and Plastics
Plastic Materials
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Board Supports
Holding Type	Resting Mou
Mounting Type	Snap Lock
Between Board Heigh	0.250" (6.35mm) 1/4"
Length - Overall	0.508" (12.90mm)
Support Hole Diamete	-
Support Panel Thickness	-
Mounting Hole Diamete	0.125" (3.18mm) 1/8"
Mounting Panel Thickness	0.031 ~ 0.078" (0.79 ~ 1.98mm)
Features	Winged
Material	Nyl
Other Names	21057032PSM- 4-01PSM- 4-01-NDPSM401

Preview

Download Datasheet

View All

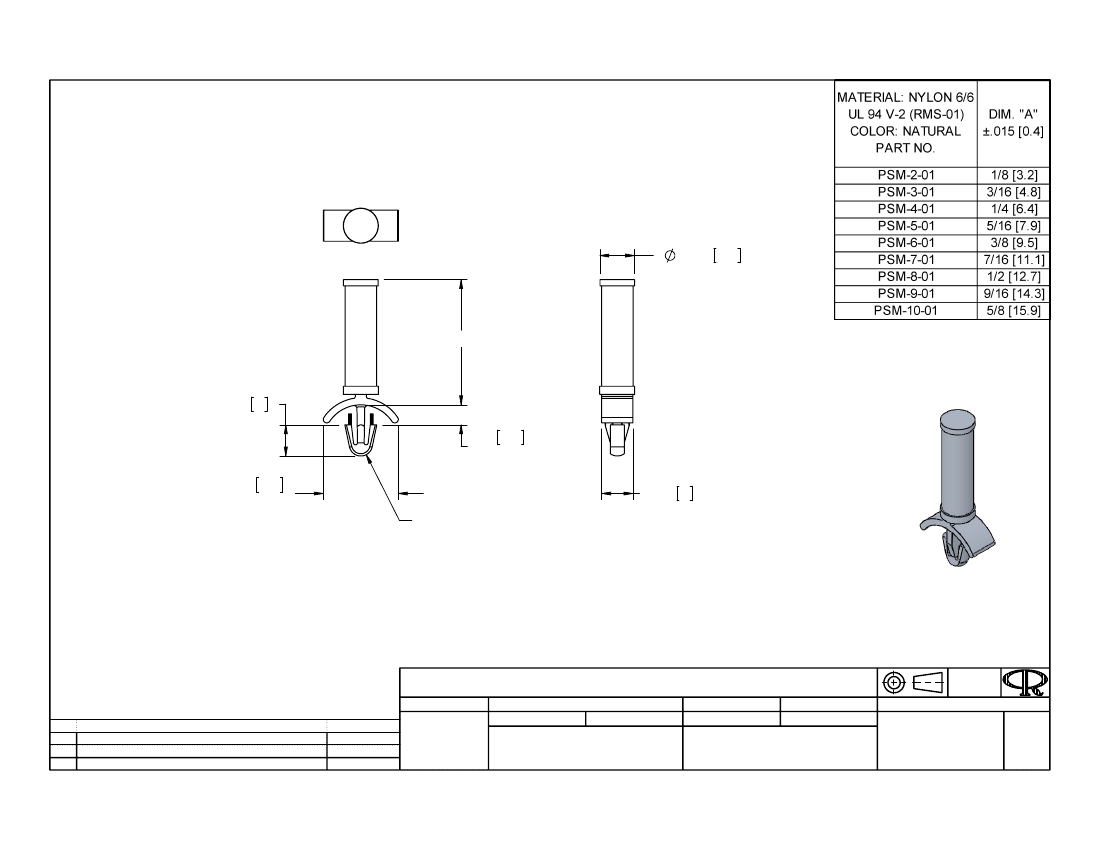

11/64 4.4

"A"

5/32 4

.10 2.5

REF

3/8 9.5

REF

5/32 4

TO SNAP-LOCK IN A .125±.002

[3.18±0.05] DIA. HOLE, IN A

.031-.078 [0.79-1.98] PANEL THICKNESS

NOTES:

1. MATERIAL: NYLON 6/6 UL 94 V-0 (RMS-19)

COLOR: NATURAL.

AVAILABLE BY SPECIAL ORDER ONLY.

2. OTHER COLORS AVAILABLE BY SPECIAL ORDER.

3. ALTERNATE UNITS FOR REFERENCE ONLY.

TITLE:

CREATED USING

SOLIDWORKS

REV.

SEE ECN #1345 FOR CHANGES

REDRAWN, SEE ECN #1208 FOR CHANGES

SEE ENGINEERING FOR REVISIONS A-C

DESCRIPTION

07/23/07

11/29/06

---

------

ENGR. DATE

TOLERANCES

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

FILE #: PSM

SHEET: 1 OF 1

RE:

PUSH SPACER, MINI

SHEET SIZE: A

DWN: SK

DT: 11/29/06

RICHCO, INC.

ENG@RICHCO-INC.COM

APP: RT

CHKD: SJ

PART #

DWG IN

IN [MM]

FINAL

TYPE

(773) 539-4060

SEE TABLE

PSM-4-01 Related Products

	PSM-4-01	PSM-2-01	PSM-3-01	PSM-5-01	PSM-6-01	PSM-10-01	PSM-9-01	PSM-7-01	PSM-8-01
Description	push spacer mini nat 1/4"	push spacer mini nat 1/8"	push spacer mini nat 3/16"	push spacer mini nat 5/16"	push spacer mini nat 3/8"	push spacer mini nat 5/8"	push spacer mini nat 9/16"	push spacer mini nat 7/16"	push spacer mini nat 1/2"
Standard Package	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000
Category	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories
Family	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports
Holding Type	Resting Mou	Resting Mou	Resting Mou	Resting Mou	Resting Mou	Resting Mou	Resting Mou	Resting Mou	Resting Mou
Mounting Type	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock
Between Board Heigh	0.250" (6.35mm) 1/4"	0.125" (3.18mm) 1/8"	0.187" (4.75mm) 3/16"	0.312" (7.92mm) 5/16"	0.375" (9.53mm) 3/8"	0.625" (15.88mm) 5/8"	0.562" (14.27mm) 9/16"	0.437" (11.10mm) 7/16"	0.500" (12.70mm) 1/2"
Length - Overall	0.508" (12.90mm)	0.382" (9.70mm)	0.445" (11.30mm)	0.567" (14.40mm)	0.630" (16.00mm)	0.882" (22.40mm)	0.819" (20.80mm)	0.693" (17.60mm)	0.756" (19.20mm)
Mounting Hole Diamete	0.125" (3.18mm) 1/8"	0.125" (3.18mm) 1/8"	0.125" (3.18mm) 1/8"	0.125" (3.18mm) 1/8"	0.125" (3.18mm) 1/8"	0.125" (3.18mm) 1/8"	0.125" (3.18mm) 1/8"	0.125" (3.18mm) 1/8"	0.125" (3.18mm) 1/8"
Mounting Panel Thickness	0.031 ~ 0.078" (0.79 ~ 1.98mm)	0.031 ~ 0.078" (0.79 ~ 1.98mm)	0.031 ~ 0.078" (0.79 ~ 1.98mm)	0.031 ~ 0.078" (0.79 ~ 1.98mm)	0.031 ~ 0.078" (0.79 ~ 1.98mm)	0.031 ~ 0.078" (0.79 ~ 1.98mm)	0.031 ~ 0.078" (0.79 ~ 1.98mm)	0.031 ~ 0.078" (0.79 ~ 1.98mm)	0.031 ~ 0.078" (0.79 ~ 1.98mm)
Features	Winged	Winged	Winged	Winged	Winged	Winged	Winged	Winged	Winged
Material	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl
Other Names	21057032PSM- 4-01PSM- 4-01-NDPSM401	21057030PSM- 2-01PSM- 2-01-NDPSM201	21057031PSM- 3-01PSM- 3-01-NDPSM301	21057033PSM- 5-01PSM- 5-01-NDPSM501	21057034PSM- 6-01PSM- 6-01-NDPSM601	21057038PSM1001	21057037PSM- 9-01PSM- 9-01-NDPSM901	21057035PSM- 7-01PSM- 7-01-NDPSM701	21057036PSM- 8-01PSM- 8-01-NDPSM801
