RSMN-2003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> RSMN-2003

RSMN-2003: Descriptionemi filter 250vac 3A screw term; CategoryModule/solution; File Size210KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RSMN-2003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RSMN-2003	-	-	View	Buy Now

RSMN-2003 Overview

emi filter 250vac 3A screw term

RSMN-2003 Parametric

Parameter Name	Attribute value
Datasheets
RSMN Series Brief
RSMN Series
Standard Package	1
Category	Filters
Family	Power Line Filter Modules
Filter Type	Single Phase
Configurati	Single Stage
Voltage - Rated DC	-
Voltage - Rated AC	250V
Curre	3A
Frequency - Operating	-
Mounting Type	Chassis
Termination Style	Terminal Block
Applications	General Purpose
Approvals	CSA, EN, UL
Operating Temperature	-25°C ~ 85°C
Voltage - Rated AC (Phase to Ground/Neutral)	-
Voltage - Rated AC (Phase to Phase)	-
Other Names	RSMN2003

Preview

Download Datasheet

View All

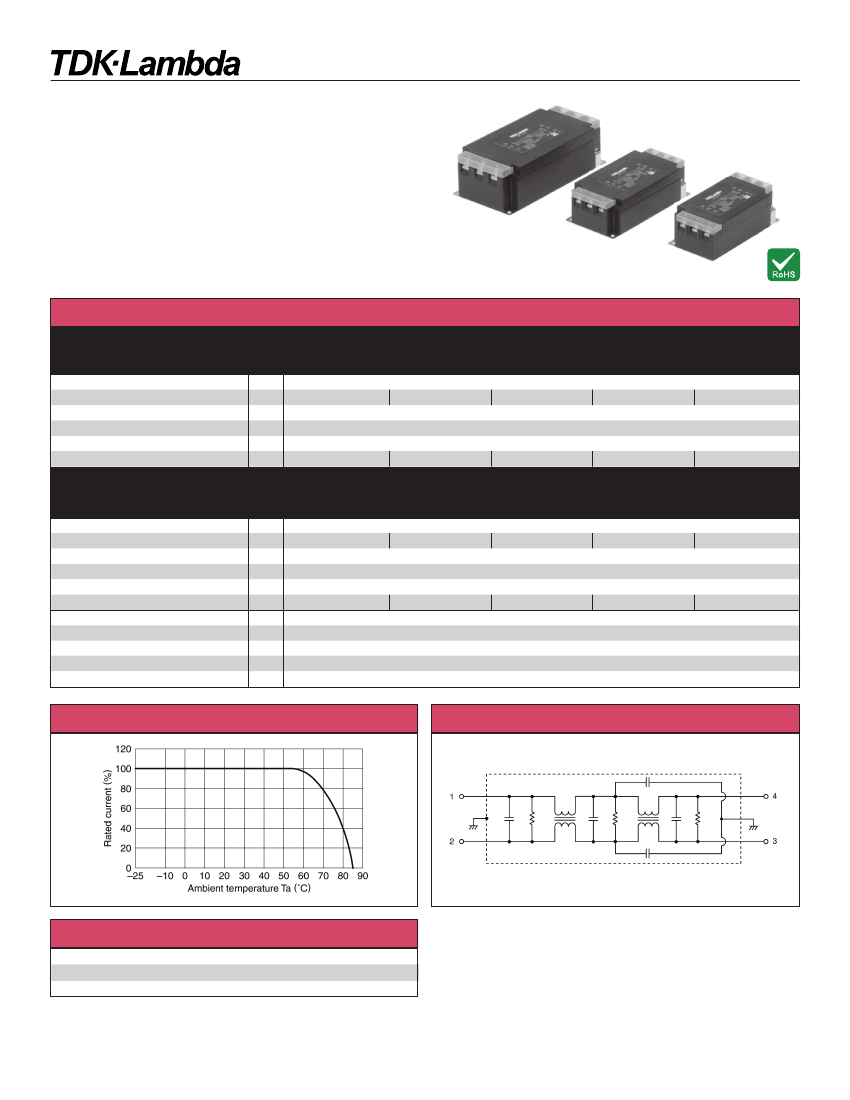

RSMN Series

3A to 60A, 250VAC EMI Filters

Features

High Voltage Pulse Attenuation

Two Stage Filter for Better Performance

DIN Rail Mount Option (Up 30A)

Low Earth Leakage Current Option (Up to 30A)

Conforms to UL, CSA and EN Safety Agency Certiﬁcations

Speciﬁcations

Model

Rated Voltage (AC, DC)

Rated Current

Withstand Voltage

Isolation Resistance

Leakage Current (max)

DC Resistance (total)

RSMN-2003

RSMN-2003D

RSMN-2003L

MΩ

mΩ

RSMN-2010

RSMN-2016

RSMN-2010D

RSMN-2016D

RSMN-2010L

RSMN-2016L

250V

10A

16A

Terminals to Case: 2500VAC (1 Minute)

100MΩ minimum (500VDC, 1 Minute)

RSMN-20xx 1mA; RSMN20xxL 10uA (250VAC, 60Hz)

140

RSMN-2040

RSMN-2050

RSMN-2060

RSMN-2006

RSMN-2006D

RSMN-2006L

RSMN-2020

RSMN-2020D

RSMN-2020L

20A

350

RSMN-2030

RSMN-2030D

RSMN-2030L

Model

Rated Voltage (AC, DC)

Rated Current

Withstand Voltage

Isolation Resistance

Leakage Current (max)

DC Resistance (total)

Operating Temperature

Storage Temperature

Safety Agency Certiﬁcations

Weight

Warranty

MΩ

mΩ

°C

30A

250V

40A

50A

60A

Terminals to Case: 2500VAC (1 Minute)

100MΩ minimum (500VDC, 1 Minute)

RSMN-20xx 1mA; RSMN20xxL 10uA (250VAC, 60Hz)

-25 to +85°C (Derate above 55°C, see derating curve)

-25 to +85°C

Up to 30A Models - UL1283, CSA C22.2 No.8, EN60939

190g to 960g model dependant (See weights chart on website)

1 Year

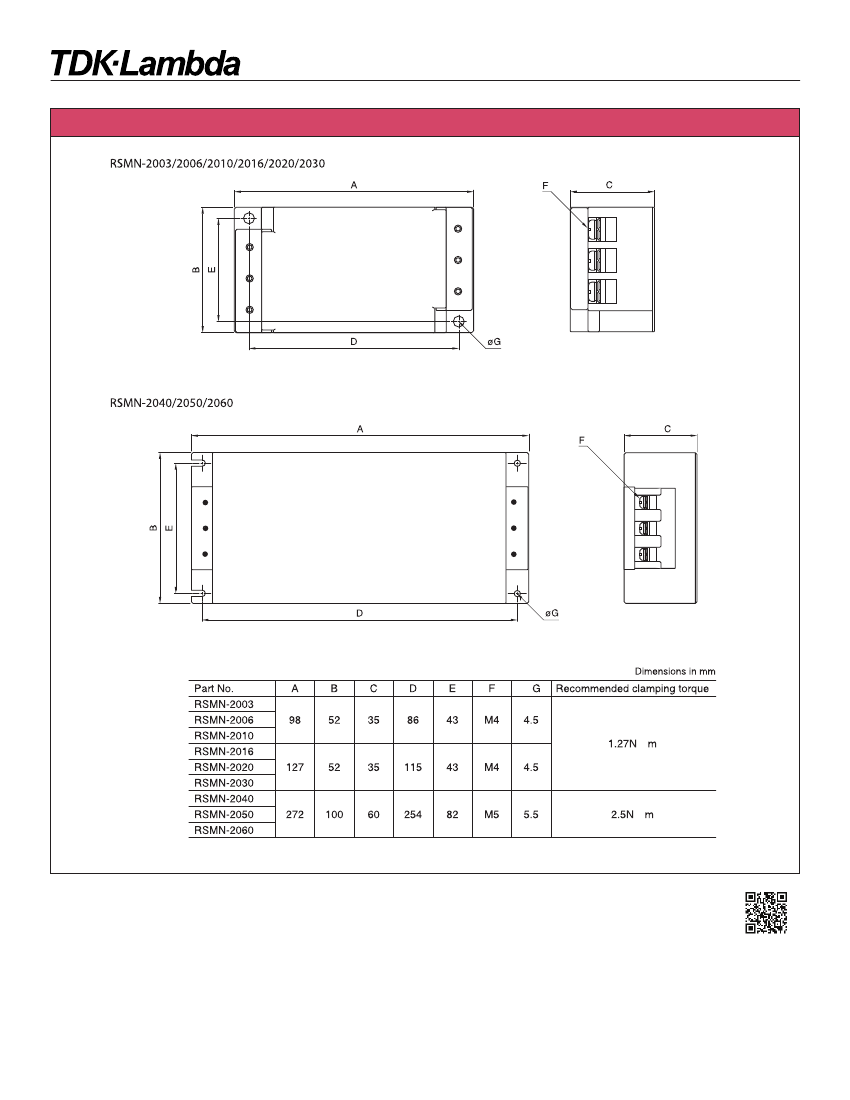

Derating

Circuit

Options

Chassis Mount & Standard Leakage Current

DIN Rail Mount & Standard Leakage Current

Chassis Mount & Low Leakage Current

RSMN-20xx

RSMN-20xxD

RSMN-20xxL

1-800-526-2324 • www.us.tdk-lambda.com/lp/

272

Disclaimer: us.tdk-lambda.com/lp/legal.htm

RSMN-2003 Related Products

	RSMN-2003	RSMN-2010L	RSMN-2030	RSMN-2030LD	RSMN-2060
Description	emi filter 250vac 3A screw term	emi filter 250vac 10a screw term	emi filter 250vac 30a screw term	emi filter 250vac 30a din rail	emi filter 250vac 60a screw term
Standard Package	1	1	1	1	1
Category	Filters	Filters	Filters	Filters	Filters
Family	Power Line Filter Modules	Power Line Filter Modules	Power Line Filter Modules	Power Line Filter Modules	Power Line Filter Modules
Filter Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Configurati	Single Stage	Single Stage	Single Stage	Single Stage	Single Stage
Voltage - Rated AC	250V	250V	250V	250V	250V
Curre	3A	10A	30A	30A	60A
Mounting Type	Chassis	Chassis	Chassis	DIN Rail	Chassis
Termination Style	Terminal Block	Terminal Block	Terminal Block	Terminal Block	Terminal Block
Applications	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Approvals	CSA, EN, UL	CSA, EN, UL	CSA, EN, UL	CSA, EN, UL	CSA, EN, UL
Operating Temperature	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C
Other Names	RSMN2003	RSMN2010L	RSMN2030	RSMN2030LD	RSMN2060

Recommended Resources

Bus door status detection circuit

LA4700 audio IC amplifier circuit diagram

Soft Start AC Power Circuit

Small power circuit

TDA3565 color decoding application circuit

Current detection and protection circuit

Can I use system in evc?: Can I use the system function in evc? If so, what header file should I include? If not, is there any other function to replace it?...; qiujinlin369 Embedded System

SDHC DMAReceive TIMEOUT;SDHCD:BusRequestHandler() - DMAReceive() failed: What does the title say? How to communicate with the SD card driver, such as controlling its stop...; oefeng Embedded System

What are the factors that affect the service life of UPS batteries?: Whether it is a sealed or flooded battery, there are four main factors that affect its life: the chemical composition of the battery, the ambient temperature of the battery, the battery usage cycle, a...; qutt Power technology

From 51 to ARM. Introduction to 32-bit embedded systems: This book is a theoretical introduction monograph that discusses from 51 to ARM--32-bit embedded systems. The content mainly involves the basic knowledge of 51 series microcontrollers, the basic knowl...; songrock 51mcu

Problems with Haier TV 25FV6H-B: The fault is: there is voltage when the machine is turned on. Disconnect all loads. Connect a dummy load and the same thing happens. Even if the trigger end of the thyristor is disconnected, there is ...; ssbrida Appliance Repair Collection

【MSP430 Sharing】MSP430 MCU Hardware Knowledge: The MSP430 microcontroller is an ultra-low power microprocessor that TI has launched in 1996. It also integrates many module functions, so that one MSP430 chip can complete the functions that can only...; 鑫海宝贝 Microcontroller MCU
