DC0001/05-L37-3F-0.25-2A datasheet, PDF

Datasheet> All Categories > Thermal management products> DC0001/05-L37-3F-0.25-2A

DC0001/05-L37-3F-0.25-2A: Descriptionl37-3F TO-3 0.25mm W/adh; CategoryThermal management products; File Size721KB，1 Pages; Manufacturert-Global Technology; Websitehttp://www.tglobaltechnology.com/; Environmental Compliance

Download Datasheet Parametric View All

DC0001/05-L37-3F-0.25-2A Overview

l37-3F TO-3 0.25mm W/adh

DC0001/05-L37-3F-0.25-2A Parametric

Parameter Name	Attribute value
Datasheets
L37-3F Series
Die Cut Insulator Part Guide
Product Photos
DC0001/05-L37-3F-0.25-2A
Other Related Documents
Die-Cut Tolerence Guide
Product Training Modules
L37-3 Product Range
Thermal Interface Product Selecti
MSDS Material Safety Datashee
L37-3F MSDS
Standard Package	1
Category	Fans, Thermal Manageme
Family	Thermal - Pads, Sheets
Usage	TO-3
Shape	Rhombus
Outline	41.91mm x 28.95mm
Thickness	0.010" (0.254mm)
Material	Silicone Elastome
Adhesive	Adhesive - Both Sides
Backing, Carrie	-
Col	Yellow
Thermal Resistivity	-
Thermal Conductivity	1.4 W/m-K
Dynamic Catalog	L37-3F Series
Other Names	1168-1779DC000105L373F0252A

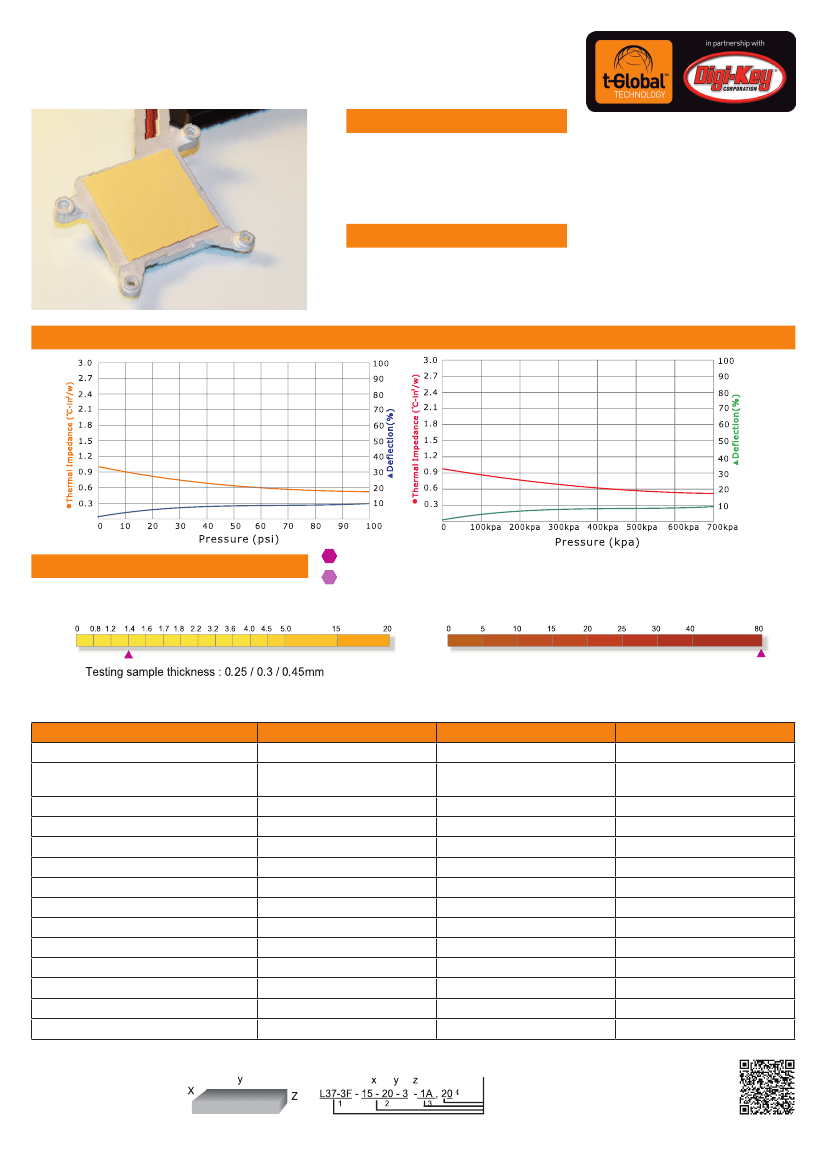

Preview

Download Datasheet

View All

L37-3F

Thermal Conductive Pad on rolls

Features

Good thermal conductivity

Ultra soft and high compresibility

Natural tack

Easy to assemble

Good insulator

Applications

Electronic components: IC / CPU / MOS

LED / M/B / P/S / Heat Sink / LCD-TV / Notebook PC / PC / Telecom Device /

Wireless Hub etc....

DDR II Module / DVD Applications / Hand-Set applications etc...

Thermal Resistance V.S Pressure V.S Deflection

Properties

Thermal Conductivity: 1.4 W/m.k

(W / m.k - Z Axis)

REACH Compliant

RoHS Compliant

Hardeness: 80 (Shore A)

(Shore A)

In the thermal resistance vs pressure vs deflection charts L37-3F provides low thermal impedance.

As the pressure increases the thermal impedance decreases. L37-3F provides good compliance and softness.

Property

Colour

Thickness

(Available thickness range)

Roll Length / Width

Thermal Conductivity

Flame Rating

Dielectric Breakdown Voltage

Weight Loss

Specific Gravity

Working Temperature

Volume Resistance

Elongation

Tensile Strength

Standard Shape

Hardness

L37-3F

Yellow

0.25 / 0.3 / 0.45

50 - 320

1.4

V-0

3/4/5

‹1

-40~ +200

›10

150

870

Unit

Metres / mm

W/m.k

g/cm

˚C

Ohm-cm

Kgf/cm

Sheet ones

Shore A

Test Method

Visual

ASTM D374

ASTM D5470

UL 94

ASTM D149

ASTM E595

ASTM D792

ASTM D257

ASTM D412

ASTM D2240

Available with an adhesive backing

1. Part Number

2. Size X-Y-Z

3. Adhesive backing – 0-None, 1A-one side, 2A-two sides

4. Quantity

Tel:

+44 20 8133 2062

Email:

sales@tglobaltechnology.com

Web:

www.tglobaltechnology.com

Skype:

tglobal.technology
