Datasheet> All Categories > Analog mixed-signal IC> filter> 6EP3

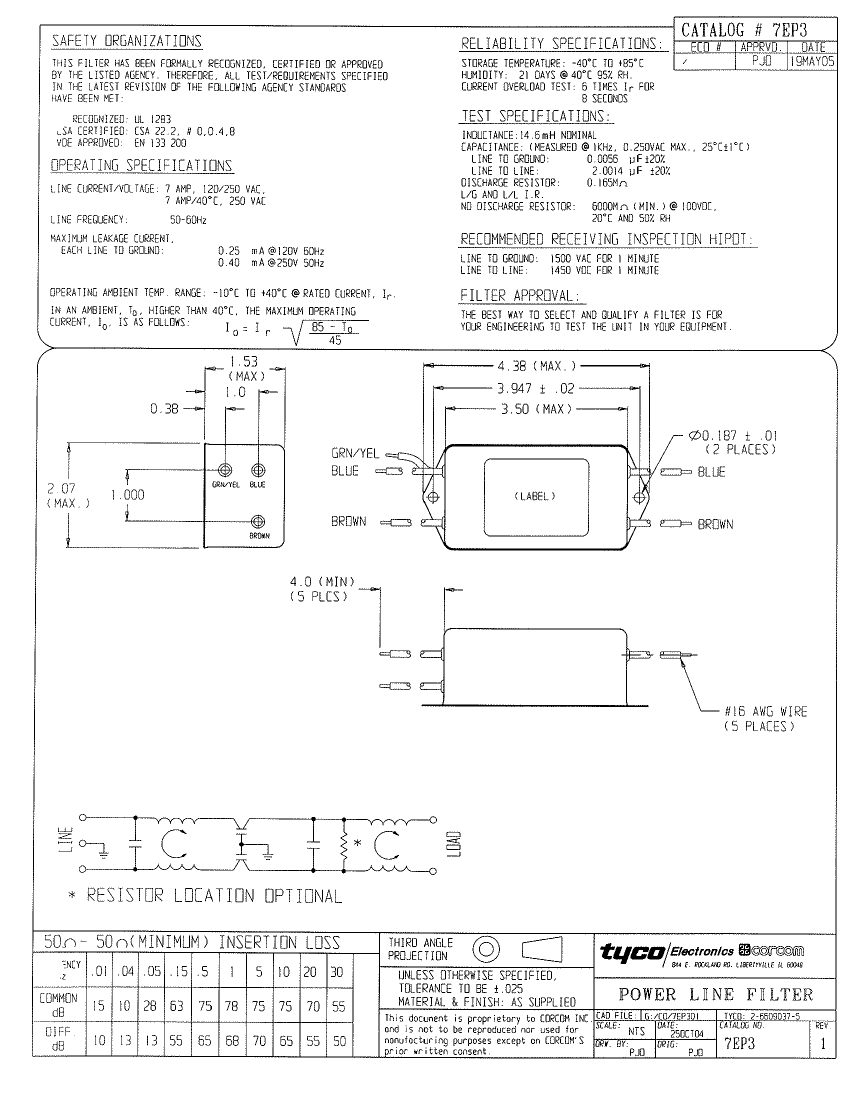

Preview

6EP3: Description6EP3=F7174 S0; CategoryAnalog mixed-signal IC filter; File Size42KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

6EP3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6EP3	-	-	View	Buy Now

6EP3 Overview

6EP3=F7174 S0

6EP3 Parametric

Parameter Name	Attribute value
Brand Name	CII
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Factory Lead Time	12 weeks 2 days
Is Samacsys	N
Other features	STRAIGHT WIRE LEADS TERMINAL
Certification	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER
maximum frequency	5 MHz
minimum frequency	0.01 MHz
high	57.9 mm
high potential	2250 V
Insertion loss@maximum frequency	66 dB
Insertion loss@frequency-min.	1 dB
Maximum leakage current	0.21 mA
length	153.2 mm
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L153.2XB52.6XH57.9 (mm)/L6.031XB2.071XH2.28 (inch)
Rated current	6 A
Rated voltage	120 V
width	52.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

6EP3 Related Products

	6EP3	20EP1	20VP6	20EP6	3EP3	2-6609037-6	6EP1	6609038-1
Description	6EP3=F7174 S0	120V, 50/60Hz, SINGLE PHASE EMI FILTER	120V, 50/60Hz, SINGLE PHASE EMI FILTER	120V, 50/60Hz, SINGLE PHASE EMI FILTER	3EP3=F7170 S0	12EP1=F8217	6EP1=F7173 S0	20VP1=F7774 S0
Reach Compliance Code	compli	unknown	compliant	compliant	compliant	compli	compli	compliant
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	THREE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
Brand Name	CII	-	CII	CII	CII	Corcom	CII	Corcom
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to
Factory Lead Time	12 weeks 2 days	-	17 weeks 2 days	-	12 weeks 2 days	12 weeks 2 days	-	15 weeks
Other features	STRAIGHT WIRE LEADS TERMINAL	STRAIGHT 1/4 INCH QUICK CONNECT TERMINAL	STUD TERMINAL	STUD TERMINAL	STRAIGHT WIRE LEADS TERMINAL	-	STRAIGHT 1/4 INCH QUICK CONNECT TERMINAL	-
Certification	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; EN	UL; CSA; VDE	-
maximum frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	-	5 MHz	-
minimum frequency	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	-	0.01 MHz	-
high	57.9 mm	45.7 mm	45.2 mm	45.2 mm	45.2 mm	45.21 mm	57.9 mm	-
high potential	2250 V	2250 V	2250 V	2250 V	2250 V	1500 V	2250 V	-
Insertion loss@maximum frequency	66 dB	60 dB	65 dB	60 dB	66 dB	-	66 dB	-
Insertion loss@frequency-min.	1 dB	3 dB	3 dB	3 dB	1 dB	-	1 dB	-
Maximum leakage current	0.21 mA	0.21 mA	0.73 mA	0.21 mA	0.21 mA	0.25 mA	0.21 mA	-
length	153.2 mm	113.5 mm	129.3 mm	129.3 mm	85.1 mm	113.28 mm	153.2 mm	-
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	-
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	-
Rated current	6 A	20 A	20 A	20 A	3 A	12 A	6 A	-
Rated voltage	120 V	120 V	250 V	250 V	120 V	120 V	120 V	-
width	52.6 mm	-	57.2 mm	57.2 mm	52.6 mm	57.15 mm	52.6 mm	-
Base Number Matches	1	-	-	-	1	1	1	2
