395215419 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 395215419

395215419: DescriptionTerminal and Terminal Block,; CategoryThe connector; File Size412KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395215419 Overview

Terminal and Terminal Block,

395215419 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145011648642
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLYAMIDE66
Fastening method	CONNECTOR
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	19
Rated current	15 A
Rated voltage	300 V
safety certificate	CSA; UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

1.00

.039

⌀

1.60

TYP.

.063

3.9

.15

"B"

PCB LAYOUT

12.0

.47

1.00

.039

8.3

.33

SPECIFICATIONS:

1. MATERIAL:

(A). BODY: PA66

(B). PIN: BRASS

3.8

.15

2. WIRE RANGE: N/A

3. ELECTRICAL RATING: 300V, 15A.

4. WIRE STRIP LENGTH: N/A.

5. OPERATING TEMPERATURE: -40°C to +105°C.

6. MAX TORQUE: N/A.

7. INSULATION RESISTANCE: DC 500V, 500M.

8. DIELECTRIC WITHSTAND: AC 2500V FOR 1 MINUTE.

9. BREAKDOWN VOLTAGE : 4000V.

10. A = (N x P)

11. B = (N - 1) x P

12. P (PITCH) = 5.0MM (.197").

13. N = NUMBER OF POSITIONS AVAILABLE 2 THROUGH 24.

DOCUMENT STATUS

FORMAT: Eng-lega-master-tb-prod-B

REVISION: D

DATE: 2018/01/18

RELEASE DATE

2019/07/08

15:52:29

3952X

"A"

"B"

5.00

TYP.

.197

TOLERANCES

TOL

0.25

0.40

0.50

0.80

INCH

0-.24

.24-1.18

1.18-4.76

>4.76

TOL

.010

.016

.020

.031

0-6

>6-30

>30-120

>120

SYMBOLS

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

MM/INCH

4:1

INCH

CHART

SEE

CURRENT REV DESC: MIGRATION TO

ECTR/NX

GENERAL TOLERANCES

(UNLESS SPECIFIED)

4 PLACES

3 PLACES

1 PLACE

SEE

2 PLACES

CHART

SEE

CHART

0 PLACES

ANGULAR TOL

DRWN:

DSOPPIN

CHK'D: DACHAMMER

APPR: JFMURPHY

INITIAL REVISION:

DRWN:

L.ROTHAUS

APPR:

C.YORK

THIRD ANGLE PROJECTION

DRAWING

EC NO:

619930

2019/06/20

2019/07/01

2019/07/08

2005/06/12

2006/06/01

SERIES

5.0MM, EURO HEADER,

VERTICAL, OPEN END

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

SD-39521-003

MATERIAL NUMBER

CUSTOMER

PSD

001

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

B-SIZE

39521

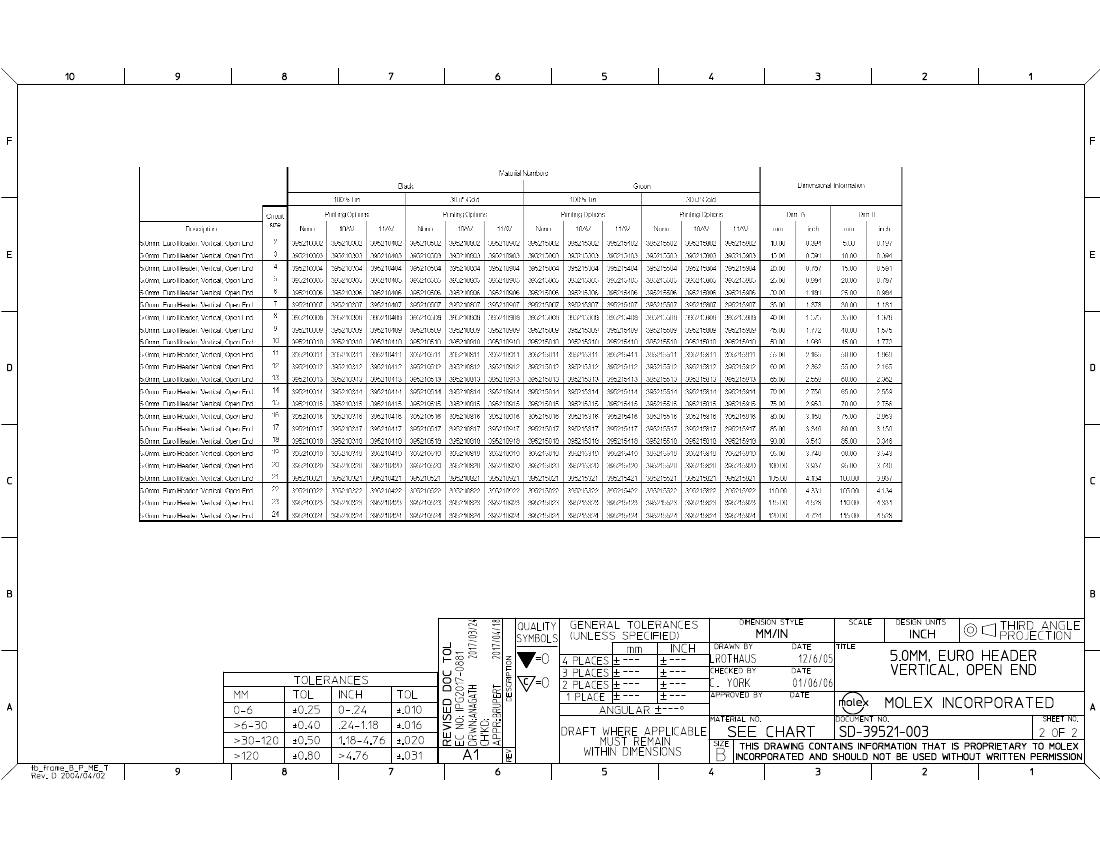

SEE SHEET-2

GENERAL MARKET

1 OF 2
