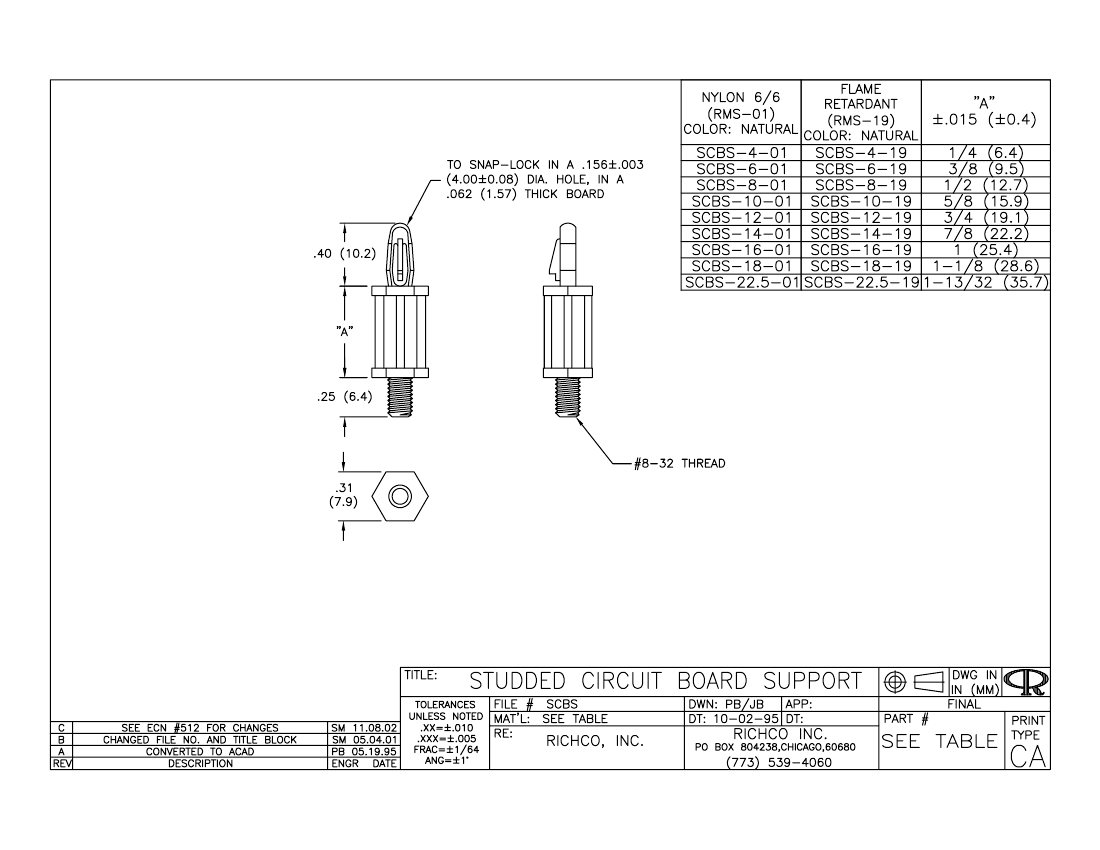

cbs studded #8-32 thread 3/8"
| Parameter Name | Attribute value |
| Datasheets | |
| SCBS Series | |
| PST,(L,M,S)CBS,MSCBS,SCBST | |
| Product Training Modules | |
| Engineering Technology | |
| Injection Molding and Plastics | |
| Plastic Materials | |
| Standard Package | 1,000 |
| Category | Hardware, Fasteners, Accessories |
| Family | Board Supports |
| Holding Type | Snap Lock |
| Mounting Type | Threaded Stud |
| Between Board Heigh | 0.375" (9.53mm) 3/8" |
| Length - Overall | 1.028" (26.10mm) |
| Support Hole Diamete | 0.157" (4.00mm) |
| Support Panel Thickness | 0.062" (1.57mm) 1/16" |
| Mounting Hole Diamete | - |
| Mounting Panel Thickness | 0.250" (6.35mm) 1/4" |
| Features | 8-32 Thread |
| Material | Nyl |
| Other Names | 21061002SCBS- 6-01SCBS- 6-01-NDSCBS601 |
| SCBS-6-01 | SCBS-4-01 | SCBS-10-01 | SCBS-8-01 | SCBS-14-01 | SCBS-12-01 | SCBS-18-01 | SCBS-16-01 | SCBS-22.5-01 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | cbs studded #8-32 thread 3/8" | cbs studded #8-32 thread 1/4" | cbs studded #8-32 thread 5/8" | cbs studded #8-32 thread 1/2" | cbs studded #8-32 thread 7/8" | cbs studded #8-32 thread 3/4" | cbs studded #8-32 thread 1 1/8" | cbs studded #8-32 thread 1" | cbs stud #8-32 thread 1 13/32" |
| Standard Package | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Category | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories |
| Family | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports |
| Holding Type | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock |
| Mounting Type | Threaded Stud | Threaded Stud | Threaded Stud | Threaded Stud | Threaded Stud | Threaded Stud | Threaded Stud | Threaded Stud | Threaded Stud |
| Between Board Heigh | 0.375" (9.53mm) 3/8" | 0.250" (6.35mm) 1/4" | 0.625" (15.88mm) 5/8" | 0.500" (12.70mm) 1/2" | 0.875" (22.23mm) 7/8" | 0.750" (19.05mm) 3/4" | 1.125" (28.58mm) 1 1/8" | 1.000" (25.40mm) 1" | 1.406" (35.71mm) 1 13/32" |
| Length - Overall | 1.028" (26.10mm) | 0.906" (23.00mm) | 1.280" (32.50mm) | 1.154" (29.30mm) | 1.528" (38.80mm) | 1.406" (35.70mm) | 1.780" (45.20mm) | 1.654" (42.00mm) | 2.059" (52.30mm) |
| Support Hole Diamete | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Support Panel Thickness | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" |
| Mounting Panel Thickness | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" |
| Features | 8-32 Thread | 8-32 Thread | 8-32 Thread | 8-32 Thread | 8-32 Thread | 8-32 Thread | 8-32 Thread | 8-32 Thread | 8-32 Thread |
| Material | Nyl | Nyl | Nyl | Nyl | Nyl | Nyl | Nyl | Nyl | Nyl |
| Other Names | 21061002SCBS- 6-01SCBS- 6-01-NDSCBS601 | 21061001SCBS- 4-01SCBS- 4-01-NDSCBS401 | 21061004SCBS1001 | 21061003SCBS- 8-01SCBS- 8-01-NDSCBS801 | 21061006SCBS1401 | 21061005SCBS1201 | 21061007SCBS1801 | 21061033SCBS1601 | 21061008SCBS22.501 |
