Ferrites and accessories
RM 10, RM 10 LP
Cores and accessories
Series/Type:
Date:
B65813, B65814, B65679
June 2013
Data Sheet
EPCOS AG 2013. Reproduction, publication and dissemination of this data sheet and the
information contained therein without EPCOS’ prior express consent is prohibited.

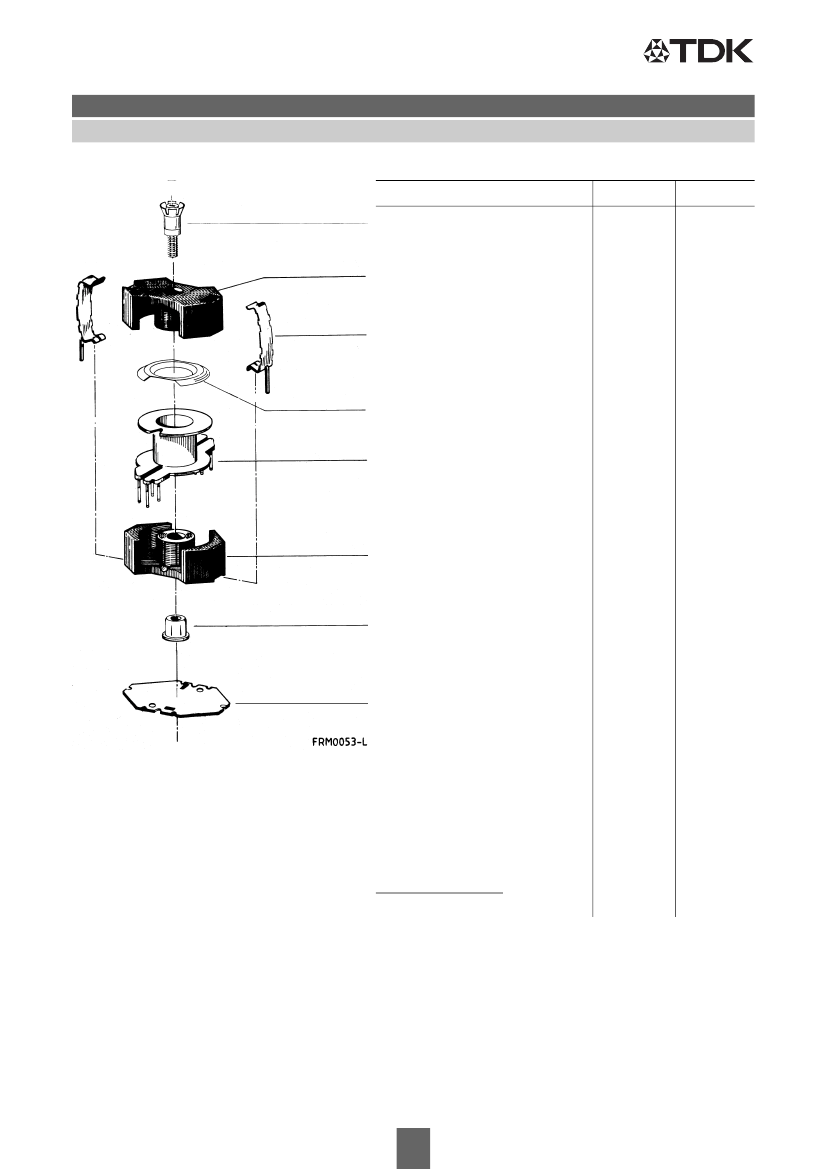

RM 10
Core and accessories
Individual parts
Adjusting screw
Core
Part no.
B65679
B65813
Page
8
3
Clamps
B65814
7
Insulating washer 1
Coil former
B65814
B65814
7
5
Core
B65813
3
Threaded sleeve (glued-in)
Insulating washer 2
B65814
7
Example of an assembly set
Also available:
Coil former for
power applications
RM 10 low-profile:
Core
B65814
B65813P
6
9
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/13

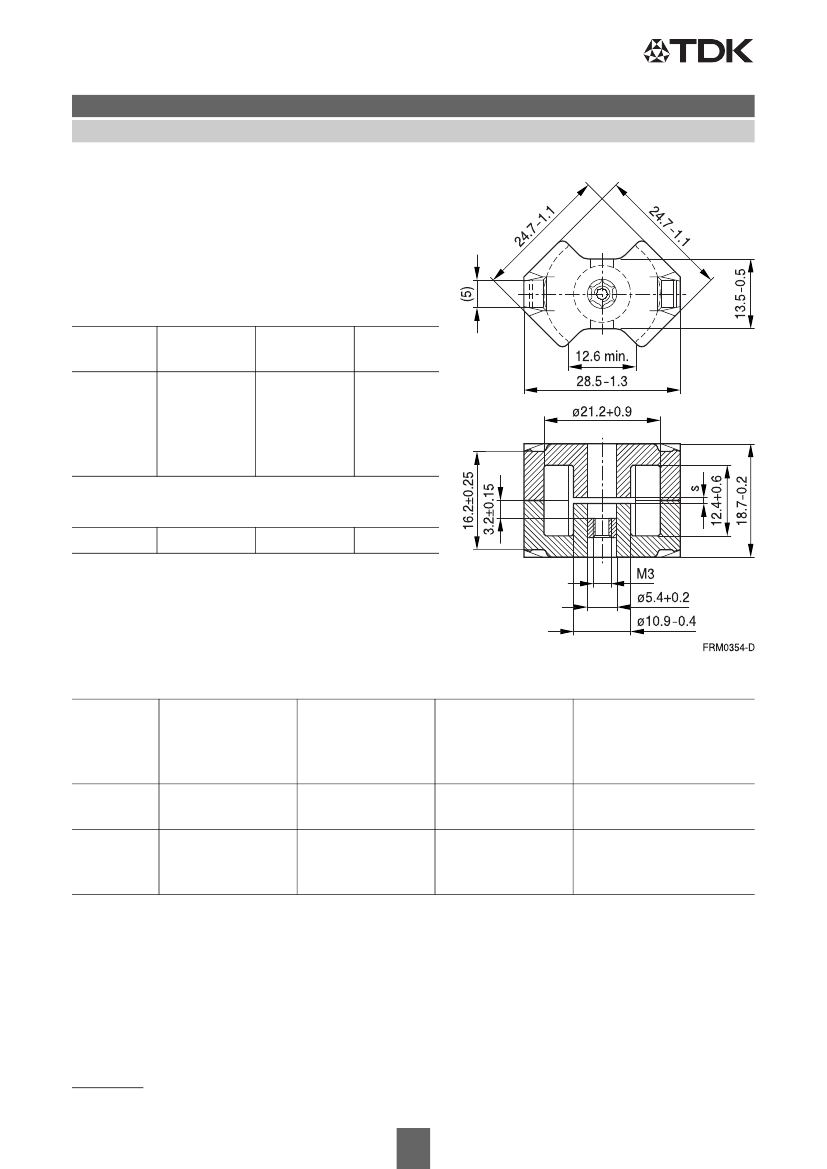

RM 10
Core
■
To IEC 62317-4
■
Cores without center hole
B65813
for transformer applications
■
Delivery mode: sets
Magnetic characteristics
(per set)
with
center hole
l/A
l
e
A
e
A
min
V
e
0.5
42
83
—
3490
without
center hole
0.45
44
98
90
4310
mm
–1
mm
mm
2
mm
2
mm
3
Approx. weight
(per set)
m
20.7
22
g
Gapped
Material
A
L
value
nH
400
3%
630
3%
250
3%
630
5%
1600
10%
s
e
approx.
mm
0.21
0.13
0.44
0.13
0.04
161
254
89
225
572
Ordering code
1)
-D with center hole
-N with threaded sleeve
-J without center hole
B65813+0400A048
B65813+0630A048
B65813J0250A041
B65813J0630J041
B65813J1600K041
N48
N41
1) Replace the + by the code letter “D” or “N” for the required version.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/13
RM 10
Core
Ungapped
Material
A
L
value
nH
e
P
V
B65813
W/set
Ordering code
-J without center hole
B65813J0000R030
B65813J0000Y038
N30
T38
N49
N87
N97
N41
7600 +30/–20% 2720
16000 +40/–30% 5720
2900 +30/–20% 1040
4200 +30/–20% 1500
4200 +30/–20% 1500
5500 +30/–20% 1960
< 0.75 ( 50 mT, 500 kHz,100
C)
< 2.30 (200 mT, 100 kHz, 100
C)
< 2.00 (200 mT, 100 kHz, 100
C)
< 0.80 (200 mT, 25 kHz, 100
C)
B65813J0000R049
B65813J0000R087
B65813J0000R097
B65813J0000R041
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
06/13

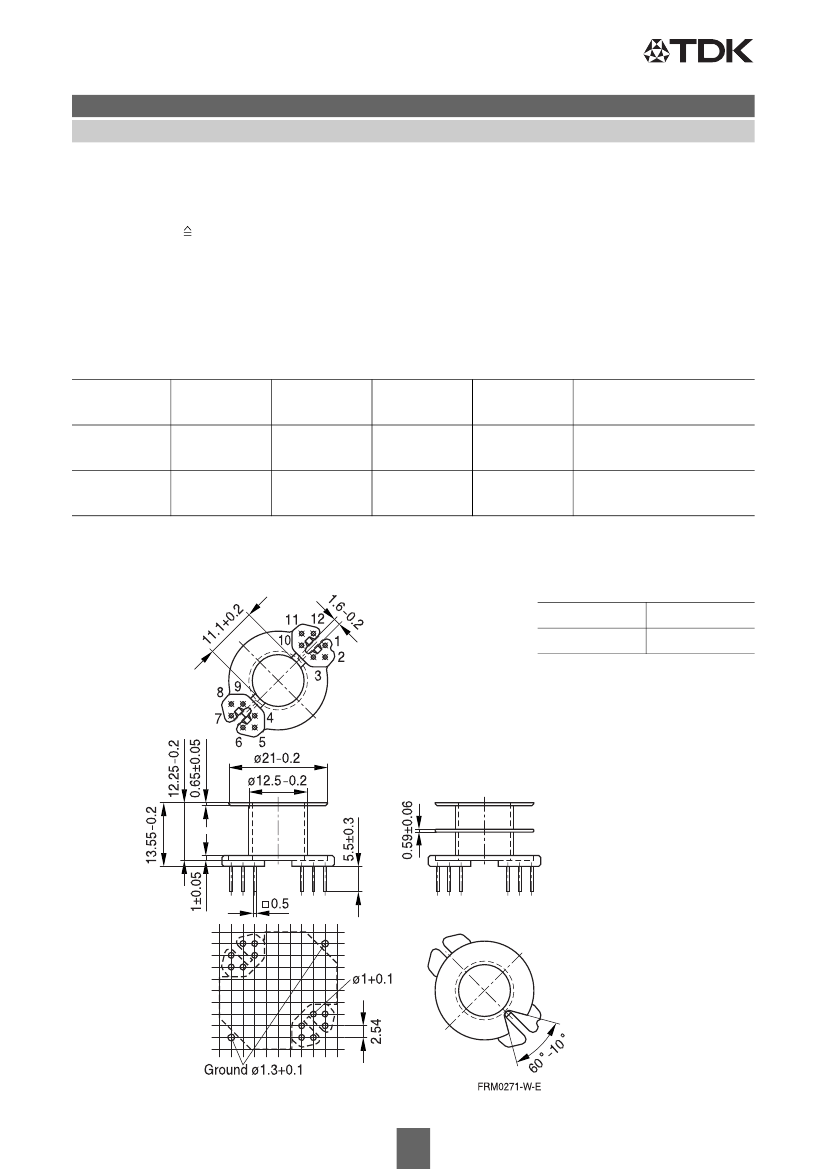

RM 10
Accessories
Coil former
GFR thermosetting plastic (UL 94 V-0, insulation class to IEC 60085:
H max. operating temperature 180
C),
color code black
Sumikon PM 9630
®
E41429 (M)
, SUMITOMO BAKELITE CO LTD
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235
C,
2 s
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350
C,
3.5 s
Winding:
see Data Book 2013, chapter “Processing notes, 2.1”
Squared pins.
For matching clamp and insulating washers see page 7.
Sections
1
2
A
N
mm
2
41.5
39
l
N
mm
52
52
A
R
value
43
46
Pins
8
12
8
12
Ordering code
B65814N1008D001
B65814N1012D001
B65814N1008D002
B65814N1012D002
Material:
B65814
12 pins
Version
8 pins
Pins omitted
2, 5, 8, 11
Hole arrangement
View in
mounting direction
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
06/13
