8001-0-19-15-07-14-10-0: DescriptionWire Terminal; CategoryThe connector terminals; File Size70KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8001-0-19-15-07-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8001-0-19-15-07-14-10-0	-	-	View	Buy Now

8001-0-19-15-07-14-10-0 Overview

Wire Terminal

8001-0-19-15-07-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8001
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

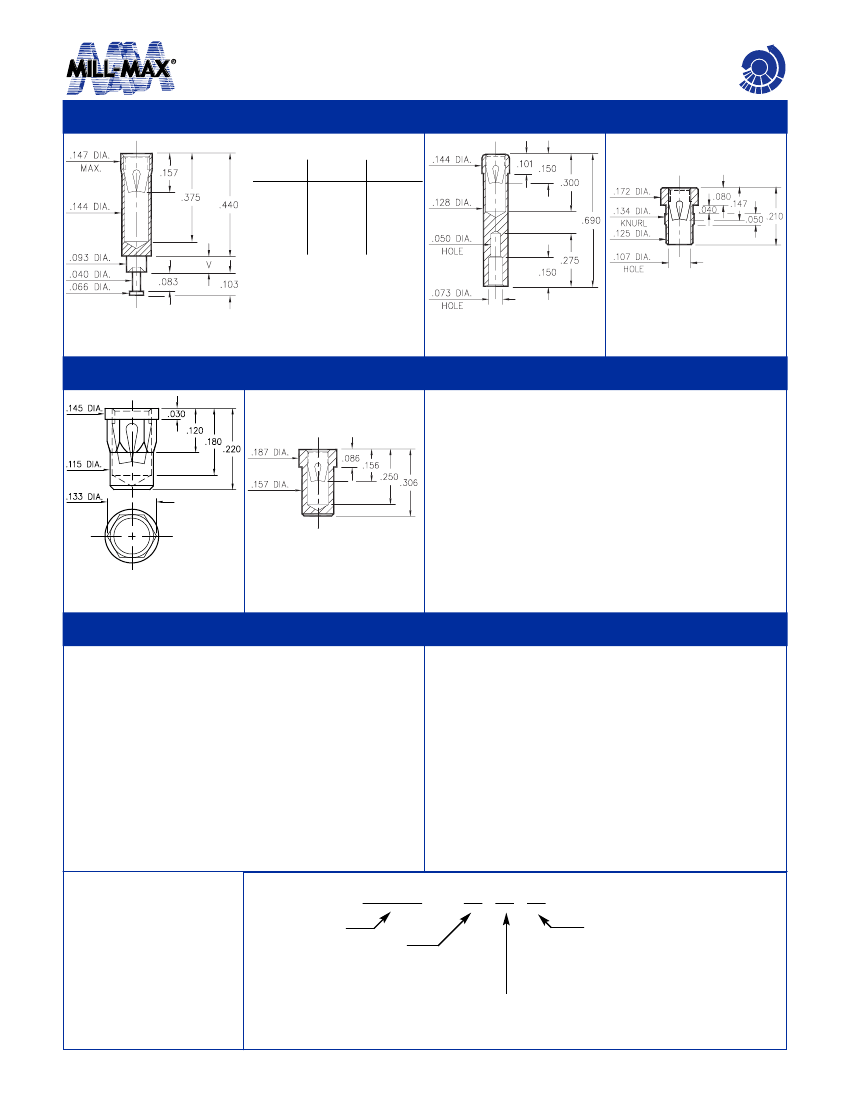

PIN RECEPTACLES

for .065” - .082” diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

0395

Basic Part

Number

Board

Thickness

Length

V

8001

0395-1

0395-2

0395-3

0395-4

0395-5

.031

.062

.094

.125

.188

.062

.094

.125

.156

.219

8016

0395-X-15-XX-07-XX-10-0

Swage mount in .096 hole

8001-0-19-XX-07-XX-10-0

Wire Termination

8016-0-15-XX-07-XX-10-0

Press-fit in .131 mounting hole

0350

8837

0350-0-15-XX-07-XX-10-0

Hex press-fit in .129±.002

plated thru hole

8837-0-15-XX-14-XX-10-0

Solder mount in .159 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - XX - XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

SELECT CONTACT

#07 or #14

CONTACT (DATA ON PAGES 214 & 215)

SPECIFY CONTACT FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

14

10µ"

GOLD OVER

NICKEL

27

30µ"

GOLD OVER

NICKEL

w w w. m i l l - m a x . c o m

160

516-922-6000

8001-0-19-15-07-14-10-0 Related Products

	8001-0-19-15-07-14-10-0	8001-0-19-01-07-14-10-0	WCCB2263700AD	WCCC20130002H
Description	Wire Terminal	Wire Terminal	RES NET,THIN FILM,370 OHMS,100WV,.5% +/-TOL,-100,100PPM TC,0505 CASE	RES NET,THIN FILM,300K OHMS,200WV,2.5% +/-TOL,-50,50PPM TC,1010 CASE
Reach Compliance Code	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	8001	8001	CCB	CCC
