RLCBSA-8-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> RLCBSA-8-01

RLCBSA-8-01: DescriptionCB spt reverse mnt nat 8mm spc; Categoryaccessories; File Size72KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric Compare View All

RLCBSA-8-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RLCBSA-8-01	-	-	View	Buy Now

RLCBSA-8-01 Overview

CB spt reverse mnt nat 8mm spc

RLCBSA-8-01 Parametric

Parameter Name	Attribute value
Datasheets
RLCBSA-xx-01
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Board Supports
Holding Type	Snap Lock
Mounting Type	Snap Lock
Between Board Heigh	0.315" (8.00mm)
Length - Overall	-
Support Hole Diamete	0.157" (4.00mm)
Support Panel Thickness	0.063" (1.60mm)
Mounting Hole Diamete	0.217" (5.50mm)
Mounting Panel Thickness	0.020" ~ 0.039" (0.50mm ~ 1.00mm)
Features	Locking, Reverse Mounting
Material	Nyl

Preview

Download Datasheet

View All

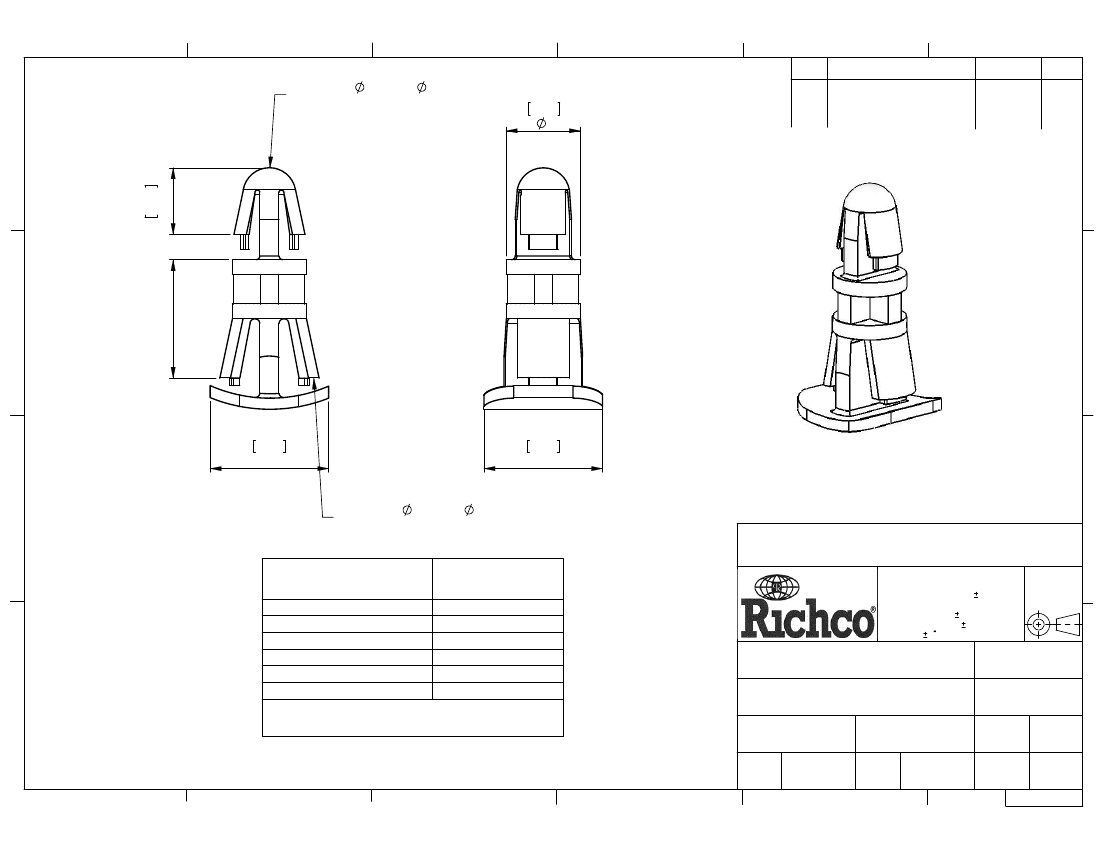

REV.

TO FIT IN A 4.0mm [ 0.16] HOLE,

1.6mm [0.06] THICK PANEL.

MODIFICATION.

Preliminary Drawing

Production Release

DATE

09/09/08

15/09/08

DRN

0.20

"A"

0.18

4.5

0.31

TO FIT IN A 5.5mm [ 0.22] HOLE,

0.5mm [0.02]-1.0mm [0.04] THICK PANEL.

MATL: NYLON 6/6

RMS-01*

COLOUR: NATURAL

RLCBSA-5-01

RLCBSA-6-01

RLCBSA-8-01

RLCBSA-10-01

RLCBSA-12-01

RLCBSA-14-01

INFORMATION CONTAINED IN THIS DOCUMENT IS CONFIDENTIAL TO

RICHCO INTERNATIONAL Co. Ltd. AND MAY NOT BE DISCLOSED OR

REPRODUCED IN WHOLE OR PART WITHOUT THEIR WRITTEN CONSENT.

METRIC PRIMARY UNITS:mm

IMPERIAL SECONDARY UNITS:[inches]

GENERAL TOLERANCES 0.25 [0.010]

UNLESS OTHERWISE STATED

1 DECIMAL PLACE

2 DECIMAL PLACES

ANGULAR 1

"A"

STANDOFF HEIGHT

5 [0.20]

6 [0.24]

8 [0.31]

10 [0.39]

12 [0.47]

14 [0.55]

THIRD

ANGLE

MATERIAL:

COLOUR:

NYLON 6/6 (RMS-01)

DESCRIPTION:

NATURAL

PART No:

*AVAILABLE IN UL94 V0 BY SPECIAL ORDER.

TO ORDER REPLACE -01 WITH -19.

REVERSE LOCKING CIRCUIT BOARD SUPPORT

DRG No:

SEE TABLE

SHEET SIZE

08-089

DATE

NPR No:

GB08-0058

DATE

Mass:(g)

0.2-0.4

SCALE

SHEET No.

DRN

CHKD

09/09/08

15/09/08

NTS

1 OF 1

FORM No. 0145/02

RLCBSA-8-01 Related Products

	RLCBSA-8-01	RLCBSA-10-01	RLCBSA-5-01	RLCBSA-6-01	RLCBSA-12-01	RLCBSA-14-01
Description	CB spt reverse mnt nat 8mm spc	CB spt reverse mnt nat 10mm spc	CB spt reverse mnt nat 5mm spc	CB spt reverse mnt nat 6mm spc	CB spt reverse mnt nat 12mm spc	CB spt reverse mnt nat 14mm spc
Standard Package	1,000	1,000	1,000	1,000	-	-
Category	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	-	-
Family	Board Supports	Board Supports	Board Supports	Board Supports	-	-
Holding Type	Snap Lock	Snap Lock	Snap Lock	Snap Lock	-	-
Mounting Type	Snap Lock	Snap Lock	Snap Lock	Snap Lock	-	-
Between Board Heigh	0.315" (8.00mm)	0.394" (10.00mm)	0.197" (5.00mm)	0.236" (6.00mm)	-	-
Support Hole Diamete	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	-	-
Support Panel Thickness	0.063" (1.60mm)	0.063" (1.60mm)	0.063" (1.60mm)	0.063" (1.60mm)	-	-
Mounting Hole Diamete	0.217" (5.50mm)	0.217" (5.50mm)	0.217" (5.50mm)	0.217" (5.50mm)	-	-
Mounting Panel Thickness	0.020" ~ 0.039" (0.50mm ~ 1.00mm)	0.020" ~ 0.039" (0.50mm ~ 1.00mm)	0.020" ~ 0.039" (0.50mm ~ 1.00mm)	0.020" ~ 0.039" (0.50mm ~ 1.00mm)	-	-
Features	Locking, Reverse Mounting	Locking, Reverse Mounting	Locking, Reverse Mounting	Locking, Reverse Mounting	-	-
Material	Nyl	Nyl	Nyl	Nyl	-	-
