RLCBSB-5-01: DescriptionCB spt rvrs push spcr nat 5mm; Categoryaccessories; File Size64KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric Compare View All

RLCBSB-5-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RLCBSB-5-01	-	-	View	Buy Now

RLCBSB-5-01 Overview

CB spt rvrs push spcr nat 5mm

RLCBSB-5-01 Parametric

Parameter Name	Attribute value
Datasheets
RLCBSB-xx-01 Drawing
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Board Supports
Holding Type	Resting Mou
Mounting Type	Snap Lock
Between Board Heigh	0.197" (5.00mm)
Length - Overall	-
Support Hole Diamete	-
Support Panel Thickness	-
Mounting Hole Diamete	0.217" (5.50mm)
Mounting Panel Thickness	0.020" ~ 0.039" (0.50mm ~ 1.00mm)
Features	Locking, Reverse Mounting
Material	Nyl

Preview

Download Datasheet

View All

A

B

C

D

E

F

REV.

A

01

1

MODIFICATION.

Preliminary Drawing

Production Release

DATE

09/09/08

15/09/08

DRN

MT

1

0.20

5

2

"A"

2

0.31

8

0.31

8

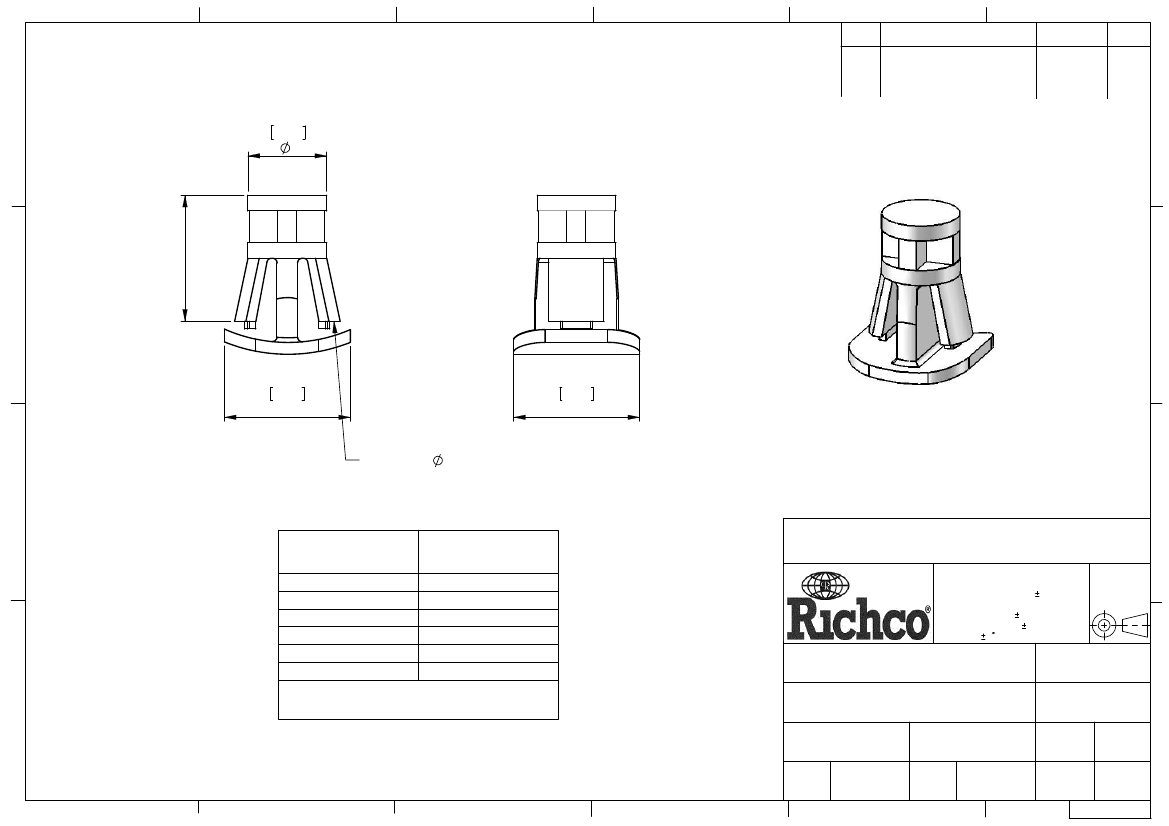

TO FIT IN A 5.5mm [0.22] HOLE,

0.5mm [0.02]-1.0mm [0.04] THICK PANEL.

3

MATL: NYLON 6/6

RMS-01*

COLOUR: NATURAL

RLCBSB-5-01

RLCBSB-6-01

RLCBSB-8-01

RLCBSB-10-01

RLCBSB-12-01

RLCBSB-14-01

4

"A"

STANDOFF HEIGHT

5 [0.20]

6 [0.24]

8 [0.31]

10 [0.39]

12 [0.47]

14 [0.55]

INFORMATION CONTAINED IN THIS DOCUMENT IS CONFIDENTIAL TO

RICHCO INTERNATIONAL Co. Ltd. AND MAY NOT BE DISCLOSED OR

REPRODUCED IN WHOLE OR PART WITHOUT THEIR WRITTEN CONSENT.

METRIC PRIMARY UNITS:mm

IMPERIAL SECONDARY UNITS:[inches]

GENERAL TOLERANCES 0.25 [0.010]

UNLESS OTHERWISE STATED

1 DECIMAL PLACE

2 DECIMAL PLACES

ANGULAR 1

THIRD

ANGLE

MATERIAL:

COLOUR:

NYLON 6/6 (RMS-01)

DESCRIPTION:

NATURAL

PART No:

*AVAILABLE IN UL94 V0 BY SPECIAL ORDER.

TO ORDER REPLACE -01 WITH -19.

REVERSE LOCKING CIRCUIT BOARD SUPPORT

DRG No:

SEE TABLE

SHEET SIZE

4

08-090

DATE

NPR No:

GB08-0058

DATE

Mass:(g)

0.2-0.4

SCALE

A4

SHEET No.

DRN

MT

A

B

C

D

CHKD

09/09/08

E

JK

15/09/08

NTS

1 OF 1

FORM No. 0145/02
