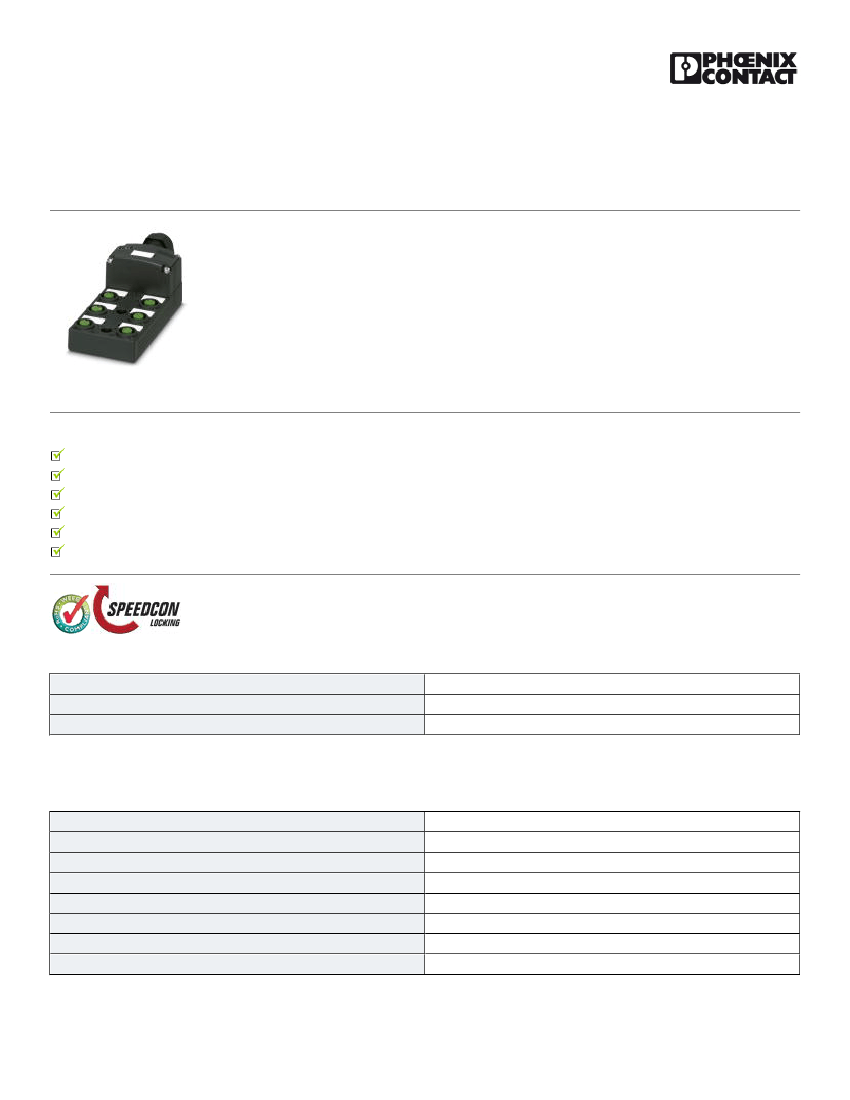

Sensor/actuator box - SACB-6/12-L-SC SCO P - 1453012
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/actuator box, Connection method: M12-SPEEDCON-socket Plastic, Number of slots: 6, Number of
positions: 5, Slot assignment: Double, Status indication: Yes, pnp; Master cable connection: Spring-cage conn.
180°, Shielding: No
Figure shows version with diagnostic
and status indicator
Product Features
Safety in the field, thanks to molded housing and high degree of protection
Flexible, distributed bundling of signals in one master cable
Convenient: increased machine availability thanks to quick and easy diagnostics
Save space: distributor box with double occupancy for two sensors in one slot
Save time, thanks to installation with SPEEDCON fast locking system
Flexible: distributor box with connector hood for on-site assembly
Key commercial data
Packing unit
Custom tariff number
Country of origin
1 PCE
85444290
Germany
Technical data
General
Rated voltage
Max. operating voltage U
max
Current carrying capacity per I/O signal
Current carrying capacity per slot
Total rated current
Number of positions
Number of slots
Inflammability class according to UL 94
24 V DC
30 V DC
2A
4A
12 A
5
6
V0
12/2/13 Page 1 / 9
https://www.phoenixcontact.com/us/products/1453012
Sensor/actuator box - SACB-6/12-L-SC SCO P - 1453012
Technical data
General
Sensor/actuator connection system
M12-SPEEDCON-socket
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP65
IP67
-25 °C ... 80 °C
Local diagnostics function
Local diagnostics
Supply voltage Green LED
Status display I/O Yellow LED
Master cable data/connection data
Connection method
Conductor cross section min. (signal)
Conductor cross section max. (signal)
Conductor cross section AWG min. (signal)
Conductor cross section AWG max. (signal)
Stripping length (signal)
Conductor cross section min. (energy)
Conductor cross section max. (energy)
Conductor cross section AWG min. (energy)
Conductor cross section AWG max. (energy)
Stripping length (power)
External cable diameter min.
External cable diameter max.
Stripping length
Tightening torque, cover screw
Tightening torque, union nut
Tightening torque slot sensor/actuator cable
Spring-cage conn.
0.2 mm²
0.5 mm²
24
20
6 mm
0.2 mm²
1.5 mm²
24
16
10 mm
7 mm
12 mm
50 mm (Master cable)
1 Nm
2.5 Nm
0.4 Nm
Insulation material
Housing material
Material of the moulding mass
Contact material
Contact surface material
Contact carrier material
Material of threaded sleeve
Material, O-ring
Sealing material
PBT
PUR
Cu alloy
Gold-plated
PA
PBT
NBR
NBR (Connector hood)
12/2/13 Page 2 / 9
https://www.phoenixcontact.com/us/products/1453012
Sensor/actuator box - SACB-6/12-L-SC SCO P - 1453012
Technical data
Pin assignment
Slot/position = Wire color or connection
1 / 4 (A) = WH
1 / 2 (B) = GY/PK
2 / 4 (A) = GN
2 / 2 (B) = RD/BU
3 / 4 (A) = YE
3 / 2 (B) = WH/GN
4 / 4 (A) = GY
4 / 2 (B) = BN/GN
5 / 4 (A) = PK
5 / 2 (B) = WH/YE
6 / 4 (A) = RD
6 / 2 (B) = YE/BN
1-4 / 1 (+ 24 V) = BN
1-6 / 3 (0 V) = BU
1-6 / 5 (PE) = GN/YE
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140815
27140815
27143423
27143423
27143423
27449001
27449001
ETIM
ETIM 4.0
ETIM 5.0
EC002585
EC002585
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
12/2/13 Page 3 / 9
https://www.phoenixcontact.com/us/products/1453012
Sensor/actuator box - SACB-6/12-L-SC SCO P - 1453012
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal voltage UN
24 V
cUL Recognized
Nominal voltage UN
24 V
GOST
cULus Recognized
Accessories
Accessories
Cable by the meter
12/2/13 Page 4 / 9
https://www.phoenixcontact.com/us/products/1453012
Sensor/actuator box - SACB-6/12-L-SC SCO P - 1453012
Accessories

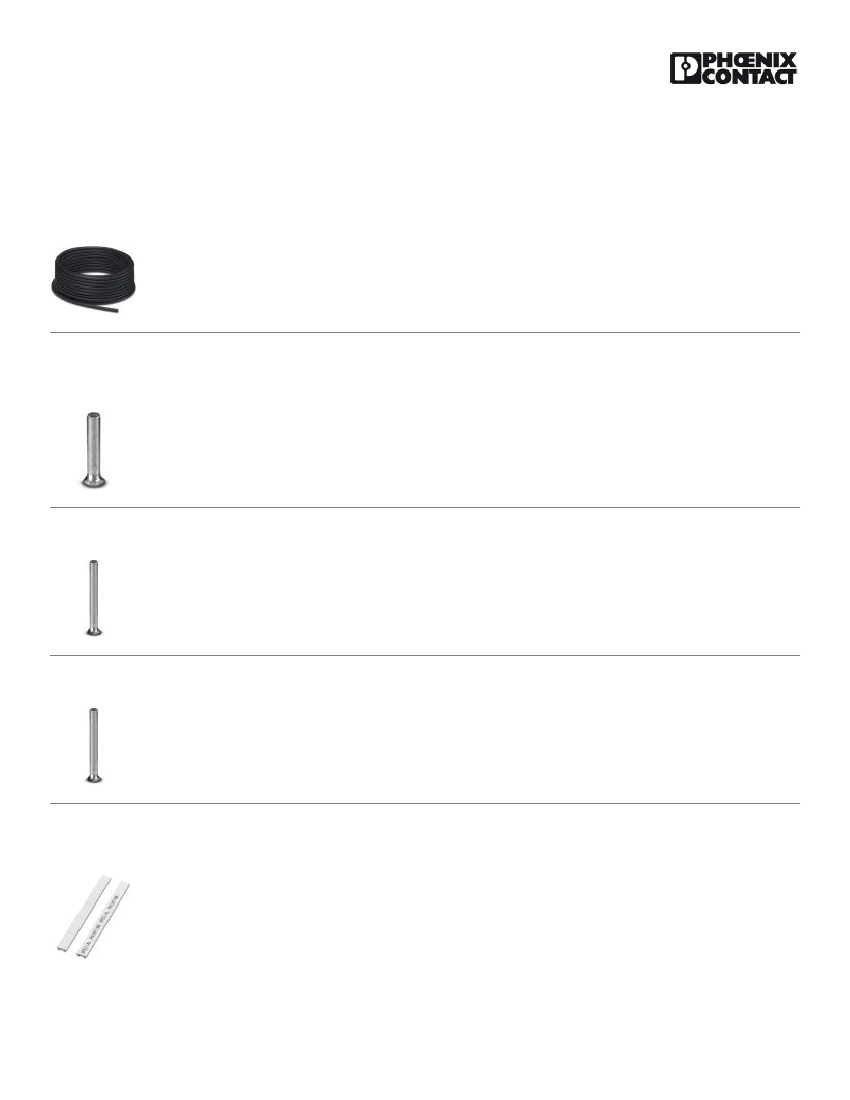

Master cable ring - SACB-12X0,5/ 3X1,0-50,0 PUR - 1503360
Master cable for sensor/actuator boxes, with PE conductor, unshielded, material PUR/PVC, 15-pos., 12 x 0.50 mm² and
3 x 1.00 mm², length: 50 m
Connector
Ferrule - A 0,5 - 6 - 3200218
Ferrule, Length: 6 mm, Color: silver
Ferrule - A 0,75-10 - 3200234
Ferrule, Length: 10 mm, Color: silver
Ferrule - A 1 -10 - 3200250
Ferrule, Length: 10 mm, Color: silver
Device marking
Contactor marker – zack marker strip - SS-ZB 17,5 WH - 0804963
Contactor marker – zack marker strip, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Snap into flat
marker groove, Lettering field: 17.5 x 8 mm
12/2/13 Page 5 / 9
