'LMT &IEH
CIS Series
APPLICATION
Noise Suppression in power line
*SV ,MKL 'YVVIRX
FEATURES
CIS series is used for high current. (~ 6A)

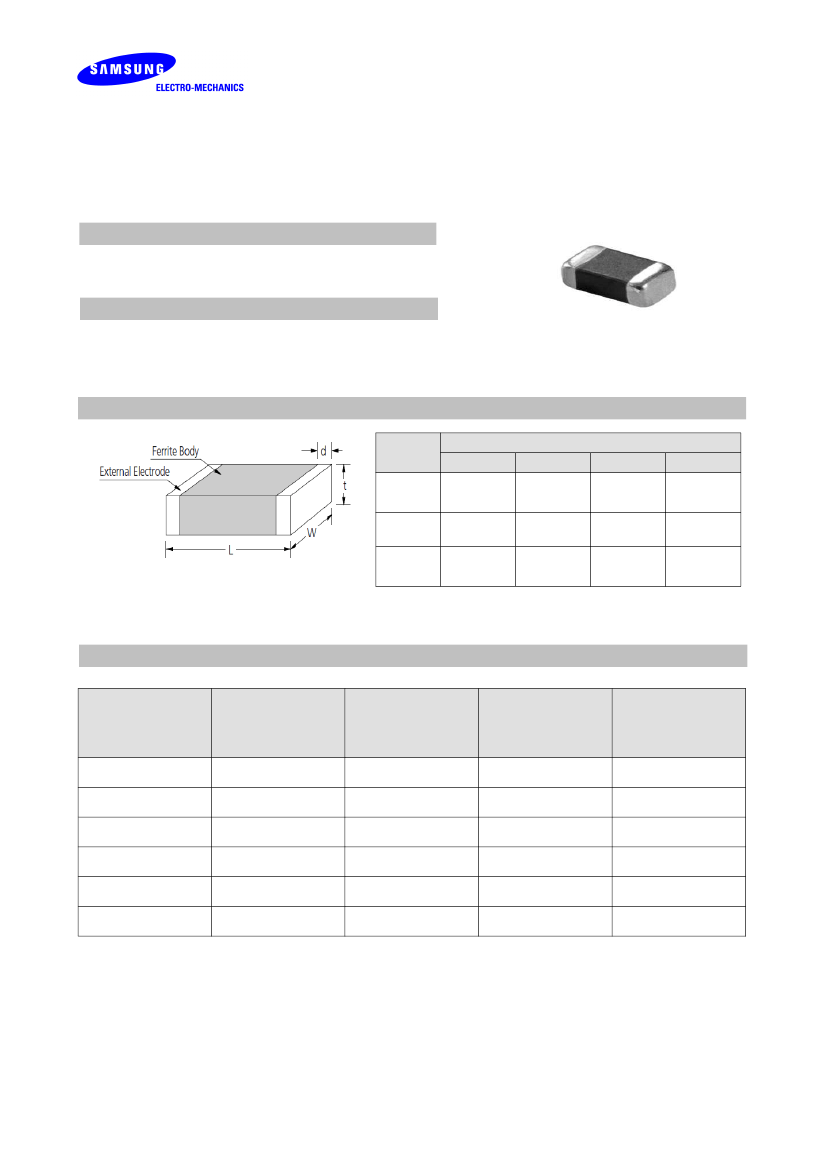

DIMENSION
Type
21
32
41
Dimension [mm]
L
2.0±0.2
3.2±0.2
4.5±0.2
W
1.25±0.2
2.5±0.2
1.6±0.2
t
0.9±0.2
1.3±0.2
N:1.6±0.2
A:1.2±0.2
d
0.5+0.2
-0.3
0.5±0.3
0.5±0.3
DESCRIPTION
Part no.
Thickness
(mm)
Impedance
(Ω)±25%@100MHz
DC Resistance
(Ω) Max.
Rated Current
(mA) Max.
CIS21P300
CIS21P101
CIS21J121
CIS32P520
CIS41P600
CIS41J600
0.9±0.2
0.9±0.2
0.9±0.2
1.3±0.2
1.6±0.2/1.2±0.2
1.6±0.2/1.2±0.2
30
100
120
52
60
60
0.01
0.02
0.02
0.01
0.01
0.01
6000
4000
5000
6000
6000
6000
Ver 201306

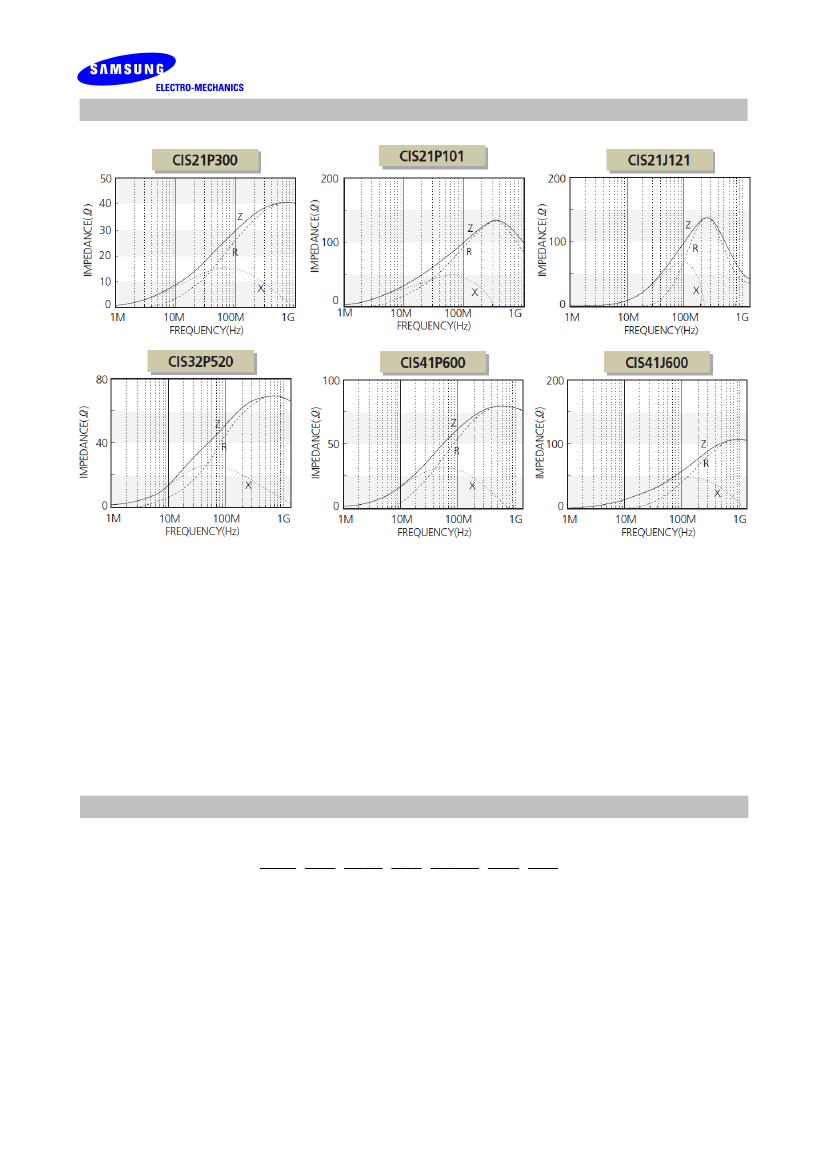

CHARACTERISTIC DATA
PRODUCT IDENTIFICATION
CI
(1)
(1)
(3)
(5)
(6)
(7)
S
(2)
21
(3)
P
(4)
300
(5)
N
(6)
E
(7)
Chip Beads
(2) For High current(S:~6A)
Dimension
(4) Material Code
Nominal impedance (300:30Ω, 221:220Ω )
Thickness option(N:Standard, A:Thinner than standard, B:Thicker than standard)
Packaging(C:paper tape, E:embossed tape)
Ver 201306

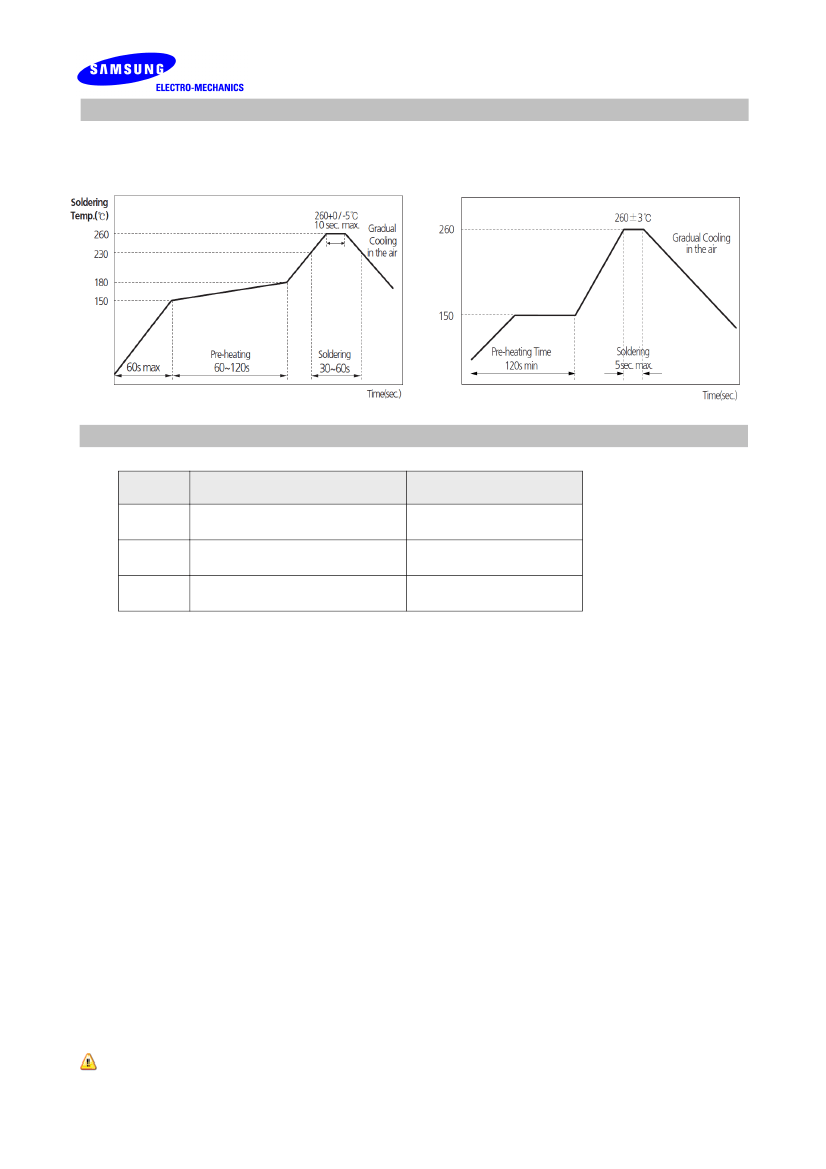

RECOMMENDED SOLDERING CONDITION
REFLOW SOLDERING
FLOW SOLDERING
PACKAGING
Type
21
32
41
Packaging Style
Embossed Taping
Embossed Taping
Embossed Taping
Quantity(pcs/reel)
4,000
2,500
2,000
Any data in this sheet are subject to change, modify or discontinue without notice.
The data sheets include the typical data for design reference only. If there is any question regarding the
data sheets, please contact our sales personnel or application engineers.
