MSL1
*Pb Free part
Customer Name
System
Part Number
Standard specification
Band40 Rx (50/150ohm Balance)
F6KB2G350B4HT
DATE
Version 2.1b
July 22, 2011
Final
Table 1 Electrical Specification
Passband :2300 ~ 2400 MHz
Item
Insertion Loss
Ripple
VSWR
Amplitude Balance
(|S21|/|S31|)
Phase Balance
((Phase(S21) - Phase(S31))+180)
Condition
2300 – 2400MHz
2300 – 2400MHz
2300 – 2400MHz
2300 – 2400MHz
2300 – 2400MHz
50 – 2000MHz
2000 – 2215MHz
2215 – 2240MHz
2460 – 2485MHz
2485 – 3000MHz
3000 – 4000MHz
4000 – 6000MHz
Specification
Min.
-
-
-
-1.5
-15
35
35
20
20
33
25
20
Typ.
2.7
1.2
1.7
-0.6/
+0.9
-4/+10
43
40
42
37
37
42
52
50//4.7nH
150//12nH
Max.
3.5
2.0
2.2
+1.5
+15
-
-
-
-
-
-
-
Unit
dB
dB
dB
dB
deg
dB
dB
dB
dB
dB
dB
dB
ohm
ohm
mm
o
Remark
(*1)
Absolute attenuation
Input Impedance
Output Impedance
Device size
Unbalanced
Balanced
1.4typ. x 1.0typ. x 0.5max.
-30 ~ +85
Operating Temperature
C
(*1)
Specification of insertion loss includes loss that comes from the test board.(0.15dB)
MSL1
*Pb Free part
Customer Name
System
Part Number
Standard specification
Band40 Rx (50/150ohm Balance)
F6KB2G350B4HT
DATE
Version 2.1b
July 22, 2011
Final

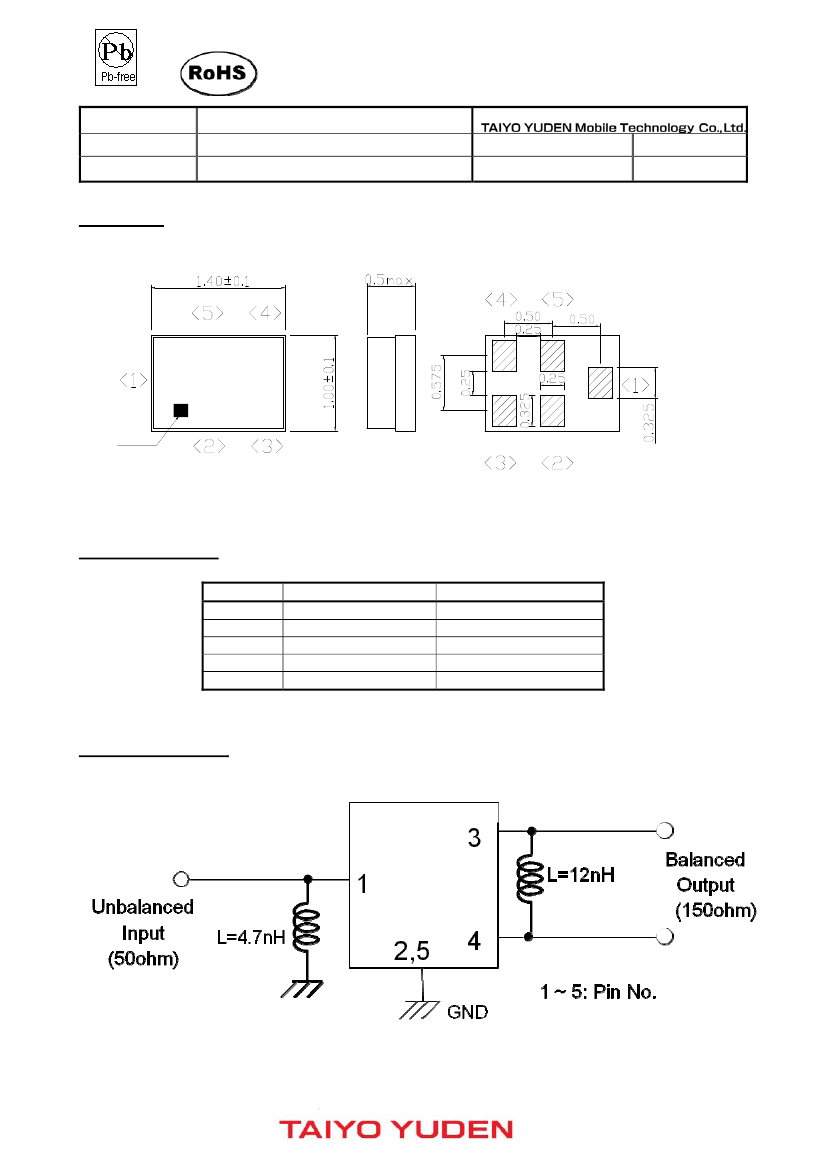

Dimension
Device size: 1.4typ. x 1.0typ. x 0.5max.
index
Unit: mm
Pin Configuration
Pin No.
1
2
3
4
5
Symbol
IN
GND
OUT
OUT
GND
Function
Unbalanced pin
Ground
Balanced pin
Balanced pin
Ground
Evaluation Circuit
MSL1
*Pb Free part
Customer Name
System
Part Number
Standard specification
Band40 Rx (50/150ohm Balance)
F6KB2G350B4HT
DATE
Version 2.1b
July 22, 2011
Final

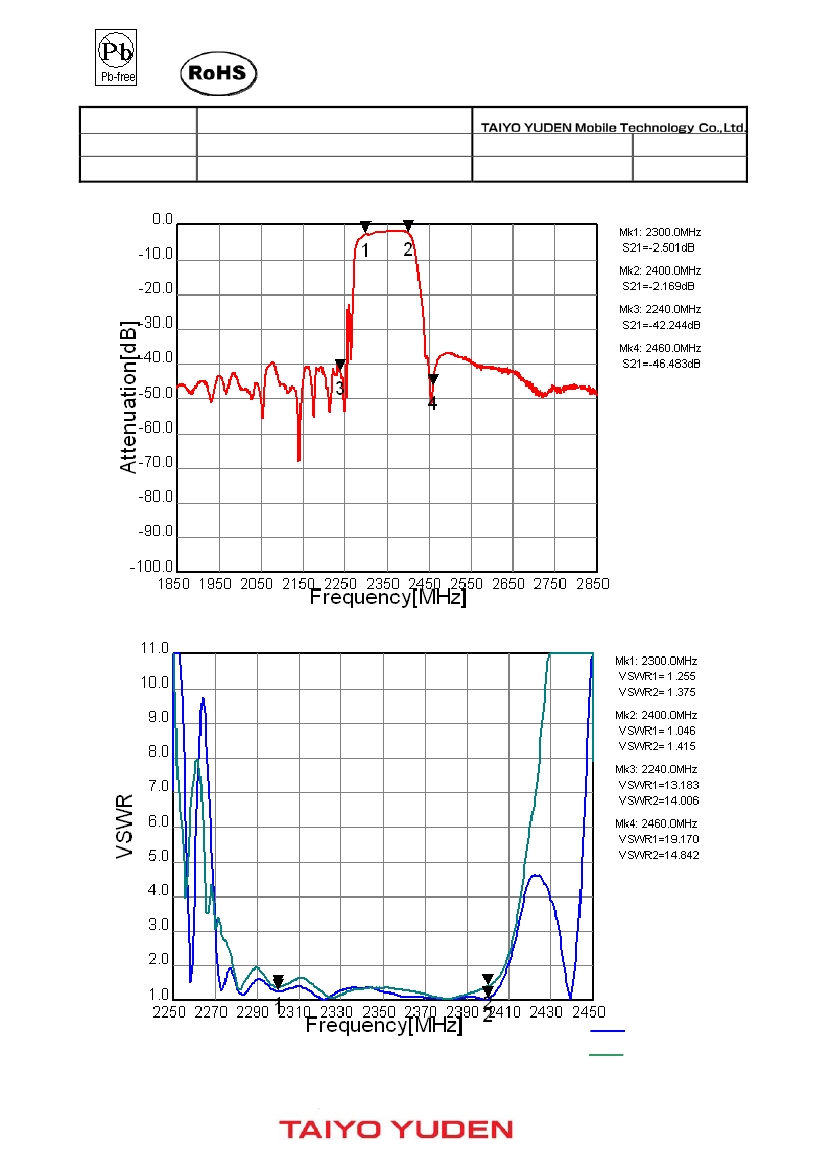

Fig.1 Pass-band Characteristics
Fig.2 VSWR
Input
Output
MSL1
*Pb Free part
Customer Name
System
Part Number
Standard specification
Band40 Rx (50/150ohm Balance)
F6KB2G350B4HT
DATE
Version 2.1b
July 22, 2011
Final

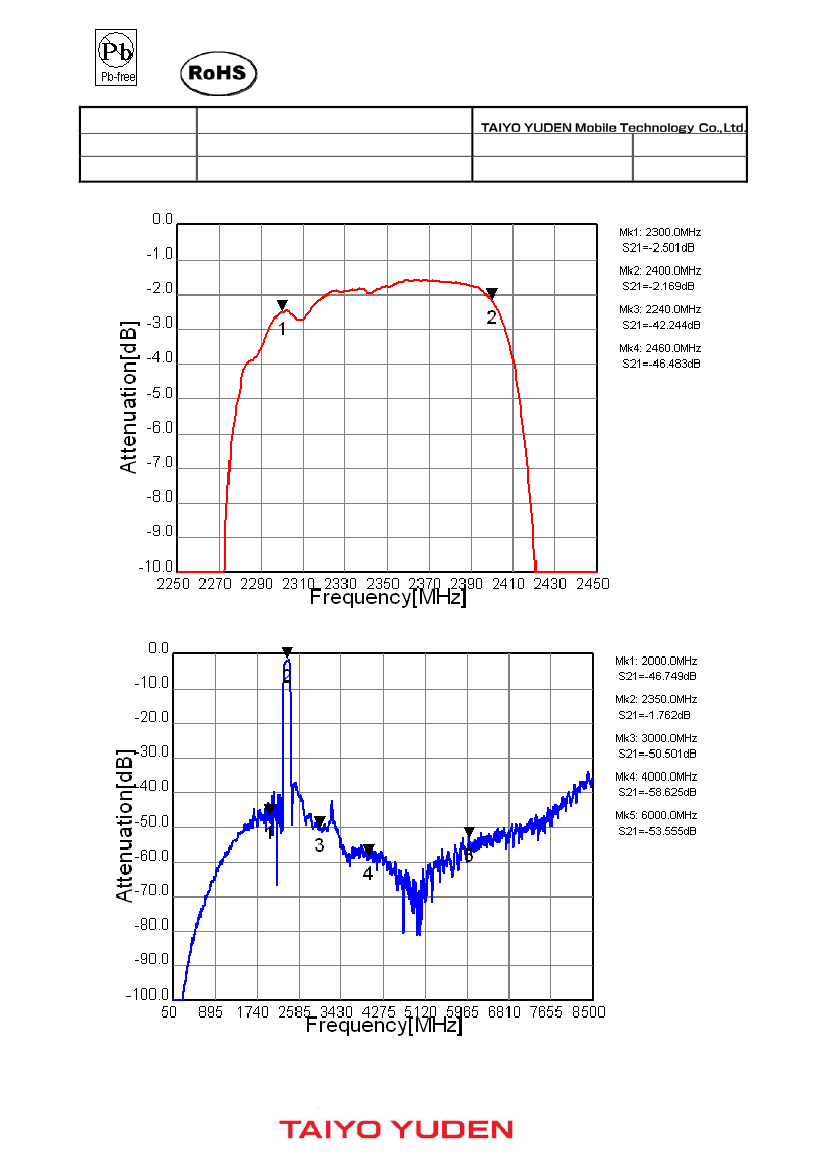

Fig.3 In-band Characteristics
Fig.4 Wide-band Characteristics
MSL1
*Pb Free part
Customer Name
System
Part Number
Standard specification
Band40 Rx (50/150ohm Balance)
F6KB2G350B4HT
DATE
Version 2.1b
July 22, 2011
Final

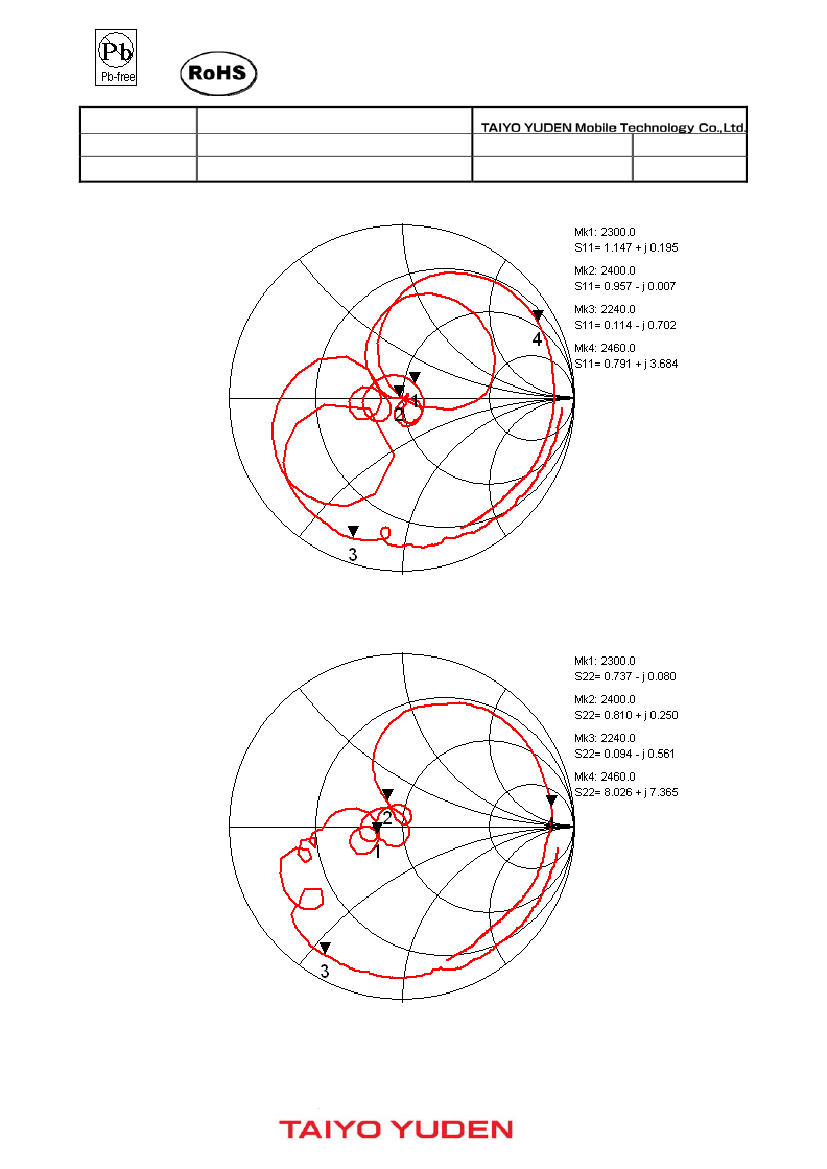

Fig.5 Input impedance
Fig.6 Output impedance
