LCBSA-6-6-01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > accessories> LCBSA-6-6-01

Preview

LCBSA-6-6-01: DescriptionCB spt,dual lck,natural,3/8 IN S; Categoryaccessories; File Size135KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric View All

LCBSA-6-6-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCBSA-6-6-01	-	-	View	Buy Now

LCBSA-6-6-01 Overview

CB spt,dual lck,natural,3/8 IN S

LCBSA-6-6-01 Parametric

Parameter Name	Attribute value
Datasheets
CBDLS, LCBSA-6 Series
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Board Supports
Holding Type	Snap Lock
Mounting Type	Snap Lock
Between Board Heigh	0.375" (9.53mm) 3/8"
Length - Overall	1.205" (30.60mm)
Support Hole Diamete	0.157" (4.00mm)
Support Panel Thickness	0.093" (2.40mm) 3/32"
Mounting Hole Diamete	0.187" (4.75mm) 3/16"
Mounting Panel Thickness	0.078 ~ 0.141" (1.98 ~ 3.58mm)
Features	Winged
Material	Nyl

Preview

Download Datasheet

View All

AVAILABLE BY SPECIAL ORDER- NAFTA REGION ONLY

MATERIAL: NYLON 6/6

DIM.

UL 94 V-2 (RMS-01)

"A"±.015 [0.4]

PART NO.

LCBSA-6-3-01

LCBSA-6-4-01

LCBSA-6-5-01

LCBSA-6-6-01

LCBSA-6-7-01

LCBSA-6-8-01

LCBSA-6-10-01

LCBSA-6-12-01

LCBSA-6-14-01

LCBSA-6-16-01

LCBSA-6-18-01

LCBSA-6-20-01

LCBSA-6-22-01

3/16 [4.8]

1/4 [6.4]

5/16 [7.9]

3/8 [9.5]

7/16 [11.1]

1/2 [12.7]

5/8 [15.9]

3/4 [19.1]

7/8 [22.2]

1 [25.4]

1-1/8 [28.6]

1-1/4 [31.7]

1-3/8 [34.9]

TO SNAP-LOCK IN A .156±.003

[4±0.08] DIA. HOLE, IN A

.093 [2.4] PANEL THICKNESS

.28 7.1

.10 2.5

.43 10.9

"A"

7/32 [5.6]

.55 13.9

REF

NOTES:

1. MATERIAL: NYLON 6/6 UL 94 V-0 (RMS-19),

AVAILABLE BY SPECIAL ORDER. TO ORDER

REPLACE "-01" WITH "-19".

2. COLOR: NATURAL.

3. ALTERNATE UNITS FOR REFERENCE ONLY.

E

D

-

REV.

CHANGED PART NO, CO 200605

REDRAWN, SEE ECN #1208 FOR CHANGES

SEE ENGINEERING FOR REV A-C

DESCRIPTION

SK

12/02/10

SK

11/29/06

---

ENGR. DATE

.18 4.6

REF

7/32 5.6

TO SNAP-LOCK IN A .187±.003

[4.75±0.08] DIA. HOLE, IN A

.078-.141 [1.98-3.58] PANEL THICKNESS

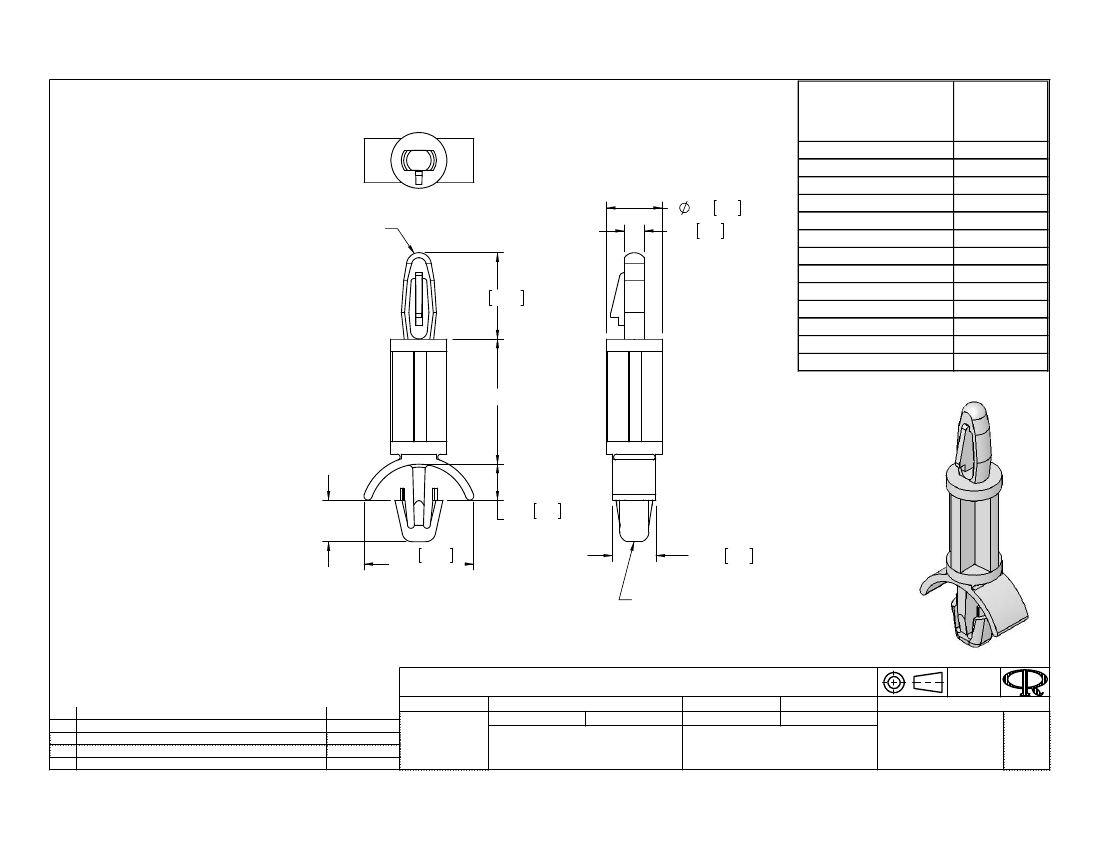

TITLE:

LOCKING CIRCUIT BOARD SUPPORT

FILE #: LCBSA-6

SHEET: 1 OF 1

RE:

SHEET SIZE: A

DWN: SK

DT: 08/25/06

CREATED USING

SOLIDWORKS

TOLERANCES

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

RICHCO, INC.

ENG@RICHCO-INC.COM

APP: RT

CHKD: SJ

PART #

DWG IN

IN [MM]

FINAL

(773) 539-4060

SEE TABLE

CA

PRINT

TYPE
