Enabling Grip Switch
A4EG
CSM_A4EG_DS_E_7_1
Enabling Grip Switch with Distinct Feel
for Three Easily Discernible Positions
• In addition to the standard models, the lineup also includes
models with an emergency stop switch and models with a
momentary operation switch.
• An optional Holding Key (sold separately) provides a versatile
method for selecting modes.
• Equipped with conduit connector.
Be sure to read the
“Safety Precautions”
on page 10.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.

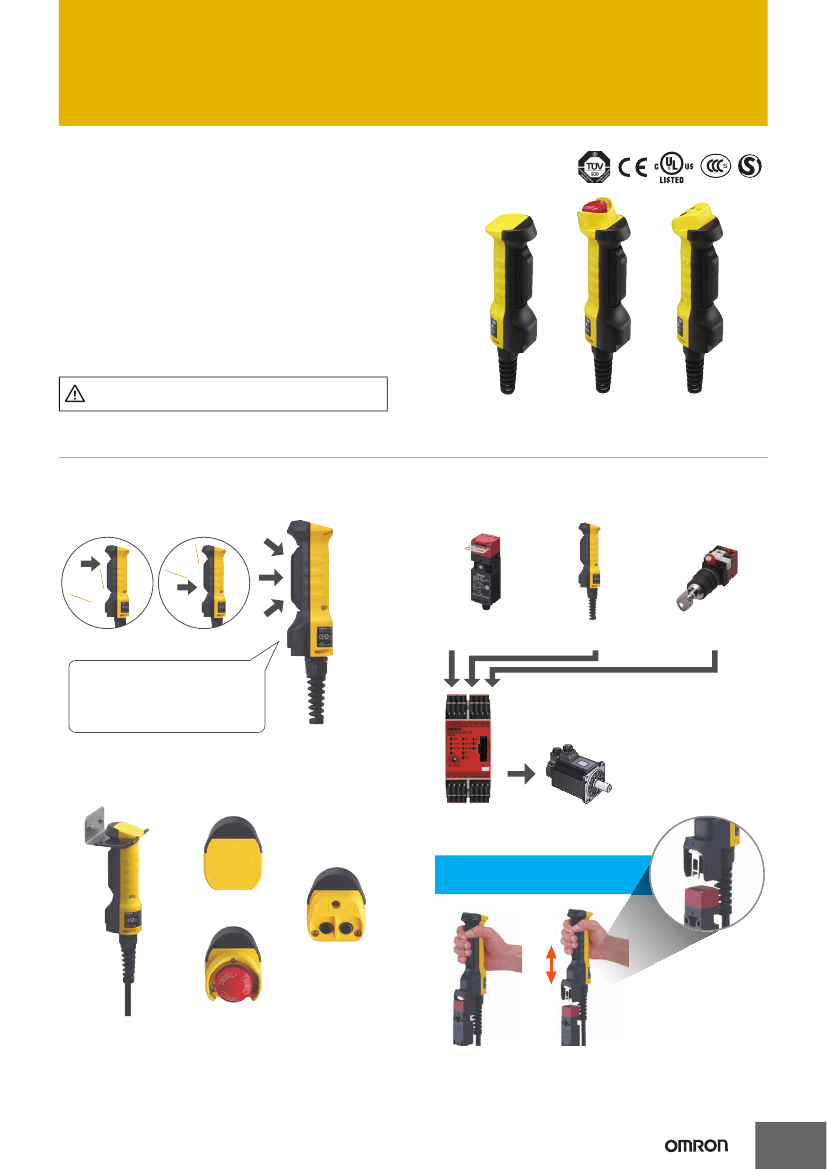

Features
Positive Operating Feel
Original Double Snap Action switch mechanism lets the operator
precisely confirm the enable position.
Safety Circuits Are Easy to Configure
Safety circuits can be easily configured by combining the A4EG with
the G9SX-GS Safety Guard Switching Unit.
c
Cli
Cli
!
ck
k!
Press the
top part...
Press the
bottom part...
Safety Door Switch
D4NS or others
Enable Grip Switch
A4EG
Safety Key Selector Switch
A22TK
Single-press design ensures a
positive click feel when only one
part of the switch is pressed, to
enable positive confirmation.
The Selector Switch can be used to switch between
normal operating mode (using the Door Switch) and
maintenance mode (using the Enabling Grip Switch).
Selection Based on Application
In addition to the standard models, the lineup also includes models
with an emergency stop switch and models with a momentary
operation switch.
Safety Guard
Switching Unit
G9SX-GS
Note: Refer to page 8 for information on
connecting to the G9SX-GS.
A Holding Key can be used to change modes
rather than a key-type selector switch.
A4EG-C000041
A4EG-BM2B041
Equipped with a
Momentary Operation Switch
A4EG-BE2R041
Wall-mounted with Bracket
Equipped with an
Emergency Stop Switch
Safety Door Switch
D4NS
Normal operating mode
Maintenance mode
1
A4EG

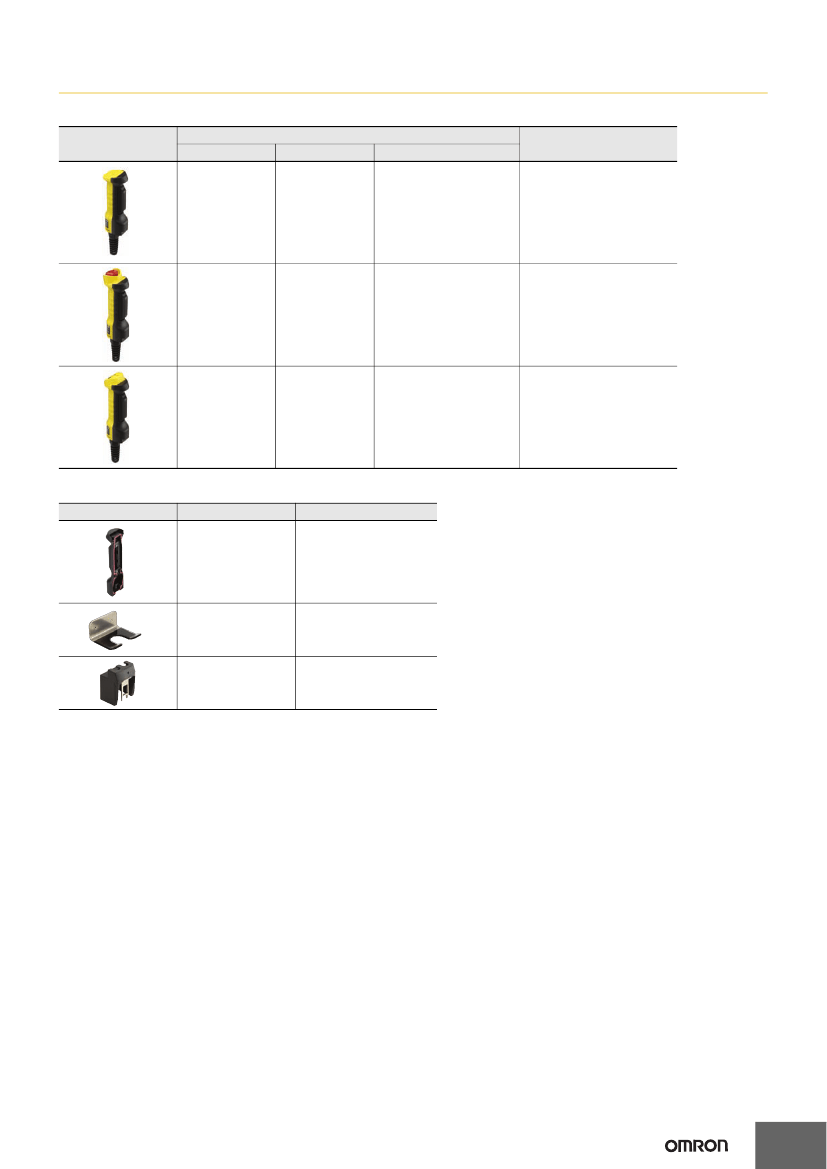

Ordering Information
Enabling Grip Switches
Appearance
Contact form
Enabling switch
Monitor switch
Pushbutton switch
Model
Two contacts
1NC
(grip output)
None
A4EG-C000041
Two contacts
None
Emergency stop switch
(2NC)
A4EG-BE2R041
Two contacts
None
Momentary operation switch
(2NO)
A4EG-BM2B041
Accessories (Order Separately)
Appearance
Item
Model
Rubber Cover
(replacement part)
A4EG-OP1
Mounting Bracket
(for securing the
A4EG)
A4EG-OP2
Holding Key
A4EG-OP3
2
A4EG
Specifications
Standards and EC Directives
Compliance with EC Directives and International Standards
•
Low Voltage Directive
•
GS-ET-22
Certified Standards
Certifying body
TÜV SÜD
UL
*
CQC (CCC)
KOSHA
Standard
EN 60947-5-1
(certified direct opening)
UL 508, CSA C22.2 No.14
GB 14048.5
EN60947-5-1
File No.
Consult your OMRON
representative for details.
E76675
Consult your OMRON
representative for details.
Consult your OMRON
representative for details.
.
*
Certification for CSA C22.2 No. 14 by UL is indicated by the
Certified Standard Ratings (Enabling Switch Section)
TÜV (EN 60947-5-1)
Item
Utilization category
AC-15
0.75 A
240 V
DC-13
0.55 A
125 V
Rated operating current (Ie)
Rated operating voltage (Ue)
Note:
Use a 10-A fuse type
gI
or
gG
that conforms to IEC 60269 as the short-circuit protection device.
The fuse is not built into the Switch.
UL/CSA (UL 508, CSA C22.2 No.14), CCC (GB 14048.5)
•
24 VDC, 0.3 A (inductive load)
•
125 VAC, 1 A (resistive load)
Ratings
Item
Rated ON current
Section
250 V
2.5 A
5A
General rating:
125 VAC, 5 A (resistive load)
250 VAC, 3 A (resistive load)
30 VDC, 3 A (resistive load)
0.1 A
General rating:
125 VAC, 0.1 A (resistive load)
8 VDC, 0.1 A (resistive load)
14 VDC, 0.1 A (resistive load)
30 VDC, 0.1 A (resistive load)
Enabling switch
Emergency stop switch
(A4EG-BE2R041 only)
Pushbutton
(A4EG-BM2B041 only)
---
Rated insulation voltage
Rated load
24 VDC, 0.3 A (inductive load)
UL and cUL rating:
125 VAC, 1 A (resistive load)
125 VAC, 5A
(inductive load, power factor: 0.75 to 0.8) UL and cUL rating:
EN certification rating:
250 VAC, 3 A
125 VAC, 0.1 A (resistive load)
AC-15 0.75 A/240 V
(inductive load, power factor: 0.75 to 0.8)
30 VDC, 0.1 A (resistive load)
DC-13 0.55 A/125 V
30 VDC, 3 A (resistive load)
EN certification rating:
EN certification rating:
AC-12 0.1 A/125 V
AC-12 3 A/250 V
DC-12 0.1 A/30 V
DC-12 3 A/30 V
24 VDC, 4 mA
5 VDC, 1 mA
Minimum applicable load
3
A4EG
Characteristics
Item
Degree of protection
Operating section strength
Cable pull strength
Allowable
operating
frequency
Electrical
Mechanical
Section
Enabling switch
Emergency stop switch
(A4EG-BE2R041 only)
Operating direction: 367 N, 1 min
Rotating direction: 0.49 N·m, 1 min
10 operations/minute max.
(set/reset for one operation)
10 operations/minute max.
(set/reset for one operation)
Pushbutton
(A4EG-BM2B041 only)
IP66 (A4EG-C000041), IP65 (A4EG-BE2R041, A4EG-BM2B041)
Operating direction: 200 N, 1 min
30 N, 1 min
20 operations/minute max.
20 operations/minute max.
60 operations/minute max.
120 operations/minute max.
100,000 operations min. (rated load)
Operating direction: 50 N, 1 min
Electrical durability
100,000 operations min.
100,000 operations min. (rated load) (set/reset for one operation)
(rated load)
OFF-ON-OFF (direct opening):
100,000 operations min.
100,000 operations min.
(set/reset for one operation)
OFF-ON: 1,000,000 operations min.
2,500 VAC, 50/60 Hz, 1 minute
(impulse voltage)
1,000 VAC, 50/60 Hz, 1 minute
Mechanical durability
Between
terminals of the
same polarity
Dielectric
strength
2,000,000 operations min.
1,000 VAC, 50/60 Hz, 1 minute
Between
2,500 VAC, 50/60 Hz, 1 minute
terminals of the
(impulse voltage)
different polarity
Between each
terminal and
non-current
carrying
metallic parts
2,500 VAC, 50/60 Hz, 1 minute
(impulse voltage)
100 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz, 1 minute
2,000 VAC, 50/60 Hz, 1 minute
2,000 VAC, 50/60 Hz, 1 minute
2,000 VAC, 50/60 Hz, 1 minute
Insulation resistance
Vibration
resistance
Shock
resistance
Malfunction
Malfunction
1.5 mm double amplitude, 10 to 55 Hz
150 m/s
2
max.
−10
to 55°C (with no icing or condensation)
35% to 85%
−25
to 65°C (with no icing or condensation)
Class II (double insulation)
3 (EN 60947-5-1)
100 A (EN 60947-5-1)
Ambient operating
temperature
Ambient operating humidity
Ambient storage temperature
Protection against electric
shock
Pollution degree
(operating environment)
Conditional short-circuit
current
Note:
The timing of contact outputs for two or more circuits is not synchronized. Confirm performance before application.
4
A4EG

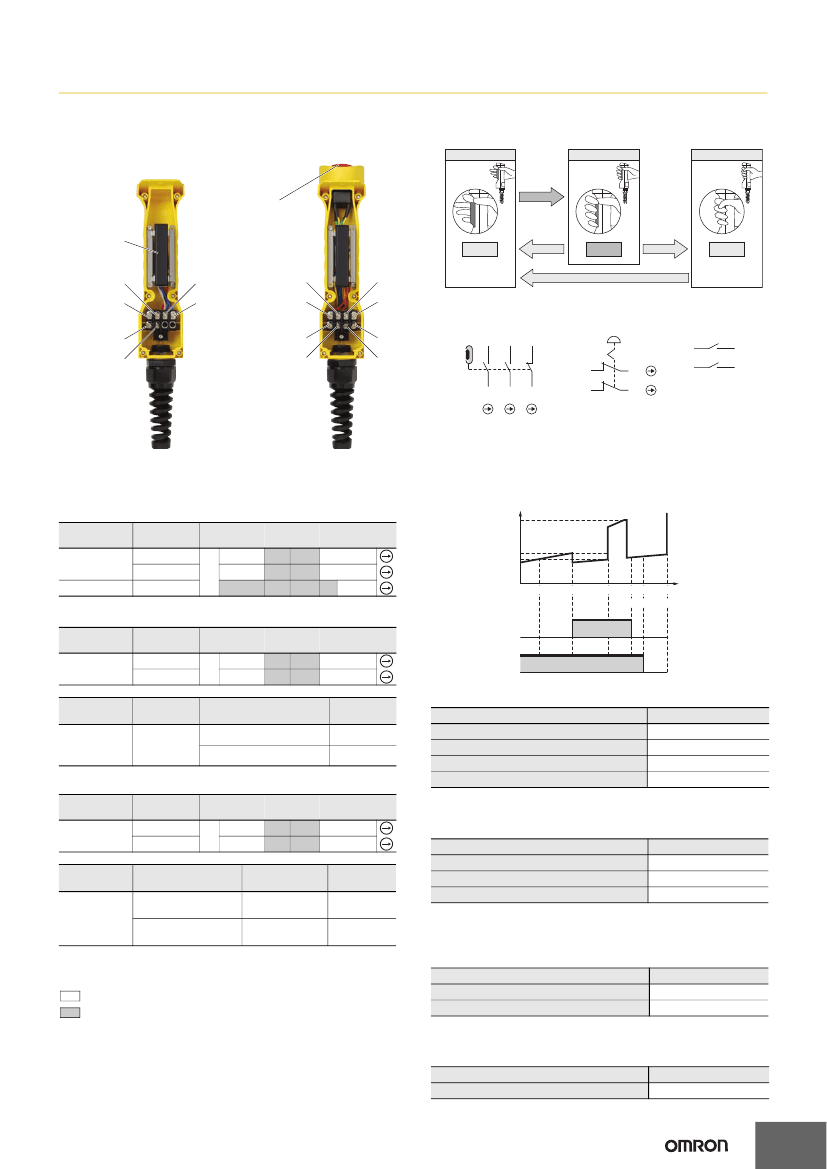

Structure and Nomenclature
Structure
A4EG-C000041
A4EG-BE2R041
A4EG-BM2B041
Three Positions: OFF - ON - OFF
Position 1
Not Gripped
Position 2
Gripped to
Middle
Position
Gripped lightly
Position 3
Gripped past
Middle
Position
Enabling Switch
Section
Emergency Stop
Switch Section/
Pushbutton Switch
Section
OFF
Released
ON
Gripped Farther
OFF
Terminal 2
Terminal 1
Terminal 3
Terminal 4
Terminal 2
Terminal 1
Terminal 3
Terminal 4
Released
Contact Configuration
Enabling Switch
Emergency Stop Switch
(6)
*
(5)
(6)
(8)
Terminal No.
Terminal No.
Pushbutton Switch
Terminal 5
Terminal 5
Terminal 6
Terminal 6
Terminal 8
Terminal 7
Terminal No.
(2)
(4)
(5)
Terminal No.
(6)
(8)
Terminal No.
(7)
Terminal No.
(1)
(3)
(5)
*
(7)
Terminal No.
*
Terminal No. (5), (6): A4EG-C000041 only
Contact Forms
Operating Patterns
A4EG-C000041
Operation
Enable output
Grip output
Terminal No.
1 to 2
3 to 4
5 to 6
Position 1
Operating Characteristics
Chart (Enabling Switch Section)
Operating force
OF2
▼
Position 2
▼
Position 3
▼
OF1
HF
PT1
PT2
TT1 PT3 PT4 TT2
Operating stroke
A4EG-BE2R041
Operation
Enable output
Terminal No.
1 to 2
3 to 4
Terminal No.
5 to 6
7 to 8
Operation
Operation (push)
Reset (turn reset)
Contact
ON
→
OFF
OFF
→
ON
Position 1
▼
Position 2
▼
Position 3
Enable output
(1-2, 3-4)
▼
Grip output
(5-6)
Pushbutton
switch
Emergency
stop switch
output
Operating Stroke (Enabling Switch Section)
Operating characteristics
Enable output (ON)
Max. enable holding position
Enable direct opening position
Max. stroke
Position 1
Specified value
PT2 max.
TT1
PT3 max.
TT2
3.6 mm
Approx. 4.2 mm
6.0 mm
Approx. 6.7 mm
A4EG-BM2B041
Operation
Enable output
Terminal No.
1 to 2
3 to 4
Terminal No.
5 to 6
(pushbutton switch A)
*
7 to 8
(pushbutton switch B)
*
Operation
Push
Push
Contact
OFF
→
ON
OFF
→
ON
▼
Position 2
▼
Position 3
▼
Operating Force (Enabling Switch Section:
Reference Values)
Operating characteristics
Enable operating force
Enable holding force
Grip operating force
OF1 max.
HF
*
OF2 max.
Specified value
14 N
Approx. 8 N
40 N
Pushbutton
switch
Pushbutton
switch output
*
HF: Holding force
*
Refer to
Dimensions
on page 6 for information on the positions of
pushbutton switches A and B.
OPEN
CLOSED
ON: CLOSED
OFF: OPEN
Operating Force (Emergency Stop Switch
Section: Reference Values)
Operating characteristics
Operating force
Reset force
OF max.
RF max.
Specified value
14.7 N
0.1 N·m
Note: 1.
The contact ON/OFF timing is not synchronized. Confirm
performance before application.
2.
Direct opening only during grip.
Operating Force (Pushbutton Switch Section:
Reference Value)
Operating characteristics
Operating force
OF max.
Specified value
4N
5
