ER 11/5
Planar core
■
To IEC 62317-9
■
For transformers featuring high inductance
B65525
and low overall height
■
Delivery mode: sets
Magnetic characteristics
(per set)
l/A
l
e
A
e
V
e
= 1.1 mm
–1
= 14.1 mm
= 12.4 mm
2
= 174 mm
3
Approx. weight
0.85 g/set
Ungapped
Material
N49
N87
N92
N97
T38
A
L
value
nH
800 +30/–20%
1200 +30/–20%
900 +30/–20%
1200 +30/–20%
6400 +40/–30%
e
715
1050
814
1086
5600
Ordering code
B65525J0000R049
B65525J0000R087
B65525J0000R092
B65525J0000R097
B65525J0000Y038
Gapped
Material
A
L
value
nH
160
3%
s
approx.
mm
0.08
e
Ordering code
N87
140
B65525J0160A087
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/13
ER 11/5

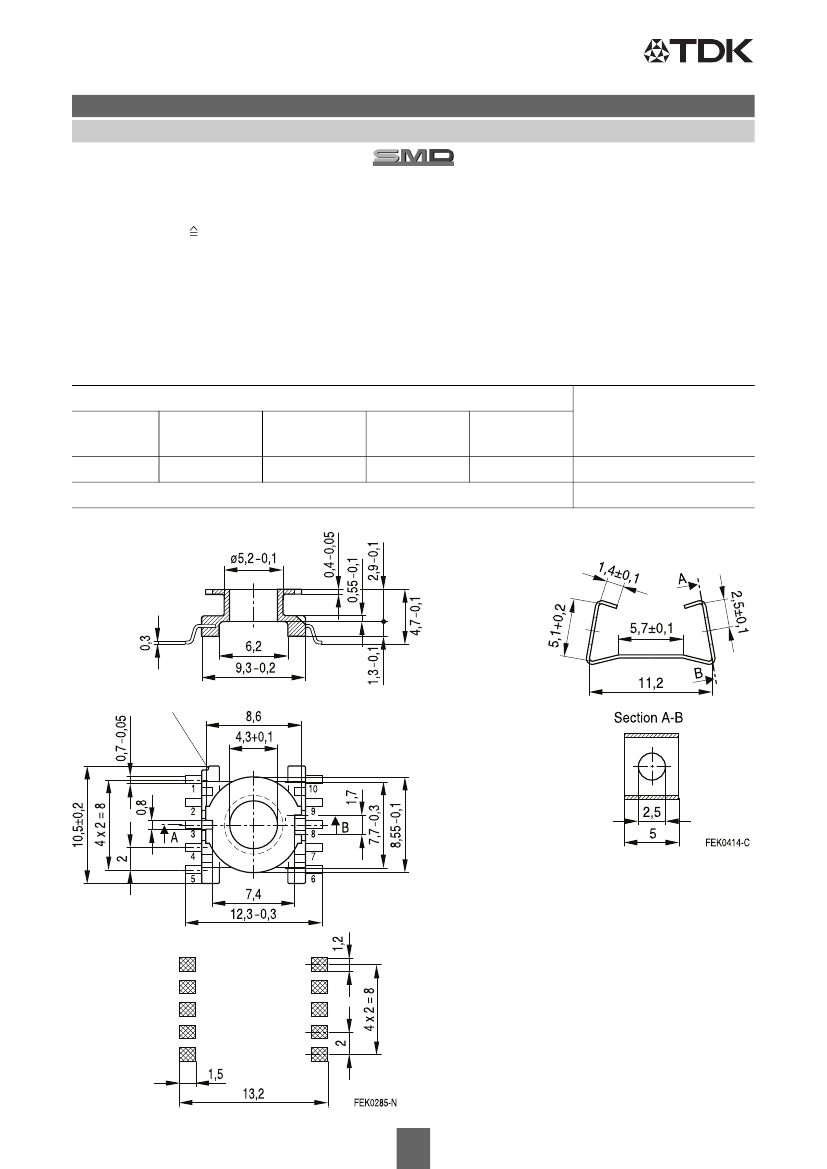

Accessories
SMD coil former with gullwing terminals
GFR liquid crystal polymer (UL 94 V-0, insulation class to IEC 60085:
F max. operating temperature 155 °C), color code black
Zenite 7130
®
E344082 (M)
, TICONA
Solderability: to IEC 60068-2-58, test Td, method 6 (Group 3): 245 °C, 3 s
Resistance to soldering heat: to IEC 60068-2-58, test Td, method 6 (Group 3): 255 °C, 10 s
permissible soldering temperature for wire-wrap connection on coil former: 400 °C, 1 s
Winding:
see Data Book 2013, chapter “Processing notes, 2.1”
Yoke
Coil former
Sections
1
Yoke
Coil former
A
N
mm
2
3.3
l
N
mm
21.6
A
R
value
225
Terminals
10
B65526B1010T001
B65526A2000X000
Yoke
Material: Stainless spring steel (0.15 mm)
Ordering code
Material:
B65526
Marking of pin 1
Marking of pin 1
Recommended
PCB layout
Recommended
PCB layout
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/13
