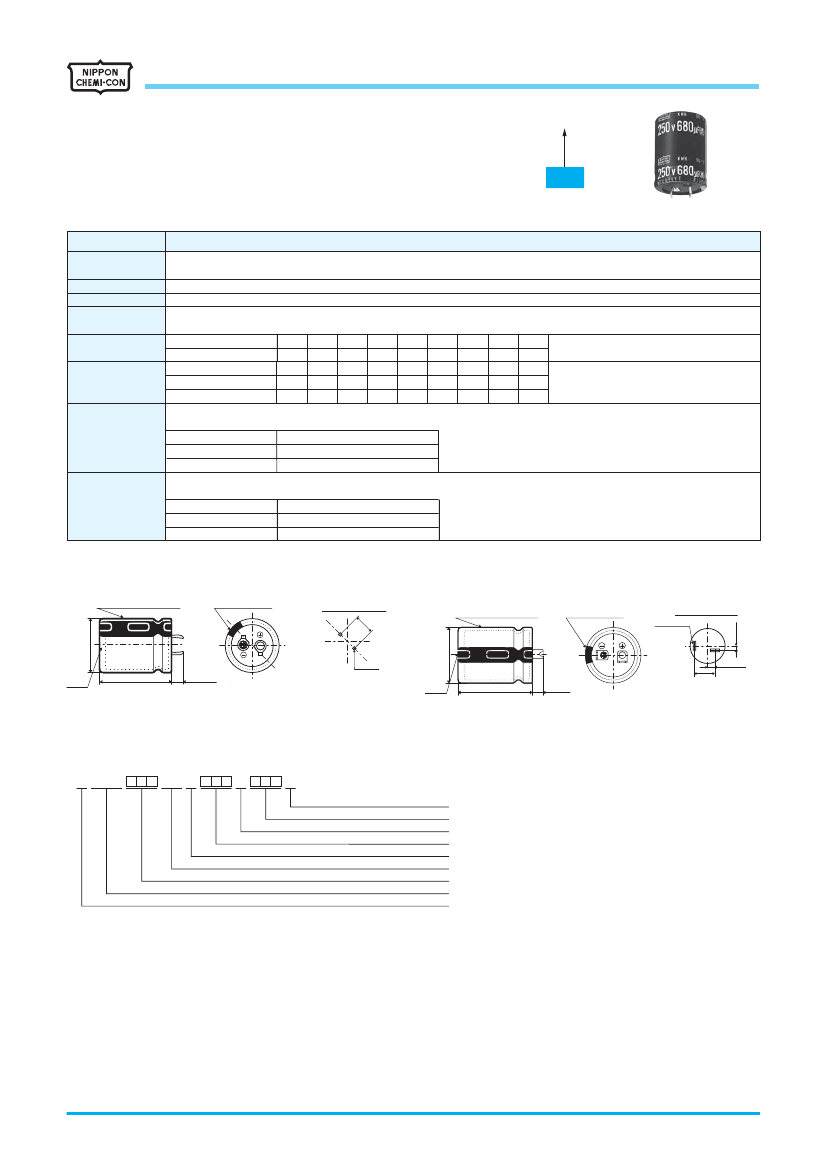

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Standard snap-ins, 105℃
KMH
●
Endurance
KMM
Series
with ripple current : 2,000 hours at 105
℃
●
Non solvent resistant type
●
RoHS Compliant
Downsized
Longer life
KMH
◆
SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tan )
δ
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-40 to +105℃
6.3 to 100V
dc
±20%
(M)
(at 20℃, 120Hz)
I=0.02CV or 3mA, whichever is smaller
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
(at 20℃ after 5 minutes)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V
Rated voltage (V
dc
)
0.60 0.50 0.40 0.30 0.25 0.20 0.15 0.15 0.15
tanδ (Max.)
(at 20℃, 120Hz)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V
Rated voltage (V
dc
)
4
4
4
3
3
2
2
2
2
Z(-25℃)/Z(+20℃)
15
15
15
10
8
6
6
5
5
Z(-45℃)/Z(+20℃)
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 2,000 hours at 105℃
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
Characteristics
Shelf Life
◆
DIMENSIONS [mm]
●
Terminal Code : VS
Sleeve (PET : Brown)
φ
D+1max.
(
φ
22 to
φ
35) : Standard
Negative mark
PC board pin-out
10
●
Terminal
Code : LI (
φ
35)
4.2±0.5
Negative mark
PC board pin-out
2-1.2×6
Sleeve (PET : Brown)
φ
D+1max.
Vent
L±2
*
4.0±0.5
2-φ2
5±0.5
L±2
4.5±1
14.2±1
Vent
*
φ
D=35mm : 3.5
±
0.5mm
The standard design has no plastic disc.
◆
PART NUMBERING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
E KMH
VS N
M
S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 820μF:821, 3,300μF:332)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 6.3V:6R3, 10V:100, 100V:101)
Series code
Category
Please refer to "Product code guide (snap-in type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(1/3)
CAT. No. E1001M
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Standard snap-ins, 105℃
KMH
Ser
es
i
◆
STANDARD RATINGS
WV
(V
dc
)
Cap
(µF)
5,600
5,600
5,600
6,800
6,800
6,800
8,200
8,200
10,000
10,000
12,000
1,200
1,500
1,800
1,800
2,200
2,200
2,700
2,700
2,700
3,300
3,300
3,300
3,300
3,900
3,900
3,900
4,700
4,700
4,700
5,600
5,600
6,800
6,800
8,200
10,000
820
1,000
1,200
1,200
1,500
1,500
1,800
Case size
φ
D×L(mm)
25.4×40
30×35
35×25
25.4×50
30×40
35×30
30×45
35×35
30×50
35×40
35×45
22×25
22×25
22×30
25.4×25
22×35
25.4×30
22×40
25.4×35
30×25
22×50
25.4×40
30×30
35×25
25.4×45
30×35
35×25
25.4×50
30×40
35×30
30×45
35×35
30×50
35×40
35×45
35×50
22×25
22×25
22×30
25.4×25
22×35
25.4×30
22×40
Rated ripple
current
tanδ
(Arms/
105
℃
,120Hz)
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
2.70
2.76
2.70
3.30
3.30
3.25
3.60
3.55
4.04
4.03
4.55
1.19
1.33
1.51
1.52
1.73
1.74
1.97
1.99
1.76
2.29
2.27
2.24
2.06
2.54
2.55
2.24
2.86
2.86
2.79
3.22
3.19
3.65
3.64
3.90
4.40
1.11
1.22
1.38
1.39
1.59
1.61
1.80
Part No.
WV
(V
dc
)
Cap
(µF)
1,800
1,800
2,200
2,200
2,200
2,200
2,700
2,700
2,700
3,300
3,300
3,300
3,900
3,900
4,700
4,700
5,600
6,800
560
820
820
1,000
1,000
1,200
1,200
1,200
1,500
1,500
1,500
1,500
1,800
1,800
1,800
2,200
2,200
2,200
2,700
2,700
3,300
3,300
3,900
4,700
Case size
φ
D×L(mm)
25.4×30
30×25
22×45
25.4×35
30×30
35×25
25.4×45
30×35
35×25
25.4×50
30×40
35×30
30×45
35×35
30×50
35×40
35×45
35×50
22×25
22×30
25.4×25
22×35
25.4×30
22×40
25.4×35
30×25
22×45
25.4×40
30×30
35×25
25.4×45
30×35
35×25
25.4×50
30×40
35×30
30×45
35×35
30×50
35×40
35×45
35×50
Rated ripple
current
tanδ
(Arms/
105
℃
,120Hz)
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
1.76
1.65
2.04
2.01
2.05
2.07
2.36
2.35
2.29
2.68
2.68
2.45
3.00
2.98
3.39
3.38
3.80
3.90
1.05
1.32
1.33
1.50
1.51
1.69
1.71
1.68
1.94
1.98
1.95
1.98
2.23
2.50
2.17
2.53
2.70
2.50
2.88
2.86
3.28
3.27
3.67
3.80
Part No.
50
63
80
EKMH500VSN562MQ40S
EKMH500VSN562MR35S
EKMH500VSN562MA25S
EKMH500VSN682MQ50S
EKMH500VSN682MR40S
EKMH500VSN682MA30S
EKMH500VSN822MR45S
EKMH500VSN822MA35S
EKMH500VSN103MR50S
EKMH500VSN103MA40S
EKMH500VSN123MA45S
EKMH630VSN122MP25S
EKMH630VSN152MP25S
EKMH630VSN182MP30S
EKMH630VSN182MQ25S
EKMH630VSN222MP35S
EKMH630VSN222MQ30S
EKMH630VSN272MP40S
EKMH630VSN272MQ35S
EKMH630VSN272MR25S
EKMH630VSN332MP50S
EKMH630VSN332MQ40S
EKMH630VSN332MR30S
EKMH630VSN332MA25S
EKMH630VSN392MQ45S
EKMH630VSN392MR35S
EKMH630VSN392MA25S
EKMH630VSN472MQ50S
EKMH630VSN472MR40S
EKMH630VSN472MA30S
EKMH630VSN562MR45S
EKMH630VSN562MA35S
EKMH630VSN682MR50S
EKMH630VSN682MA40S
EKMH630VSN822MA45S
EKMH630VSN103MA50S
EKMH800VSN821MP25S
EKMH800VSN102MP25S
EKMH800VSN122MP30S
EKMH800VSN122MQ25S
EKMH800VSN152MP35S
EKMH800VSN152MQ30S
EKMH800VSN182MP40S
80
100
EKMH800VSN182MQ30S
EKMH800VSN182MR25S
EKMH800VSN222MP45S
EKMH800VSN222MQ35S
EKMH800VSN222MR30S
EKMH800VSN222MA25S
EKMH800VSN272MQ45S
EKMH800VSN272MR35S
EKMH800VSN272MA25S
EKMH800VSN332MQ50S
EKMH800VSN332MR40S
EKMH800VSN332MA30S
EKMH800VSN392MR45S
EKMH800VSN392MA35S
EKMH800VSN472MR50S
EKMH800VSN472MA40S
EKMH800VSN562MA45S
EKMH800VSN682MA50S
EKMH101VSN561MP25S
EKMH101VSN821MP30S
EKMH101VSN821MQ25S
EKMH101VSN102MP35S
EKMH101VSN102MQ30S
EKMH101VSN122MP40S
EKMH101VSN122MQ35S
EKMH101VSN122MR25S
EKMH101VSN152MP45S
EKMH101VSN152MQ40S
EKMH101VSN152MR30S
EKMH101VSN152MA25S
EKMH101VSN182MQ45S
EKMH101VSN182MR35S
EKMH101VSN182MA25S
EKMH101VSN222MQ50S
EKMH101VSN222MR40S
EKMH101VSN222MA30S
EKMH101VSN272MR45S
EKMH101VSN272MA35S
EKMH101VSN332MR50S
EKMH101VSN332MA40S
EKMH101VSN392MA45S
EKMH101VSN472MA50S
*For the rated voltage≧160V
dc
, please use KMR and KMQ series
◆
RATED RIPPLE CURRENT MULTIPLIERS
●
Frequency
Multipliers
50
0.95
120
1.00
1.00
300
1.03
1.07
1k
1.05
1.13
10k
1.08
1.19
50k
1.08
1.20
Frequency (Hz)
6.3 to 50V
dc
63 to 100V
dc
0.92
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
(3/3)
