SMT inductors – SIMID series
SIMID 2220-T
Series/Type:
Ordering code:
Date:
Version:
B82442T
2013-06-04
2
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
(header 1 + top left bar):
Identification/Classification 2
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
Series/Type: (bottom right header bar)
Preliminary data (optional):
(if necessary)
Department:
Date:
Version:
SZ MAG PD IN/T
2013-06-04
2
SMT inductors – SIMID series
SIMID 2220-T
B82442T
©
EPCOS AG 2012. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.

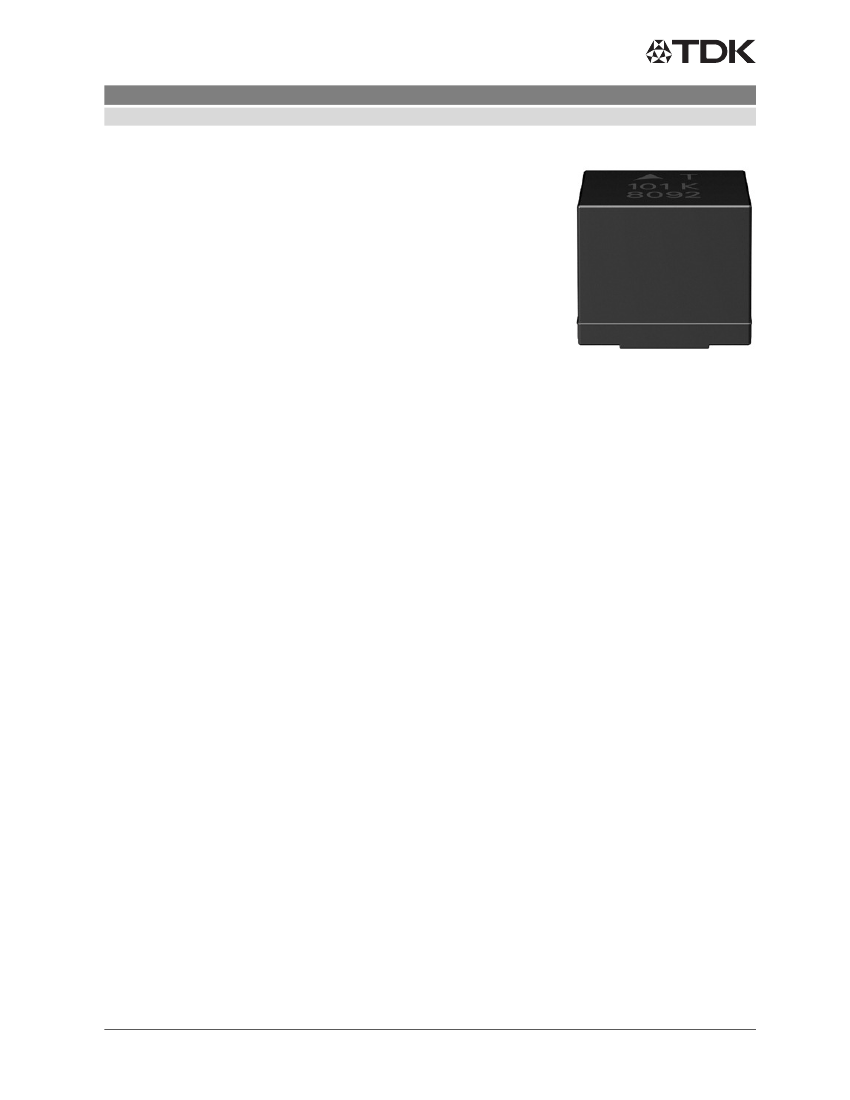

SMT inductors – SIMID series
SIMID 2220-T
B82442T
Size 2220 (EIA) or 5650 (IEC)
Rated inductance 1 µH to 10000 µH
Rated current 46 mA to 3510 mA
Construction
Ferrite drum core
Laser-welded winding
Flame-retardant molding
Features
Temperature range up to 150°
C
Very high current handling capability
High L values
Qualified to AEC-Q200
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020C
RoHS-compatible
Halogen-free
Applications
Filtering of supply voltages, coupling, decoupling
DC/DC converters/switch-mode power supplies
Automotive electronics
Telecommunications
Consumer electronics
Industrial electronics
Terminals
Base material CuSn6
Layer composition Ni, Sn (lead-free)
Electro-plated
Marking
Marking on component:
Manufacturer, letter “T”, L value (in µH),
tolerance of L value (coded), date of manufacture (YWWD)
Minimum data on reel:
Manufacturer, ordering code, L value, quantity, date of packing
Delivery mode and packing unit
12-mm blister tape, wound on 330-mm
∅
reel
Packing unit: 1500 pcs./reel
SZ MAG PD IN/T
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 9
2013-06-04
SMT inductors – SIMID series
SIMID 2220-T
B82442T

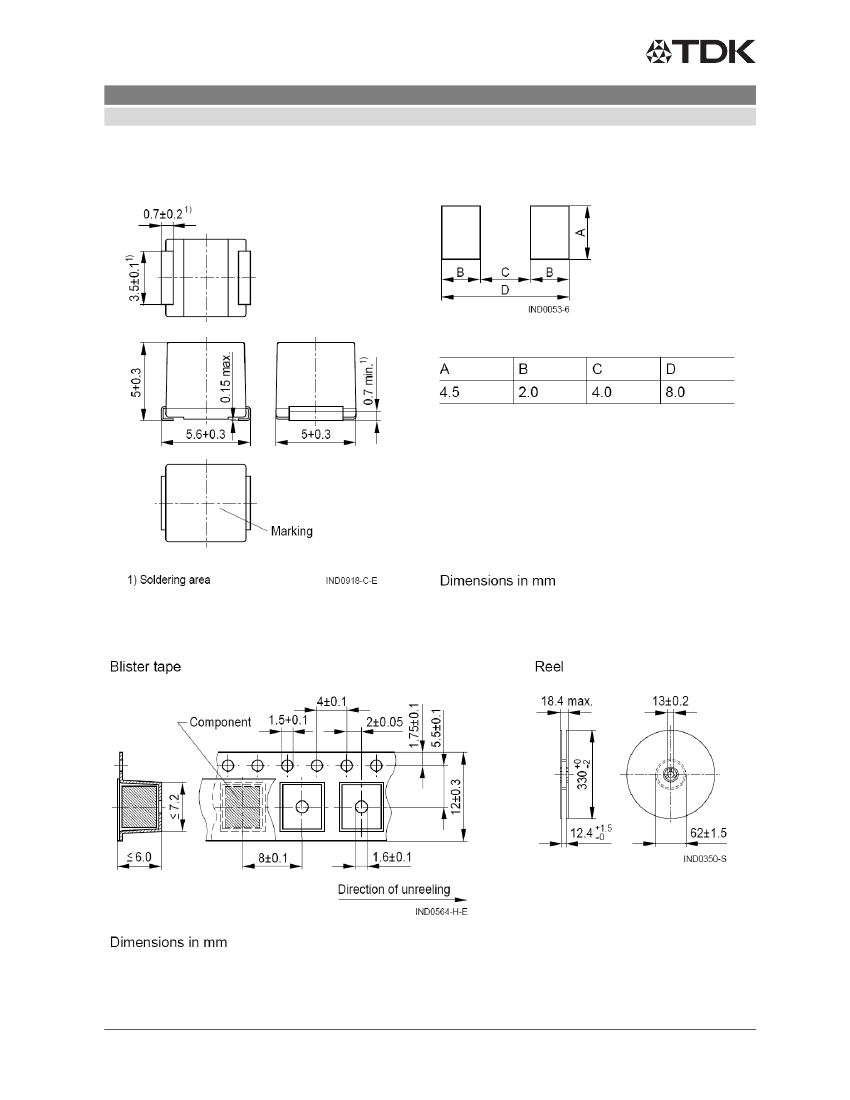

Dimensional drawing and layout recommendation
Taping and packing
SZ MAG PD IN/T
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 9
2013-06-04
SMT inductors – SIMID series
SIMID 2220-T
B82442T
Technical data and measuring conditions
Rated inductance L
R
Q factor Q
min
Rated temperature T
R
Rated current I
R
Saturation current I
sat
Self-resonance frequency f
res,min
DC resistance R
max
Solderability (lead-free)
Measured with impedance analyzer Agilent 4294A
at frequency f
L
, 0.1 V, 20 °
C
Measured with impedance analyzer Agilent 4294A
at frequency f
Q
, 20 °
C
85 °
C
Maximum permissible DC with temperature increase
of
≤
65 K at rated temperature
Maximum permissible DC with inductance decrease
L/L
0
≤
10%, 20 °
C
Measured with network analyzer Agilent 8753D, 20 °
C
Measured at 20 °
C
Sn95.5Ag3.8Cu0.7: (245 ±5) ° (5 ±0.3) s
C,
Wetting of soldering area
≥
90%
(based on IEC 60068-2-58)
260 ° 40 s (as referenced in JEDEC J-STD 020C)
C,
55/150/56 (to IEC 60068-1)
Mounted: –55 ° … +150 °
C
C
Packaged: –25 ° … +40 °
≤
75% RH
C
C,
Approx. 0.4 g
Resistance to soldering heat
Climatic category
Storage conditions
Weight
SZ MAG PD IN/T
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 9
2013-06-04
SMT inductors – SIMID series
SIMID 2220-T
B82442T
Characteristics and ordering codes
L
R
µH
Tolerance
Q
min
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
20
20
20
20
20
20
f
L
;f
Q
MHz
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
I
R
mA
3510
3090
3020
2770
2710
2530
2460
2170
1950
1850
1680
1510
1420
1380
1260
1090
1040
880
840
720
700
600
570
540
510
440
410
350
330
290
I
sat
mA
7330
6030
5480
4890
4820
3980
4010
3310
3450
2780
2770
2330
2280
2160
1870
1780
1590
1400
1380
1190
1120
1010
900
830
760
670
610
550
500
450
R
max
Ω
0.025
0.028
0.033
0.035
0.038
0.042
0.046
0.057
0.073
0.078
0.106
0.118
0.132
0.141
0.190
0.210
0.238
0.307
0.360
0.456
0.519
0.679
0.781
0.832
0.99
1.29
1.50
1.96
2.21
2.95
f
res, min
MHz
111
75
60
55
46
38
36
33
30
28
23
21
19
19
16
14
13
11
11
9.0
8.0
7.5
7.0
6.6
6.1
5.3
4.6
4.2
3.9
3.5
Ordering code
1.0
±
10% = K
^
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
B82442T1102K050
B82442T1122K050
B82442T1152K050
B82442T1182K050
B82442T1222K050
B82442T1272K050
B82442T1332K050
B82442T1392K050
B82442T1472K050
B82442T1562K050
B82442T1682K050
B82442T1822K050
B82442T1103K050
B82442T1123K050
B82442T1153K050
B82442T1183K050
B82442T1223K050
B82442T1273K050
B82442T1333K050
B82442T1393K050
B82442T1473K050
B82442T1563K050
B82442T1683K050
B82442T1823K050
B82442T1104K050
B82442T1124K050
B82442T1154K050
B82442T1184K050
B82442T1224K050
B82442T1274K050
