system to be interfaced with, and the following
instructions.
•
NOTICE: For indoor use only.
CAUTION: USE COPPER CONDUCTOR
ONLY.
Confirm device ratings are suitable for
application prior to installation. Use of device in
applications beyond its specified ratings or in
applications other than its intended use may
cause an unsafe condition and will void
manufacturer’s warranty.
NOTICE: Do not install if any damage to
product is noticed.
LVS Series Low Voltage Wall Switches
Installation Instructions
Hubbell Control Solutions
9601 Dessau Road
•
Building One
•
Suite 100
Austin, TX 78754
Toll Free: 888-698-3242
•
Fax: 512-450-1215
www.hubbell-automation.com
DESCRIPTION
The LVS Series of Low Voltage Wall Switches are
designed to provide a user interface and control of
systems operating on Class 2, low voltage circuitry.
With a configuration that fits standard, single gang
wall boxes and an architecturally pleasing
appearance, these devices provide a solution for
applications where low voltage interface capabilities
are required.
SPECIFICATIONS
•
Electrical Ratings:
- Each switch: 100mA @ 30VDC Max
- Each pilot LED: 18 – 30VDC, internal
2.2kohm,
½
Watt resistor
•
1, 2, 3 and 4 button versions available with or
without pilot LEDs
•
Available in either latching (sustained) or
momentary versions
•
Accepts standard decorator style wall plate (Not
Included)
•
Available in White or Ivory
•
Fits standard single gang wall box
•
Two-year warranty
PRECAUTIONS
•
CAUTION: FOR USE WITH CLASS 2,
LOW VOLTAGE SYSTEMS ONLY. DO
NOT USE IN HIGH VOLTAGE
APPLICATIONS.
•
Read and understand all instructions before
beginning installation.
NOTICE: For installation by a licensed
electrician in accordance with National and/or
local Electrical Codes, the instructions of the
•
•
•
INSTALLATION
1. Prepare the installation site, as necessary, to
install the LVS Wall Switch.
2. Route 18 AWG, Class 2 cable with a quantity of
conductors sufficient for the version of LVS Wall
Switch being used from the wall switch location
to the system control device. Maximum lead
length must not exceed 750 feet.
Note: Low voltage wiring
must be
isolated from
line voltage wiring. Consult National and Local
Electrical Codes for conduit requirements.
3. Wire the LVS Wall Switch to the control device
according to the instructions of the device and the
appropriate Wiring Diagram below.
Note: Wiring Diagrams can also be found at
www.hubbell-automation.com
.
4. Install the LVS Wall Switch into the wall box
using the mounting screws provided. For LVS
Wall Switches with multiple buttons, note proper
“up” orientation as shown on the product label.
Install decorator style wall plate (not included).
5. Perform system setup and/or programming
activities as applicable in accordance with the
instructions of the system control device.
6. Verify switch functionality by pressing the LVS
Wall Switch button(s) and confirm proper system
response.
•

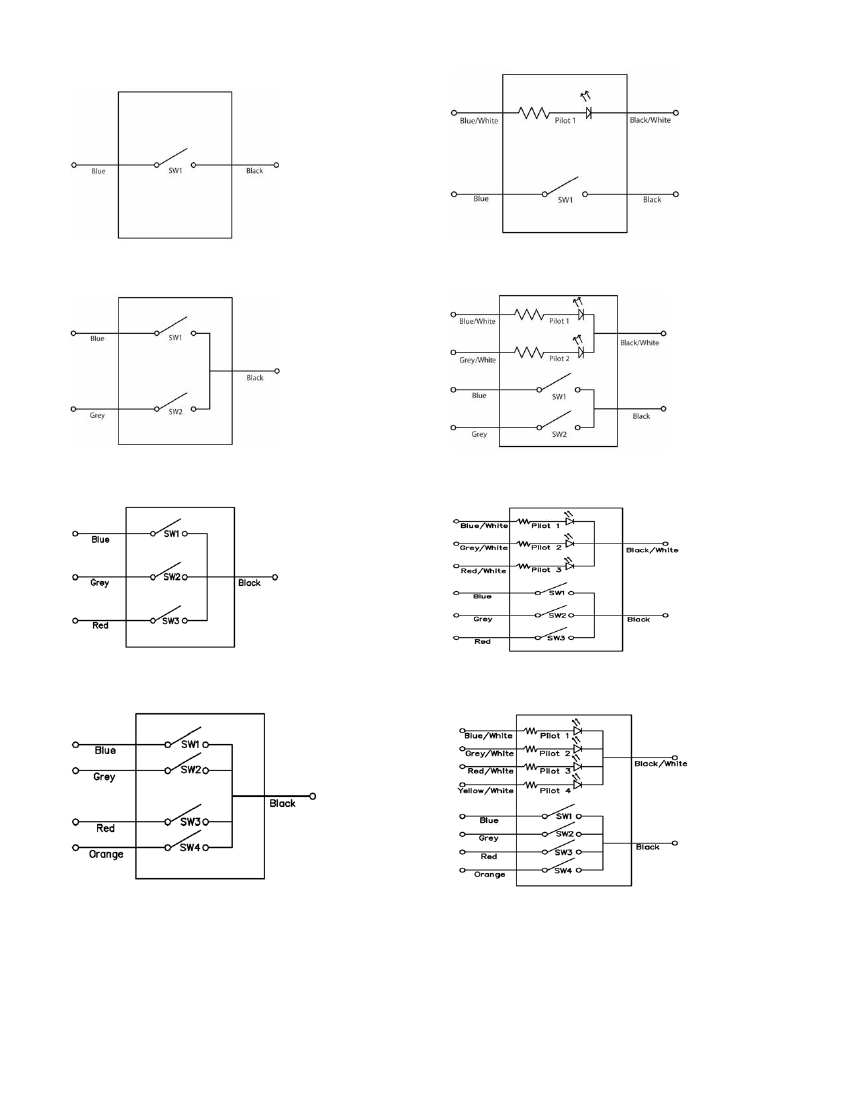

WIRING DIAGRAMS
Wiring Diagram A
– LVS 1-Button Latching or
Momentary Switch, No Pilot
Wiring Diagram B
– LVS 1-Button Latching or
Momentary Switch, with Pilot LED*
Wiring Diagram C
– LVS 2-Button Latching or
Momentary Switch, No Pilot
Wiring Diagram D
– LVS 2-Button Latching or
Momentary Switch, with Pilot LEDs*
Wiring Diagram E
– LVS 3-Button Latching or
Momentary Switch, No Pilot
Wiring Diagram F
– LVS 3-Button Latching or
Momentary Switch, with Pilot LEDs*
Wiring Diagram G
– LVS 4-Button Latching or
Momentary Switch, No Pilot
Wiring Diagram H
– LVS 4-Button Latching or
Momentary Switch, with Pilot LEDs*
*Note Pilot Polarity Marks
