Data sheet
PAC
PAC-S400-RV36-V0-1M
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

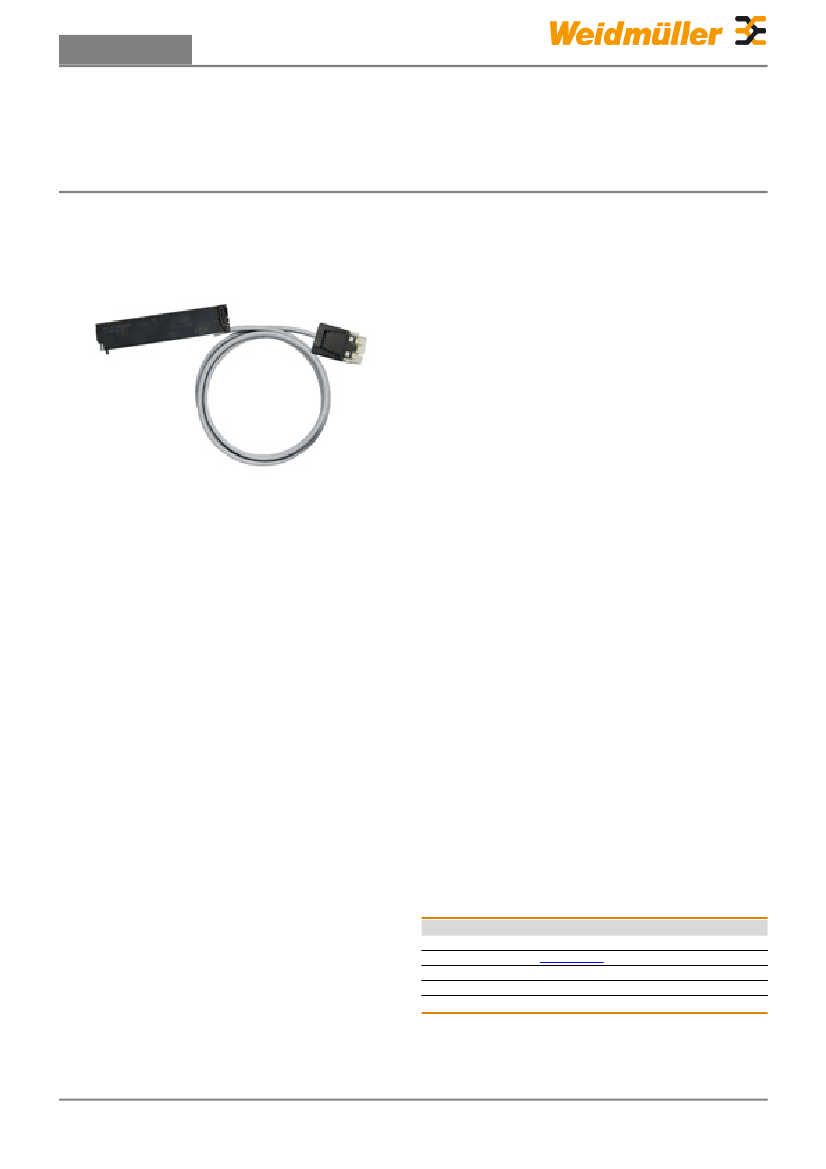

The pre-assembled PAC cables establish an electrical
and logical connection between the PLC and the
PLC interfaces. These cables consist of the following
components:
• Manufacturer’s PLC connector.
• Multi-pole LIYY or LY YCY cable (shielded) with a cross-
section of 0.14 mm² or 0.25 mm².
• Flat cable connector, SUB-D or RSV, for connection to
the interface.
The cables are tested automatically for their continuity
and insulation to guarantee the functionality for which
they have been designed.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
PAC-S400-RV36-V0-1M
7789270010
Pre-assembled cable, PAC, Cable LiYY, 0.25 mm²
4032248916320
1 pc(s).
Creation date December 20, 2013 9:33:07 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
PAC
PAC-S400-RV36-V0-1M
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
344.53 g
Dimensions and weights
Net weight
Temperatures
Operating temperature
-10...+50°C
Storage temperature
-10...+60 °C
General Data
Connector PLC side
Number of poles, min.
Cable
Material
SIEMENS S7400
6ES7492-1CL00-0AA0
48P
36-pole
Cable LiYY
PVC
Interface connector
Outer diameter
Cable length
Wire cross-section
WEIDMUELLER RSV 36P
MALE
11.2 ± 1 mm
1m
0.25 mm²
Electrical Data
Rated voltage (text)
Total current, max.
High voltage test
≤ 250 Vdc ≤ 250 Vac
3A
1 KV/1s
Permissible current strength per path,
max.
Resistance
1A
≤ 80 mΩ/m
Classifications
ETIM 3.0
eClass 7.1
EC000237
27-24-92-05
eClass 6.2
27-06-03-90
Approvals
Approvals
Creation date December 20, 2013 9:33:07 PM CET
Catalogue status / We reserve the right to make technical changes.
2
