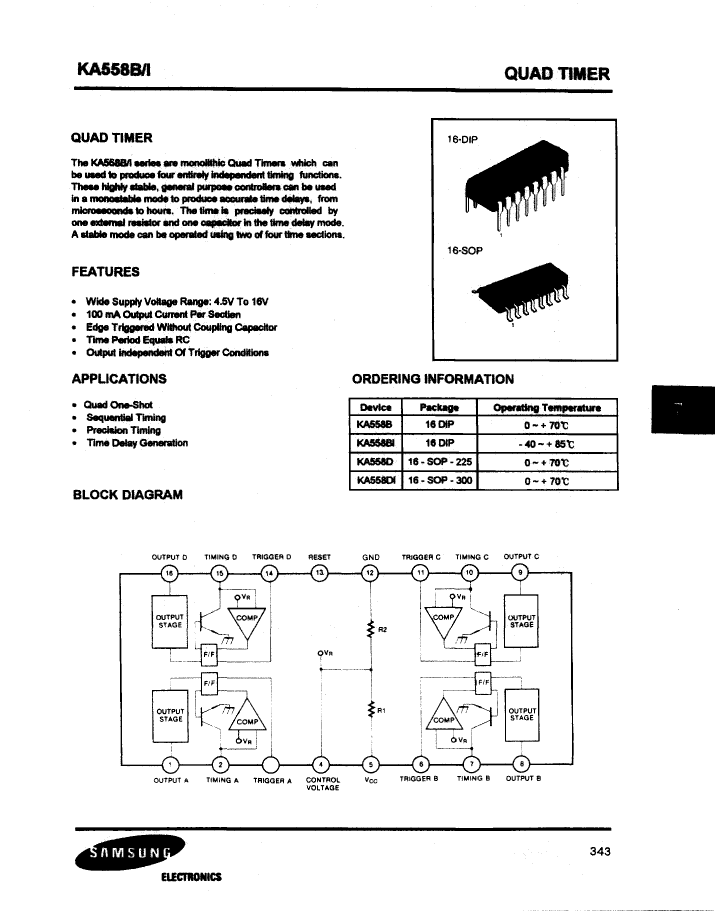

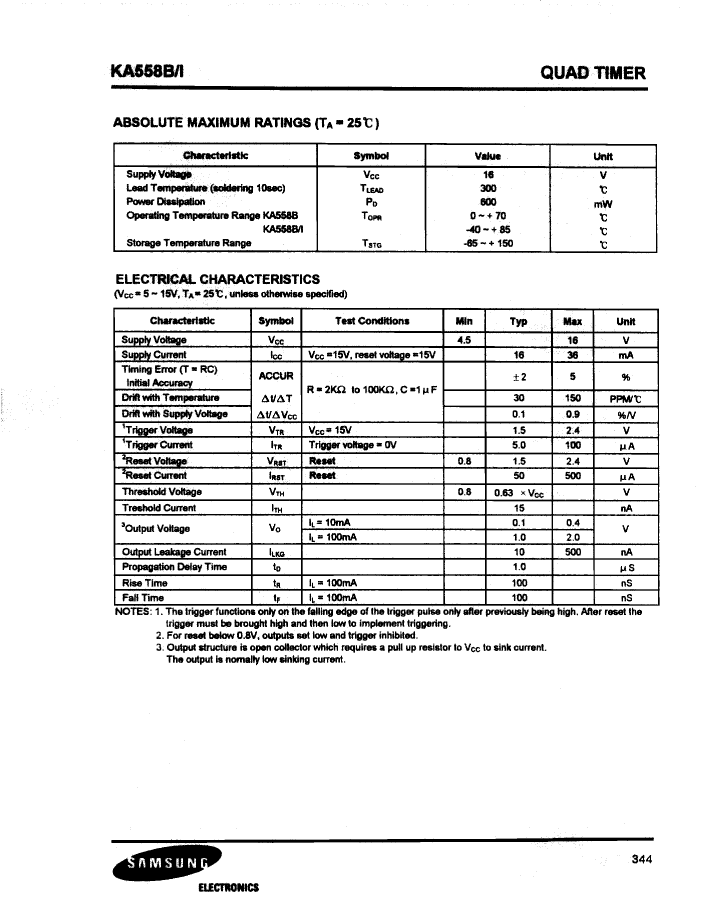

4 Func, BIPolar, PDIP16, 0.300 INCH, DIP-16
| Parameter Name | Attribute value |
| Maker | SAMSUNG |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | PULSE |
| JESD-30 code | R-PDIP-T16 |
| length | 19.4 mm |
| Number of functions | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5/15 V |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 16 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| KA558B | KA558BI | KA558D | KA558DI | |
|---|---|---|---|---|
| Description | 4 Func, BIPolar, PDIP16, 0.300 INCH, DIP-16 | 4 Func, BIPolar, PDIP16, 0.300 INCH, DIP-16 | 4 Func, BIPolar, PDSO16, 0.225 INCH, SOP-16 | 4 Func, BIPolar, PDSO16, 0.300 INCH, SOP-16 |
| Parts packaging code | DIP | DIP | SOIC | SOIC |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | SOP, SOP16,.25 | SOP, SOP16,.3 |
| Contacts | 16 | 16 | 16 | 16 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | PULSE | PULSE | PULSE | PULSE |
| JESD-30 code | R-PDIP-T16 | R-PDIP-T16 | R-PDSO-G16 | R-PDSO-G16 |
| Number of functions | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 85 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | SOP | SOP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | SOP16,.25 | SOP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| power supply | 5/15 V | 5/15 V | 5/15 V | 5/15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 5.08 mm | 1.95 mm | 2.2 mm |
| Maximum supply voltage (Vsup) | 16 V | 16 V | 16 V | 16 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 7.62 mm | 7.62 mm | 3.95 mm | 5.3 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
| length | 19.4 mm | 19.4 mm | - | 10.4 mm |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible |
| JESD-609 code | - | e0 | e0 | e0 |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
