B65701WR87 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> B65701WR87

B65701WR87: Descriptionferrite core; CategoryPassive components; File Size495KB，11 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B65701WR87 Overview

ferrite core

B65701WR87 Parametric

Parameter Name	Attribute value
Datasheets
B65701,02,05, B65679
Standard Package	160
Category	Inductors, Coils, Chokes
Family	Inductor Ferrite Cores
Associated Produc	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL
Other Names	B65701W R 87B65701W0000R087

Preview

Download Datasheet

View All

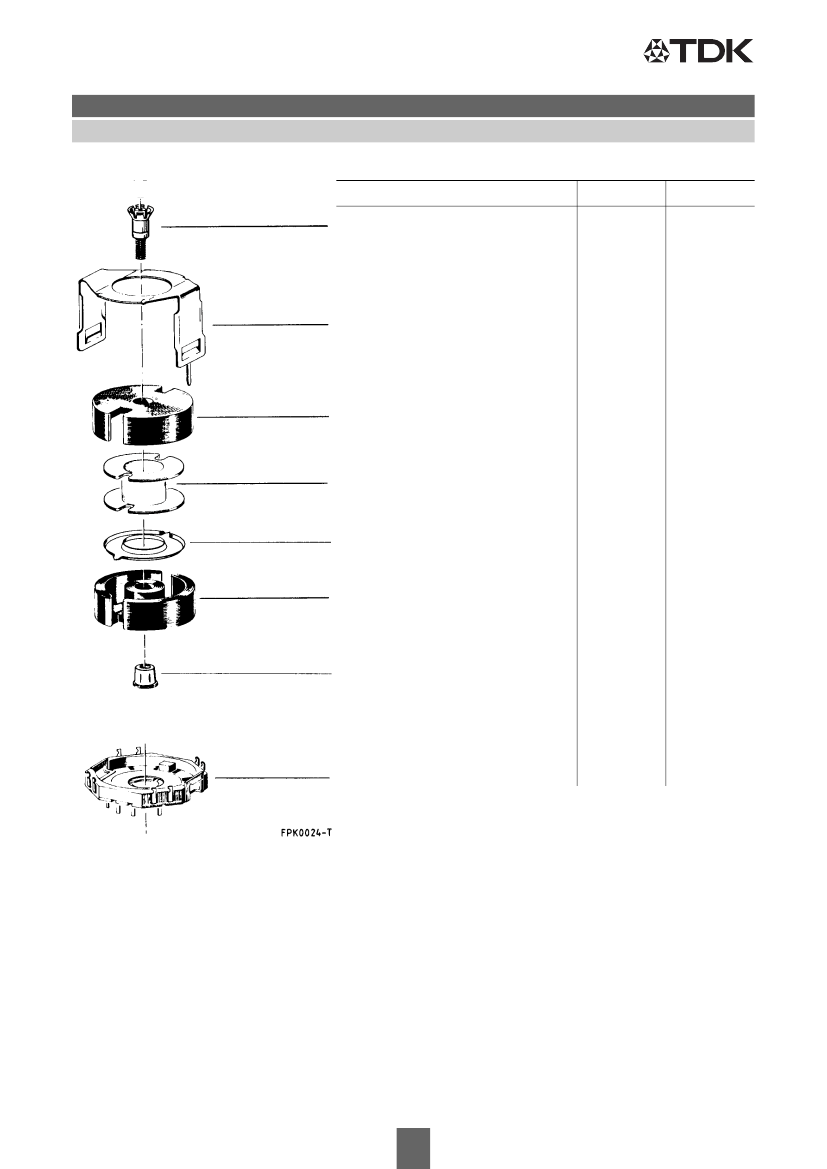

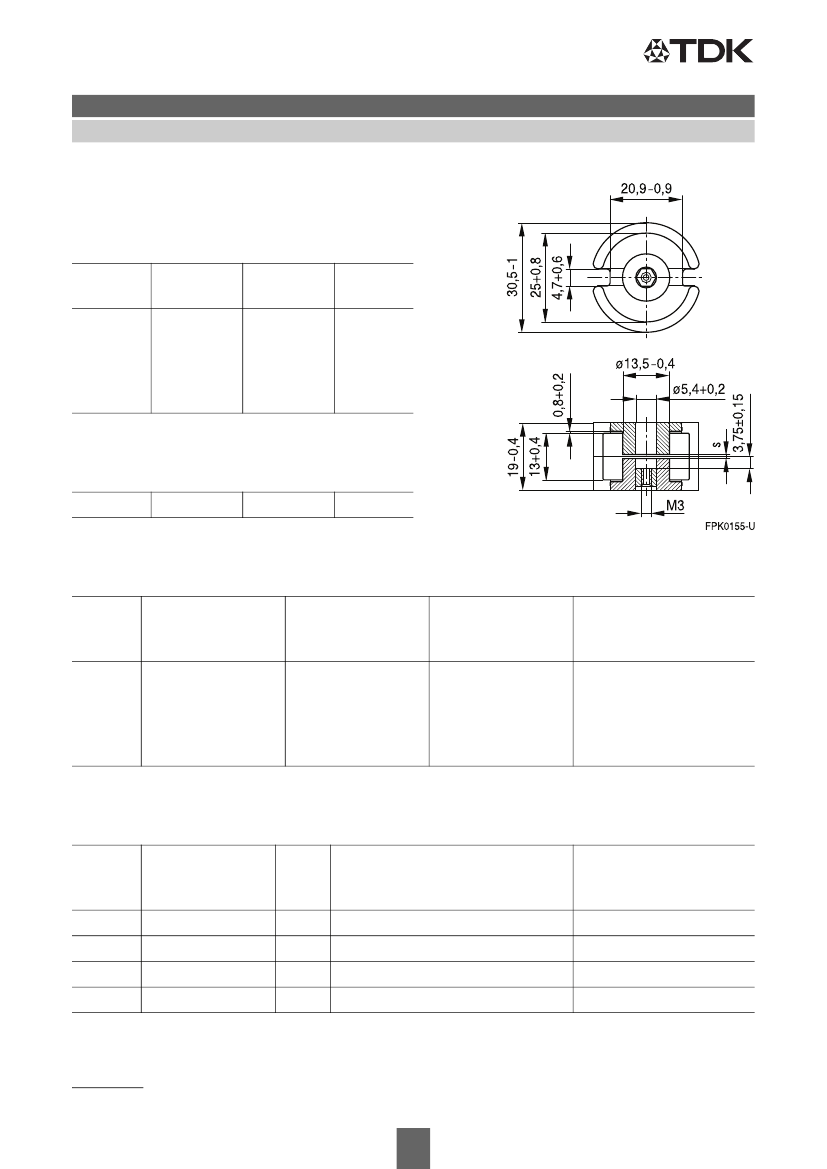

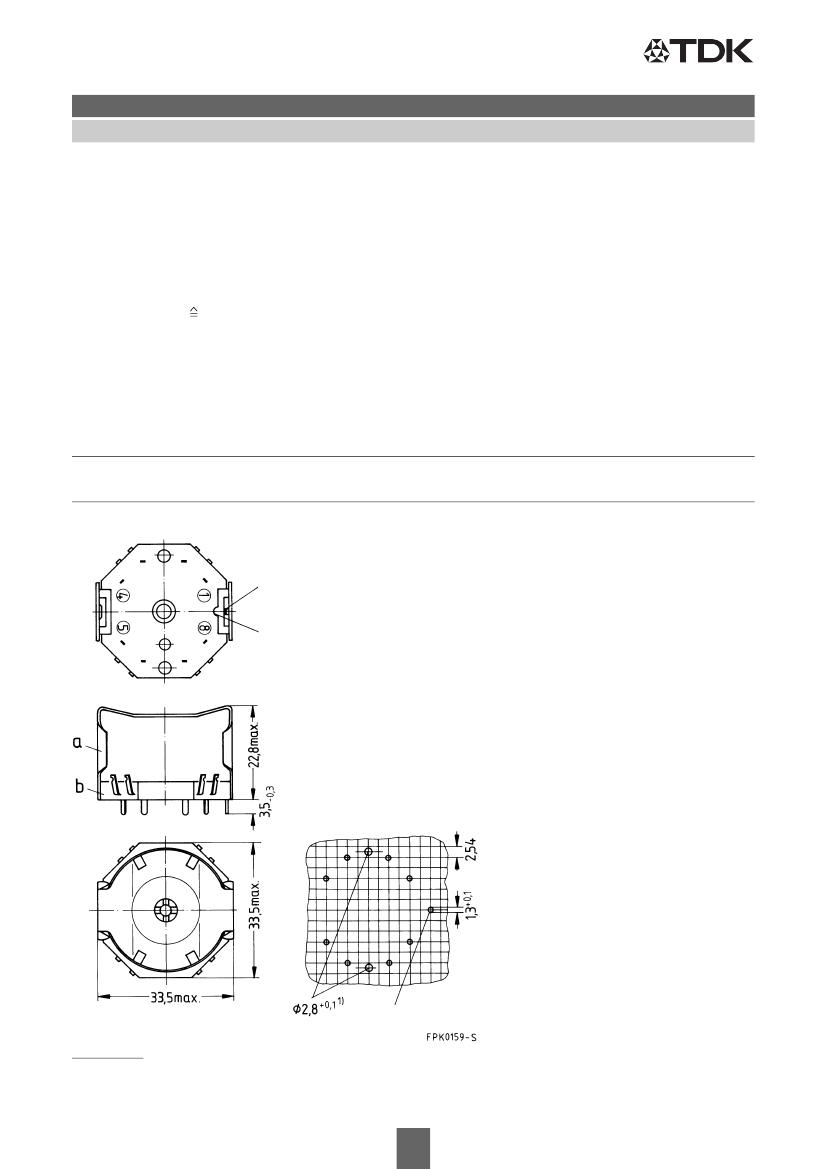

Ferrites and accessories

P 30 × 19

Core and accessories

Series/Type:

Date:

B65701, B65702, B65705, B65679

June 2013

Data Sheet



EPCOS AG 2013. Reproduction, publication and dissemination of this data sheet and the

information contained therein without EPCOS’ prior express consent is prohibited.

B65701WR87 Related Products

	B65701WR87	B64290L44X27	B64290L45X27	B65705B3X	B65702BT1	B65701WR30	B65701D2000K48	B65701T400A48
Description	ferrite core	ferrite core	ferrite core	ferrite core yoke	ferrite core coil former	ferrite core	ferrite core	ferrite core
Standard Package	160	1,500	2,000	160	160	160	160	160
Category	Inductors, Coils, Chokes	Inductors, Coils, Chokes	Inductors, Coils, Chokes	Inductors, Coils, Chokes	Inductors, Coils, Chokes	Inductors, Coils, Chokes	Inductors, Coils, Chokes	Inductors, Coils, Chokes
Family	Inductor Ferrite Cores	Inductor Ferrite Cores	Inductor Ferrite Cores	Inductor Ferrite Cores	Inductor Ferrite Cores	Inductor Ferrite Cores	Inductor Ferrite Cores	Inductor Ferrite Cores
Associated Produc	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL	600238-30-ND - MW35-C HY 38AWG 30KG/66.1LBS600237-30-ND - MW35-C HY 37AWG 30KG/66.1LBS600234-30-ND - MW35-C HY 34AWG 30KG/66.1LBS600232-30-ND - MW35-C HY 32AWG 30KG/66.1LBS600230-30-ND - MW35-C HY 30AWG 30KG/66.1LBS600228-30-ND - MW35-C HY 28AWG 30KG/66.1LBS600226-30-ND - MW35-C HY 26AWG 30KG/66.1LBS600224-30-ND - MW35-C HY 24AWG 30KG/66.1LBS600222-30-ND - MW35-C HY 22AWG 30KG/66.1LBS600220-30-ND - MW35-C HY 20AWG 30KG/66.1LBS600218-30-ND - MW35-C HY 18AWG 30KG/66.1LBS600216-30-ND - MW35-C HY 16AWG 30KG/66.1LBS600214-30-ND - MW35-C HY 14AWG 30KG/66.1LBS600212-30-ND - MW35-C HY 12AWG 30KG/66.1LBS1175-1693-ND - MW35-C HY 34AWG 1KG/2.2LBS SPOOL1175-1692-ND - MW35-C HY 32AWG 1KG/2.2LBS SPOOL1175-1691-ND - MW35-C HY 30AWG 1KG/2.2LBS SPOOL1175-1690-ND - MW35-C HY 28AWG 1KG/2.2LBS SPOOL1175-1689-ND - MW35-C HY 26AWG 1KG/2.2LBS SPOOL1175-1688-ND - MW35-C HY 24AWG 1KG/2.2LBS SPOOL1175-1687-ND - MW35-C HY 22AWG 1KG/2.2LBS SPOOL1175-1686-ND - MW35-C HY 20AWG 1KG/2.2LBS SPOOL1175-1685-ND - MW35-C HY 18AWG 1KG/2.2LBS SPOOL1175-1684-ND - MW35-C HY 16AWG 1KG/2.2LBS SPOOL1175-1683-ND - MW35-C HY 14AWG 1KG/2.2LBS SPOOL
Other Names	B65701W R 87B65701W0000R087	495-5070B64290L 44X 27B64290L0044X027B64290L44X27-ND	495-5072B64290L 45X 27B64290L0045X027B64290L45X27-ND	495-5186B65705B 3XB65705B0003X000B65705B3X-ND	495-5185B65702B T 1B65702B0000T001B65702BT1-ND	B65701W R 30B65701W0000R030	B65701D2000K 48B65701D2000K048	B65701T 400A 48B65701T0400A048
