Data sheet...
PAC
PAC-QTUM-SD37-V0-3M
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

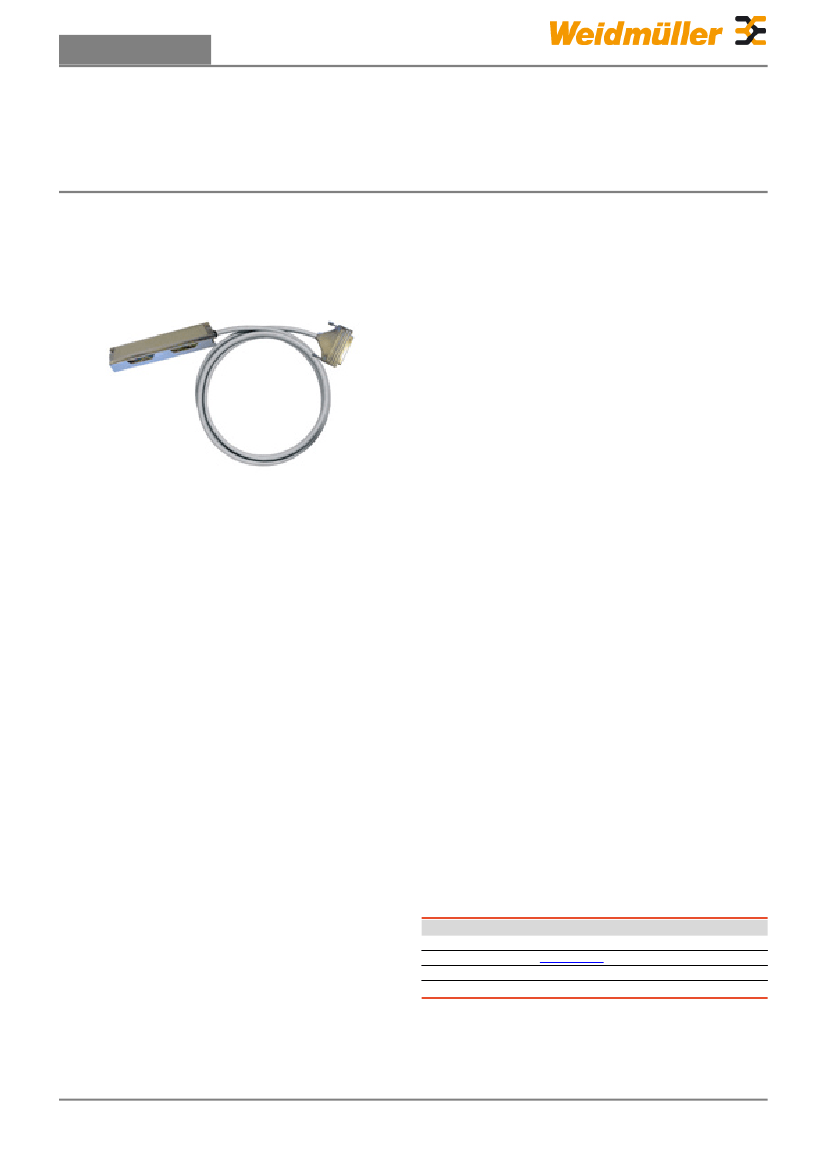

The pre-assembled PAC cable provide the electrical
and logical connection between the PLC and the
PLC interfaces. These cables consist of the following
elements:
• PLC connection from the manufacturer.
• Multi-pole LIYY or LY YCY (shielded) cable with 0.14
mm² or 0.25 mm² cross-section.
• SubD or RSV connectors for the connection to the
interface.
The cables are automatically tested for continuity and
isolation in order to guarantee their special functionality
for which they were developed.
General ordering data
Type
Order No.
Version
GTIN (EAN)
PAC-QTUM-SD37-V0-3M
7789123030
Pre-assembled cable, PAC, Cable LiYCY, 0.25 mm²
Creation date August 1, 2013 6:42:33 PM CEST
Catalogue status 08.07.2013 / We reserve the right to make technical changes.
1
Data sheet...
PAC
PAC-QTUM-SD37-V0-3M
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
-10...+50°C
Storage temperature
Temperatures
Operating temperature
-10...+60 °C
General Data
Connector PLC side
Number of poles, min.
Cable
Material
SCHNEIDER
140XTS00200 40P
37-pole
Cable LiYCY
PVC
Interface connector
Outer diameter
Cable length
Wire cross-section
SUB-D FEMALE 37P
12.2 ± 1 mm
3m
0.25 mm²
Electrical Data
Rated voltage (text)
Total current, max.
High voltage test
≤ 60 Vdc ≤ 25 Vac
3A
1 KV/1s
Permissible current strength per path,
max.
Resistance
1A
≤ 80 mΩ/m
Classifications
eClass 6.2
Approvals
Approvals
Creation date August 1, 2013 6:42:33 PM CEST
Catalogue status 08.07.2013 / We reserve the right to make technical changes.
2
