CRB2A4E132JT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CRB2A4E132JT

CRB2A4E132JT: DescriptionArray/Network Resistor, Isolated, 0.0625W, 1300ohm, 50V, 5% +/-Tol, Surface Mount, 0804, CHIP; CategoryPassive components The resistor; File Size52KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

CRB2A4E132JT Overview

Array/Network Resistor, Isolated, 0.0625W, 1300ohm, 50V, 5% +/-Tol, Surface Mount, 0804, CHIP

CRB2A4E132JT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1920612539
package instruction	CHIP
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Component power consumption	0.0625 W
The first element resistor	1300 Ω
Manufacturer's serial number	CRB
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.4 mm
Package length	2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1 mm
method of packing	TR, PUNCHED PAPER, 7 INCH
Rated power dissipation(P)	0.0625 W
Rated temperature	70 °C
resistance	1300 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	CRB2A4E
size code	0804
surface mount	YES
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

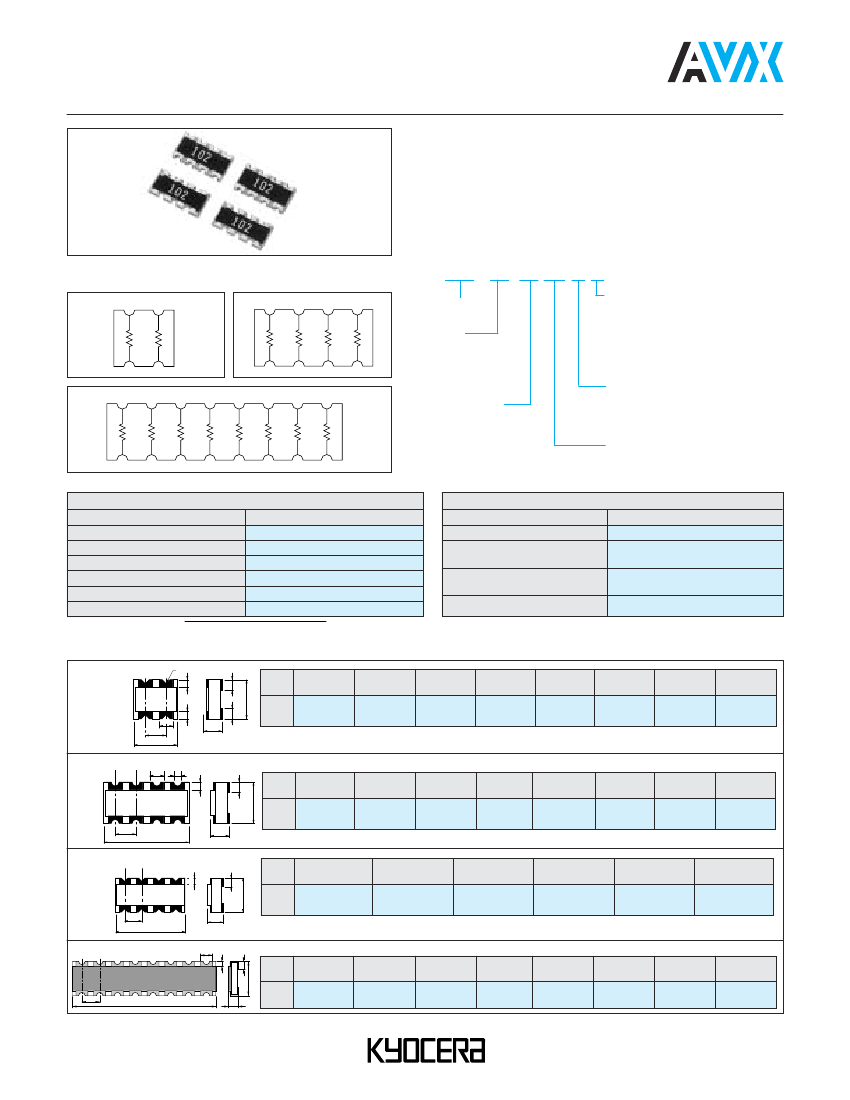

Chip Resistor Arrays

CRB Series (Concave Type)

FEATURES

• Reduction in mounting

process & costs

• Save PCB space

• Reduction of inventory

control costs

Chip Resistor Arrays have several resistor elements

integrated as a single component.

APPLICATIONS

•

Computer

Hard Disk Drive

Printer

CD-ROM

HOW TO ORDER

CRB

Series

Size

1A = 0606 size

2A = 0804 size

3A = 1206 size

6A = 2506 size

2E 103 J T

Packaging

T = Paper Taping

• CRB1A 10,000 pcs/7" reel

• CRB2A 10,000 pcs/7" reel

• CRB3A 5,000 pcs/7" reel

U = Plastic Taping

• CRB6A 4,000 pcs/7" reel

2 Resistors Circuit

4 Resistors Circuit

R1=R2

R1=R2=R3=R4

8 Resistors Circuit

Resistance Tolerance

J = ±5%

G = ±2%

Blank = Chip Jumper Arrays

Number of

Elements

2E = 2 Elements

4E = 4 Elements

8E = 8 Elements

Resistance Value

(3 digits)

Chip Jumper Arrays = 000

R1=R2=R3=R4=R5=R6=R7=R8

RATING

Chip Resistor Arrays

Item

Rating

Rated Power (70°C)*

1/16W Element

Max. Working Voltage

50V

Max. Overload Voltage

100V

Resistance Value

10Ω to 2.2MΩ (CRB6A 1MΩ max.)

Tolerance

J±5% (CRB6A G ± 2% only)

Working Temperature

-55 to +125°C

*Rated voltage = 50V or

Rated power x Resistance value, whichever is less

Chip Jumper Arrays

Item

Rated Current

Conductive

Resistance Value

Working Temperature

Rating

50MΩ max.

Zero ohms

(0 ± .5 ohms)

-55 to +125°C

DIMENSIONS

CRB1A2E

millimeters (inches)

Code

1.60±0.15

1.60±0.20

0.30±0.20

0.40±0.15

0.60±0.10

0.50±0.15

0.30±0.10

0.80±0.10

Dim.

(0.063±0.006) (0.063±0.008) (0.012±0.008) (0.016±0.006) (0.024±0.006) (0.020±0.006) (0.012±0.004) (0.031±0.004)

No Marking on chips

CRB2A4E

Code

2.00±0.10

1.00±0.10

0.40±0.10

0.50 typ

0.25 typ

(0.010 typ)

Dim.

(0.079±0.004) (0.039±0.004) (0.016±0.004) (0.020 typ)

ø0.15 typ

0.20±0.15

0.25±0.015

(ø0.006 typ) (0.008±0.006) (0.010±0.006)

CRB3A4E

Code

1.60±0.15

(0.063±0.006)

3.20±0.15

(0.126±0.006)

0.30±0.20

(0.012±0.008)

0.40±0.15

(0.016±0.006)

0.60±0.10

(0.024±0.004)

0.80 typ

(0.031 typ)

Dim.

CRB6A8E

Code

Dim.

(top)

(bottom)

6.40±0.20

1.60±0.20

0.60±0.10

0.80 typ

(0.252±0.008) (0.063±0.008) (0.024±0.004) (0.031 typ)

0.30±0.20

0.40±0.15

0.50±0.10

0.40±0.15

(0.012±0.008) (0.016±0.006) (0.020±0.004) (0.016±0.006)

Detailed specifications are available on request.
