MK02271R2DAT9A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 41.6667% +Tol, 41.6667% -Tol, C0G, -/+30ppm/Cel TC, 0.0000012uF, 0402,; CategoryPassive components capacitor; File Size318KB，3 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

MK02271R2DAT9A Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 41.6667% +Tol, 41.6667% -Tol, C0G, -/+30ppm/Cel TC, 0.0000012uF, 0402,

MK02271R2DAT9A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	717343609
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.85
capacitance	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e3
length	1 mm
multi-layer	Yes
negative tolerance	41.6667%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk
positive tolerance	41.6667%
Rated (DC) voltage (URdc)	200 V
series	MK
size code	0402
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn)
width	0.5 mm

Preview

Download Datasheet

View All

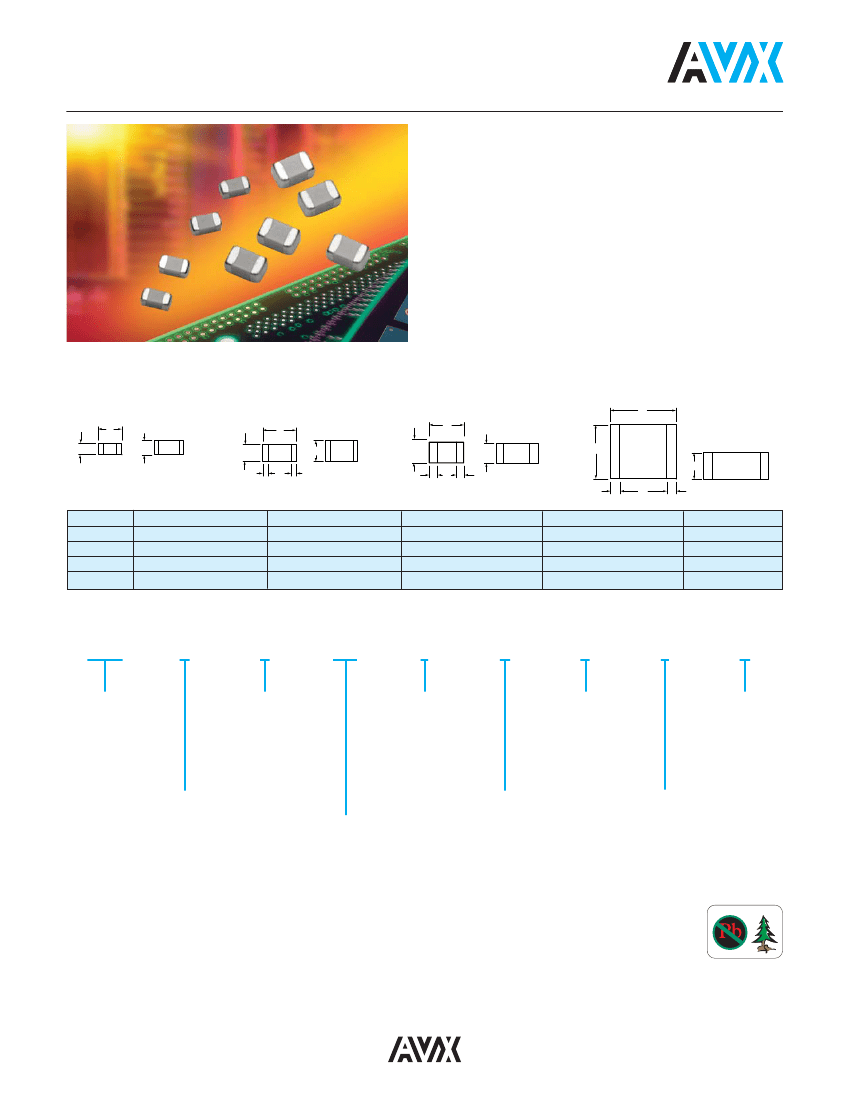

MK Series Capacitors

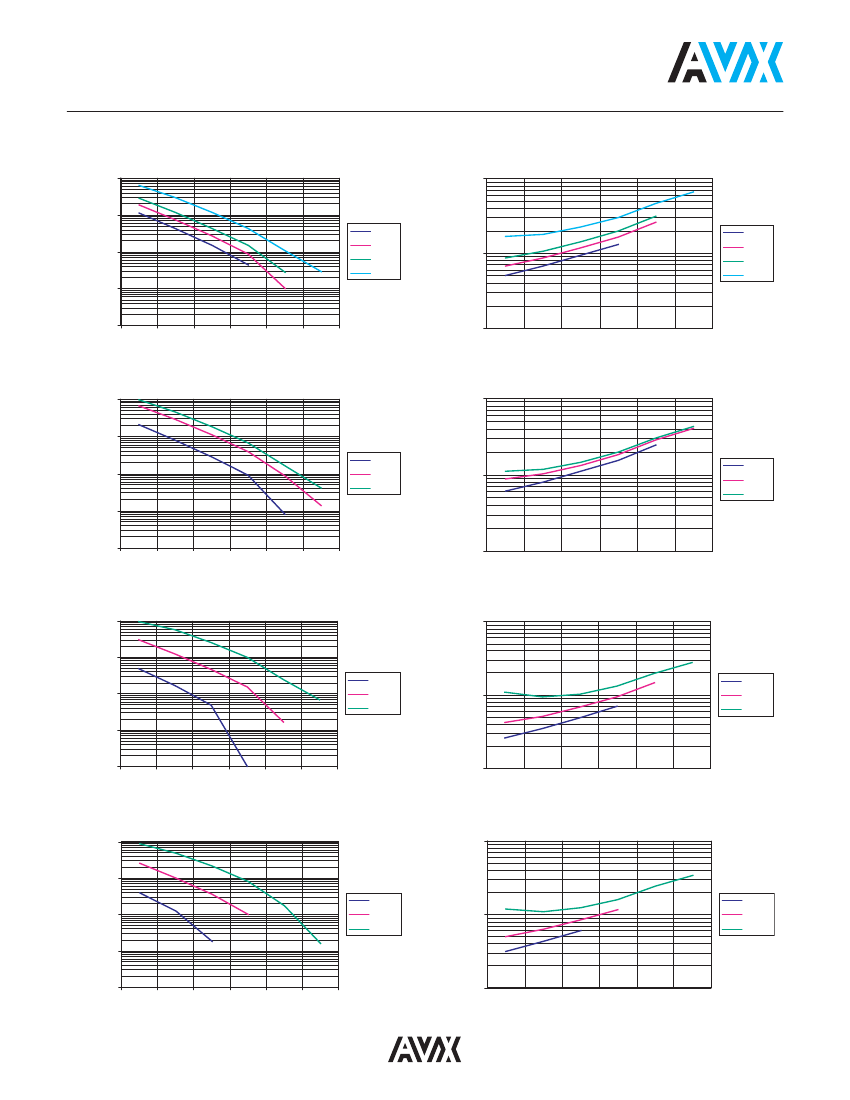

Ultra Low ESR, C0G (NP0) Chip Capacitors

GENERAL INFORMATION

Capacitors are C0G (NP0) chip capacitors specially designed

for “Ultra” low ESR for applications in the communications

market. Max ESR and effective capacitance are met on each

value producing lot to lot uniformity. Sizes available are EIA

chip sizes 0402, 0603, 0805, and 1210.

DIMENSIONS:

inches (millimeters)

0402

A

B

C

B

D

E

D

A

C

B

D

E D

D

E

D

0603

A

0805

A

1210

C

B

C

Size

0402

0603

0805

1210

A

0.039±0.004 (1.00±0.1)

0.060±0.010 (1.52±0.25)

0.079±0.008 (2.01±0.2)

0.126±0.008 (3.2±0.2)

B

0.020±0.004 (0.50±0.1)

0.030±0.010 (0.76±0.25)

0.049±0.008 (1.25±0.2)

0.098±0.008 (2.49±0.2)

C

0.024 (0.6) max

0.036 (0.91) max

0.040±0.005 (1.02±0.127)

0.050±0.005 (1.27±0.127)

D

N/A

0.010±0.005 (0.25±0.13)

0.020±0.010 (0.51±0.254)

0.025±0.015 (0.635±0.381)

inches (mm)

E

N/A

0.030 (0.76) min

0.020 (0.51) min

0.040 (1.02) min

HOW TO ORDER

MK05

Case Size

MK02 = 0402

MK03 = 0603

MK05 = 0805

MK10 = 1210

V

7

Dielectric =

Ultra Low

ESR

100

J

Capacitance

Tolerance

Code

B = ±0.1pF

C = ±0.25pF

D = ±0.5pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

A

T

Termination

T = 100% Tin

2

A

Special Code

A = Standard

Voltage Code

5 = 50V

1 = 100V

2 = 200V

V = 250V

7 = 500V

Failure Rate

Code

A = Not Applicable

Packaging

Code

2 = 7" Reel

4 = 13" Reel

9 = Bulk

Capacitance

EIA Capacitance Code in pF.

First two digits = significant figures

or “R” for decimal place.

Third digit = number of zeros or after

“R” significant figures.

RoHS COMPLIANT
