Inductors (Coils) > Chip Inductor (Chip Coil) > Power Inductor (Wire Wound Type)
Data Sheet
1
Chip Inductor (Chip Coil)
I
Dimensions
Power Inductor (Wire Wound Type)
LQH6PP Series (2424 Size)
I
Packaging
Code
L
K
6.0±0.2
4.3±0.2
(0.2)
Packaging
180mm Embossed Tape
330mm Embossed Tape
Minimum Quantity
250
1500
6.0±0.2
6.0±0.2
2.3 (typ.)
0.85 (typ.)
1.65±0.2
1.65±0.2
(in mm)
I
Rated Value (p: packaging code)
Part Number
LQH6PPN1R0N43p
LQH6PPN1R5N43p
LQH6PPN2R2N43p
LQH6PPN3R3N43p
LQH6PPN4R7M43p
LQH6PPN6R8M43p
LQH6PPN100M43p
LQH6PPN150M43p
LQH6PPN220M43p
LQH6PPN330M43p
LQH6PPN470M43p
LQH6PPN680M43p
LQH6PPN101M43p
Inductance
1.0µH±30%
1.5µH±30%
2.2µH±30%
3.3µH±30%
4.7µH±20%
6.8µH±20%
10µH±20%
15µH±20%
22µH±20%
33µH±20%
47µH±20%
68µH±20%
100µH±20%
Rated Current
(Based on Inductance Change)
7.50A
6.50A
5.60A
4.50A
4.00A
3.20A
2.60A
2.20A
1.70A
1.60A
1.25A
1.10A
0.92A
Rated Current
(Based on Temperature Rise)
4.30A
4.15A
4.10A
3.80A
3.20A
2.85A
2.60A
2.20A
1.55A
1.29A
1.10A
1.00A
0.80A
DC Resistance
0.009ohm±30%
0.010ohm±30%
0.014ohm±30%
0.016ohm±30%
0.020ohm±30%
0.028ohm±30%
0.044ohm±30%
0.065ohm±30%
0.108ohm±30%
0.137ohm±30%
0.230ohm±30%
0.289ohm±30%
0.436ohm±30%
Self Resonance
Frequency (min.)
110MHz
60MHz
30MHz
30MHz
25MHz
20MHz
15MHz
10MHz
10MHz
6MHz
6MHz
5MHz
3MHz
Test Frequency: 100kHz
Class of Magnetic Shield: Magnetic shield of magnetic powder in resin
Operating Temperature Range (Self-temperature rise is included): -40°C to +125°C
Operating Temperature Range (Self-temperature rise is not included): -40°C to +85°C
Only for reflow soldering.
Continued on the following page.
o
This data sheet is applied for CHIP INDUCTORS (CHIP COILS) used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2010.9.9
http://www.murata.com/
Inductors (Coils) > Chip Inductor (Chip Coil) > Power Inductor (Wire Wound Type)
Data Sheet
Continued from the preceding page.
2
I
Notice (Rated Current)
<Rated Current>
(Based on Inductance Change)
When Rated Current is applied to the Products,
Inductance will be within +-30% of nominal
Inductance value.
<Rated Current>
(Based on Temperature Rise)
When Rated Current is applied to the Products,
self-generation of heat will rise to 40°C or less.
I

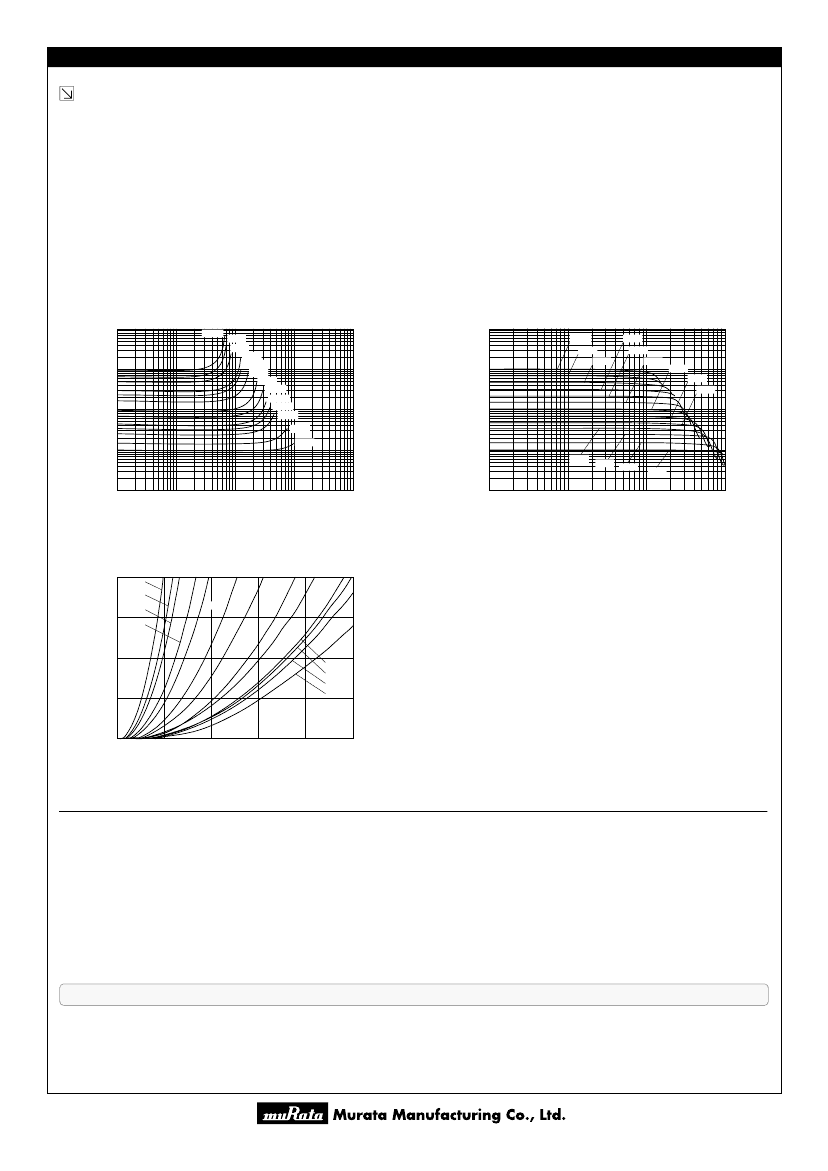

Inductance-Frequency Characteristics (Typ.)
1000
100µH
68µH
47µH
33µH
22µH
15µH
10µH
6.8µH
4.7µH
3.3µH
2.2µH
1.5µH
1.0µH
1
I
Inductance-Current Characteristics (Typ.)
1000
100µH
68µH
47µH
100
Inductance (µH)
33µH
22µH
15µH
10µH
6.8µH
4.7µH
10
100
Inductance (µH)
10
1
3.3µH
1.5µH
2.2µH
1.0µH
0.1
0.1
1
10
Frequency (MHz)
100
1000
0.1
10
100
Current (mA)
1000
10000
I
Temperature Rise Characteristics (Typ.)
40
100µH
68µH
47µH
30
Temperature Rise (°C)
33µH
22µH
15µH
10µH
6.8µH
4.7µH
20
3.3µH
2.2µH
1.5µH
1.0µH
10
0
0
1000
2000
3000
Current (mA)
4000
5000
I
!Caution/Notice
!Caution
(Rating)
Do not use products beyond the rated current as
this may create excessive heat.
Notice
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
o
This data sheet is applied for CHIP INDUCTORS (CHIP COILS) used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2010.9.9
http://www.murata.com/
