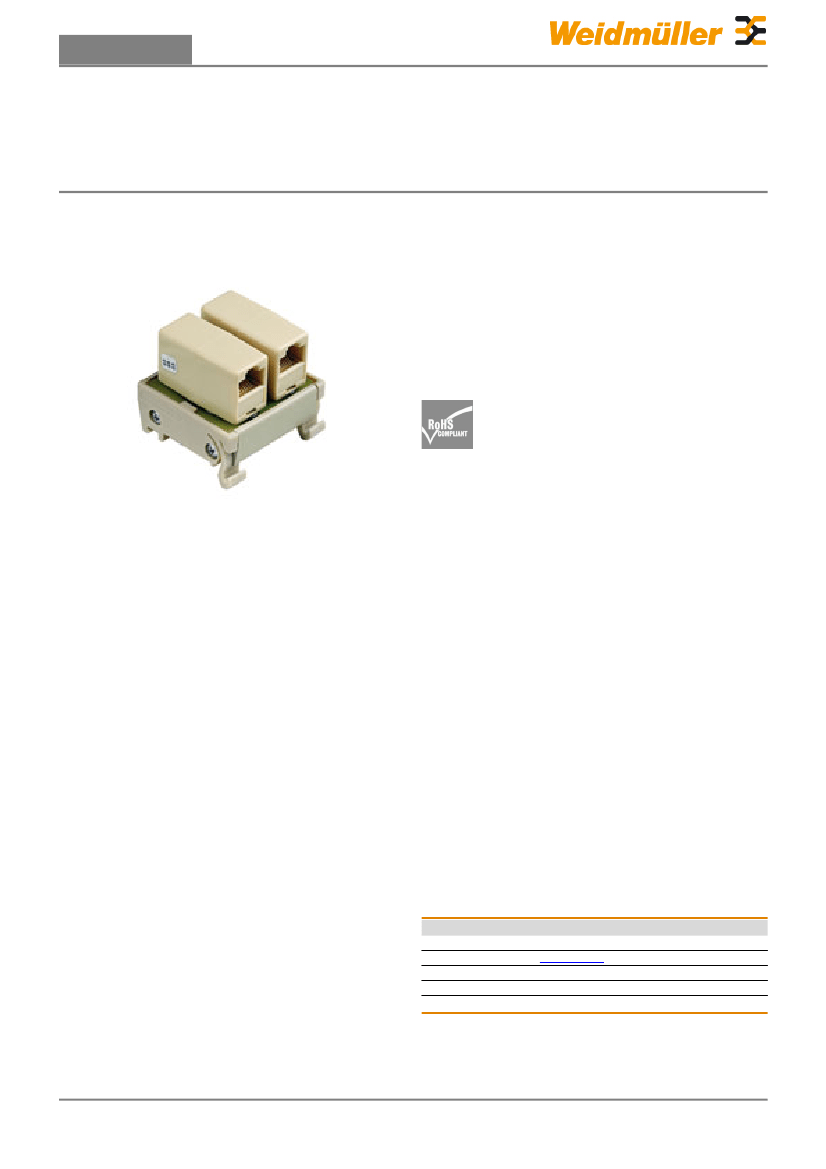

Data sheet
RS RJ45
RS RJ45 2WAY
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
The RS RJ45 interface range is a simple and convenient
alternative for connecting modems, routers, computers or
other communication elements with existing components
in electrical cabinets.
They can be used to adapt the shielded RJ45 8-pole
connectors to screw connections, or for coupling 2 data
lines. The modules can be attached to standard TS35
mounting rails.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
RS RJ45 2WAY
8555440000
Interface, RS RJ45, 2 x RJ45 connector
4032248193882
1 pc(s).
Creation date December 18, 2013 9:25:36 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
RS RJ45
RS RJ45 2WAY
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
46.8 mm
44.2 mm
Width
Net weight
Dimensions and weights
Length
Height
45 mm
60 g
Temperatures
Operating temperature
0...+55°C
Storage temperature
-40...+70 °C
Connection Data
Connection on control side
Connection (field side)
Transmission rate
2 x RJ45 connector
2 x RJ45 plug-in
connectors
Cat 5 100 Mbits
Contact material (control side)
Number of poles (field side)
Phosphor-bronze 6μ AU
8P
Rating data
Rated voltage
Total operating current
50 V
1.5 A
Rated current per connection
1A
Insulation coordination (EN50178)
According to
Surge voltage category
Pulse voltage test (1,2/50μs)
DIN EN 50178
III
0.8 kV
Rated insulation voltage
Pollution severity level
Insulation test voltage
< 50 V AC
2
0.35 kVAC
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC001419
27-24-22-04
27-24-22-04
UNSPSC
eClass 6.2
30-21-18-01
27-24-22-04
Product information
Descriptive text technical data
Connect shielding of data line to protective earth at one end
Approvals
Approvals
ROHS
Conform
Creation date December 18, 2013 9:25:36 PM CET
Catalogue status / We reserve the right to make technical changes.
2
Data sheet
RS RJ45
RS RJ45 2WAY
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Creation date December 18, 2013 9:25:36 PM CET
Catalogue status / We reserve the right to make technical changes.
3
